9y7m

HCMV Protease in complex with Fab5 - Class 2

Method: ELECTRON MICROSCOPY D_max: 106.5 Å Quality: REASONABLE

SAXS Profile

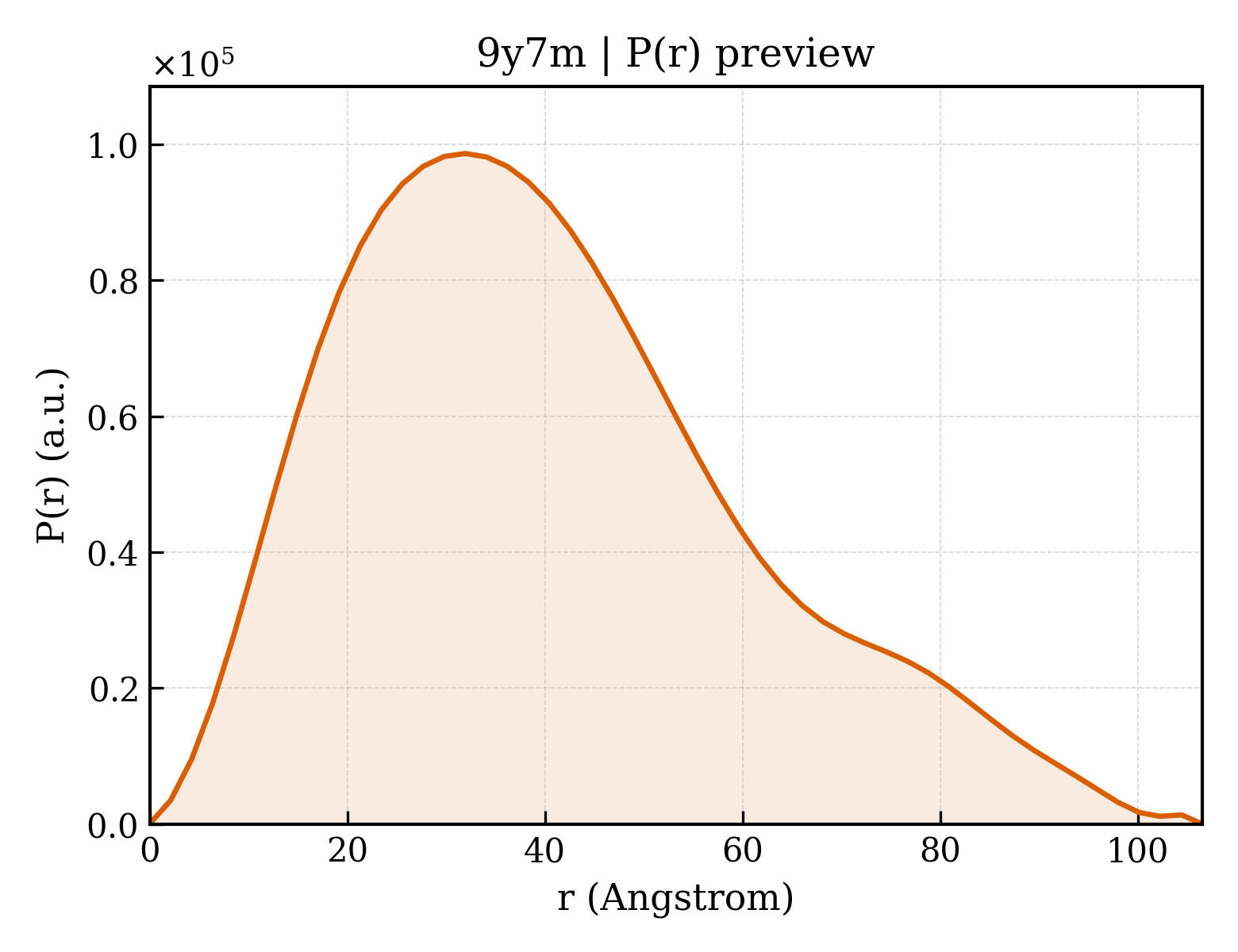

P(r) Distribution

▼

1. Structure Basics

entry_id	9y7m
deposition_date	2025-09-10
title	HCMV Protease in complex with Fab5 - Class 2
keywords	Cytomegalovirus, protease, antibody, complex, HYDROLASE; HYDROLASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.51 Å
rg_electron	30.22 Å
i0	60439200.00
molecular_weight	57795.0 kDa
excluded_volume	70832 Å³
envelope_volume	101190 Å³
shell_volume	29598 Å³
envelope_diameter	113.5 Å
shell_rg	35.03 Å
envelope_rg	30.87 Å
shape_rg	30.30 Å
total_rg	30.43 Å
total_atoms	7885
n_residues	582
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	106.5 Å
rg_real	31.87 Å
rg_real_error	1.09 Å
i0_real	6.0440e+07
i0_real_error	9.7260e+05
rg_reciprocal	31.72 Å
i0_reciprocal	60430000.0000
total_estimate	0.6109
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	31.9 Å
skewness	0.601
kurtosis	-0.147
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	9251000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.795; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.855; Smooth: 0.513

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Fab5 heavy chain
formula_weight	24943.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	7885

QVQLVQSGGGLVQPGRSLRLSCTASGFTFGDYAMSWFRQAPGKGLEWVGFIRSKAYGGTTEYAASVKGRFTISRDDSKSIAYLQMNSLKTEDTALYYCVVYNYYNYGMDVWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCAAAHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21

Entity 2 polymer

description	Assemblin
formula_weight	29089.7 kDa
ec_number	3.4.21.97
mutation	A143V, A209V
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MHHHHHHMTMDEQQSQAVAPVYVGGFLARYDQSPDEAELLLPRDVVEHWLHAQGQGQPSLSVALPLNINHDDTAVVGHVAAMQSVRDGLFCLGCVTSPRFLEIVRRASEKSELVSRGPVSPLQPDKVVEFLSGSYAGLSLSSRRCDDVEVATSLSGSETTPFKHVALCSVGRRRGTLAVYGRDPEWVTQRFPDLTAADRDGLRAQWQRCGSTAVDVSGDPFRSDSYGLLGNSVDALYIRERLPKLRYDKQLVGVTERESYVKA

Source

organism	Cytomegalovirus
ncbi_taxonomy_id	10358
host_organism	Escherichia coli BL21

Entity 3 polymer

description	Fab5 light chain
formula_weight	23970.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

LDVVMTQSPLSLPVTPGEPASISCRSSQSLLHSNGYNYLDWYLQKPGQSPQLLIYLGSNRASGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCMQALQTPITFGPGTKVDIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.570 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.57 Å
resolution_method	—
num_particles	538690

fit	/app/data/saxs_computation/y7/9y7m/9y7m.fit
pddf	/app/data/pr_computation/y7/9y7m/9y7m.pr.out
profile	/app/data/saxs_computation/y7/9y7m/9y7m.dat
