SAXSdb — 9yg5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Endoplasmic reticulum membrane adapter protein XK

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Intermembrane lipid transfer protein VPS13A × 1 （Q96RL7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XK_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–444； UniProt 1–444

Intermembrane lipid transfer protein VPS13A

Homo sapiens

UniProt Q96RL7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Endoplasmic reticulum membrane adapter protein XK × 1 （P51811）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VP13A_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–1625； UniProt 1550–3174

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9yg5
Deposition date deposition_date	2025-09-27
Structure title title	VPS13A/Ct-XKR1
Keywords keywords	VPS13A, XKR1, BLTPs, Scrambles, LIPID TRANSPORT; LIPID TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9yg5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9yg5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

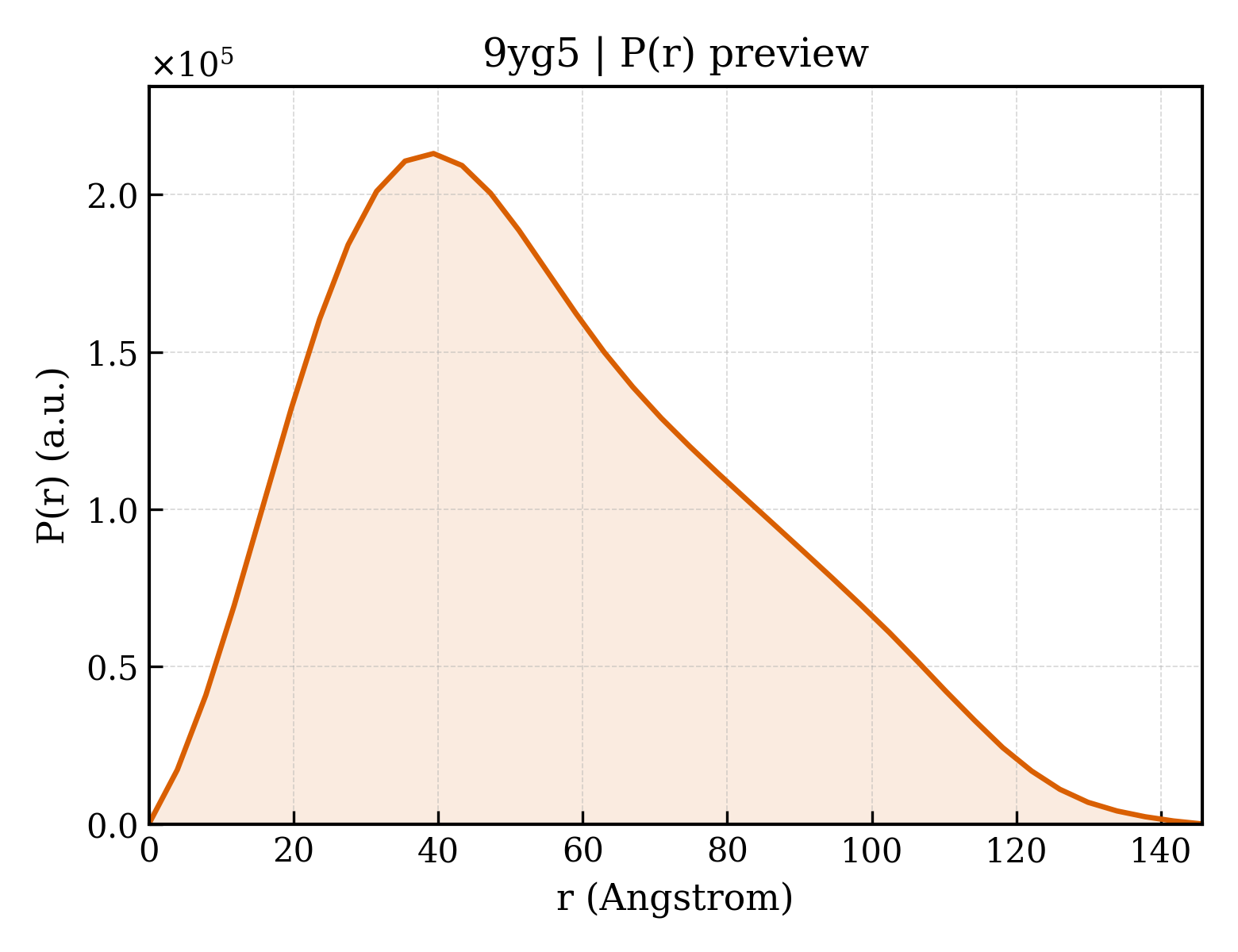

9yg5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.86 Å
Rg (electron density)	43.71 Å
Total Rg	43.90 Å
Atom count	8250
Residues	1020
Excluded volume	150090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9yg5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Endoplasmic reticulum membrane adapter protein XK
Molecular weight formula_weight	50946.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	8250

MKFPASVLASVFLFVAETTAALSLSSTYRSGGDRMWQALTLLFSLLPCALVQLTLLFVHRDLSRDRPLVLLLHLLQLGPLFRCFEVFCIYFQSGNNEEPYVSITKKRQMPKNGLSEEIEKEVGQAEGKLITHRSAFSRASVIQAFLGSAPQLTLQLYISVMQQDVTVGRSLLMTISLLSIVYGALRCNILAIKIKYDEYEVKVKPLAYVCIFLWRSFEIATRVVVLVLFTSVLKTWVVVIILINFFSFFLYPWILFWCSGSPFPENIEKALSRVGTTIVLCFLTLLYTGINMFCWSAVQLKIDSPDLISKSHNWYQLLVYYMIRFIENAILLLLWYLFKTDIYMYVCAPLLVLQLLIGYCTAILFMLVFYQFFHPCKKLFSSSVSEGFQRWLRCFCWACRQQKPCEPIGKEDLQSSRDRDETPSSSKTSPEPGQFLNAEDLCSA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Intermembrane lipid transfer protein VPS13A
Molecular weight formula_weight	184124.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

VKWEINVIIKNPEIVFVADMTKNDAPALVITTQCEICYKGNLENSTMTAAIKDLQVRACPFLPVKRKGKITTVLQPCDLFYQTTQKGTDPQVIDMSVKSLTLKVSPVIINTMITITSALYTTKETIPEETASSTAHLWEKKDTKTLKMWFLEESNETEKIAPTTELVPKGEMIKMNIDSIFIVLEAGIGHRTVPMLLAKSRFSGEGKNWSSLINLHCQLELEVHYYNEMFGVWEPLLEPLEIDQTEDFRPWNLGIKMKKKAKMAIVESDPEEENYKVPEYKTVISFHSKDQLNITLSKCGLVMLNNLVKAFTEAATGSSADFVKDLAPFMILNSLGLTISVSPSDSFSVLNIPMAKSYVLKNGESLSMDYIRTKDNDHFNAMTSLSSKLFFILLTPVNHSTADKIPLTKVGRRLYTVRHRESGVERSIVCQIDTVEGSKKVTIRSPVQIRNHFSVPLSVYEGDTLLGTASPENEFNIPLGSYRSFIFLKPEDENYQMCEGIDFEEIIKNDGALLKKKCRSKNPSKESFLINIVPEKDNLTSLSVYSEDGWDLPYIMHLWPPILLRNLLPYKIAYYIEGIENSVFTLSEGHSAQICTAQLGKARLHLKLLDYLNHDWKSEYHIKPNQQDISFVSFTCVTEMEKTDLDIAVHMTYNTGQTVVAFHSPYWMVNKTGRMLQYKADGIHRKHPPNYKKPVLFSFQPNHFFNNNKVQLMVTDSELSNQFSIDTVGSHGAVKCKGLKMDYQVGVTIDLSSFNITRIVTFTPFYMIKNKSKYHISVAEEGNDKWLSLDLEQCIPFWPEYASSKLLIQVERSEDPPKRIYFNKQENCILLRLDNELGGIIAEVNLAEHSTVITFLDYHDGAATFLLINHTKNELVQYNQSSLSEIEDSLPPGKAVFYTWADPVGSRRLKWRCRKSHGEVTQKDDMMMPIDLGEKTIYLVSFFEGLQRIILFTEDPRVFKVTYESEKAELAEQEIAVALQDVGISLVNNYTKQEVAYIGITSSDVVWETKPKKKARWKPMSVKHTEKLEREFKEYTESSPSEDKVIQLDTNVPVRLTPTGHNMKILQPHVIALRRNYLPALKVEYNTSAHQSSFRIQIYRIQIQNQIHGAVFPFVFYPVKPPKSVTMDSAPKPFTDVSIVMRSAGHSQISRIKYFKVLIQEMDLRLDLGFIYALTDLMTEAEVTENTEVELFHKDIEAFKEEYKTASLVDQSQVSLYEYFHISPIKLHLSVSLSSGREEAKDSKQNGGLIPVHSLNLLLKSIGATLTDVQDVVFKLAFFELNYQFHTTSDLQSEVIRHYSKQAIKQMYVLILGLDVLGNPFGLIREFSEGVEAFFYEPYQGAIQGPEEFVEGMALGLKALVGGAVGGLAGAASKITGAMAKGVAAMTMDEDYQQKRREAMNKQPAGFREGITRGGKGLVSGFVSGITGIVTKPIKGAQKGGAAGFFKGVGKGLVGAVARPTGGIIDMASSTFQGIKRATETSEVESLRPPRFFNEDGVIRPYRLRDGTGNQMLQVMENGRFAKYKYFTHVMINKTDMLMITRRGVLFVTKGTFGQLTCEWQYSFDEFTKEPFIVHGRRLRIEAKERVKSVFHAREFGKIINFKTPEDARWILTKLQEAREPSPSL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.41 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	385639
