1. Structure Basics

entry_id	9yqq
deposition_date	2025-10-15
title	Cryo-EM structure of the VPS13C C-terminal region
keywords	Lipid transport protein; BLTP; membrane repair; membrane homeostasis; VPS13C, LIPID TRANSPORT; LIPID TRANSPORT
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.01 Å
rg_electron	49.02 Å
i0	536324000.00
molecular_weight	196830.0 kDa
excluded_volume	248970 Å³
envelope_volume	383180 Å³
shell_volume	68373 Å³
envelope_diameter	165.7 Å
shell_rg	50.61 Å
envelope_rg	47.52 Å
shape_rg	49.01 Å
total_rg	49.12 Å
total_atoms	13839
n_residues	1739
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	161.5 Å
rg_real	49.05 Å
rg_real_error	1.48 Å
i0_real	5.3630e+08
i0_real_error	1.0020e+07
rg_reciprocal	49.01 Å
i0_reciprocal	536300000.0000
total_estimate	0.8624
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	60.6 Å
skewness	0.336
kurtosis	-0.308
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	29400000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.514

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	Intermembrane lipid transfer protein VPS13C
formula_weight	425875.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	13839

MVLESVVADLLNRFLGDYVENLNKSQLKLGIWGGNVALDNLQIKENALSELDVPFKVKAGQIDKLTLKIPWKNLYGEAVVATLEGLYLLVVPGASIKYDAVKEEKSLQDVKQKELSRIEEALQKAAEKGTHSGEFIYGLENFVYKDIKPGRKRKKHKKHFKKPFKGLDRSKDKPKEAKKDTFVEKLATQVIKNVQVKITDIHIKYEDDVTDPKRPLSFGVTLGELSLLTANEHWTPCILNEADKIIYKLIRLDSLSAYWNVNCSMSYQRSREQILDQLKNEILTSGNIPPNYQYIFQPISASAKLYMNPYAESELKTPKLDCNIEIQNIAIELTKPQYLSMIDLLESVDYMVRNAPYRKYKPYLPLHTNGRRWWKYAIDSVLEVHIRRYTQMWSWSNIKKHRQLLKSYKIAYKNKLTQSKVSEEIQKEIQDLEKTLDVFNIILARQQAQVEVIRSGQKLRKKSADTGEKRGGWFSGLWGKKESKKKDEESLIPETIDDLMTPEEKDKLFTAIGYSESTHNLTLPKQYVAHIMTLKLVSTSVTIRENKNIPEILKIQIIGLGTQVSQRPGAQALKVEAKLEHWYITGLRQQDIVPSLVASIGDTTSSLLKIKFETNPEDSPADQTLIVQSQPVEVIYDAKTVNAVVEFFQSNKGLDLEQITSATLMKLEEIKERTATGLTHIIETRKVLDLRINLKPSYLVVPQTGFHHEKSDLLILDFGTFQLNSKDQGLQKTTNSSLEEIMDKAYDKFDVEIKNVQLLFARAEETWKKCRFQHPSTMHILQPMDIHVELAKAMVEKDIRMARFKVSGGLPLMHVRISDQKMKDVLYLMNSIPLPQKSSAQSPERQVSSIPIISGGTKGLLGTSLLLDTVESESDDEYFDAEDGEPQTCKSMKGSELKKAAEVPNEELINLLLKFEIKEVILEFTKQQKEEDTILVFNVTQLGTEATMRTFDLTVVSYLKKISLDYHEIEGSKRKPLHLISSSDKPGLDLLKVEYIKADKNGPSFQTAFGKTEQTVKVAFSSLNLLLQTQALVASINYLTTIIPSDDQSISVAKEVQISTEKQQKNSTLPKAIVSSRDSDIIDFRLFAKLNAFCVIVCNEKNNIAEIKIQGLDSSLSLQSRKQSLFARLENIIVTDVDPKTVHKKAVSIMGNEVFRFNLDLYPDATEGDLYTDMSKVDGVLSLNVGCIQIVYLHKFLMSLLNFLNNFQTAKESLSAATAQAAERAATSVKDLAQRSFRVSINIDLKAPVIVIPQSSISTNAVVVDLGLIRVHNQFSLVSDEDYLNPPVIDRMDVQLTKLTLYRTVIQPGIYHPDIQLLHPINLEFLVNRNLAASWYHKVPVVEIKGHLDSMNVSLNQEDLNLLFRILTENLCEGTEDLDKVKPRVQETGEIKEPLEISISQDVHDSKNTLTTGVEEIRSVDIINMLLNFEIKEVVVTLMKKSEKKGRPLHELNVLQLGMEAKVKTYDMTAKAYLKKISMQCFDFTDSKGEPLHIINSSNVTDEPLLKMLLTKADSDGPEFKTIHDSTKQRLKVSFASLDLVLHLEALLSFMDFLSSAAPFSEPSSSEKESELKPLVGESRSIAVKAVSSNISQKDVFDLKITAELNAFNVFVCDQKCNIADIKIHGMDASISVKPKQTDVFARLKDIIVMNVDLQSIHKKAVSILGDEVFRFQLTLYPDATEGEAYADMSKVDGKLSFKVGCIQIVYVHKFFMSLLNFLNNFQTAKEALSTATVQAAERAASSMKDLAQKSFRLLMDINLKAPVIIIPQSSVSPNAVIADLGLIRVENKFSLVPMEHYSLPPVIDKMNIELTQLKLSRTILQASLPQNDIEILKPVNMLLSIQRNLAAAWYVQIPGMEIKGKLKPMQVALSEDDLTVLMKILLENLGEASSQPSPTQSVQETVRVRKVDVSSVPDHLKEQEDWTDSKLSMNQIVSLQFDFHFESLSIILYNNDINQESGVAFHNDSFQLGELRLHLMASSGKMFKDGSMNVSVKLKTCTLDDLREGIERATSRMIDRKNDQDNNSSMIDISYKQDKNGSQIDAVLDKLYVCASVEFLMTVADFFIKAVPQSPENVAKETQILPRQTATGKVKIEKDDSVRPNMTLKAMITDPEVVFVASLTKADAPALTASFQCNLSLSTSKLEQMMEASVRDLKVLACPFLREKRGKNITTVLQPCSLFMEKCTWASGKQNINIMVKEFIIKISPIILNTVLTIMAALSPKTKEDGSKDTSKEMENLWGIKSINDYNTWFLGVDTATEITESFKGIEHSLIEENCGVVVESIQVTLECGLGHRTVPLLLAESKFSGNIKNWTSLMAAVADVTLQVHYYNEIHAVWEPLIERVEGKRQWNLRLDVKKNPVQDKSLLPGDDFIPEPQMAIHISSGNTMNITISKSCLNVFNNLAKGFSEGTASTFDYSLKDRAPFTVKNAVGVPIKVKPNCNLRVMGFPEKSDIFDVDAGQNLELEYASMVPSSQGNLSILSRQESSFFTLTIVPHGYTEVANIPVARPGRRLYNVRNPNASHSDSVLVQIDATEGNKVITLRSPLQIKNHFSIAFIIYKFVKNVKLLERIGIARPEEEFHVPLDSYRCQLFIQPAGILEHQYKESTTYISWKEELHRSREVRCMLQCPSVEVSFLPLIVNTVALPDELSYICTHGEDWDVAYIIHLYPSLTLRNLLPYSLRYLLEGTAETHELAEGSTADVLHSRISGEIMELVLVKYQGKNWNGHFRIRDTLPEFFPVCFSSDSTEVTTVDLSVHVRRIGSRMVLSVFSPYWLINKTTRVLQYRSEDIHVKHPADFRDIILFSFKKKNIFTKNKVQLKISTSAWSSSFSLDTVGSYGCVKCPANNMEYLVGVSIKMSSFNLSRIVTLTPFCTIANKSSLELEVGEIASDGSMPTNKWNYIASSECLPFWPESLSGKLCVRVVGCEGSSKPFFYNRQDNGTLLSLEDLNGGILVDVNTAEHSTVITFSDYHEGSAPALIMNHTPWDILTYKQSGSPEEMVLLPRQARLFAWADPTGTRKLTWTYAANVGEHDLLKDGCGQFPYDANIQIHWVSFLDGRQRVLLFTDDVALVSKALQAEEMEQADYEITLSLHSLGLSLVNNESKQEVSYIGITSSGVVWEVKPKQKWKPFSQKQIILLEQSYQKHQISRDHGWIKLDNNFEVNFDKDPMEMRLPIRSPIKRDFLSGIQIEFKQSSHQRSLRARLYWLQVDNQLPGAMFPVVFHPVAPPKSIALDSEPKPFIDVSVITRFNEYSKVLQFKYFMVLIQEMALKIDQGFLGAIIALFTPTTDPEAERRRTKLIQQDIDALNAELMETSMTDMSILSFFEHFHISPVKLHLSLSLGSGGEESDKEKQEMFAVHSVNLLLKSIGATLTDVDDLIFKLAYYEIRYQFYKRDQLIWSVVRHYSEQFLKQMYVLVLGLDVLGNPFGLIRGLSEGVEALFYEPFQGAVQGPEEFAEGLVIGVRSLFGHTVGGAAGVVSRITGSVGKGLAAITMDKEYQQKRREELSRQPRDFGDSLARGGKGFLRGVVGGVTGIITKPVEGAKKEGAAGFFKGIGKGLVGAVARPTGGIVDMASSTFQGIQRAAESTEEVSSLRPPRLIHEDGIIRPYDRQESEGSDLLENHIKKLEGETYRYHCAIPGSKKTILMVTNRRVLCIKEVEILGLMCVDWQCPFEDFVFPPSVSENVLKISVKEQGLFHKKDSANQGCVRKVYLKDTATAERACNAIEDAQSTRQQQKLMKQSSVRLLRPQLPSLEDYKDHDGDYKDHDIDYKDDDDK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.80 Å
resolution_method	—
num_particles	403001

fit	/app/data/saxs_computation/yq/9yqq/9yqq.fit
pddf	/app/data/pr_computation/yq/9yqq/9yqq.pr.out
profile	/app/data/saxs_computation/yq/9yqq/9yqq.dat

Cryo-EM structure of the VPS13C C-terminal region

SAXS Profile

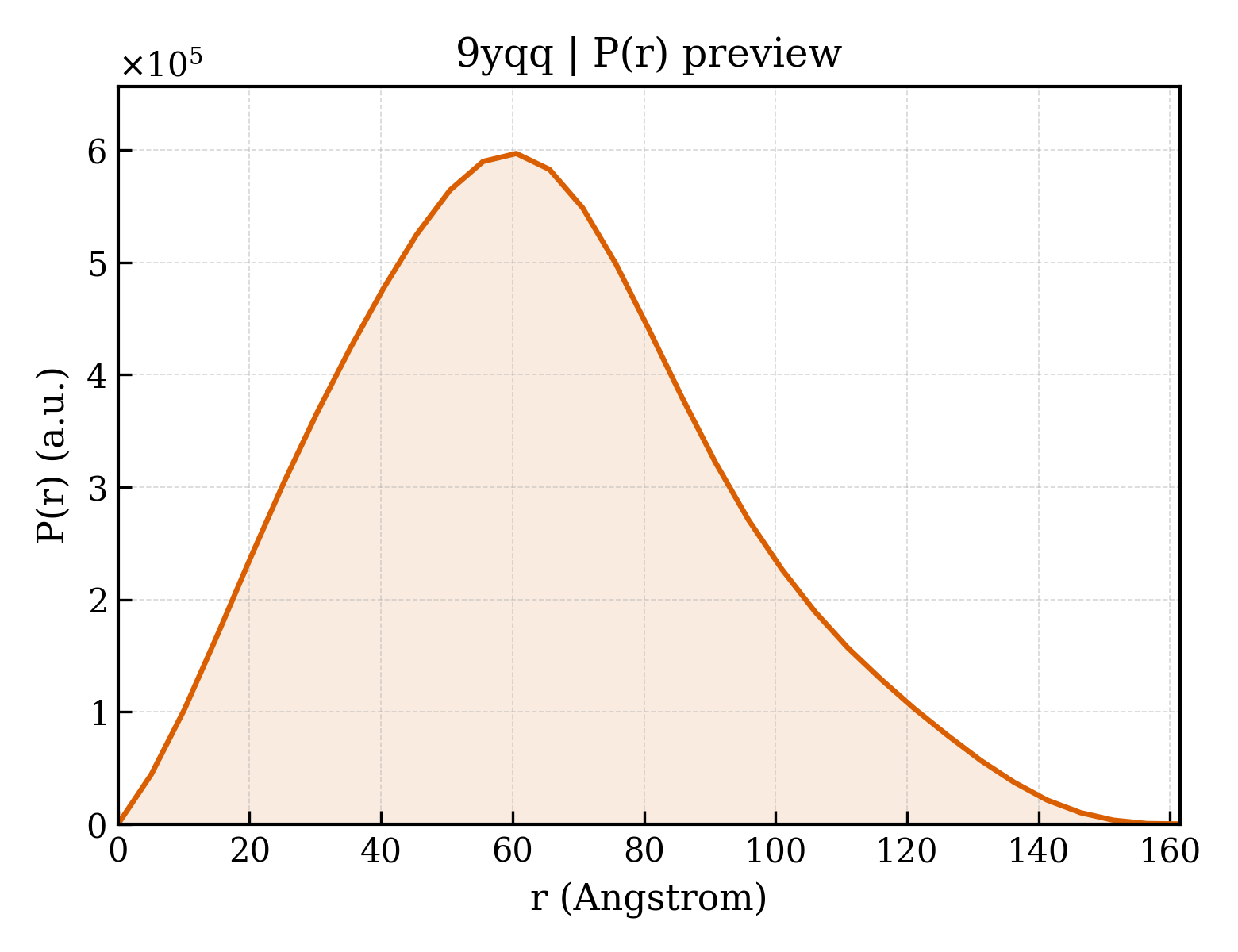

P(r) Distribution
