SAXSdb — 9yqp

▼

1. Structure Basics

entry_id	9yqp
deposition_date	2025-10-15
title	Cryo-EM structure of the VPS13C N-terminal region in complex with Calmodulin
keywords	Lipid transport protein; BLTP; membrane repair; membrane homeostasis; VPS13C, LIPID TRANSPORT; LIPID TRANSPORT
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	41.49 Å
rg_electron	40.80 Å
i0	235160000.00
molecular_weight	127280.0 kDa
excluded_volume	161300 Å³
envelope_volume	270080 Å³
shell_volume	57645 Å³
envelope_diameter	139.7 Å
shell_rg	45.09 Å
envelope_rg	38.15 Å
shape_rg	40.79 Å
total_rg	41.16 Å
total_atoms	8956
n_residues	1118
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	128.7 Å
rg_real	41.33 Å
rg_real_error	1.08 Å
i0_real	2.3520e+08
i0_real_error	4.1900e+06
rg_reciprocal	41.49 Å
i0_reciprocal	235200000.0000
total_estimate	0.8841
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	57.6 Å
skewness	0.131
kurtosis	-0.332
angular_range	— – 0.1900 Å⁻¹
current_alpha	0.0000
highest_alpha	14050000.0000
n_real_points	39
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.917; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.759

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Calmodulin-1
formula_weight	16852.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	8956

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Entity 2 polymer

description	Intermembrane lipid transfer protein VPS13C
formula_weight	425875.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MVLESVVADLLNRFLGDYVENLNKSQLKLGIWGGNVALDNLQIKENALSELDVPFKVKAGQIDKLTLKIPWKNLYGEAVVATLEGLYLLVVPGASIKYDAVKEEKSLQDVKQKELSRIEEALQKAAEKGTHSGEFIYGLENFVYKDIKPGRKRKKHKKHFKKPFKGLDRSKDKPKEAKKDTFVEKLATQVIKNVQVKITDIHIKYEDDVTDPKRPLSFGVTLGELSLLTANEHWTPCILNEADKIIYKLIRLDSLSAYWNVNCSMSYQRSREQILDQLKNEILTSGNIPPNYQYIFQPISASAKLYMNPYAESELKTPKLDCNIEIQNIAIELTKPQYLSMIDLLESVDYMVRNAPYRKYKPYLPLHTNGRRWWKYAIDSVLEVHIRRYTQMWSWSNIKKHRQLLKSYKIAYKNKLTQSKVSEEIQKEIQDLEKTLDVFNIILARQQAQVEVIRSGQKLRKKSADTGEKRGGWFSGLWGKKESKKKDEESLIPETIDDLMTPEEKDKLFTAIGYSESTHNLTLPKQYVAHIMTLKLVSTSVTIRENKNIPEILKIQIIGLGTQVSQRPGAQALKVEAKLEHWYITGLRQQDIVPSLVASIGDTTSSLLKIKFETNPEDSPADQTLIVQSQPVEVIYDAKTVNAVVEFFQSNKGLDLEQITSATLMKLEEIKERTATGLTHIIETRKVLDLRINLKPSYLVVPQTGFHHEKSDLLILDFGTFQLNSKDQGLQKTTNSSLEEIMDKAYDKFDVEIKNVQLLFARAEETWKKCRFQHPSTMHILQPMDIHVELAKAMVEKDIRMARFKVSGGLPLMHVRISDQKMKDVLYLMNSIPLPQKSSAQSPERQVSSIPIISGGTKGLLGTSLLLDTVESESDDEYFDAEDGEPQTCKSMKGSELKKAAEVPNEELINLLLKFEIKEVILEFTKQQKEEDTILVFNVTQLGTEATMRTFDLTVVSYLKKISLDYHEIEGSKRKPLHLISSSDKPGLDLLKVEYIKADKNGPSFQTAFGKTEQTVKVAFSSLNLLLQTQALVASINYLTTIIPSDDQSISVAKEVQISTEKQQKNSTLPKAIVSSRDSDIIDFRLFAKLNAFCVIVCNEKNNIAEIKIQGLDSSLSLQSRKQSLFARLENIIVTDVDPKTVHKKAVSIMGNEVFRFNLDLYPDATEGDLYTDMSKVDGVLSLNVGCIQIVYLHKFLMSLLNFLNNFQTAKESLSAATAQAAERAATSVKDLAQRSFRVSINIDLKAPVIVIPQSSISTNAVVVDLGLIRVHNQFSLVSDEDYLNPPVIDRMDVQLTKLTLYRTVIQPGIYHPDIQLLHPINLEFLVNRNLAASWYHKVPVVEIKGHLDSMNVSLNQEDLNLLFRILTENLCEGTEDLDKVKPRVQETGEIKEPLEISISQDVHDSKNTLTTGVEEIRSVDIINMLLNFEIKEVVVTLMKKSEKKGRPLHELNVLQLGMEAKVKTYDMTAKAYLKKISMQCFDFTDSKGEPLHIINSSNVTDEPLLKMLLTKADSDGPEFKTIHDSTKQRLKVSFASLDLVLHLEALLSFMDFLSSAAPFSEPSSSEKESELKPLVGESRSIAVKAVSSNISQKDVFDLKITAELNAFNVFVCDQKCNIADIKIHGMDASISVKPKQTDVFARLKDIIVMNVDLQSIHKKAVSILGDEVFRFQLTLYPDATEGEAYADMSKVDGKLSFKVGCIQIVYVHKFFMSLLNFLNNFQTAKEALSTATVQAAERAASSMKDLAQKSFRLLMDINLKAPVIIIPQSSVSPNAVIADLGLIRVENKFSLVPMEHYSLPPVIDKMNIELTQLKLSRTILQASLPQNDIEILKPVNMLLSIQRNLAAAWYVQIPGMEIKGKLKPMQVALSEDDLTVLMKILLENLGEASSQPSPTQSVQETVRVRKVDVSSVPDHLKEQEDWTDSKLSMNQIVSLQFDFHFESLSIILYNNDINQESGVAFHNDSFQLGELRLHLMASSGKMFKDGSMNVSVKLKTCTLDDLREGIERATSRMIDRKNDQDNNSSMIDISYKQDKNGSQIDAVLDKLYVCASVEFLMTVADFFIKAVPQSPENVAKETQILPRQTATGKVKIEKDDSVRPNMTLKAMITDPEVVFVASLTKADAPALTASFQCNLSLSTSKLEQMMEASVRDLKVLACPFLREKRGKNITTVLQPCSLFMEKCTWASGKQNINIMVKEFIIKISPIILNTVLTIMAALSPKTKEDGSKDTSKEMENLWGIKSINDYNTWFLGVDTATEITESFKGIEHSLIEENCGVVVESIQVTLECGLGHRTVPLLLAESKFSGNIKNWTSLMAAVADVTLQVHYYNEIHAVWEPLIERVEGKRQWNLRLDVKKNPVQDKSLLPGDDFIPEPQMAIHISSGNTMNITISKSCLNVFNNLAKGFSEGTASTFDYSLKDRAPFTVKNAVGVPIKVKPNCNLRVMGFPEKSDIFDVDAGQNLELEYASMVPSSQGNLSILSRQESSFFTLTIVPHGYTEVANIPVARPGRRLYNVRNPNASHSDSVLVQIDATEGNKVITLRSPLQIKNHFSIAFIIYKFVKNVKLLERIGIARPEEEFHVPLDSYRCQLFIQPAGILEHQYKESTTYISWKEELHRSREVRCMLQCPSVEVSFLPLIVNTVALPDELSYICTHGEDWDVAYIIHLYPSLTLRNLLPYSLRYLLEGTAETHELAEGSTADVLHSRISGEIMELVLVKYQGKNWNGHFRIRDTLPEFFPVCFSSDSTEVTTVDLSVHVRRIGSRMVLSVFSPYWLINKTTRVLQYRSEDIHVKHPADFRDIILFSFKKKNIFTKNKVQLKISTSAWSSSFSLDTVGSYGCVKCPANNMEYLVGVSIKMSSFNLSRIVTLTPFCTIANKSSLELEVGEIASDGSMPTNKWNYIASSECLPFWPESLSGKLCVRVVGCEGSSKPFFYNRQDNGTLLSLEDLNGGILVDVNTAEHSTVITFSDYHEGSAPALIMNHTPWDILTYKQSGSPEEMVLLPRQARLFAWADPTGTRKLTWTYAANVGEHDLLKDGCGQFPYDANIQIHWVSFLDGRQRVLLFTDDVALVSKALQAEEMEQADYEITLSLHSLGLSLVNNESKQEVSYIGITSSGVVWEVKPKQKWKPFSQKQIILLEQSYQKHQISRDHGWIKLDNNFEVNFDKDPMEMRLPIRSPIKRDFLSGIQIEFKQSSHQRSLRARLYWLQVDNQLPGAMFPVVFHPVAPPKSIALDSEPKPFIDVSVITRFNEYSKVLQFKYFMVLIQEMALKIDQGFLGAIIALFTPTTDPEAERRRTKLIQQDIDALNAELMETSMTDMSILSFFEHFHISPVKLHLSLSLGSGGEESDKEKQEMFAVHSVNLLLKSIGATLTDVDDLIFKLAYYEIRYQFYKRDQLIWSVVRHYSEQFLKQMYVLVLGLDVLGNPFGLIRGLSEGVEALFYEPFQGAVQGPEEFAEGLVIGVRSLFGHTVGGAAGVVSRITGSVGKGLAAITMDKEYQQKRREELSRQPRDFGDSLARGGKGFLRGVVGGVTGIITKPVEGAKKEGAAGFFKGIGKGLVGAVARPTGGIVDMASSTFQGIQRAAESTEEVSSLRPPRLIHEDGIIRPYDRQESEGSDLLENHIKKLEGETYRYHCAIPGSKKTILMVTNRRVLCIKEVEILGLMCVDWQCPFEDFVFPPSVSENVLKISVKEQGLFHKKDSANQGCVRKVYLKDTATAERACNAIEDAQSTRQQQKLMKQSSVRLLRPQLPSLEDYKDHDGDYKDHDIDYKDDDDK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.10 Å
resolution_method	—
num_particles	461163

fit	/app/data/saxs_computation/yq/9yqp/9yqp.fit
pddf	/app/data/pr_computation/yq/9yqp/9yqp.pr.out
profile	/app/data/saxs_computation/yq/9yqp/9yqp.dat

Cryo-EM structure of the VPS13C N-terminal region in complex with Calmodulin

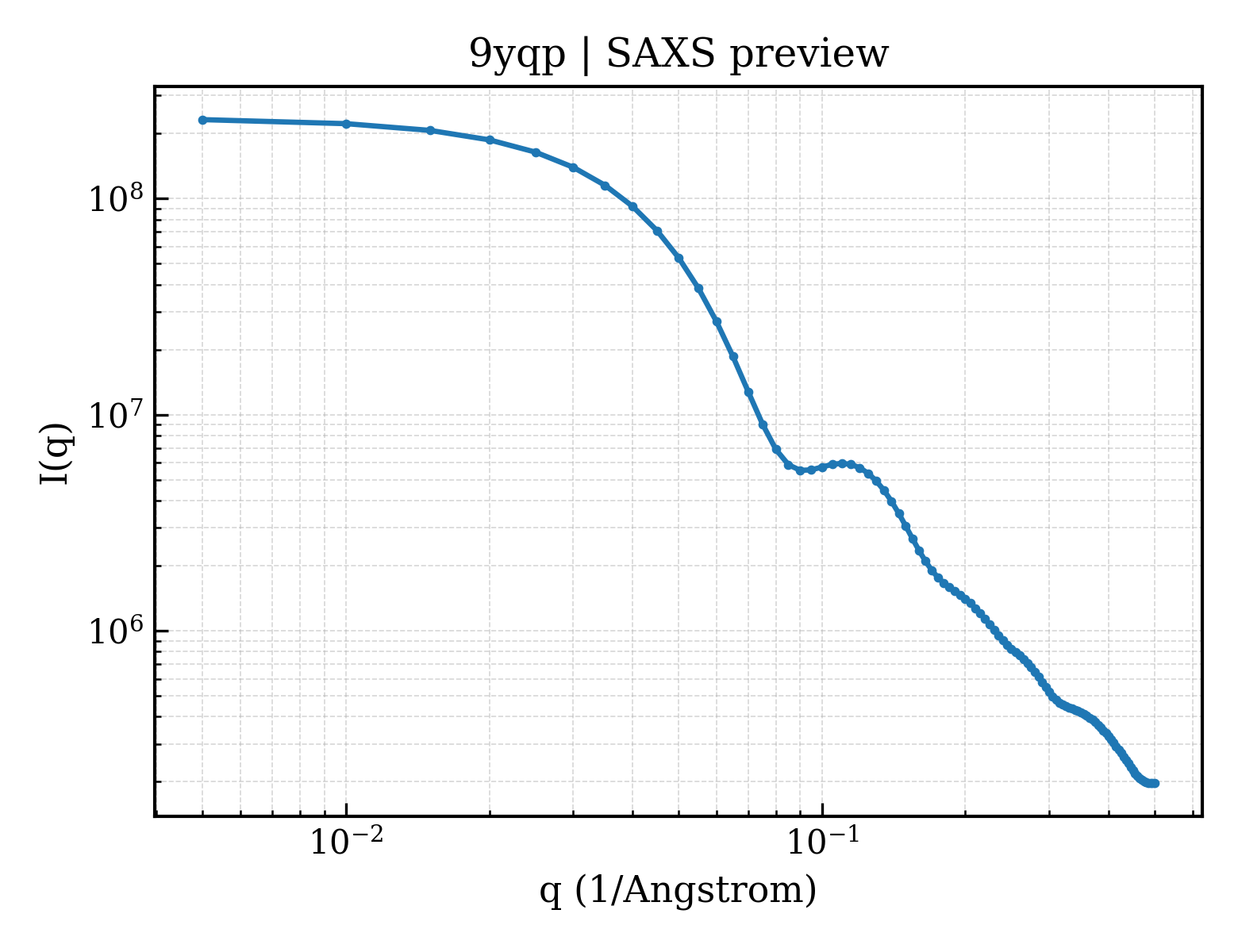

SAXS Profile

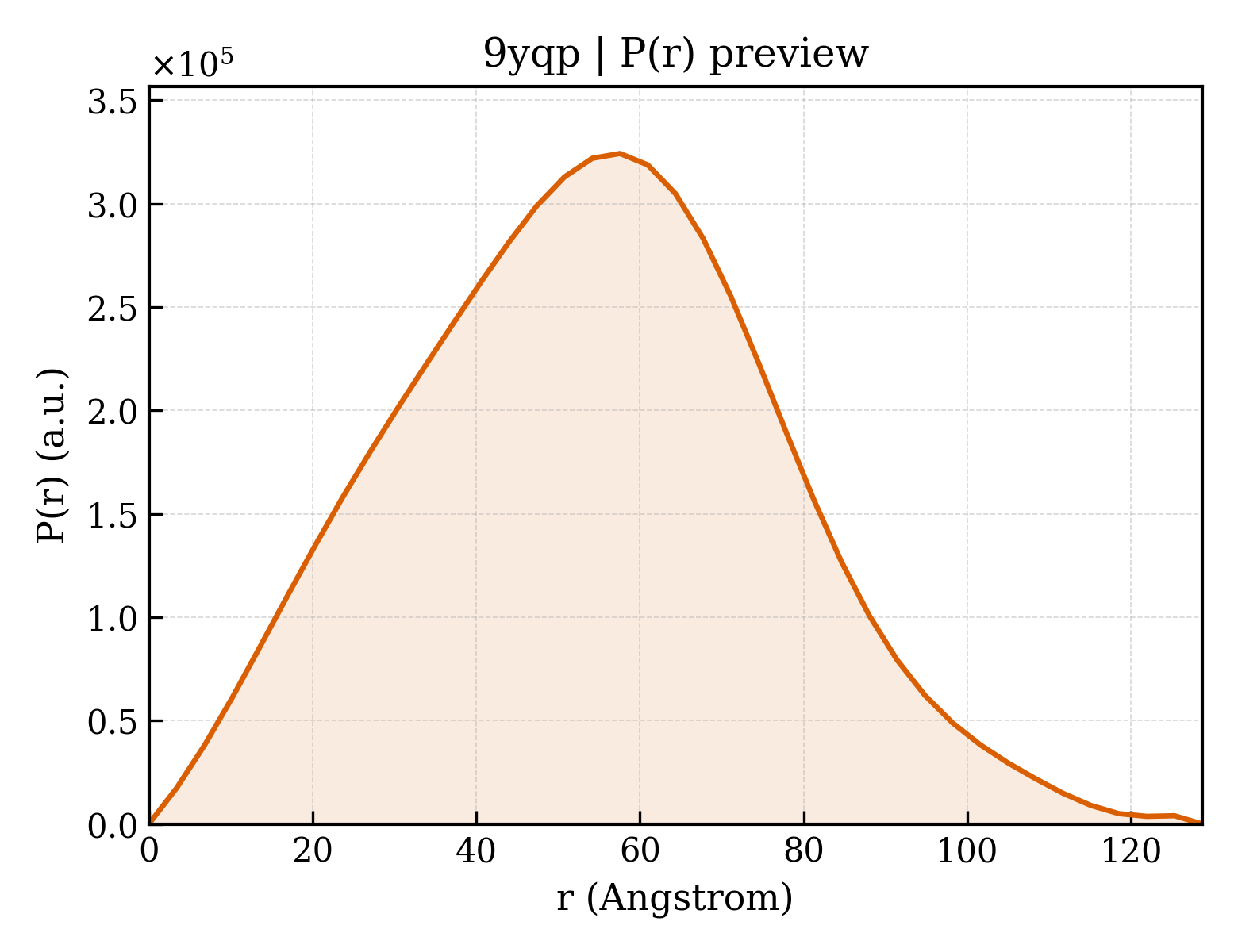

P(r) Distribution
