Cryo-EM structure of human TRPM4 channel in complex with calcium and TPPO at 18 degrees Celsius (consensus)

Method: ELECTRON MICROSCOPY D_max: 166.0 Å Quality: GOOD

SAXS Profile

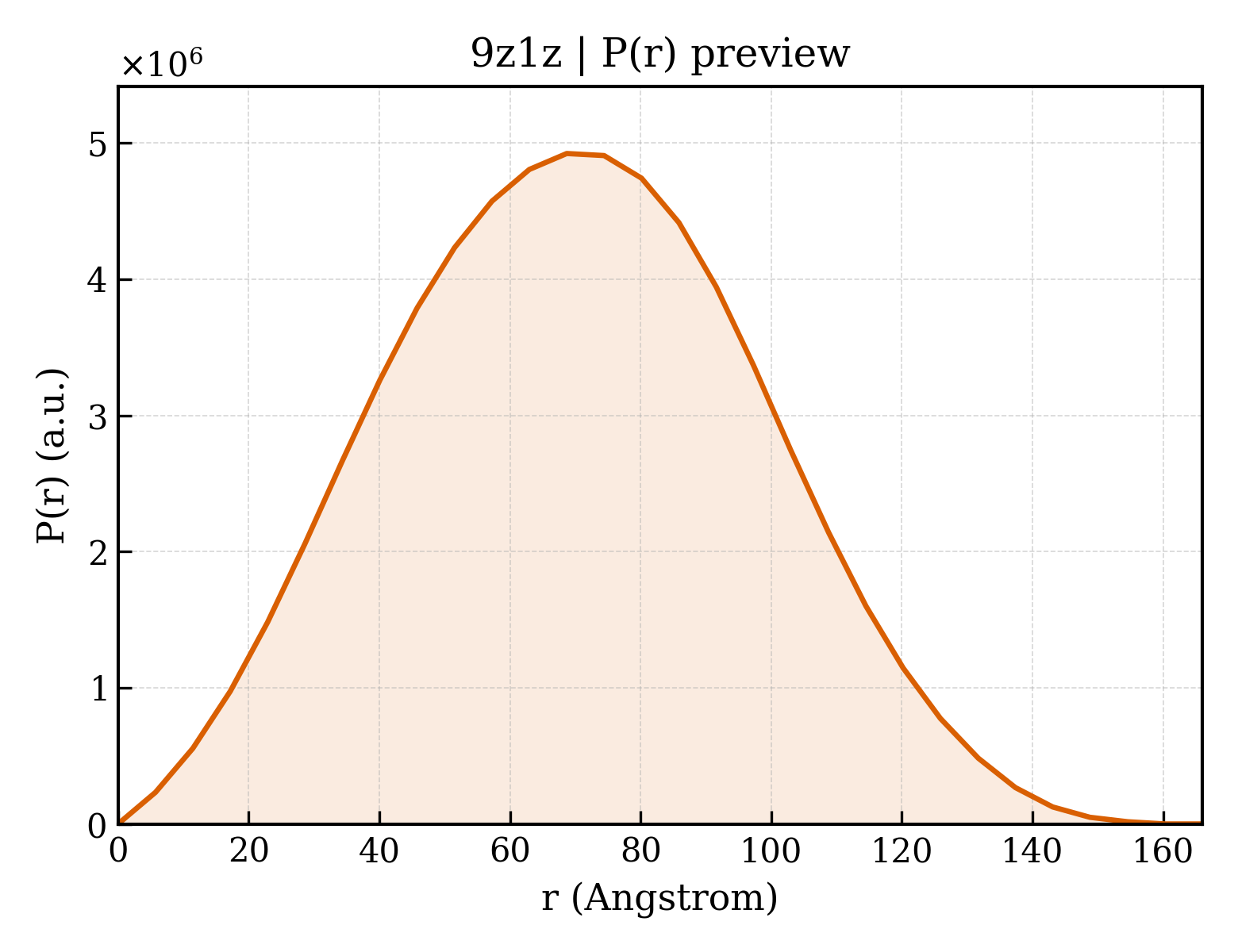

P(r) Distribution

▼

1. Structure Basics

entry_id	9z1z
deposition_date	2025-11-04
title	Cryo-EM structure of human TRPM4 channel in complex with calcium and TPPO at 18 degrees Celsius (consensus)
keywords	ion channel, TRP channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	53.53 Å
rg_electron	52.96 Å
i0	4622730000.00
molecular_weight	384730.0 kDa
excluded_volume	375940 Å³
envelope_volume	787560 Å³
shell_volume	120960 Å³
envelope_diameter	168.3 Å
shell_rg	59.88 Å
envelope_rg	50.66 Å
shape_rg	52.93 Å
total_rg	53.17 Å
total_atoms	29256
n_residues	3888
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	166.0 Å
rg_real	53.25 Å
rg_real_error	0.81 Å
i0_real	4.6230e+09
i0_real_error	7.6950e+07
rg_reciprocal	53.76 Å
i0_reciprocal	4626000000.0000
total_estimate	0.8221
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	68.7 Å
skewness	0.087
kurtosis	-0.479
angular_range	— – 0.1450 Å⁻¹
current_alpha	0.0000
highest_alpha	233700000.0000
n_real_points	30
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.913; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.945; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Transient receptor potential cation channel subfamily M member 4
formula_weight	134456.5 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	29256

MVVPEKEQSWIPKIFKKKTCTTFIVDSTDPGGTLCQCGRPRTAHPAVAMEDAFGAAVVTVWDSDAHTTEKPTDAYGELDFTGAGRKHSNFLRLSDRTDPAAVYSLVTRTWGFRAPNLVVSVLGGSGGPVLQTWLQDLLRRGLVRAAQSTGAWIVTGGLHTGIGRHVGVAVRDHQMASTGGTKVVAMGVAPWGVVRNRDTLINPKGSFPARYRWRGDPEDGVQFPLDYNYSAFFLVDDGTHGCLGGENRFRLRLESYISQQKTGVGGTGIDIPVLLLLIDGDEKMLTRIENATQAQLPCLLVAGSGGAADCLAETLEDTLAPGSGGARQGEARDRIRRFFPKGDLEVLQAQVERIMTRKELLTVYSSEDGSEEFETIVLKALVKACGSSEASAYLDELRLAVAWNRVDIAQSELFRGDIQWRSFHLEASLMDALLNDRPEFVRLLISHGLSLGHFLTPMRLAQLYSAAPSNSLIRNLLDQASHSAGTKAPALKGGAAELRPPDVGHVLRMLLGKMCAPRYPSGGAWDPHPGQGFGESMYLLSDKATSPLSLDAGLGQAPWSDLLLWALLLNRAQMAMYFWEMGSNAVSSALGACLLLRVMARLEPDAEEAARRKDLAFKFEGMGVDLFGECYRSSEVRAARLLLRRCPLWGDATCLQLAMQADARAFFAQDGVQSLLTQKWWGDMASTTPIWALVLAFFCPPLIYTRLITFRKSEEEPTREELEFDMDSVINGEGPVGTADPAEKTPLGVPRQSGRPGCCGGRCGGRRCLRRWFHFWGAPVTIFMGNVVSYLLFLLLFSRVLLVDFQPAPPGSLELLLYFWAFTLLCEELRQGLSGGGGSLASGGPGPGHASLSQRLRLYLADSWNQCDLVALTCFLLGVGCRLTPGLYHLGRTVLCIDFMVFTVRLLHIFTVNKQLGPKIVIVSKMMKDVFFFLFFLGVWLVAYGVATEGLLRPRDSDFPSILRRVFYRPYLQIFGQIPQEDMDVALMEHSNCSSEPGFWAHPPGAQAGTCVSQYANWLVVLLLVIFLLVANILLVNLLIAMFSYTFGKVQGNSDLYWKAQRYRLIREFHSRPALAPPFIVISHLRLLLRQLCRRPRSPQPSSPALEHFRVYLSKEAERKLLTWESVHKENFLLARARDKRESDSERLKRTSQKVDLALKQLGHIREYEQRLKVLEREVQQCSRVLGWVAEALSRSALLPPGGPPPPDLPGSKD

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	oxotri(phenyl)-lambda~5~-phosphane
formula_weight	278.3 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

resolution	2.63 Å
resolution_method	—
num_particles	760147
