9z2h

Crystal structure of A10 Fab in complex with the EGFR peptide

Method: X-RAY DIFFRACTION D_max: 92.8 Å Quality: EXCELLENT

SAXS Profile

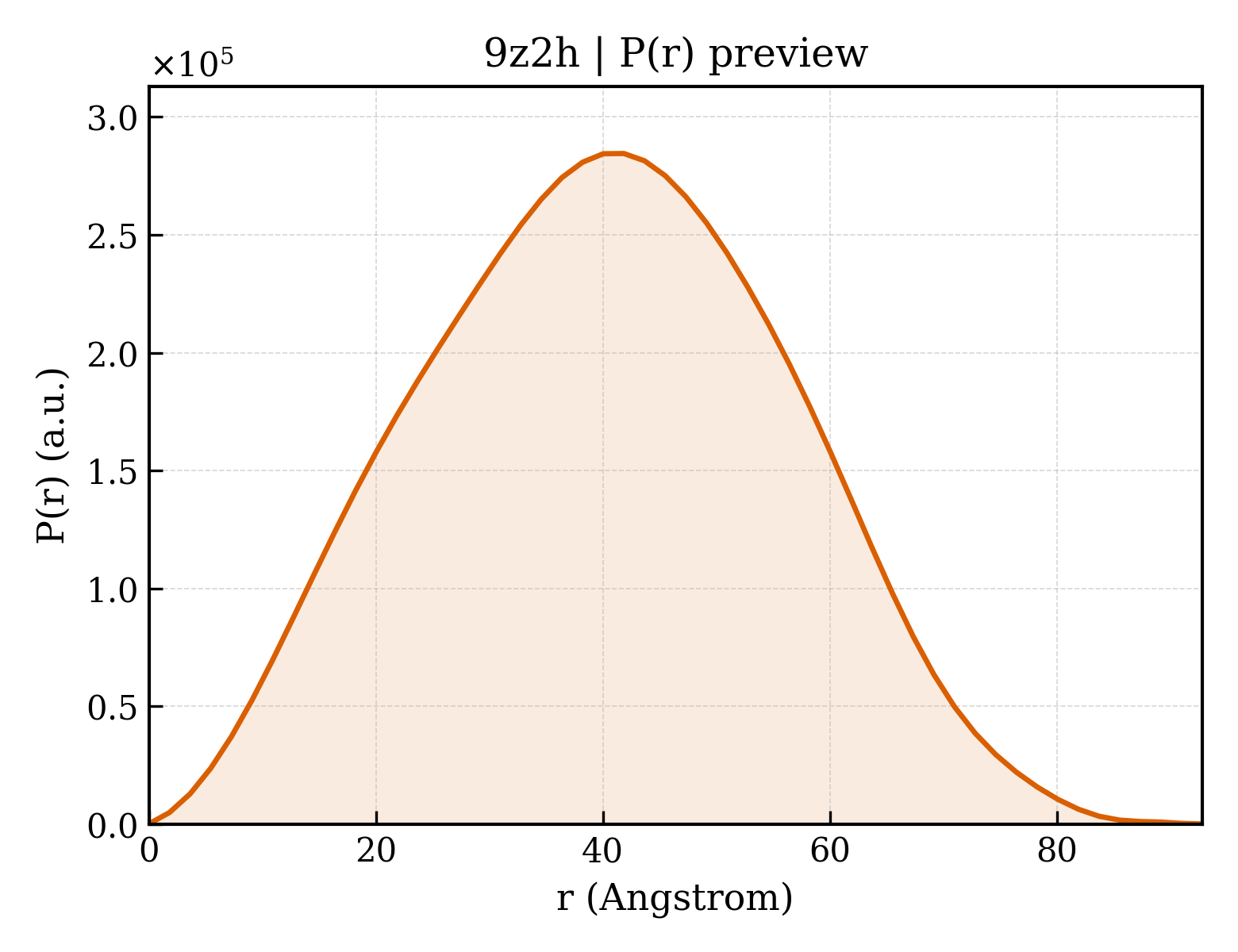

P(r) Distribution

▼

1. Structure Basics

entry_id	9z2h
deposition_date	2025-11-05
last_revision	2026-04-08
title	Crystal structure of A10 Fab in complex with the EGFR peptide
keywords	EGFRvIII, epidermal growth factor receptor variant III, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.85 Å
rg_electron	29.70 Å
i0	152648000.00
molecular_weight	96872.0 kDa
excluded_volume	120980 Å³
envelope_volume	156430 Å³
shell_volume	43095 Å³
envelope_diameter	96.3 Å
shell_rg	37.80 Å
envelope_rg	29.19 Å
shape_rg	29.68 Å
total_rg	30.55 Å
total_atoms	13499
n_residues	900
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	92.8 Å
rg_real	30.62 Å
rg_real_error	0.60 Å
i0_real	1.5260e+08
i0_real_error	2.3470e+06
rg_reciprocal	30.72 Å
i0_reciprocal	152700000.0000
total_estimate	0.9056
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	41.9 Å
skewness	0.043
kurtosis	-0.538
angular_range	— – 0.2550 Å⁻¹
current_alpha	0.0000
highest_alpha	18340000.0000
n_real_points	52
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.959

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Epidermal growth factor receptor
formula_weight	2823.1 kDa
ec_number	2.7.10.1
src_method	syn
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,E
atom_count	13673

ACGADSYEMEEDGVRKCKHHHHHH

Entity 2 polymer

description	Fab heavy chain of the A10 antibody
formula_weight	26156.9 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	H,HH

QVTLKESGPVLVKPTETLTLTCTVSGFSLTNYGIHWLRQPPGKALEWLGMMWRGGGTDYNAAFISRLTITKDTSKSQVVFTMTNMDPVDTATYYCARKGVGMGLGYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTCPPCPAPELLGGPSVFLFPPKP

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Mus musculus

Entity 3 polymer

description	Fab light chain of the A10 antibody
formula_weight	23264.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	L,LL

DIQMTQSPSSVSASVGDRVTITCLASQTIGTWVAWYQQKPGKSPQLLIYGATNLADGVPSRFSGSGSGTKFTLTISSLQPEDFATYYCQQLYSNPYTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Mus musculus

Entity 4 non-polymer

description	ACETATE ION
formula_weight	59.0 kDa
src_method	syn
entity_count	5

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	174

▶

6. Citations (1)

▶

length_a	129.617 Å
length_b	129.617 Å
length_c	144.898 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 32 2 1
int_tables_number	154
crystal_system	trigonal

resolution	2.450 Å
resolution_low	33.250 Å
r_factor	0.1920
r_work	0.1904
r_free	0.2227

fit	/app/data/saxs_computation/z2/9z2h/9z2h.fit
pddf	/app/data/pr_computation/z2/9z2h/9z2h.pr.out
profile	/app/data/saxs_computation/z2/9z2h/9z2h.dat
