SAXSdb — 9z2p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA cytosine C(5)-methyltransferase NSUN2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Monomer Protein × 1 RNA 1 PDB declaration: dimeric（2） Consistent with all polymer counts	Chain A； UniProt 2–767	Not recorded	tRNA Lys(CTT) × 1	ELECTRON MICROSCOPY mmCIF provides none of the parsed experimental conditions	Resolution 2.91 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9Z2P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9Z2N CryoEM structure of human NSUN2(C271A) with SAH cross-linked to tRNA Lys(CTT) (D-arm conformation) Deposited 2025-11-05	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2–767（766 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.57 Å
9Z2O CryoEM structure of human NSUN2(C271A) with SAH cross-linked to tRNA Lys(CTT) (No D-arm conformation) Deposited 2025-11-05	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2–767（766 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.66 Å
9Z2Q CryoEM structure of human NSUN2 with tRNA Lys(CTT) (Conformation 2) Deposited 2025-11-05	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2–767（766 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.88 Å
9Z2R CryoEM structure of human NSUN2 with tRNA Lys(CTT) and SFG (D-arm conformation) Deposited 2025-11-05	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2–767（766 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.71 Å
9Z2T CryoEM structure of human NSUN2 with tRNA Lys(CTT) and SFG (No D-arm conformation) Deposited 2025-11-05	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2–767（766 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.70 Å
9Z2U CryoEM structure of human NSUN2(C271A) with SAH cross-linked to tRNA Lys(TTT) (D-arm conformation) Deposited 2025-11-05	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2–767（766 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.00 Å
9Z2W CryoEM structure of human NSUN2(C271A) with SAH cross-linked to tRNA Lys(TTT) (No D-arm conformation) Deposited 2025-11-05	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2–767（766 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.10 Å
9Z3D CryoEM structure of human NSUN2(C271A) with SAH cross-linked to a pre-tRNA Leu(CAA) intron Deposited 2025-11-06	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2–767（766 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.96 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NSUN2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 17–782； UniProt 2–767

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9z2p
Deposition date deposition_date	2025-11-05
Structure title title	CryoEM structure of human NSUN2 with tRNA Lys(CTT) (Conformation 1)
Keywords keywords	Transferase, Methyltransferase, tRNA, Complex; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.84 Å
Radius of gyration Rg (electron density) rg_electron	28.78 Å
Forward intensity I(0) i0	188998000.00
Molecular weight molecular_weight	92397.0 kDa
Excluded volume excluded_volume	108500 Å³
Envelope volume envelope_volume	148100 Å³
Hydration-shell volume shell_volume	41895 Å³
Envelope diameter envelope_diameter	96.0 Å
Shell Rg shell_rg	37.10 Å
Envelope Rg envelope_rg	28.65 Å
Shape Rg shape_rg	28.77 Å
Total Rg total_rg	29.48 Å
Total atoms total_atoms	6390
Residues n_residues	667
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

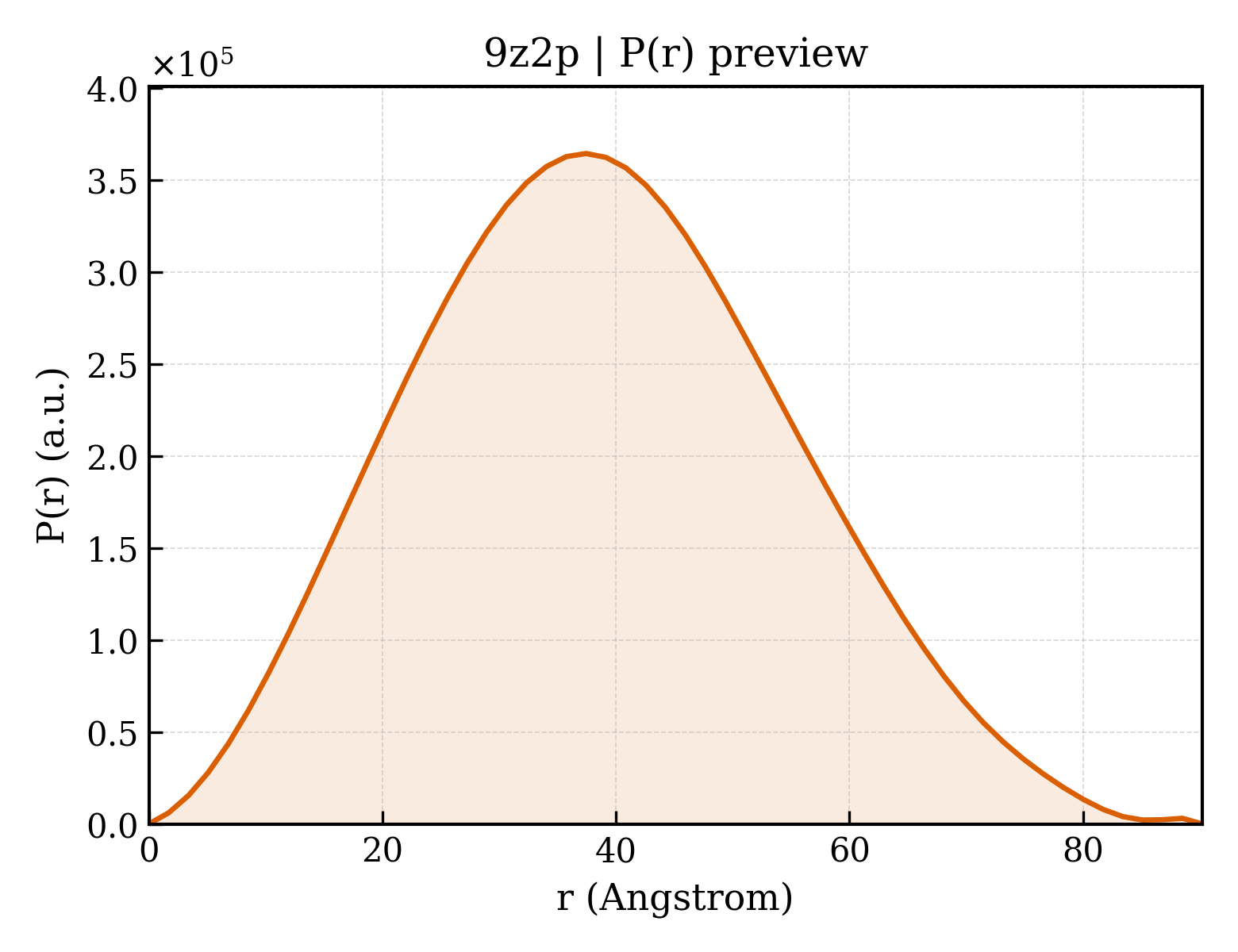

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	90.2 Å
Rg (real space) rg_real	29.69 Å
Rg uncertainty (real space) rg_real_error	0.45 Å
I(0) (real space) i0_real	1.8900e+08
I(0) uncertainty (real space) i0_real_error	2.6960e+06
Rg (reciprocal space) rg_reciprocal	29.76 Å
I(0) (reciprocal space) i0_reciprocal	189000000.0000
Solution quality estimate total_estimate	0.9038
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	37.5 Å
Skewness Skewness skewness	0.183
Kurtosis Kurtosis kurtosis	-0.427
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16870000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.926

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	RNA cytosine C(5)-methyltransferase NSUN2
Molecular weight formula_weight	88414.7 kDa
EC 编号 ec_number	2.1.1.-,2.1.1.203
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6412

MHHHHHHENLYFQGSGGRRSRGRRLQQQQRPEDAEDGAEGGGKRGEAGWEGGYPEIVKENKLFEHYYQELKIVPEGEWGQFMDALREPLPATLRITGYKSHAKEILHCLKNKYFKELEDLEVDGQKVEVPQPLSWYPEELAWHTNLSRKILRKSPHLEKFHQFLVSETESGNISRQEAVSMIPPLLLNVRPHHKILDMCAAPGSKTTQLIEMLHADMNVPFPEGFVIANDVDNKRCYLLVHQAKRLSSPCIMVVNHDASSIPRLQIDVDGRKEILFYDRILCDVPCSGDGTMRKNIDVWKKWTTLNSLQLHGLQLRIATRGAEQLAEGGRMVYSTCSLNPIEDEAVIASLLEKSEGALELADVSNELPGLKWMPGITQWKVMTKDGQWFTDWDAVPHSRHTQIRPTMFPPKDPEKLQAMHLERCLRILPHHQNTGGFFVAVLVKKSSMPWNKRQPKLQGKSAETRESTQLSPADLTEGKPTDPSKLESPSFTGTGDTEIAHATEDLENNGSKKDGVCGPPPSKKMKLFGFKEDPFVFIPEDDPLFPPIEKFYALDPSFPRMNLLTRTTEGKKRQLYMVSKELRNVLLNNSEKMKVINTGIKVWCRNNSGEEFDCAFRLAQEGIYTLYPFINSRIITVSMEDVKILLTQENPFFRKLSSETYSQAKDLAKGSIVLKYEPDSANPDALQCPIVLCGWRGKASIRTFVPKNERLHYLRMMGLEVLGEKKKEGVILTNESAASTGQPDNDVTEGQRAGEPNSPDAEEANSPDVTAGCDPAGVHPPR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	tRNA Lys(CTT)
Molecular weight formula_weight	24492.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	B

GCCCGGCUAGCUCAGUCGGUAGAGCAUGGGACUCUUAAUCCCAGGGUCGUGGGUUCGAGCCCCACGUUGGGCGCCA

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.910 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.91 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	96000

fit	/app/data/saxs_computation/z2/9z2p/9z2p.fit
pddf	/app/data/pr_computation/z2/9z2p/9z2p.pr.out
profile	/app/data/saxs_computation/z2/9z2p/9z2p.dat
