Avian TRPM8 (Parus major) fully-swapped, closed, ligand-free in the presence of calcium, structure resolved in cell vesicles

Method: ELECTRON MICROSCOPY D_max: 148.8 Å Quality: GOOD

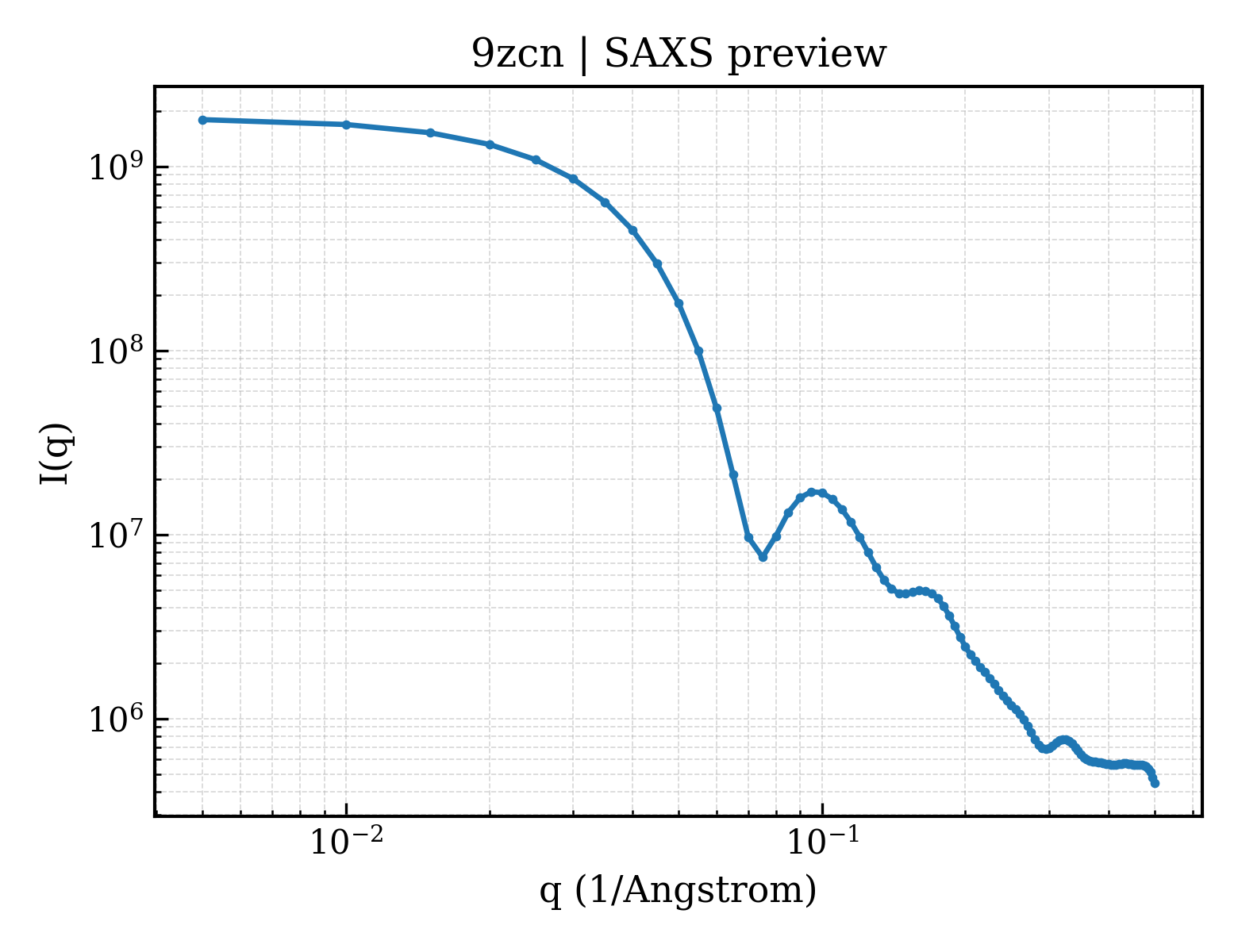

SAXS Profile

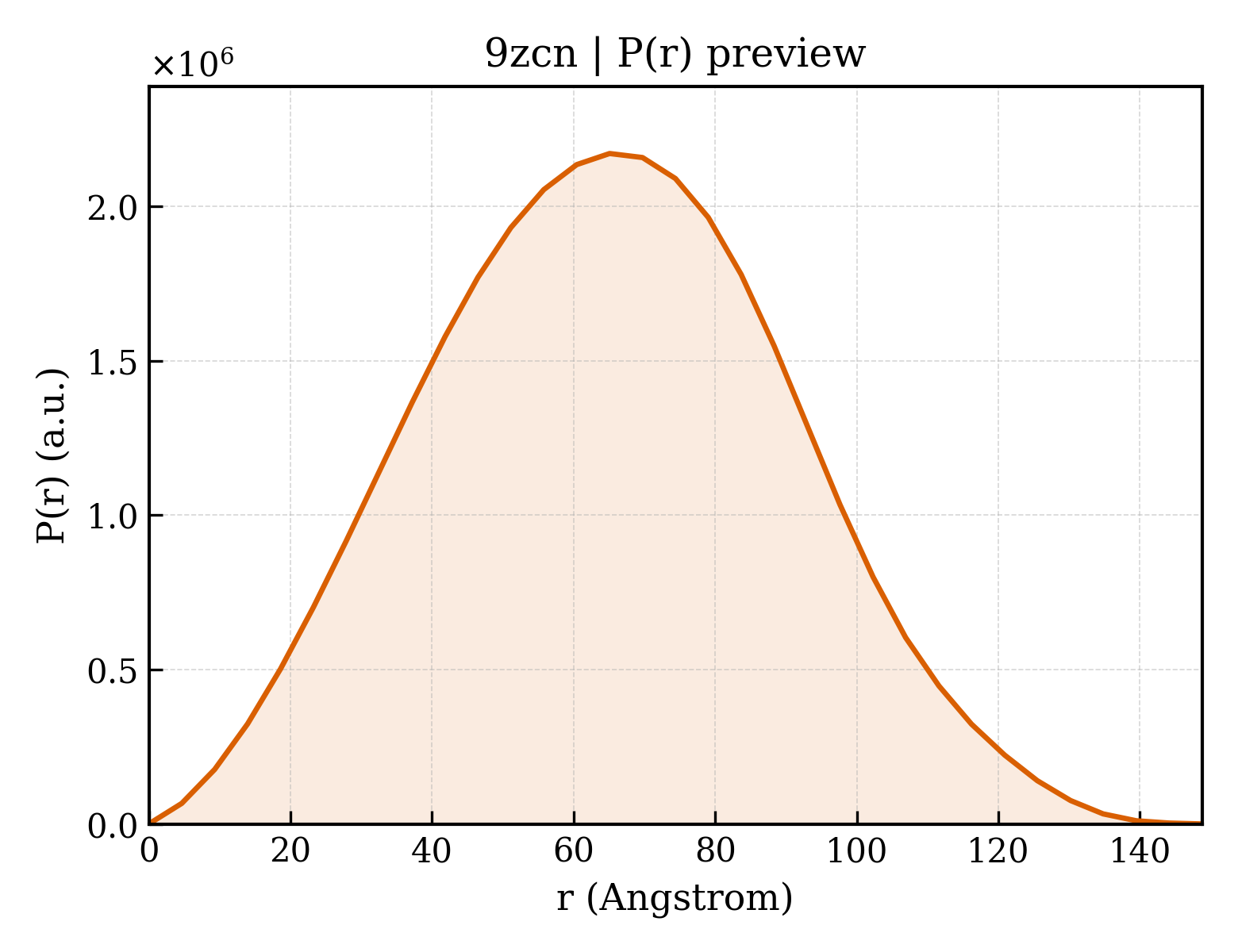

P(r) Distribution

▼

1. Structure Basics

entry_id	9zcn
deposition_date	2025-11-24
title	Avian TRPM8 (Parus major) fully-swapped, closed, ligand-free in the presence of calcium, structure resolved in cell vesicles
keywords	TRPM8, transient receptor potential melastatin 8, MEMBRANE PROTEIN, Parus major; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.70 Å
rg_electron	49.40 Å
i0	1831560000.00
molecular_weight	381990.0 kDa
excluded_volume	487800 Å³
envelope_volume	718110 Å³
shell_volume	116540 Å³
envelope_diameter	155.6 Å
shell_rg	57.62 Å
envelope_rg	47.47 Å
shape_rg	49.42 Å
total_rg	49.61 Å
total_atoms	53996
n_residues	3328
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	148.8 Å
rg_real	49.25 Å
rg_real_error	0.77 Å
i0_real	1.8320e+09
i0_real_error	3.0330e+07
rg_reciprocal	49.70 Å
i0_reciprocal	1833000000.0000
total_estimate	0.8622
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	65.1 Å
skewness	0.082
kurtosis	-0.439
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	301000000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.921; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.498

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	Transient receptor potential cation channel subfamily M member 8
formula_weight	127217.0 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	53996

GPGSGSGMRHRRNGNFESSRLLYSSMSRSIDVACSDADLANFIQENFKKRECVFFTKDTKSMGNLCKCGYPENQHIEGTQVNTTEKWNYKKHTKELPTDAFGDIQFENLGKRGKYIRLSCDTDSETLYDLMTQHWHLKTPNLVISVTGGAKNFALKPRMRKIFSRLIYIAQSKGAWIFTGGTHYGLMKYIGEVVRDNTISRSSEENVVAIGIAAWGMISNRETLIRTADSDGSFLARYIMDDLKRDPLYCLDNNHTHLLLVDNGTHGHPTTEAKVRTQLEKYISERVIPESNYGGKIPIVCFAQGGGKETLKSINVAIKSKIPCVVVEGSGRIADVIASLVEAEGTLASSCVKESLLRFLPRTISRLSEEETESWIKWIKEVLESPHLLTVIKIEEAGDEIVSNAISFALYKAFSTNEHDRDNWNGQLKLLLEWNQLDLASDEIFTNDRNWESADLQDVMFTALVKDRPKFVRLFLENGLNLRKFLTTEVLRELYTNNFSSLVFKNLQIAKNSYNDALLTFVWKMVEDFRRGFKRDYKNSKDEMEIQLSEECPITRHPLQALFIWSVLQNKKELSKVIWEQTRGCTLAALGASKLLKSMAKVKNDINAAGESEELANEYETRAVELFTECYSNDEDLAEQLLTYSCEAWGGSNCLELAVEARDQQFIAQPGVQNFLSKQWYGEISRDTKNWKIIMCLFFFPLIGCGFISFRKKPVEKSKKLFLYYVSFFTSPFVVFSWNVIFYIAFLLLFAYVLLMDFQKEPTALEIILYVLVFVLLCDEVRQWYMNGSKYFSDLWNVMDTLAIFYFIAGIVFRLHSDESSWYSGRVIFCLDYIVFTLRLIHIFTVSRNLGPKIIMLQRMMIDVFFFLFLFAVWMVAFGVARQGILRKNEHRWEWIFRSVIYEPYLAMFGQYPDDIDGTTYNFDRCTFSGNESKPLCVELDANNQPRFPEWITIPLVCIYMLSTNILLVNLLVAMFGYTVGSVQENNDQVWKFQRFFLVQEYCSRLTIPFPFVIFAYIFMVMRKCFKCCCNKESKEPSICCSRNEDNEILAWEAVMKENYLVKINTKANDSSEEMVHRFRQLDAKLSDLKGLLKEISSKIK

Source

organism	Parus major
common_name	Great Tit
ncbi_taxonomy_id	9157
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.50 Å
resolution_method	—
num_particles	39440

fit	/app/data/saxs_computation/zc/9zcn/9zcn.fit
pddf	/app/data/pr_computation/zc/9zcn/9zcn.pr.out
profile	/app/data/saxs_computation/zc/9zcn/9zcn.dat
