Avian TRPM8 (Parus major) fully swapped closed, calcium free, in the presence of menthol, resolved in cell vesicles

Method: ELECTRON MICROSCOPY D_max: 154.4 Å Quality: GOOD

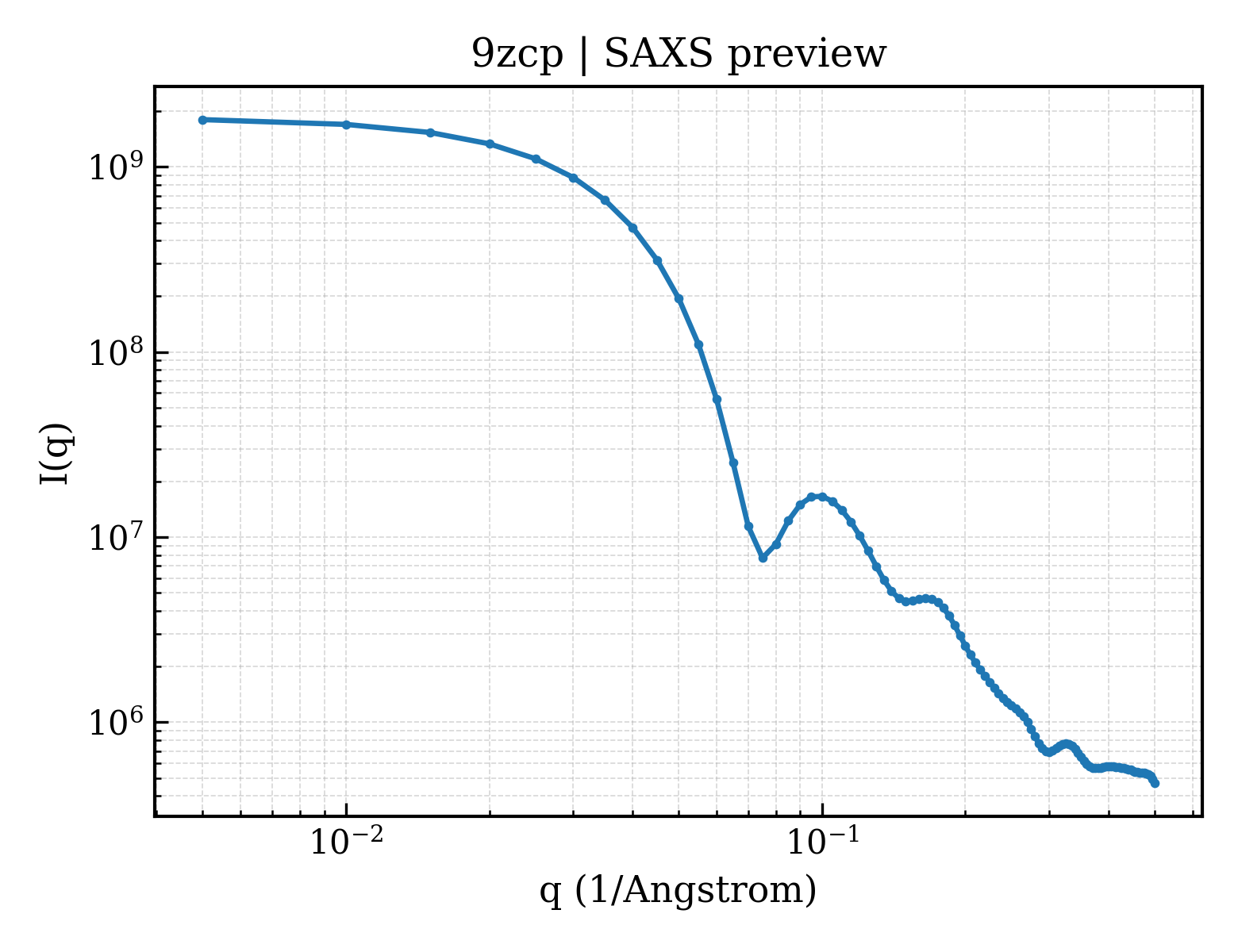

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9zcp
deposition_date	2025-11-24
title	Avian TRPM8 (Parus major) fully swapped closed, calcium free, in the presence of menthol, resolved in cell vesicles
keywords	TRPM8, transient receptor potential melastatin 8, MEMBRANE PROTEIN, menthol, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.02 Å
rg_electron	48.71 Å
i0	1835860000.00
molecular_weight	382160.0 kDa
excluded_volume	487860 Å³
envelope_volume	699260 Å³
shell_volume	114650 Å³
envelope_diameter	154.2 Å
shell_rg	57.19 Å
envelope_rg	46.94 Å
shape_rg	48.74 Å
total_rg	48.91 Å
total_atoms	53980
n_residues	3328
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	154.4 Å
rg_real	48.59 Å
rg_real_error	0.94 Å
i0_real	1.8360e+09
i0_real_error	3.3690e+07
rg_reciprocal	49.02 Å
i0_reciprocal	1837000000.0000
total_estimate	0.8786
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	67.5 Å
skewness	0.085
kurtosis	-0.441
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	312600000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.857; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.950; Smooth: 0.897

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	Transient receptor potential cation channel subfamily M member 8
formula_weight	127217.0 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	53980

GPGSGSGMRHRRNGNFESSRLLYSSMSRSIDVACSDADLANFIQENFKKRECVFFTKDTKSMGNLCKCGYPENQHIEGTQVNTTEKWNYKKHTKELPTDAFGDIQFENLGKRGKYIRLSCDTDSETLYDLMTQHWHLKTPNLVISVTGGAKNFALKPRMRKIFSRLIYIAQSKGAWIFTGGTHYGLMKYIGEVVRDNTISRSSEENVVAIGIAAWGMISNRETLIRTADSDGSFLARYIMDDLKRDPLYCLDNNHTHLLLVDNGTHGHPTTEAKVRTQLEKYISERVIPESNYGGKIPIVCFAQGGGKETLKSINVAIKSKIPCVVVEGSGRIADVIASLVEAEGTLASSCVKESLLRFLPRTISRLSEEETESWIKWIKEVLESPHLLTVIKIEEAGDEIVSNAISFALYKAFSTNEHDRDNWNGQLKLLLEWNQLDLASDEIFTNDRNWESADLQDVMFTALVKDRPKFVRLFLENGLNLRKFLTTEVLRELYTNNFSSLVFKNLQIAKNSYNDALLTFVWKMVEDFRRGFKRDYKNSKDEMEIQLSEECPITRHPLQALFIWSVLQNKKELSKVIWEQTRGCTLAALGASKLLKSMAKVKNDINAAGESEELANEYETRAVELFTECYSNDEDLAEQLLTYSCEAWGGSNCLELAVEARDQQFIAQPGVQNFLSKQWYGEISRDTKNWKIIMCLFFFPLIGCGFISFRKKPVEKSKKLFLYYVSFFTSPFVVFSWNVIFYIAFLLLFAYVLLMDFQKEPTALEIILYVLVFVLLCDEVRQWYMNGSKYFSDLWNVMDTLAIFYFIAGIVFRLHSDESSWYSGRVIFCLDYIVFTLRLIHIFTVSRNLGPKIIMLQRMMIDVFFFLFLFAVWMVAFGVARQGILRKNEHRWEWIFRSVIYEPYLAMFGQYPDDIDGTTYNFDRCTFSGNESKPLCVELDANNQPRFPEWITIPLVCIYMLSTNILLVNLLVAMFGYTVGSVQENNDQVWKFQRFFLVQEYCSRLTIPFPFVIFAYIFMVMRKCFKCCCNKESKEPSICCSRNEDNEILAWEAVMKENYLVKINTKANDSSEEMVHRFRQLDAKLSDLKGLLKEISSKIK

Source

organism	Parus major
common_name	Great Tit
ncbi_taxonomy_id	9157
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.55 Å
resolution_method	—
num_particles	53401

fit	/app/data/saxs_computation/zc/9zcp/9zcp.fit
pddf	/app/data/pr_computation/zc/9zcp/9zcp.pr.out
profile	/app/data/saxs_computation/zc/9zcp/9zcp.dat
