9zzw

Structure of human MARK3 in complex with inhibitor

Method: X-RAY DIFFRACTION D_max: 94.2 Å Quality: EXCELLENT

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9zzw
deposition_date	2026-01-08
last_revision	2026-04-08
title	Structure of human MARK3 in complex with inhibitor
keywords	Protein Kinase, Inhibitor, SIGNALING PROTEIN, TRANSFERASE-INHIBITOR complex; SIGNALING PROTEIN,TRANSFERASE/INHIBITOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.92 Å
rg_electron	29.17 Å
i0	111573000.00
molecular_weight	56587.0 kDa
excluded_volume	55180 Å³
envelope_volume	101540 Å³
shell_volume	29299 Å³
envelope_diameter	94.8 Å
shell_rg	36.04 Å
envelope_rg	28.46 Å
shape_rg	29.15 Å
total_rg	29.73 Å
total_atoms	4292
n_residues	573
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

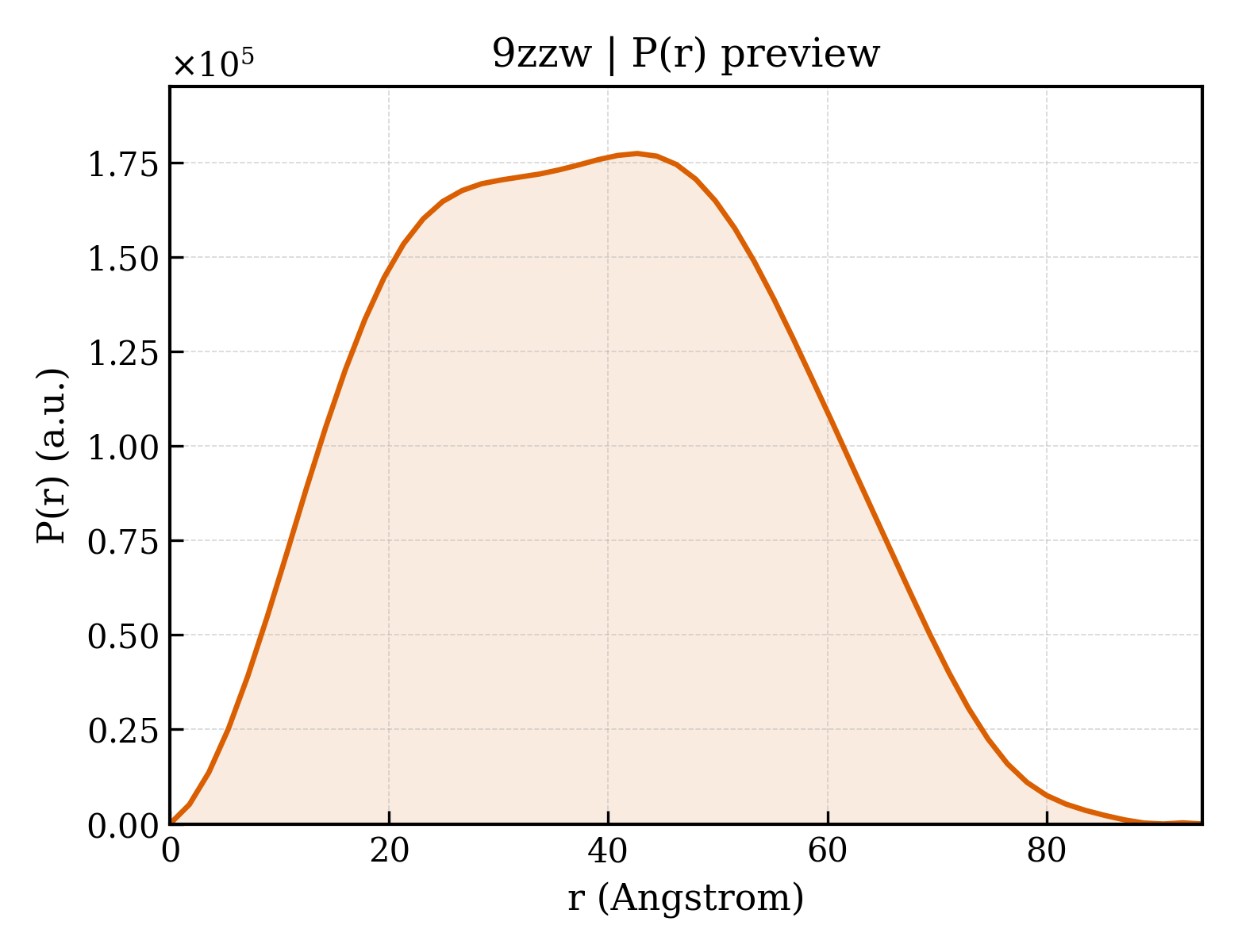

3. P(r) Analysis (GNOM)

dmax	94.2 Å
rg_real	29.84 Å
rg_real_error	0.63 Å
i0_real	1.1160e+08
i0_real_error	1.6830e+06
rg_reciprocal	29.88 Å
i0_reciprocal	111600000.0000
total_estimate	0.9065
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	42.7 Å
skewness	0.131
kurtosis	-0.715
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0000
highest_alpha	13620000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.951; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.939

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	MAP/microtubule affinity-regulating kinase 3
formula_weight	37433.4 kDa
ec_number	2.7.11.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4305

GAMDPDEQPHIGNYRLLKTIGKGNFAKVKLARHILTGREVAIKIIDKTQLNPTSLQKLFREVRIMKILNHPNIVKLFEVIETEKTLYLIMEYASGGEVFDYLVAHGRMKEKEARSKFRQIVSAVQYCHQKRIVHRDLKAENLLLDADMNIKIADFGFSNEFTVGGKLDTFCGSPPYAAPELFQGKKYDGPEVDVWSLGVILYTLVSGSLPFDGQNLKELRERVLRGKYRIPFYMSTDCENLLKRFLVLNPIKRGTLEQIMKDRWINAGHEEDELKPFVEPELDISDQKRIDIMVGMGYSQEEIQESLSKMKYDEITATYLLLGRK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	2-({5-chloro-2-[4-(4-ethylpiperazin-1-yl)-2-methoxyanilino]pyrimidin-4-yl}amino)benzamide
formula_weight	482.0 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1

▶

6. Citations (1)

▶

length_a	108.808 Å
length_b	83.479 Å
length_c	87.743 Å
angle_alpha	90.00 °
angle_beta	121.46 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	2.760 Å
resolution_low	74.850 Å
r_factor	0.2589
r_work	0.2575
r_free	0.2861
