1. Structure Basics

entry_id	10ft
deposition_date	2026-01-17
title	Cryo-EM structure of receptor tyrosine kinase ROS1 in complex with NELL2
keywords	Receptor tyrosine kinase ROS1, ROS1-NELL2 complex, TRANSFERASE-SIGNALING PROTEIN complex, TRANSFERASE; TRANSFERASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.88 Å
rg_electron	40.82 Å
i0	119871000.00
molecular_weight	87851.0 kDa
excluded_volume	109610 Å³
envelope_volume	159470 Å³
shell_volume	36184 Å³
envelope_diameter	156.6 Å
shell_rg	40.77 Å
envelope_rg	41.03 Å
shape_rg	40.83 Å
total_rg	40.77 Å
total_atoms	6170
n_residues	775
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	146.0 Å
rg_real	40.54 Å
rg_real_error	1.85 Å
i0_real	1.1990e+08
i0_real_error	2.3820e+06
rg_reciprocal	40.14 Å
i0_reciprocal	119800000.0000
total_estimate	0.7821
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	32.9 Å
skewness	0.559
kurtosis	-0.372
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	12830000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.604; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.420; Smooth: 0.930

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Protein kinase C-binding protein NELL2
formula_weight	91568.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	6170

LGVDPSLQIDVLTELELGESTTGVRQVPGLHNGTKAFLFQDTPRSIKASTATAEQFFQKLRNKHEFTILVTLKQTHLNSGVILSIHHLDHRYLELESSGHRNEVRLHYRSGSHRPHTEVFPYILADDKWHKLSLAISASHLILHIDCNKIYERVVEKPSTDLPLGTTFWLGQRNNAHGYFKGIMQDVQLLVMPQGFIAQCPDLNRTCPTCNDFHGLVQKIMELQDILAKTSAKLSRAEQRMNRLDQCYCERTCTMKGTTYREFESWIDGCKNCTCLNGTIQCETLICPNPDCPLKSALAYVDGKCCKECKSICQFQGRTYFEGERNTVYSSSGVCVLYECKDQTMKLVESSGCPALDCPESHQITLSHSCCKVCKGYDFCSERHNCMENSICRNLNDRAVCSCRDGFRALREDNAYCEDIDECAEGRHYCRENTMCVNTPGSFMCICKTGYIRIDDYSCTEHDECITNQHNCDENALCFNTVGGHNCVCKPGYTGNGTTCKAFCKDGCRNGGACIAANVCACPQGFTGPSCETDIDECSDGFVQCDSRANCINLPGWYHCECRDGYHDNGMFSPSGESCEDIDECGTGRHSCANDTICFNLDGGYDCRCPHGKNCTGDCIHDGKVKHNGQIWVLENDRCSVCSCQNGFVMCRRMVCDCENPTVDLFCCPECDPRLSSQCLHQNGETLYNSGDTWVQNCQQCRCLQGEVDCWPLPCPDVECEFSILPENECCPRCVTDPCQADTIRNDITKTCLDEMNVVRFTGSSWIKHGTECTLCQCKNGHICCSVDPQCLQELGGGGSIEGRSLDHHHHHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Proto-oncogene tyrosine-protein kinase ROS
formula_weight	113126.4 kDa
ec_number	2.7.10.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

SLDQSTVLSSCLTSCVTNLGRQLDSGTRYNLSEACIHGCQFWNSVDQETCALKCNDTYATICERESCEVGCSNAEGSYEEEVLESTELPTAPFASSIGSHGVTLRWNPANISGVKYIIQWKYAQLPGSWTFTETVSKLSYTVEPLHPFTEYIFRVVWIFTAQLHLYSPPSPSYRTHPYGVPETAPLILNMESWSPDTVEVSWAPPHFPGGPILGYNLRLISKNQKLDSGTQRTSFQFYSTLPNTTYRFSIAAVNEVGEGPEAESTVTTPSPSVQEEEQWLFLSRKTSLRKRSLKYLVDEAHCLWSDAIHHNITGISVYAQQQVVYFSEGTVIWMKGAANMSDVSDLRIFYQGSGLVSSISIDWLYQRMYFIMDKLVYVCELKNCSNLEEITPFSLIAPQKVVVDSYNGYLFYLLRDGIYRVNLPLPSGRDTKAVRIVESGTLKDFAVKPQSKRIIYFNDTMQLFMSTFLDGSAFHRVLPWVPLVTVKSFACENNDFLITDGKAIFQQDSLSFNEFIVGCDLSHIEEFGFGNLVIFGSSVQSYPLPGHPQEVSVLFGSREALIQWTPPALAIGASPSAWQNWTYEVKVYSQDILEITQVFSNISGTMLNVPELQSSTKYTVSVRASSPKGPGPWSAPSVGTTLVPATEPPFIMAVKEDGLWSKPLCSFGPGEFLSSDVGNVSDMDWYNNSLYYSDTKGNVYVRPLNGMDISENYHIPSIVGAGALAFEWLGHFLYWAGKTYVIQRQSVLTGHTDIVTHVKLLVNDMAVDSVGGYLYWTTLYSVESTRLNGESSLVLQAQPWLSGKKVIALTLDLSDGLLYWLVQDNQCIHLYTAVLRGWSGGDATITEFAAWSTSEISQNALMYYSGRLFWINGFRIITAQEIGQRTSVSVSEPAKFNQFTIIQTSLKPLPGNFSSTPKVIPDPVQESSFRIEGHTSSFQILWNEPPAVDWGIVFYSVEFSTHSKFLIIEQQSLPIFTVEGLEPYTLFNLSVTPYTYWGKGQKTSLSFRAPE

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 3 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.21 Å
resolution_method	—
num_particles	136864

fit	/app/data/saxs_computation/0f/10ft/10ft.fit
pddf	/app/data/pr_computation/0f/10ft/10ft.pr.out
profile	/app/data/saxs_computation/0f/10ft/10ft.dat

Cryo-EM structure of receptor tyrosine kinase ROS1 in complex with NELL2

SAXS Profile

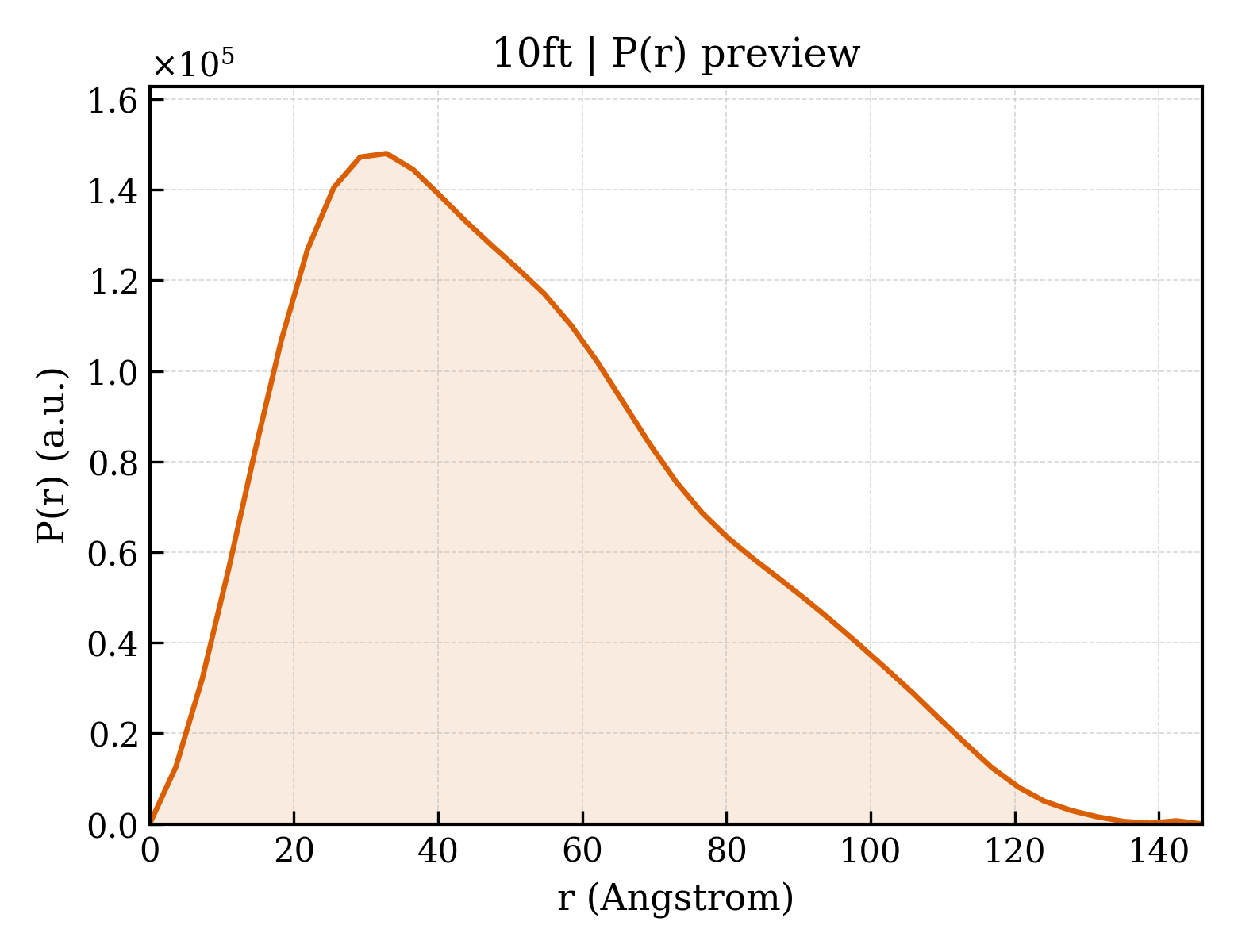

P(r) Distribution
