SAXSdb — 9pvp

▼

1. Structure Basics

entry_id	9pvp
deposition_date	2025-08-03
title	Cryo-EM structure of receptor tyrosine kinase ROS1 extracellular domain
keywords	Receptor tyrosine kinase ROS1, ROS1-NELL2 complex, TRANSFERASE; TRANSFERASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	79.54 Å
rg_electron	81.87 Å
i0	513288000.00
molecular_weight	194900.0 kDa
excluded_volume	245400 Å³
envelope_volume	436760 Å³
shell_volume	52113 Å³
envelope_diameter	301.0 Å
shell_rg	57.90 Å
envelope_rg	82.88 Å
shape_rg	81.84 Å
total_rg	81.47 Å
total_atoms	13753
n_residues	1715
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	224.4 Å
rg_real	75.49 Å
rg_real_error	1.67 Å
i0_real	5.0060e+08
i0_real_error	1.0460e+07
rg_reciprocal	73.43 Å
i0_reciprocal	505100000.0000
total_estimate	0.7098
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	44.9 Å
skewness	0.458
kurtosis	-0.825
angular_range	— – 0.1000 Å⁻¹
current_alpha	0.0370
highest_alpha	11230000.0000
n_real_points	21
gnom_version	4.1.3
quality_criteria	AN1: 0.003; Oscil: 0.495; Stabil: 0.953; Sysdev: 1.000; Positv: 1.000; Valcen: 0.414; Smooth: 0.024

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Proto-oncogene tyrosine-protein kinase ROS
formula_weight	207759.4 kDa
ec_number	2.7.10.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	13753

STVLSSCLTSCVTNLGRQLDSGTRYNLSEACIHGCQFWNSVDQETCALKCNDTYATICERESCEVGCSNAEGSYEEEVLESTELPTAPFASSIGSHGVTLRWNPANISGVKYIIQWKYAQLPGSWTFTETVSKLSYTVEPLHPFTEYIFRVVWIFTAQLHLYSPPSPSYRTHPYGVPETAPLILNMESWSPDTVEVSWAPPHFPGGPILGYNLRLISKNQKLDSGTQRTSFQFYSTLPNTTYRFSIAAVNEVGEGPEAESTVTTPSPSVQEEEQWLFLSRKTSLRKRSLKYLVDEAHCLWSDAIHHNITGISVYAQQQVVYFSEGTVIWMKGAANMSDVSDLRIFYQGSGLVSSISIDWLYQRMYFIMDKLVYVCELKNCSNLEEITPFSLIAPQKVVVDSYNGYLFYLLRDGIYRVNLPLPSGRDTKAVRIVESGTLKDFAVKPQSKRIIYFNDTMQLFMSTFLDGSAFHRVLPWVPLVTVKSFACENNDFLITDGKAIFQQDSLSFNEFIVGCDLSHIEEFGFGNLVIFGSSVQSYPLPGHPQEVSVLFGSREALIQWTPPALAIGASPSAWQNWTYEVKVYSQDILEITQVFSNISGTMLNVPELQSSTKYTVSVRASSPKGPGPWSAPSVGTTLVPATEPPFIMAVKEDGLWSKPLCSFGPGEFLSSDVGNVSDMDWYNNSLYYSDTKGNVYVRPLNGMDISENYHIPSIVGAGALAFEWLGHFLYWAGKTYVIQRQSVLTGHTDIVTHVKLLVNDMAVDSVGGYLYWTTLYSVESTRLNGESSLVLQAQPWLSGKKVIALTLDLSDGLLYWLVQDNQCIHLYTAVLRGWSGGDATITEFAAWSTSEISQNALMYYSGRLFWINGFRIITAQEIGQRTSVSVSEPAKFNQFTIIQTSLKPLPGNFSSTPKVIPDPVQESSFRIEGHTSSFQILWNEPPAVDWGIVFYSVEFSTHSKFLIIEQQSLPIFTVEGLEPYTLFNLSVTPYTYWGKGQKTSLSFRAPESVPSAPENPRIFILSSGRYTKKNEVVVEFRWNKPKHENGVLTKFEIFYHISKQSGTNRSTEDWMSASVIPPVMSFQLEAVSPEYTVAFQVRVFTSKGPGPFSDIVMSKTSEIKPCPYLISLLGNKIVFLDMDQNQVLWTFSLEGDVSTVGYTTDDEMGYFAQGDTLFLLNLRNHSSSKLFQDALVSDIRVIAVDWIARHLYFALKASQNGTQIFNVDLEHKVKSPREVKTCKAHTTIISFSIYPLLSRLYWTEVSDLGHQMFYCNISNHTSQHVLQPKASNQHGRSQCSCNVTESELSGAMTVDTSDPDRPWIYFTKRQEIWAMDLEGCQCWKVIMVPTIPGKRIISLTVDGEFIYWIMKTKDDAQIYQAKKGSGAILSQVKASRSKHILAYSSALQPFPDKAYLSLASDMVEATILYATNTSLTLKLPPVKTNLTWHGITHPTSTYLIYYMEANRANSSDRRHKMLESQENVARIEGLQPFSMYMIQIAVKNYYSEPLEHLPLGKEIQGQTKSGVPGAVCHINATVLSDTSLHVFWTESHKPNGPKESVRYQLVMSYLAPIPETPLRQGEFPSAKLSLLITKLSGGQLYVMKVLACHPEEMWCTESHPVSVNMFDTPEKPSALVPENTSLQLDWKARSNVNLTGFWFELQKWKYNEFYHVKASCSQGPVYVCNITDLQPYTSYNIRVVVVYTTGENSSSIPESFKTKAGVPSKPGIPKLLEGSKNSIQWEKAEDNGSRLMYYTLEVRKGISNDSQNQSSRWKVVFNGSCSSICTWRSKNLKGTFQFRAVAANEIGLGEYSEISEDITLVEDGGGGSSAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 2 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	11

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	4.57 Å
resolution_method	—
num_particles	23490

fit	/app/data/saxs_computation/pv/9pvp/9pvp.fit
pddf	/app/data/pr_computation/pv/9pvp/9pvp.pr.out
profile	/app/data/saxs_computation/pv/9pvp/9pvp.dat

Cryo-EM structure of receptor tyrosine kinase ROS1 extracellular domain

SAXS Profile

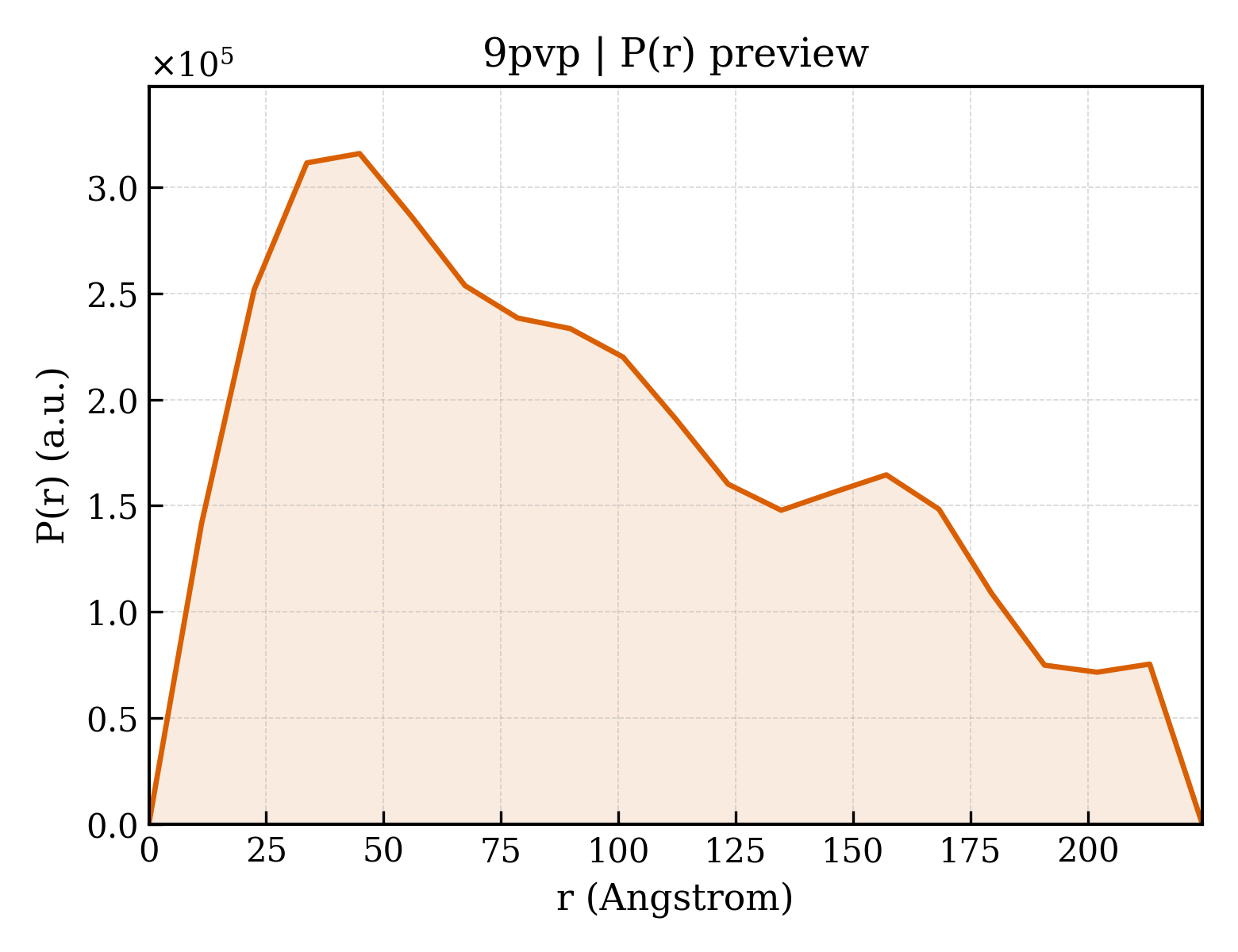

P(r) Distribution
