SAXSdb — 13hq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ABC-type transport auxiliary lipoprotein component domain-containing protein

Pseudomonas aeruginosa PAO1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9HZ26_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 19–206； UniProt 27–214 Author chain B； PDBConstruct 19–206； UniProt 27–214 Author chain C； PDBConstruct 19–206； UniProt 27–214 Author chain D； PDBConstruct 19–206； UniProt 27–214 Author chain E； PDBConstruct 19–206； UniProt 27–214 Author chain F； PDBConstruct 19–206； UniProt 27–214 Author chain G； PDBConstruct 19–206； UniProt 27–214 Author chain H； PDBConstruct 19–206； UniProt 27–214

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	13hq
Deposition date deposition_date	2026-05-06
Structure title title	Cryo-EM structure of Pseudomonas aeruginosa soluble lipoprotein PA3214
Keywords keywords	lipoprotein, Pseudomonas aeruginosa, MCE system, LIPID TRANSPORT; LIPID TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

13hq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

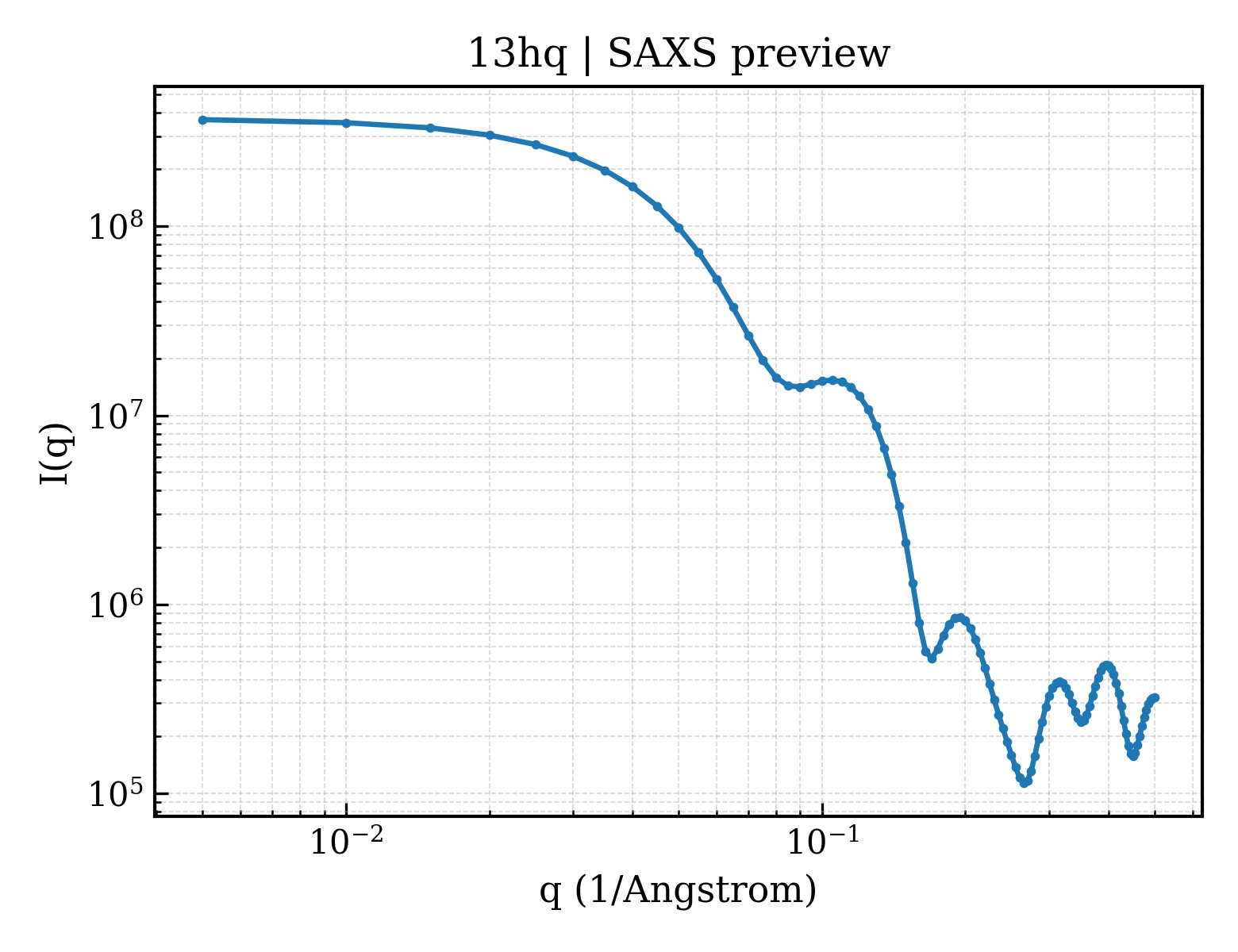

13hq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

13hq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.91 Å
Rg (electron density)	37.99 Å
Total Rg	38.51 Å
Atom count	10784
Residues	1384
Excluded volume	189730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`13hq__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.670 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.67 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	654956

Description description	ABC-type transport auxiliary lipoprotein component domain-containing protein
Molecular weight formula_weight	22922.7 kDa
Source method src_method	man
Copy count entity_count	8

Cryo-EM structure of Pseudomonas aeruginosa soluble lipoprotein PA3214

1. Protein Identity and Related Structures Protein Identity & Related Structures

ABC-type transport auxiliary lipoprotein component domain-containing protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

13hq__assembly_1__model_1

13hq__assembly_1__model_1 | I(q)

13hq__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

7. Citations (1)

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	10784

Source organism organism	Pseudomonas aeruginosa PAO1
NCBI taxonomy ID ncbi_taxonomy_id	208964
Host organism host_organism	Escherichia coli BL21(DE3)
