1a15
SDF-1ALPHA

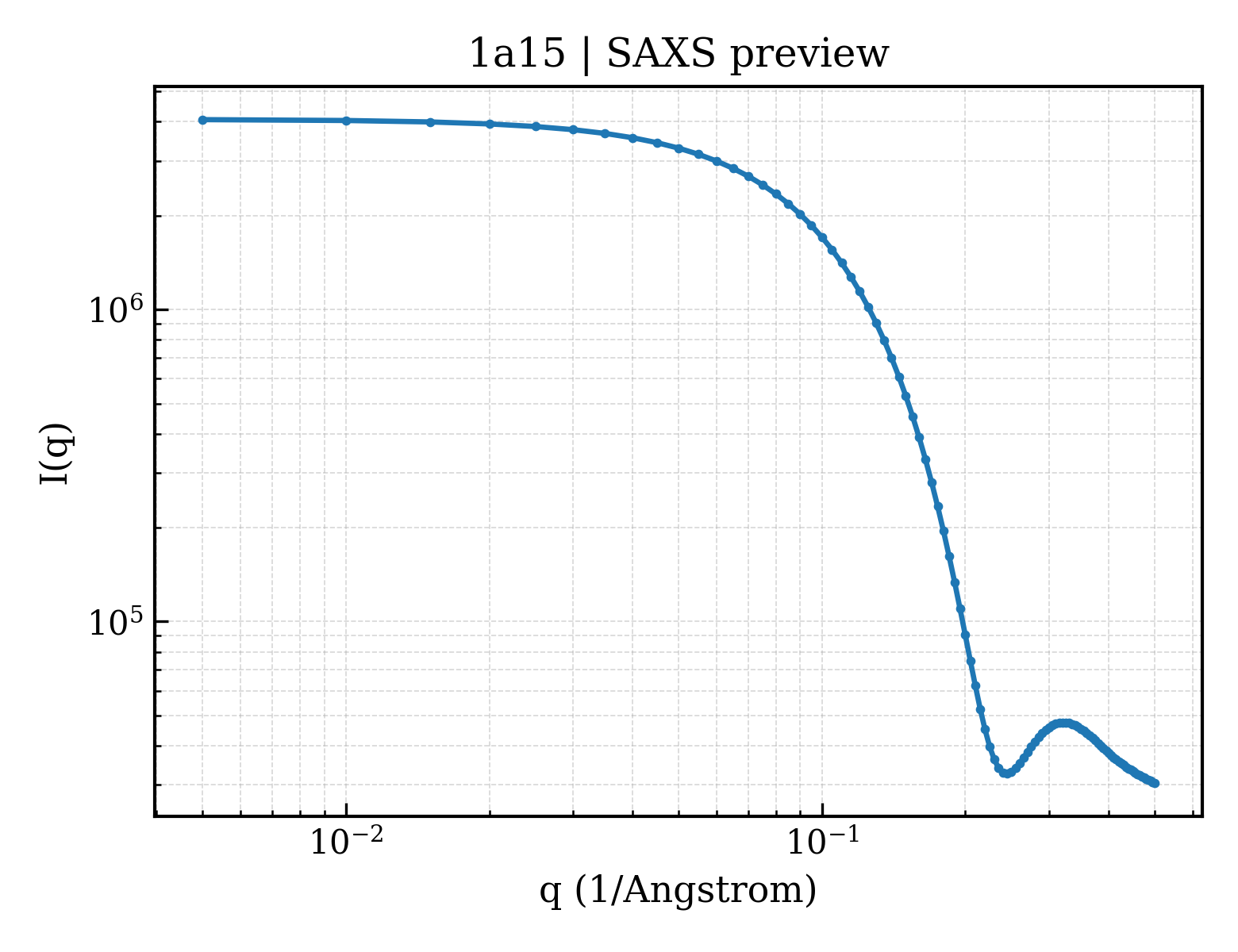

SAXS Profile

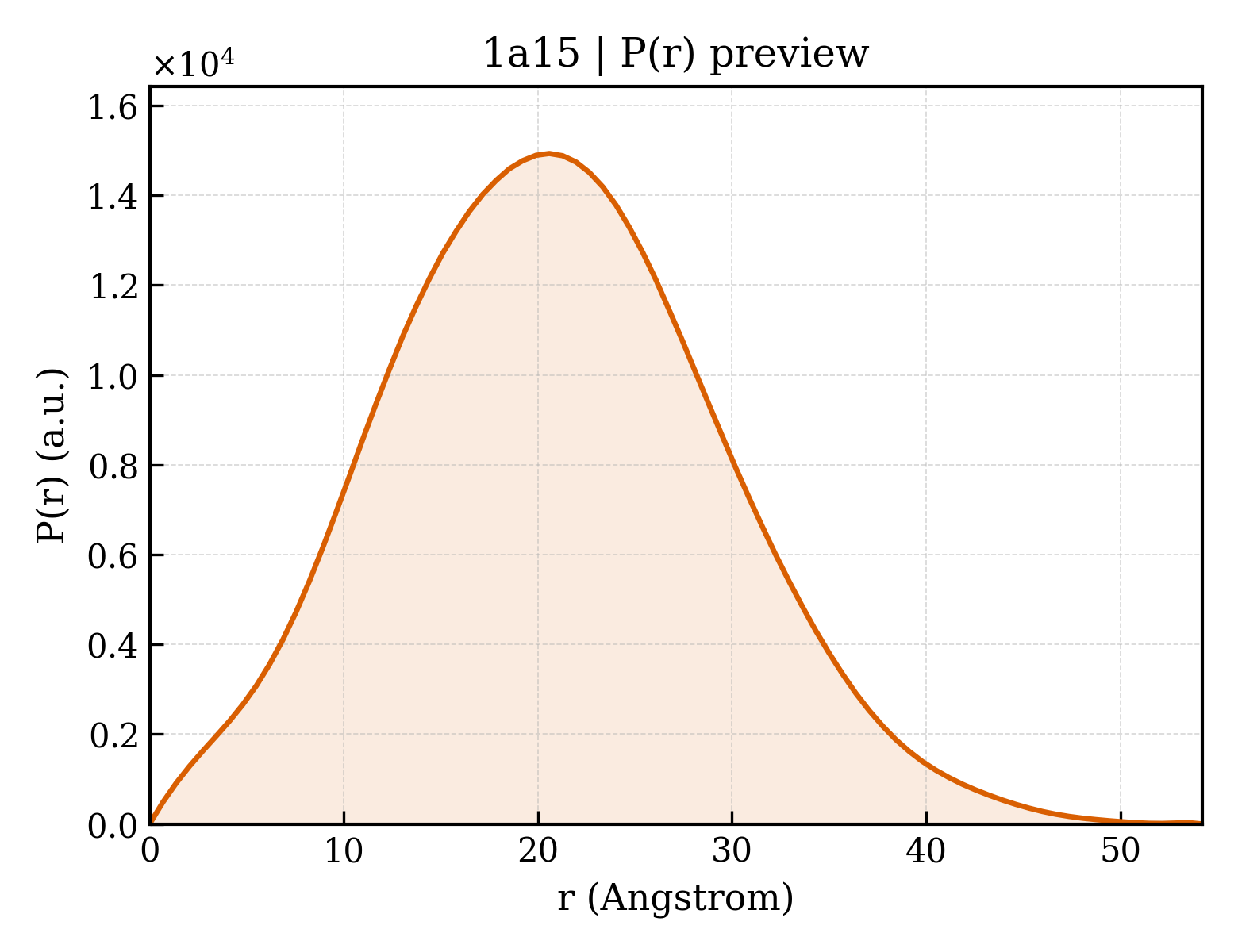

P(r) Distribution
1. Structure Basics
| entry_id | 1a15 |
| deposition_date | 1997-12-22 |
| title | SDF-1ALPHA |
| keywords | CHEMOKINE, HUMAN STROMAL CELL-DERIVED FACTOR-1ALPHA; CHEMOKINE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.00 Å |
| rg_electron | 14.70 Å |
| i0 | 4071120.00 |
| molecular_weight | 14240.0 kDa |
| excluded_volume | 17936 ų |
| envelope_volume | 21553 ų |
| shell_volume | 12555 ų |
| envelope_diameter | 51.9 Å |
| shell_rg | 20.28 Å |
| envelope_rg | 15.35 Å |
| shape_rg | 14.69 Å |
| total_rg | 15.93 Å |
| total_atoms | 997 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.2 Å |
| rg_real | 15.92 Å |
| rg_real_error | 0.28 Å |
| i0_real | 4.0710e+06 |
| i0_real_error | 4.1470e+04 |
| rg_reciprocal | 15.92 Å |
| i0_reciprocal | 4071000.0000 |
| total_estimate | 0.8620 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.6 Å |
| skewness | 0.213 |
| kurtosis | -0.174 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 698000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.736; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.994 |
