2n55

Structure of constitutively monomeric CXCL12 in complex with the CXCR4 N-terminus

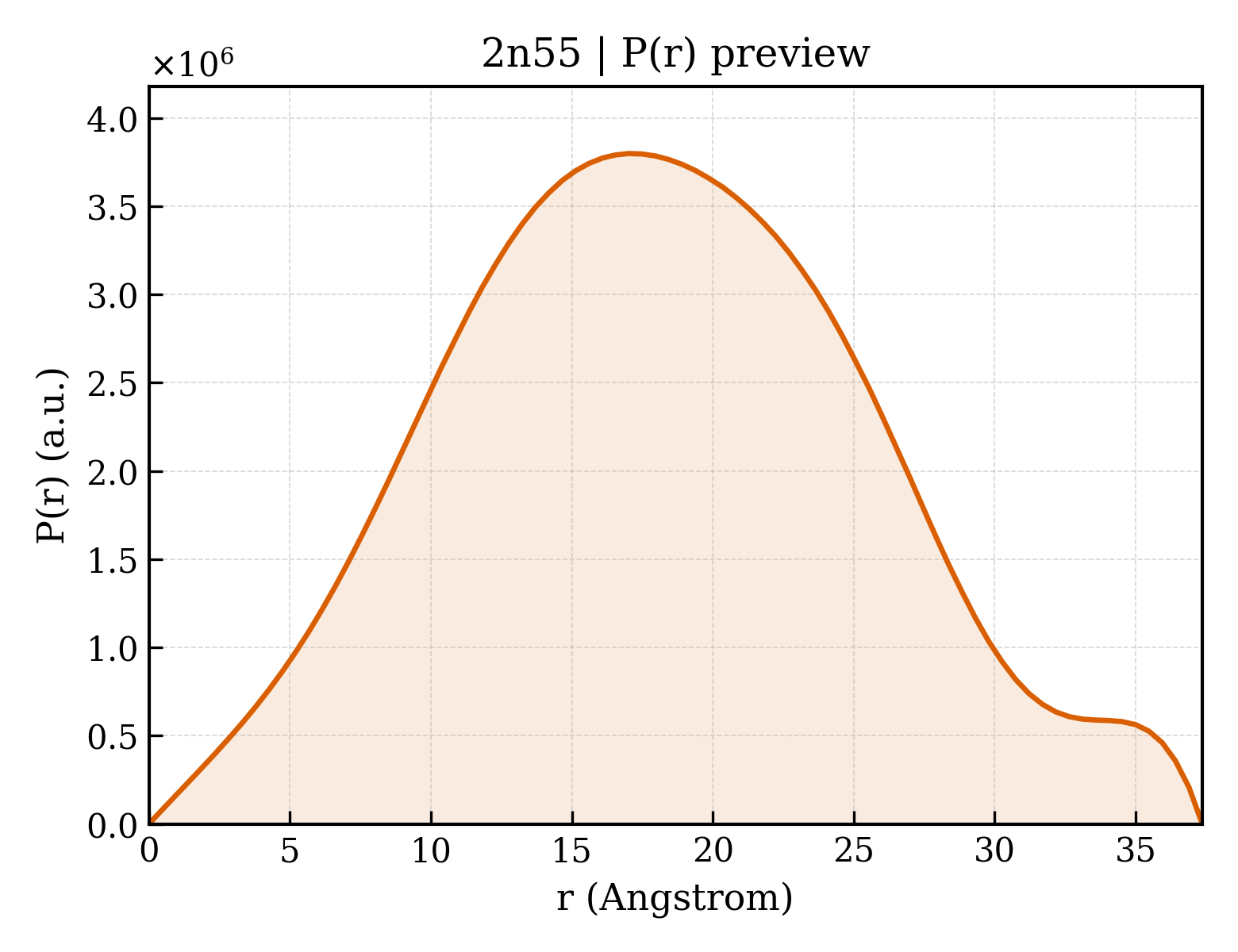

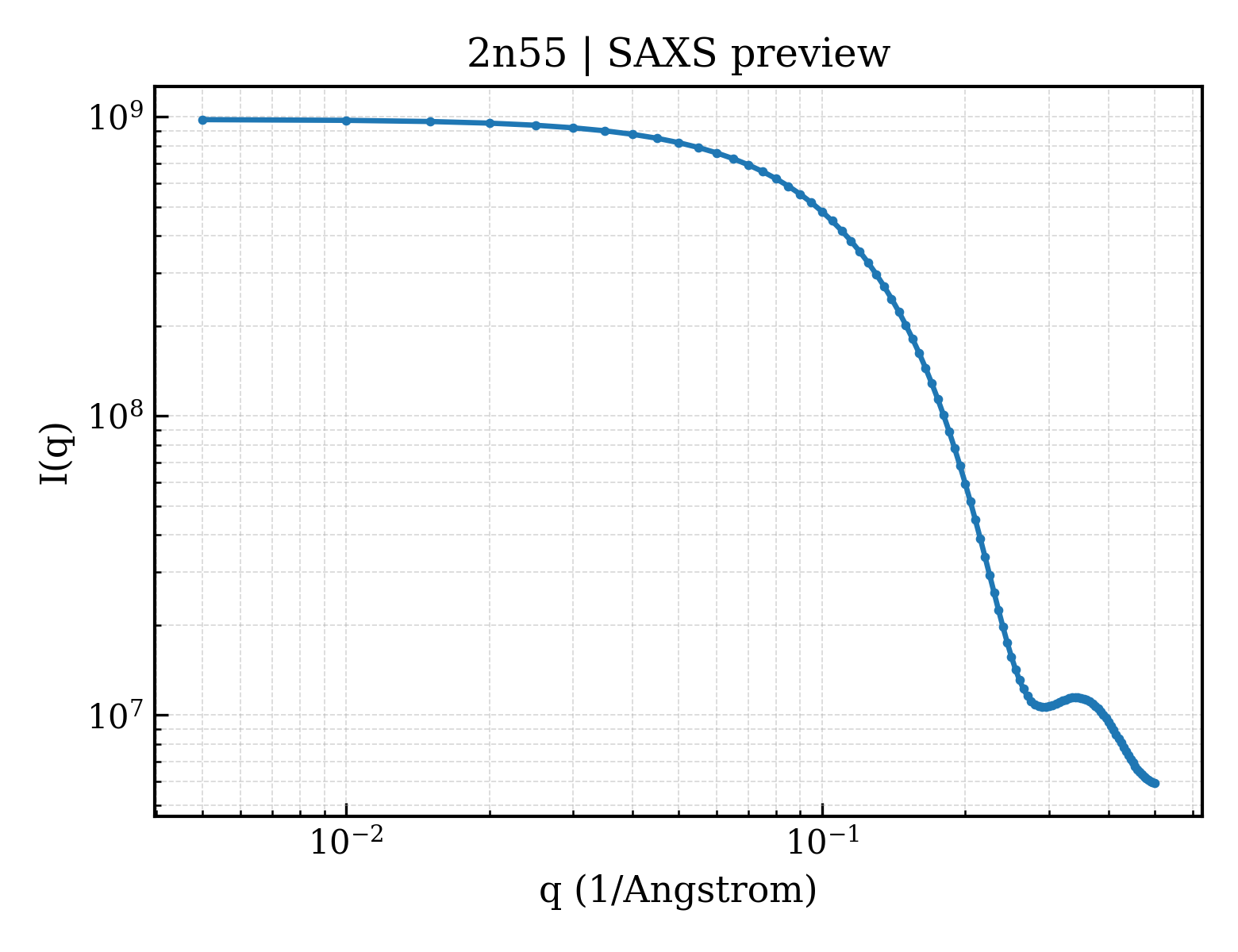

Method: SOLUTION NMR Dmax: 37.4 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Stromal cell-derived factor 1

Homo sapiens

UniProt P48061

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 22–89 Mutation：L76C, I79C C-X-C chemokine receptor type 4 × 1 （P61073） SOLUTION NMR NMR measurement conditions：pH 6.8；298 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition：2 mM [U-99% 13C; U-99% 15N] protein_1, 25 mM [U-2H] MES, 10 % [U-99% 2H] D2O, 0.02 % sodium azide, 2 mM protein_2, 90% H2O/10% D2O | 90% H2O/10% D2O NMR sample composition：1 mM [U-99% 13C; U-99% 15N] protein_2, 25 mM [U-2H] MES, 0.02 % sodium azide, 10 % [U-99% 2H] D2O, 2 mM protein_1, 90% H2O/10% D2O | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2N55 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1A15 SDF-1ALPHA Deposited 1997-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 22–88（67 aa）
Chain B 22–88（67 aa）
Mutation：N33A Mutation：N33A SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；PROTEIN CONCENTRATION 10MG/ML. WELL SOLUTION 1.9M AMMONIUM SULFATE 0.1M TRIS-HCL PH 8.5. CRYSTALLIZED USING VAPOR DIFFUSION., vapor diffusion
Resolution 2.20 Å R-free 0.298
1QG7 STROMA CELL-DERIVED FACTOR-1ALPHA (SDF-1ALPHA) Deposited 1999-04-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 22–88（67 aa）
Chain B 22–88（67 aa）
Not recorded SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；pH 7.0
Resolution 2.00 Å R-free 0.258
1SDF SOLUTION STRUCTURE OF STROMAL CELL-DERIVED FACTOR-1 (SDF-1), NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1997-11-15 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–88（67 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 4.9；303 K
Resolution not provided
1VMC STROMA CELL-DERIVED FACTOR-1ALPHA (SDF-1ALPHA) Deposited 2004-09-20 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–89（68 aa） Fragment：SDF-1ALPHA (residues 22-89)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；308 K；Ionic strength (raw mmCIF value) 50 mM SODIUM PHOSPHATE
Resolution not provided
2J7Z Crystal Structure of recombinant Human Stromal Cell-Derived Factor- 1alpha Deposited 2006-10-18 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 22–89（68 aa） Fragment：RESIDUES 22-89
Chain B 22–89（68 aa） Fragment：RESIDUES 22-89
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å R-free 0.247
2K01 Structure of a locked SDF1 dimer Deposited 2008-01-23 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 22–89（68 aa） Fragment：SDF-1-alpha(3-67) domain
Chain C 22–89（68 aa） Fragment：SDF-1-alpha(3-67) domain
Mutation：L36C,A65C Mutation：L36C,A65C No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 21；Pressure AMBIENT
NMR sample composition 0.620 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2K03 Structure of SDF1 in complex with the CXCR4 N-terminus containing a sulfotyrosine at postition 21 Deposited 2008-01-24 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 22–89（68 aa） Fragment：SDF-1-alpha(3-67) domain
Chain C 22–89（68 aa） Fragment：SDF-1-alpha(3-67) domain
Mutation：L36C,A65C Mutation：L36C,A65C No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 21；Pressure AMBIENT
NMR sample composition .338 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, .970 mM CXCR4, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 1.07 mM [U-100% 13C; U-100% 15N] CXCR4, 0.67 mM CXCL12/SDF1-alpha, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2K04 Structure of SDF1 in complex with the CXCR4 N-terminus containing no sulfotyrosines Deposited 2008-01-24 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 22–89（68 aa） Fragment：SDF-1-alpha(3-67) domain
Chain C 22–89（68 aa） Fragment：SDF-1-alpha(3-67) domain
Mutation：L36C,A65C Mutation：L36C,A65C No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 21；Pressure AMBIENT
NMR sample composition .31 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, .775 mM CXCR4, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 1.0 mM [U-100% 13C; U-100% 15N] CXCR4, 0.625 mM CXCL12/SDF1-alpha, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2K05 Structure of SDF1 in complex with the CXCR4 N-terminus containing sulfotyrosines at postitions 7, 12 and 21 Deposited 2008-01-24 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 22–89（68 aa） Fragment：SDF-1-alpha(3-67) domain
Chain C 22–89（68 aa） Fragment：SDF-1-alpha(3-67) domain
Mutation：L36C,A65C Mutation：L36C,A65C No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 21；Pressure AMBIENT
NMR sample composition .338 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, .97 mM CXCR4, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 1.07 mM [U-100% 13C; U-100% 15N] CXCR4, 0.67 mM CXCL12/SDF1-alpha, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2KEC Structure of SDF-1/CXCL12 Deposited 2009-01-28 Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–89（68 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；298 K；Ionic strength (raw mmCIF value) 50；Pressure AMBIENT
NMR sample composition 1.56 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2KED Structure of SDF-1/CXCL12 Deposited 2009-01-28 Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–89（68 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；298 K；Ionic strength (raw mmCIF value) 0.001；Pressure AMBIENT
NMR sample composition 1.6 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2KEE Structure of SDF-1/CXCL12 Deposited 2009-01-28 Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–89（68 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 0.001 mM；Pressure AMBIENT
NMR sample composition 1.2 mM CXCL12/SDF1-alpha, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2KOL Solution structure of human SDF1-alpha H25R Deposited 2009-09-24 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–89（68 aa） Fragment：SDF-1-alpha, residues 22-89
Mutation：H25R No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 20；Pressure AMBIENT
NMR sample composition 3.3 mM [U-100% 13C; U-100% 15N] SDF1a H25R, 25 mM [U-99% 2H] MES, 0.02 % sodium azide, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2NWG Structure of CXCL12:heparin disaccharide complex Deposited 2006-11-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 22–88（67 aa） Fragment：residues 22-88
Chain B 22–88（67 aa） Fragment：residues 22-88
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Soaking；pH 8.5；298 K；Grown in 2M Ammonium Sulfate, 0.1M TrisHCl pH 8.50. Soaked in 20 mM PEG-8000, 1M TrisHCl pH 8.5, 16 mM disaccharide. , Soaking, temperature 298K
Resolution 2.07 Å R-free 0.265
2SDF SOLUTION NMR STRUCTURE OF STROMAL CELL-DERIVED FACTOR-1 (SDF-1), 30 STRUCTURES Deposited 1998-03-07 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–88（67 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 4.9；303 K
Resolution not provided
4LMQ Development and Preclinical Characterization of a Humanized Antibody Targeting CXCL12 Deposited 2013-07-10 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 29–89（61 aa） Fragment：UNP RESIDUES 29-89
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.2M NaF, 0.1M Bis-tris, propane, 23%w/v PEG 3350, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.77 Å R-free 0.301
4LMQ Development and Preclinical Characterization of a Humanized Antibody Targeting CXCL12 Deposited 2013-07-10 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 29–89（61 aa） Fragment：UNP RESIDUES 29-89
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.2M NaF, 0.1M Bis-tris, propane, 23%w/v PEG 3350, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.77 Å R-free 0.301
4UAI Crystal structure of CXCL12 in complex with inhibitor Deposited 2014-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 22–89（68 aa） Fragment：UNP residues 22-89
Chain B 22–89（68 aa） Fragment：UNP residues 22-89
Not recorded 3GG 1-phenyl-3-[4-(1H-tetrazol-5-yl)phenyl]urea × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；2 M AmSO4, 2% MPD, 0.1 M MES Sodium Salt pH 6.5
Resolution 1.90 Å R-free 0.235
6SHR X-RAY CRYSTAL STRUCTURE OF CELL-FREE PROTEIN SYNTHESIS (CFPS) PRODUCED SDF1-A Deposited 2019-08-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 26–89（64 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M tri-sodium citrate pH 5.6, 20 % (v/v) isopropanol and 20 % (w/v) PEG 4000
Resolution 1.75 Å R-free 0.239
7SK3 Cryo-EM structure of ACKR3 in complex with CXCL12, an intracellular Fab, and an extracellular Fab Deposited 2021-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 22–89（68 aa） Fragment：UNP residues 22-89
Not recorded CLR CHOLESTEROL × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7SK4 Cryo-EM structure of ACKR3 in complex with chemokine N-terminal mutant CXCL12_LRHQ, an intracellular Fab, and an extracellular Fab Deposited 2021-10-19 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 22–89（68 aa）
Mutation：N-terminus of CXCL12 (KPV) substituted with LRHQ CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7SK5 Cryo-EM structure of ACKR3 in complex with CXCL12 and an intracellular Fab Deposited 2021-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 22–89（68 aa） Fragment：UNP residues 22-89
Not recorded CLR CHOLESTEROL × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7SK6 Cryo-EM structure of human ACKR3 in complex with chemokine N-terminal mutant CXCL12_LRHQ and an intracellular Fab Deposited 2021-10-19 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 22–89（68 aa）
Mutation：N-terminus of CXCL12 (KPV) substituted with LRHQ No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7SK7 Cryo-EM structure of human ACKR3 in complex with CXCL12, a small molecule partial agonist CCX662, and an extracellular Fab Deposited 2021-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 22–89（68 aa） Fragment：UNP residues 22-89
Not recorded GJ9 (1R)-4-[7-(3-carboxypropoxy)-6-methylquinolin-8-yl]-1-{[2-(4-hydroxypiperidin-1-yl)-1,3-thiazol-4-yl]methyl}-1,4-diazepan-1-ium × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7SK8 Cryo-EM structure of human ACKR3 in complex with CXCL12, a small molecule partial agonist CCX662, an extracellular Fab, and an intracellular Fab Deposited 2021-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 22–89（68 aa） Fragment：UNP residues 22-89
Not recorded CLR CHOLESTEROL × 6 LMN Lauryl Maltose Neopentyl Glycol × 1 GJ9 (1R)-4-[7-(3-carboxypropoxy)-6-methylquinolin-8-yl]-1-{[2-(4-hydroxypiperidin-1-yl)-1,3-thiazol-4-yl]methyl}-1,4-diazepan-1-ium × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8K3Z Cryo-EM structure of CXCR4 in complex with CXCL12 Deposited 2023-07-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 22–83（62 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.81 Å
8U4O Structure of CXCL12-bound CXCR4/Gi complex Deposited 2023-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain J 22–89（68 aa） Fragment：UNP residues 22-89
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9E82 ACKR3 phosphorylated by GRK5 in complex with arrestin2 and Fab7 Deposited 2024-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 25–89（65 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9ME1 hCXCR4-CXCL12 complex with 1:1 stoichiometry Deposited 2024-12-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain F 22–93（72 aa）
Chain G 22–93（72 aa）
Chain H 22–93（72 aa）
Chain J 22–93（72 aa）
Chain M 22–93（72 aa）
Chain N 22–93（72 aa）
Chain O 22–93（72 aa）
Chain P 22–93（72 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
9MEU CXCR4 tetramer bound to 4 CXCL12 dimers Deposited 2024-12-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain F 22–93（72 aa）
Chain G 22–93（72 aa）
Chain H 22–93（72 aa）
Chain J 22–93（72 aa）
Chain M 22–93（72 aa）
Chain N 22–93（72 aa）
Chain O 22–93（72 aa）
Chain P 22–93（72 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9UPU Cryo-EM strucutre of CXCR4 complexed with agonist SDV1a Deposited 2025-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain J 22–29（8 aa） Fragment：N-terminus
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9UPV Cryo-EM structure of CXCR4 complexed with agonist SDVX1 Deposited 2025-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain J 22–29（8 aa） Fragment：N-terminus
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å

31 other PDB entries and 32 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SDF1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 3–70； UniProt 22–89

C-X-C chemokine receptor type 4

Homo sapiens

UniProt P61073

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 1–38 Mutation：C28A Stromal cell-derived factor 1 × 1 （P48061） SOLUTION NMR NMR measurement conditions：pH 6.8；298 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition：2 mM [U-99% 13C; U-99% 15N] protein_1, 25 mM [U-2H] MES, 10 % [U-99% 2H] D2O, 0.02 % sodium azide, 2 mM protein_2, 90% H2O/10% D2O | 90% H2O/10% D2O NMR sample composition：1 mM [U-99% 13C; U-99% 15N] protein_2, 25 mM [U-2H] MES, 0.02 % sodium azide, 10 % [U-99% 2H] D2O, 2 mM protein_1, 90% H2O/10% D2O | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2N55 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
22XC Structure of CXCR4 in complex with a de-novo designed mini-protein antagonist Deposited 2026-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 2–352（351 aa）
Chain G 2–352（351 aa）
Chain R 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 3 D21 (2R)-1-(hexadecanoyloxy)-3-(phosphonooxy)propan-2-yl (9Z)-octadec-9-enoate × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
2K03 Structure of SDF1 in complex with the CXCR4 N-terminus containing a sulfotyrosine at postition 21 Deposited 2008-01-24 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–38（38 aa） Fragment：N-terminus, residues 1-38
Chain D 1–38（38 aa） Fragment：N-terminus, residues 1-38
Mutation：C28A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C28A Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 21；Pressure AMBIENT
NMR sample composition .338 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, .970 mM CXCR4, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 1.07 mM [U-100% 13C; U-100% 15N] CXCR4, 0.67 mM CXCL12/SDF1-alpha, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2K04 Structure of SDF1 in complex with the CXCR4 N-terminus containing no sulfotyrosines Deposited 2008-01-24 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–38（38 aa） Fragment：N-terminus, residues 1-38
Chain D 1–38（38 aa） Fragment：N-terminus, residues 1-38
Mutation：C28A Mutation：C28A No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 21；Pressure AMBIENT
NMR sample composition .31 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, .775 mM CXCR4, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 1.0 mM [U-100% 13C; U-100% 15N] CXCR4, 0.625 mM CXCL12/SDF1-alpha, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2K05 Structure of SDF1 in complex with the CXCR4 N-terminus containing sulfotyrosines at postitions 7, 12 and 21 Deposited 2008-01-24 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–38（38 aa） Fragment：N-terminus, residues 1-38
Chain D 1–38（38 aa） Fragment：N-terminus, residues 1-38
Mutation：C28A Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C28A Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；308 K；Ionic strength (raw mmCIF value) 21；Pressure AMBIENT
NMR sample composition .338 mM [U-100% 13C; U-100% 15N] CXCL12/SDF1-alpha, .97 mM CXCR4, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 1.07 mM [U-100% 13C; U-100% 15N] CXCR4, 0.67 mM CXCL12/SDF1-alpha, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
3ODU The 2.5 A structure of the CXCR4 chemokine receptor in complex with small molecule antagonist IT1t Deposited 2010-08-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–229（228 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain A 230–319（90 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain B 2–229（228 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain B 230–319（90 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T ITD (6,6-dimethyl-5,6-dihydroimidazo[2,1-b][1,3]thiazol-3-yl)methyl N,N'-dicyclohexylimidothiocarbamate × 2 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 5 OLA OLEIC ACID × 6 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 5.5；293 K；Lipidic cubic phase made of monoolein and cholesterol, 20% PEG400, 0.3M Sodium malonate, 5mM Taurine, 0.1M Sodium citrate, pH 5.5, LIPIDIC CUBIC PHASE, temperature 293K
Resolution 2.50 Å R-free 0.282
3OE0 Crystal structure of the CXCR4 chemokine receptor in complex with a cyclic peptide antagonist CVX15 Deposited 2010-08-12 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–228（227 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-319
Chain A 231–319（89 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-319
Mutation：L125W, T240P, C1054T, C1097T Mutation：L125W, T240P, C1054T, C1097T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 7；293 K；Lipidic cubic phase made of monoolein and cholesterol, 25% PEG400, 0.3M Potassium sodium tartrate, 0.1 M Tris pH 7.0, LIPIDIC CUBIC PHASE, temperature 293K
Resolution 2.90 Å R-free 0.267
3OE6 Crystal structure of the CXCR4 chemokine receptor in complex with a small molecule antagonist IT1t in I222 spacegroup Deposited 2010-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–229（228 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-325
Chain A 230–325（96 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-325
Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T ITD (6,6-dimethyl-5,6-dihydroimidazo[2,1-b][1,3]thiazol-3-yl)methyl N,N'-dicyclohexylimidothiocarbamate × 2 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 6 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 5.5；293 K；Lipidic cubic phase made of monoolein and cholesterol, 20-26% PEG400, 0.3M Sodium malonate, 5mM Nickel chloride, 0.1M Sodium citrate pH 5.0-5.5, LIPIDIC CUBIC PHASE, temperature 293K
Resolution 3.20 Å R-free 0.306
3OE8 Crystal structure of the CXCR4 chemokine receptor in complex with a small molecule antagonist IT1t in P1 spacegroup Deposited 2010-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 2–229（228 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain B 230–319（90 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain C 2–229（228 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain C 230–319（90 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T ITD (6,6-dimethyl-5,6-dihydroimidazo[2,1-b][1,3]thiazol-3-yl)methyl N,N'-dicyclohexylimidothiocarbamate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；Lipidic cubic phase made of monoolein and cholesterol, 26% PEG400, 0.3M Sodium malonate, 5mM Strontium chloride, 0.1M MES pH 6.0, LIPIDIC CUBIC PHASE, temperature 293K
Resolution 3.10 Å R-free 0.295
3OE8 Crystal structure of the CXCR4 chemokine receptor in complex with a small molecule antagonist IT1t in P1 spacegroup Deposited 2010-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 2–229（228 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain A 230–319（90 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain B 2–229（228 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain B 230–319（90 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain C 2–229（228 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain C 230–319（90 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T ITD (6,6-dimethyl-5,6-dihydroimidazo[2,1-b][1,3]thiazol-3-yl)methyl N,N'-dicyclohexylimidothiocarbamate × 3 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；Lipidic cubic phase made of monoolein and cholesterol, 26% PEG400, 0.3M Sodium malonate, 5mM Strontium chloride, 0.1M MES pH 6.0, LIPIDIC CUBIC PHASE, temperature 293K
Resolution 3.10 Å R-free 0.295
3OE8 Crystal structure of the CXCR4 chemokine receptor in complex with a small molecule antagonist IT1t in P1 spacegroup Deposited 2010-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–229（228 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Chain A 230–319（90 aa） Fragment：CXCR4 residues 2-229, LYSOZYME residues 1002-1161, CXCR4 residues 230-319
Mutation：L125W, C1054T, C1097T Mutation：L125W, C1054T, C1097T ITD (6,6-dimethyl-5,6-dihydroimidazo[2,1-b][1,3]thiazol-3-yl)methyl N,N'-dicyclohexylimidothiocarbamate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；Lipidic cubic phase made of monoolein and cholesterol, 26% PEG400, 0.3M Sodium malonate, 5mM Strontium chloride, 0.1M MES pH 6.0, LIPIDIC CUBIC PHASE, temperature 293K
Resolution 3.10 Å R-free 0.295
3OE9 Crystal structure of the chemokine CXCR4 receptor in complex with a small molecule antagonist IT1t in P1 spacegroup Deposited 2010-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–228（227 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-319
Chain A 231–319（89 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-319
Chain B 2–228（227 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-319
Chain B 231–319（89 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-319
Mutation：L125W, T240P, C1054T, C1097T Mutation：L125W, T240P, C1054T, C1097T Mutation：L125W, T240P, C1054T, C1097T Mutation：L125W, T240P, C1054T, C1097T ITD (6,6-dimethyl-5,6-dihydroimidazo[2,1-b][1,3]thiazol-3-yl)methyl N,N'-dicyclohexylimidothiocarbamate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；Lipidic cubic phase made of monoolein and cholesterol, 27-35% PEG400, 0.27-0.33M Sodium malonate, 5mM Hexamine cobalt chloride, 0.1M MES pH 6.0, LIPIDIC CUBIC PHASE, temperature 293K
Resolution 3.10 Å R-free 0.284
4RWS Crystal structure of CXCR4 and viral chemokine antagonist vMIP-II complex (PSI Community Target) Deposited 2014-12-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–228（227 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-319
Chain A 231–319（89 aa） Fragment：CXCR4 residues 2-228, LYSOZYME residues 1002-1161, CXCR4 residues 231-319
Mutation：L125W, T240P, D187C, C1054T, C1097T Mutation：L125W, T240P, D187C, C1054T, C1097T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 5.5；293 K；100 mM sodium citrate pH 5.5, 28% PEG 400, 120 mM ammonium phosphate dibasic, 2-6% polypropylene P400, Lipidic cubic phase, temperature 293K
Resolution 3.10 Å R-free 0.274
8GP3 Structure of beta-arrestin1 in complex with a phosphopeptide corresponding to the human C-X-C chemokine receptor type 4, CXCR4 Deposited 2022-08-25 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain U 336–352（17 aa）
Chain V 336–352（17 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3 seconds before plunging.
Resolution 4.80 Å
8I0Q Structure of beta-arrestin1 in complex with a phosphopeptide corresponding to the human C-X-C chemokine receptor type 4, CXCR4 (Local refine) Deposited 2023-01-11 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain U 336–352（17 aa）
Chain V 336–352（17 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3 seconds before plunging.
Resolution 4.45 Å
8K3Z Cryo-EM structure of CXCR4 in complex with CXCL12 Deposited 2023-07-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 25–320（296 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.81 Å
8U4N Structure of Apo CXCR4/Gi complex Deposited 2023-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.72 Å
8U4O Structure of CXCL12-bound CXCR4/Gi complex Deposited 2023-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
8U4P Structure of AMD3100-bound CXCR4/Gi complex Deposited 2023-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 1 VH6 Plerixafor × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
8U4Q Structure of REGN7663 Fab-bound CXCR4/Gi complex Deposited 2023-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8U4R Structure of REGN7663-Fab bound CXCR4 Deposited 2023-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain R 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8U4S Structure of trimeric CXCR4 in complex with REGN7663 Fab Deposited 2023-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 2–352（351 aa）
Chain G 2–352（351 aa）
Chain R 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 6 D21 (2R)-1-(hexadecanoyloxy)-3-(phosphonooxy)propan-2-yl (9Z)-octadec-9-enoate × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
8U4T Structure of tetrameric CXCR4 in complex with REGN7663 Fab Deposited 2023-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain AA 2–352（351 aa）
Chain I 2–352（351 aa）
Chain Q 2–352（351 aa）
Chain R 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 16 D21 (2R)-1-(hexadecanoyloxy)-3-(phosphonooxy)propan-2-yl (9Z)-octadec-9-enoate × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
8YU7 Cryo-EM structure of CXCR4 tetramer Deposited 2024-03-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–352（351 aa）
Chain B 2–352（351 aa）
Chain C 2–352（351 aa）
Chain D 2–352（351 aa）
Not recorded CLR CHOLESTEROL × 20 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
8ZPL Cryo-EM strucutre of CXCR4 complexed with antagonist HF51116 Deposited 2024-05-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 1–224（224 aa）
Chain R 241–319（79 aa）
Not recorded CLR CHOLESTEROL × 2 A1D8K (2S)-N-[[4-[[3-(cyclohexylamino)propylamino]methyl]phenyl]methyl]-5-(diaminomethylideneamino)-2-(pyridin-2-ylmethylamino)pentanamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
8ZPM Cryo-EM strucutre of CXCR4 complexed with antagonist AMD070 Deposited 2024-05-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 1–224（224 aa）
Chain R 241–319（79 aa）
Not recorded A1D8L Mavorixafor × 1 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8ZPN Cryo-EM strucutre of CXCR4 complexed with antagonist AMD3100 Deposited 2024-05-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 1–224（224 aa）
Chain R 241–319（79 aa）
Not recorded CLR CHOLESTEROL × 1 VH6 Plerixafor × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9MDU Human CXCR4 tetramer Deposited 2024-12-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–352（352 aa）
Chain B 1–352（352 aa）
Chain C 1–352（352 aa）
Chain D 1–352（352 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9ME1 hCXCR4-CXCL12 complex with 1:1 stoichiometry Deposited 2024-12-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain A 1–352（352 aa）
Chain B 1–352（352 aa）
Chain C 1–352（352 aa）
Chain D 1–352（352 aa）
Chain E 1–352（352 aa）
Chain I 1–352（352 aa）
Chain K 1–352（352 aa）
Chain L 1–352（352 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
9MEJ Global structure of hCXCR4 and HIV-2 gp120 Deposited 2024-12-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–352（352 aa）
Chain B 1–352（352 aa）
Chain C 1–352（352 aa）
Chain D 1–352（352 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.99 Å
9MEN CryoEM structure of hCXCR4 tetramer bound to HIV-2/gp120/V3 loop Deposited 2024-12-07 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–352（352 aa）
Chain B 1–352（352 aa）
Chain C 1–352（352 aa）
Chain D 1–352（352 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.57 Å
9MET CXCR4-HIV-2/gp120-CD4 Deposited 2024-12-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain M 1–352（352 aa）
Chain N 1–352（352 aa）
Chain O 1–352（352 aa）
Chain S 1–352（352 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.65 Å
9MEU CXCR4 tetramer bound to 4 CXCL12 dimers Deposited 2024-12-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–352（352 aa）
Chain B 1–352（352 aa）
Chain C 1–352（352 aa）
Chain D 1–352（352 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9UPU Cryo-EM strucutre of CXCR4 complexed with agonist SDV1a Deposited 2025-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 1–337（337 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9UPV Cryo-EM structure of CXCR4 complexed with agonist SDVX1 Deposited 2025-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 1–337（337 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å

32 other PDB entries and 34 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CXCR4_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 3–40； UniProt 1–38

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2n55

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2n55
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2n55
Deposition date deposition_date2015-07-07
Structure title titleStructure of constitutively monomeric CXCL12 in complex with the CXCR4 N-terminus
Keywords keywordsCXL12, CXCR4, chemokine, GPCR, SDF1, CYTOKINE-Signaling Protein complex; CYTOKINE/Signaling Protein
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier14.63 Å
Radius of gyration Rg (electron density) rg_electron14.41 Å
Forward intensity I(0) i0981045000.00
Molecular weight molecular_weight252670.0 kDa
Excluded volume excluded_volume311290 ų
Envelope volume envelope_volume42516 ų
Hydration-shell volume shell_volume18683 ų
Envelope diameter envelope_diameter73.0 Å
Shell Rg shell_rg25.78 Å
Envelope Rg envelope_rg20.10 Å
Shape Rg shape_rg14.37 Å
Total Rg total_rg14.79 Å
Total atoms total_atoms34820
Residues n_residues2199
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax37.4 Å
Rg (real space) rg_real13.78 Å
Rg uncertainty (real space) rg_real_error0.04 Å
I(0) (real space) i0_real9.3420e+08
I(0) uncertainty (real space) i0_real_error7.3910e+06
Rg (reciprocal space) rg_reciprocal14.67 Å
I(0) (reciprocal space) i0_reciprocal981000000.0000
Solution quality estimate total_estimate0.6854
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary17.0 Å
Skewness Skewness skewness0.145
Kurtosis Kurtosis kurtosis-0.413
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha2.5770
Highest regularization parameter α highest_alpha407300.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.006; Oscil: 0.989; Stabil: 0.985; Sysdev: 0.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd2n55a1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.9 — IL8-like
Superfamily Superfamily superfamilyd.9.1 — Interleukin 8-like chemokines
Family Family familyd.9.1.1 — Interleukin 8-like chemokines
Domain ID domain_idd2n55a2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id2n55A00
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily40 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
