1a67
CHICKEN EGG WHITE CYSTATIN WILDTYPE, NMR, 16 STRUCTURES

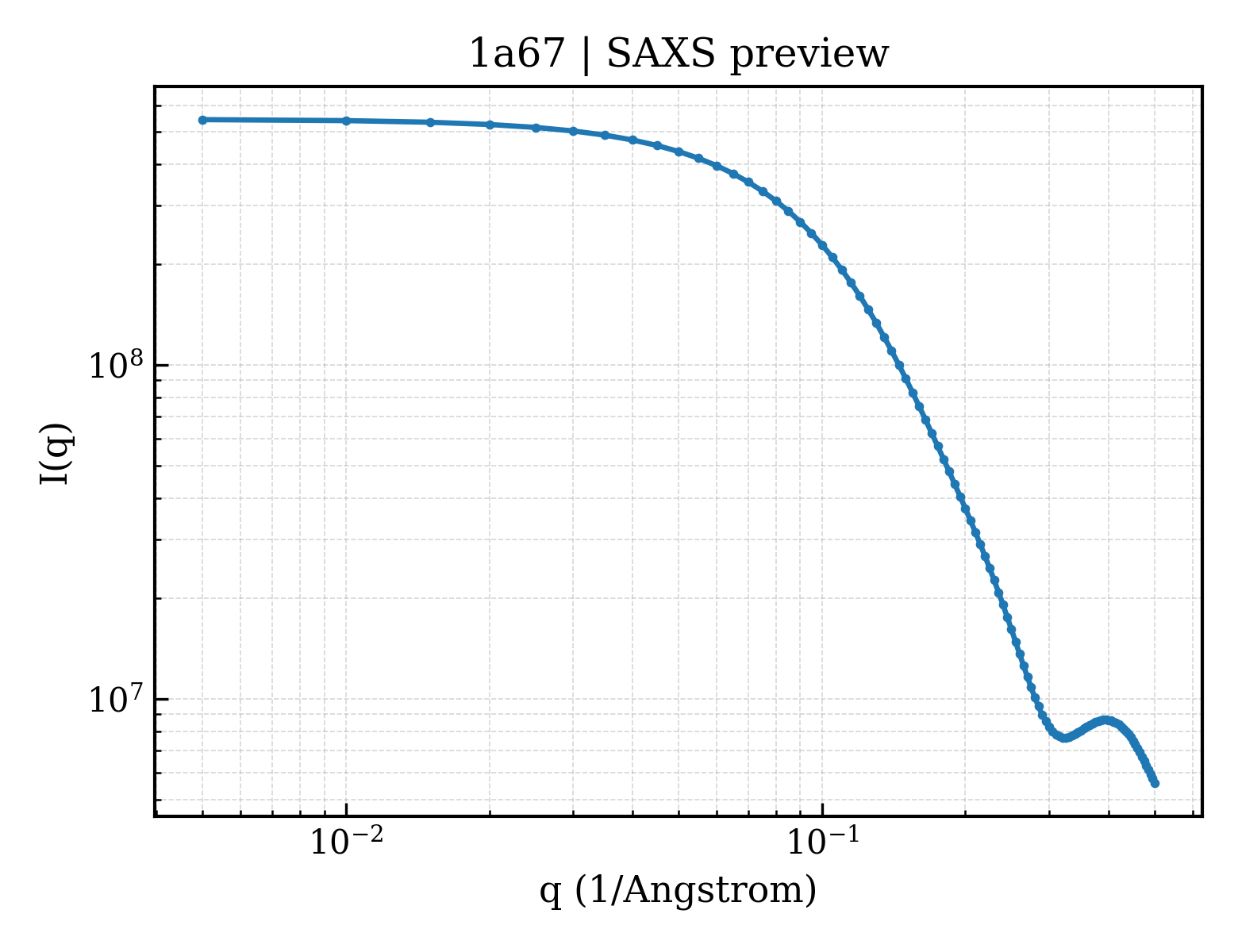

SAXS Profile

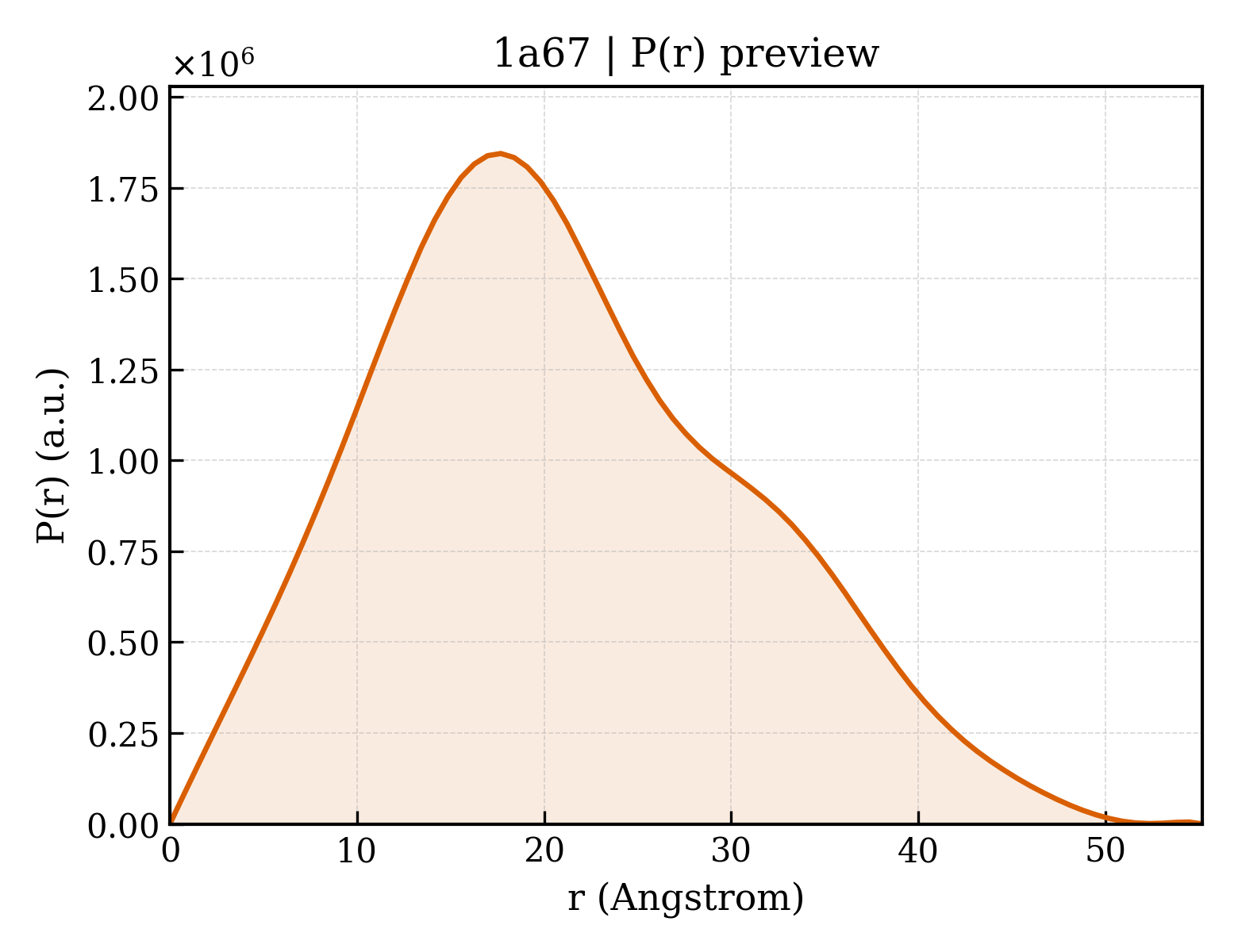

P(r) Distribution
1. Structure Basics
| entry_id | 1a67 |
| deposition_date | 1998-03-06 |
| title | CHICKEN EGG WHITE CYSTATIN WILDTYPE, NMR, 16 STRUCTURES |
| keywords | PROTEINASE INHIBITOR, THIOL PROTEINASE, STEFFINS, KININOGENS; PROTEINASE INHIBITOR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.31 Å |
| rg_electron | 16.24 Å |
| i0 | 544528000.00 |
| molecular_weight | 194530.0 kDa |
| excluded_volume | 242610 ų |
| envelope_volume | 34226 ų |
| shell_volume | 16318 ų |
| envelope_diameter | 61.2 Å |
| shell_rg | 23.76 Å |
| envelope_rg | 18.44 Å |
| shape_rg | 16.24 Å |
| total_rg | 16.42 Å |
| total_atoms | 27136 |
| n_residues | 1728 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.2 Å |
| rg_real | 16.37 Å |
| rg_real_error | 0.38 Å |
| i0_real | 5.4450e+08 |
| i0_real_error | 6.4670e+06 |
| rg_reciprocal | 16.37 Å |
| i0_reciprocal | 544500000.0000 |
| total_estimate | 0.8738 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.7 Å |
| skewness | 0.379 |
| kurtosis | -0.400 |
| angular_range | — – 0.4900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 226200.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.937; Smooth: 0.987 |
