1a90
RECOMBINANT MUTANT CHICKEN EGG WHITE CYSTATIN, NMR, 31 STRUCTURES
SAXS Profile

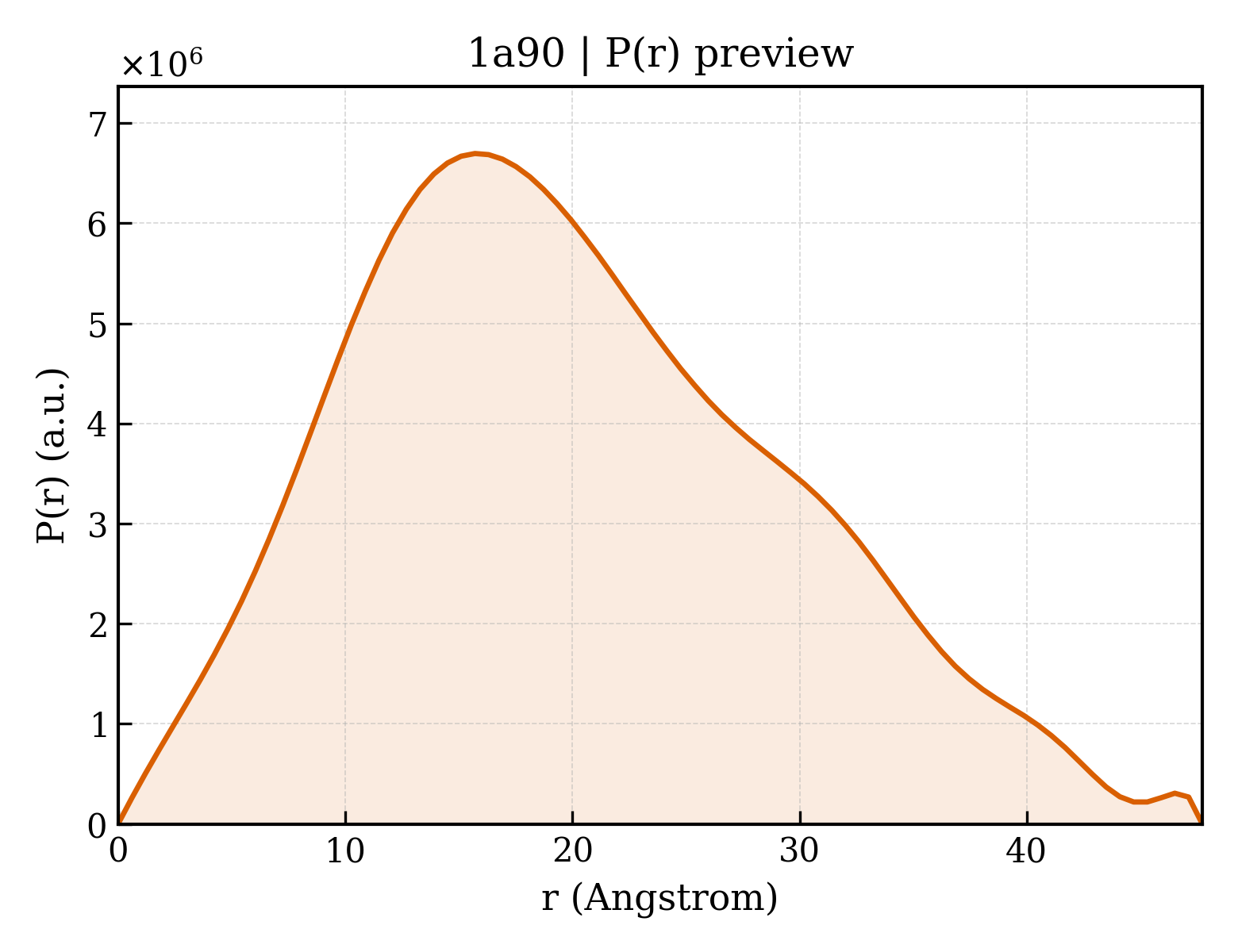

P(r) Distribution
1. Structure Basics
| entry_id | 1a90 |
| deposition_date | 1998-04-14 |
| title | RECOMBINANT MUTANT CHICKEN EGG WHITE CYSTATIN, NMR, 31 STRUCTURES |
| keywords | PROTEINASE INHIBITOR, THIOL PROTEINASE, STEFFINS, KININOGENS, THIOL PROTEASE INHIBITOR; THIOL PROTEASE INHIBITOR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.54 Å |
| rg_electron | 15.63 Å |
| i0 | 1948960000.00 |
| molecular_weight | 375780.0 kDa |
| excluded_volume | 470510 ų |
| envelope_volume | 33003 ų |
| shell_volume | 16045 ų |
| envelope_diameter | 60.8 Å |
| shell_rg | 23.30 Å |
| envelope_rg | 18.06 Å |
| shape_rg | 15.62 Å |
| total_rg | 15.76 Å |
| total_atoms | 52700 |
| n_residues | 3348 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.7 Å |
| rg_real | 15.60 Å |
| rg_real_error | 0.26 Å |
| i0_real | 1.9490e+09 |
| i0_real_error | 2.1450e+07 |
| rg_reciprocal | 15.59 Å |
| i0_reciprocal | 1949000000.0000 |
| total_estimate | 0.7570 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.7 Å |
| skewness | 0.393 |
| kurtosis | -0.413 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 249300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 0.499; Positv: 1.000; Valcen: 0.949; Smooth: 0.569 |
