1aac
AMICYANIN OXIDIZED, 1.31 ANGSTROMS

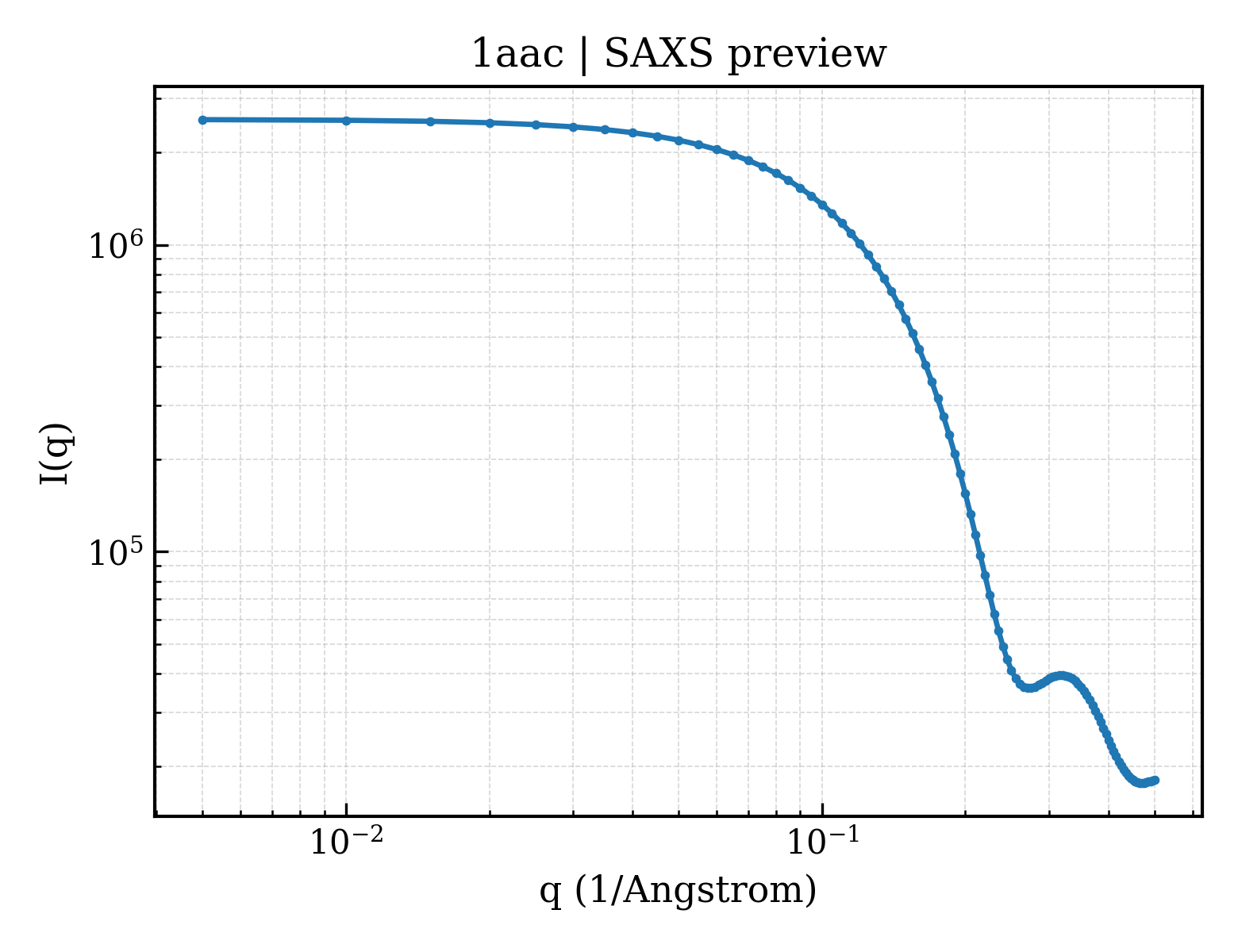

SAXS Profile

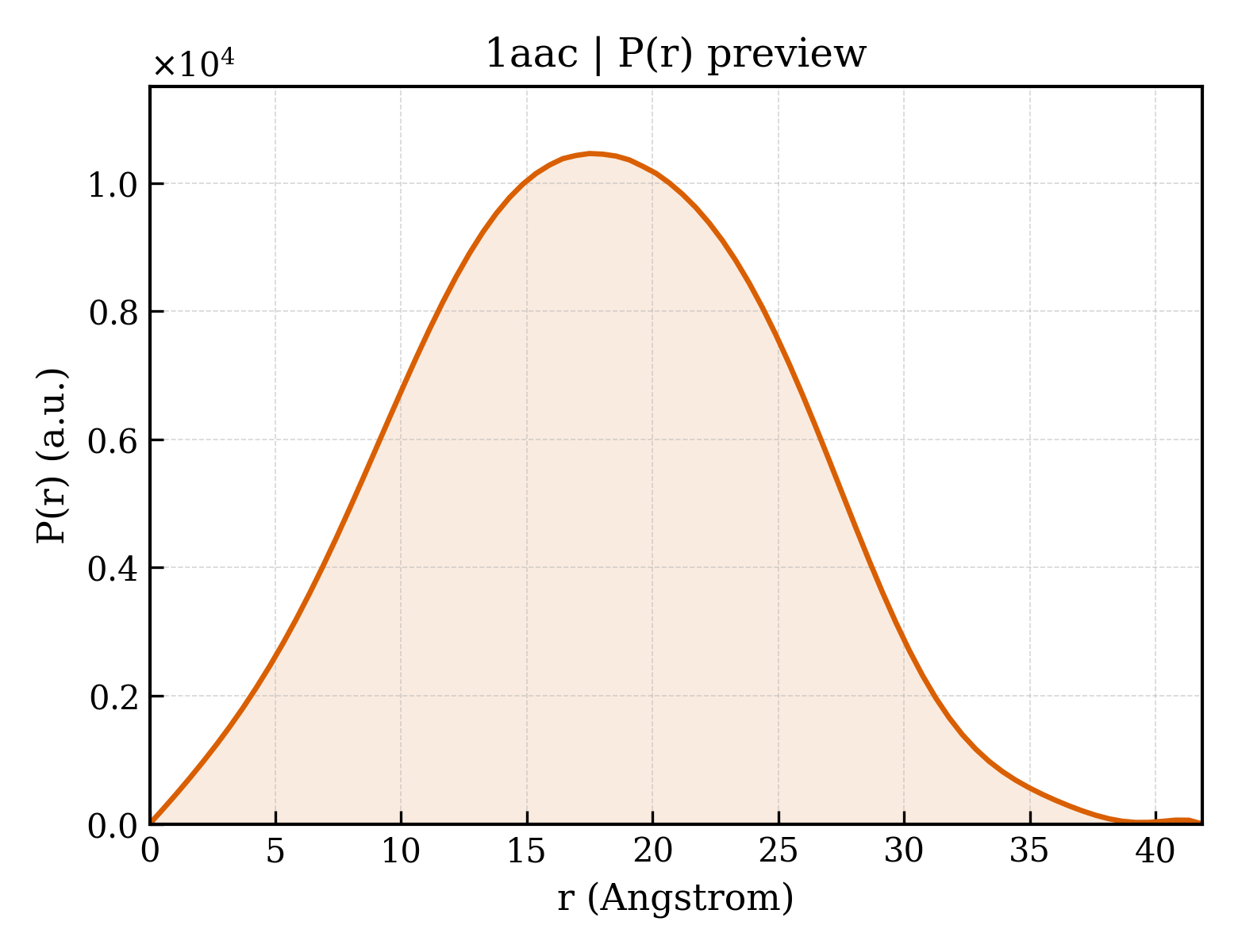

P(r) Distribution
1. Structure Basics
| entry_id | 1aac |
| deposition_date | 1995-09-07 |
| title | AMICYANIN OXIDIZED, 1.31 ANGSTROMS |
| keywords | ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.71 Å |
| rg_electron | 12.31 Å |
| i0 | 2561060.00 |
| molecular_weight | 10851.0 kDa |
| excluded_volume | 13403 ų |
| envelope_volume | 14460 ų |
| shell_volume | 10143 ų |
| envelope_diameter | 40.8 Å |
| shell_rg | 17.90 Å |
| envelope_rg | 12.51 Å |
| shape_rg | 12.28 Å |
| total_rg | 13.62 Å |
| total_atoms | 760 |
| n_residues | 104 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.9 Å |
| rg_real | 13.61 Å |
| rg_real_error | 0.19 Å |
| i0_real | 2.5610e+06 |
| i0_real_error | 2.8230e+04 |
| rg_reciprocal | 13.61 Å |
| i0_reciprocal | 2561000.0000 |
| total_estimate | 0.9040 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 17.5 Å |
| skewness | 0.049 |
| kurtosis | -0.477 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 380700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.978 |
