;CRYSTAL STRUCTURE ANALYSIS OF AMICYANIN AND APOAMICYANIN FROM PARACOCCUS DENITRIFICANS AT 2.0 ANGSTROMS AND 1.8 ANGSTROMS RESOLUTION ;

Method: X-RAY DIFFRACTION D_max: 43.1 Å Quality: GOOD

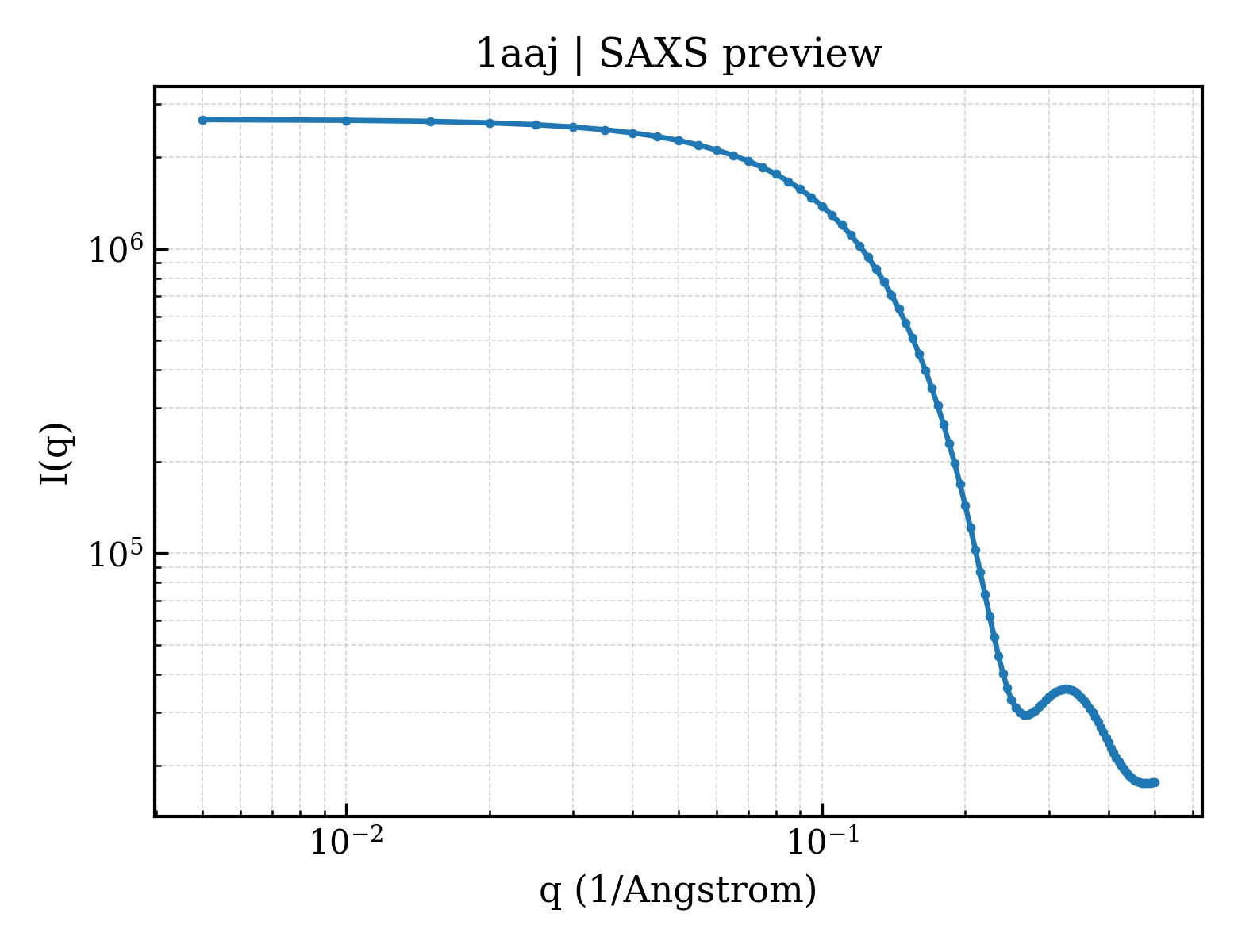

SAXS Profile

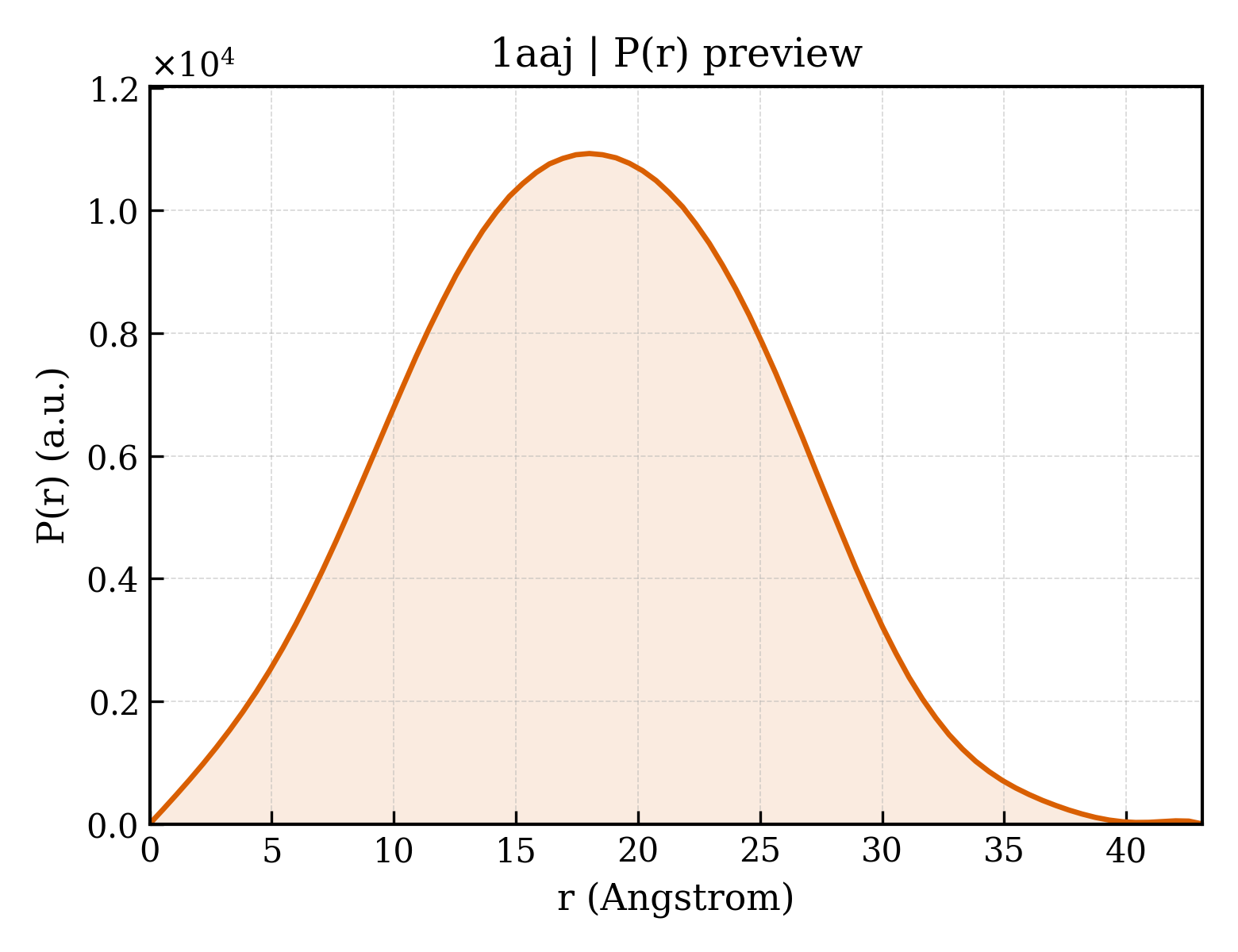

P(r) Distribution

▼

1. Structure Basics

entry_id	1aaj
deposition_date	1992-04-09
title	;CRYSTAL STRUCTURE ANALYSIS OF AMICYANIN AND APOAMICYANIN FROM PARACOCCUS DENITRIFICANS AT 2.0 ANGSTROMS AND 1.8 ANGSTROMS RESOLUTION ;
keywords	ELECTRON TRANSPORT; ELECTRON TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	13.90 Å
rg_electron	12.54 Å
i0	2666810.00
molecular_weight	11486.0 kDa
excluded_volume	14428 Å³
envelope_volume	15585 Å³
shell_volume	10615 Å³
envelope_diameter	42.5 Å
shell_rg	18.25 Å
envelope_rg	12.82 Å
shape_rg	12.50 Å
total_rg	13.97 Å
total_atoms	807
n_residues	105
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	43.1 Å
rg_real	13.79 Å
rg_real_error	0.19 Å
i0_real	2.6670e+06
i0_real_error	2.8050e+04
rg_reciprocal	13.79 Å
i0_reciprocal	2667000.0000
total_estimate	0.8991
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	18.0 Å
skewness	0.066
kurtosis	-0.432
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	476300.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.993

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	28.950 Å
length_b	56.540 Å
length_c	27.550 Å
angle_alpha	90.00 °
angle_beta	96.38 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.800 Å
resolution_low	— Å
r_factor	0.1550
r_work	0.1550
r_free	—

description	AMICYANIN
formula_weight	11505.2 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	905

;CRYSTAL STRUCTURE ANALYSIS OF AMICYANIN AND APOAMICYANIN FROM PARACOCCUS DENITRIFICANS AT 2.0 ANGSTROMS AND 1.8 ANGSTROMS RESOLUTION ;

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	98

fit	/app/data/saxs_computation/aa/1aaj/1aaj.fit
pddf	/app/data/pr_computation/aa/1aaj/1aaj.pr.out
profile	/app/data/saxs_computation/aa/1aaj/1aaj.dat

organism	Paracoccus denitrificans
ncbi_taxonomy_id	266
