1agj
EPIDERMOLYTIC TOXIN A FROM STAPHYLOCOCCUS AUREUS
SAXS Profile

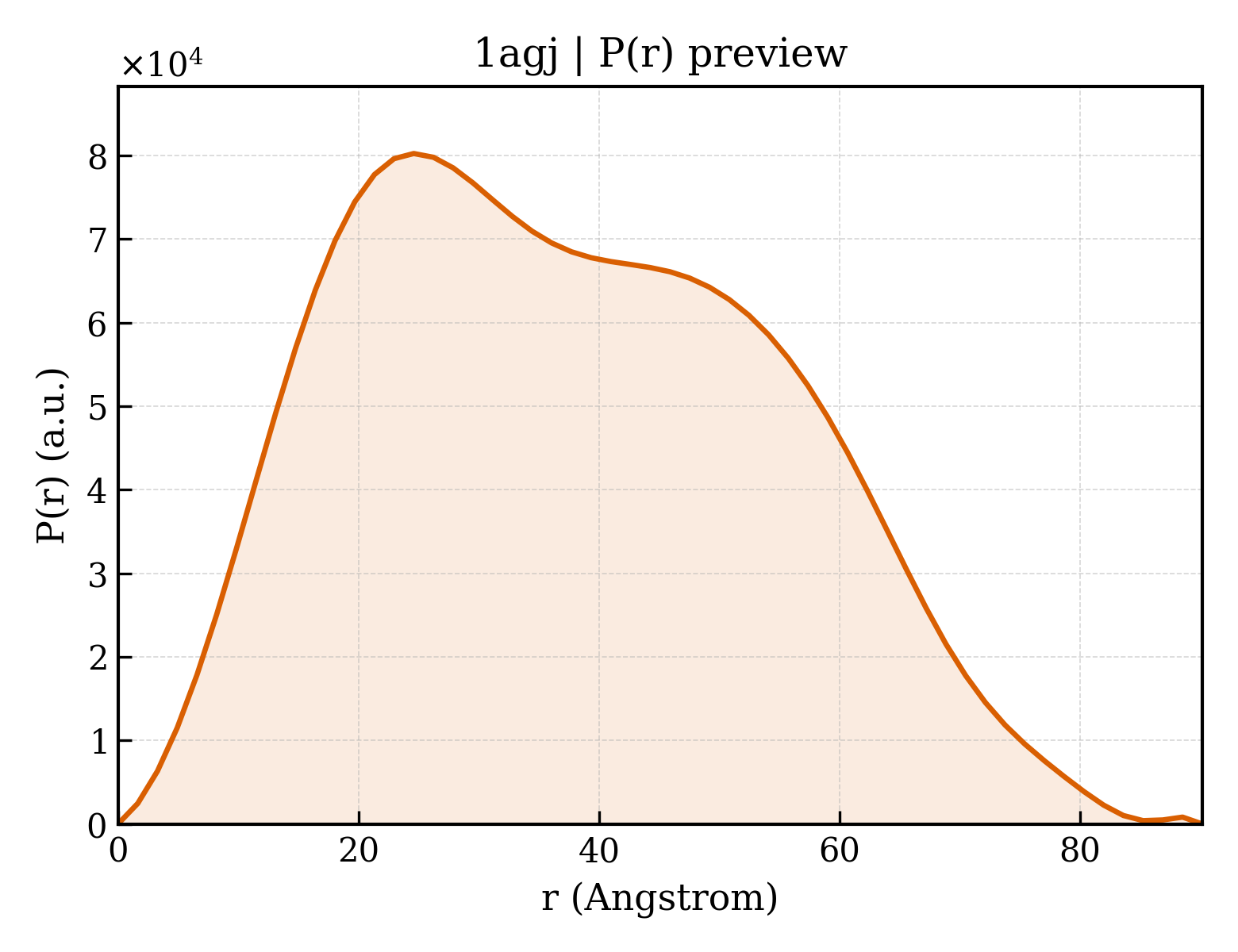

P(r) Distribution
1. Structure Basics
| entry_id | 1agj |
| deposition_date | 1997-03-25 |
| title | EPIDERMOLYTIC TOXIN A FROM STAPHYLOCOCCUS AUREUS |
| keywords | HYDROLASE, SERINE PROTEASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.08 Å |
| rg_electron | 28.26 Å |
| i0 | 48553500.00 |
| molecular_weight | 53892.0 kDa |
| excluded_volume | 67220 ų |
| envelope_volume | 84438 ų |
| shell_volume | 25120 ų |
| envelope_diameter | 96.0 Å |
| shell_rg | 35.14 Å |
| envelope_rg | 27.91 Å |
| shape_rg | 28.24 Å |
| total_rg | 28.99 Å |
| total_atoms | 3810 |
| n_residues | 484 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 90.2 Å |
| rg_real | 29.12 Å |
| rg_real_error | 0.69 Å |
| i0_real | 4.8550e+07 |
| i0_real_error | 7.6920e+05 |
| rg_reciprocal | 29.10 Å |
| i0_reciprocal | 48550000.0000 |
| total_estimate | 0.8867 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.6 Å |
| skewness | 0.241 |
| kurtosis | -0.761 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 12170000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.926; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.884; Smooth: 0.861 |
