1exf
EXFOLIATIVE TOXIN A

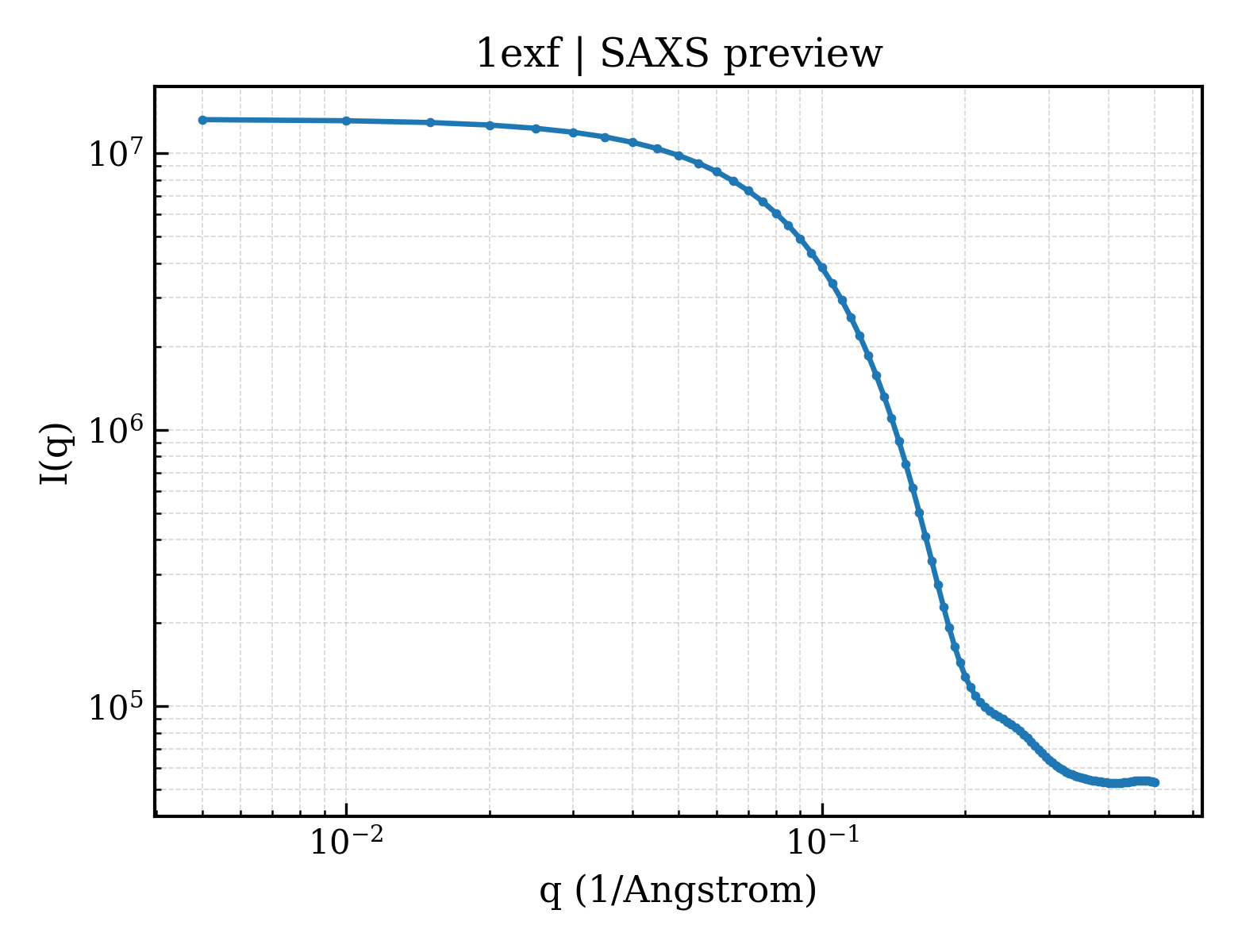

SAXS Profile

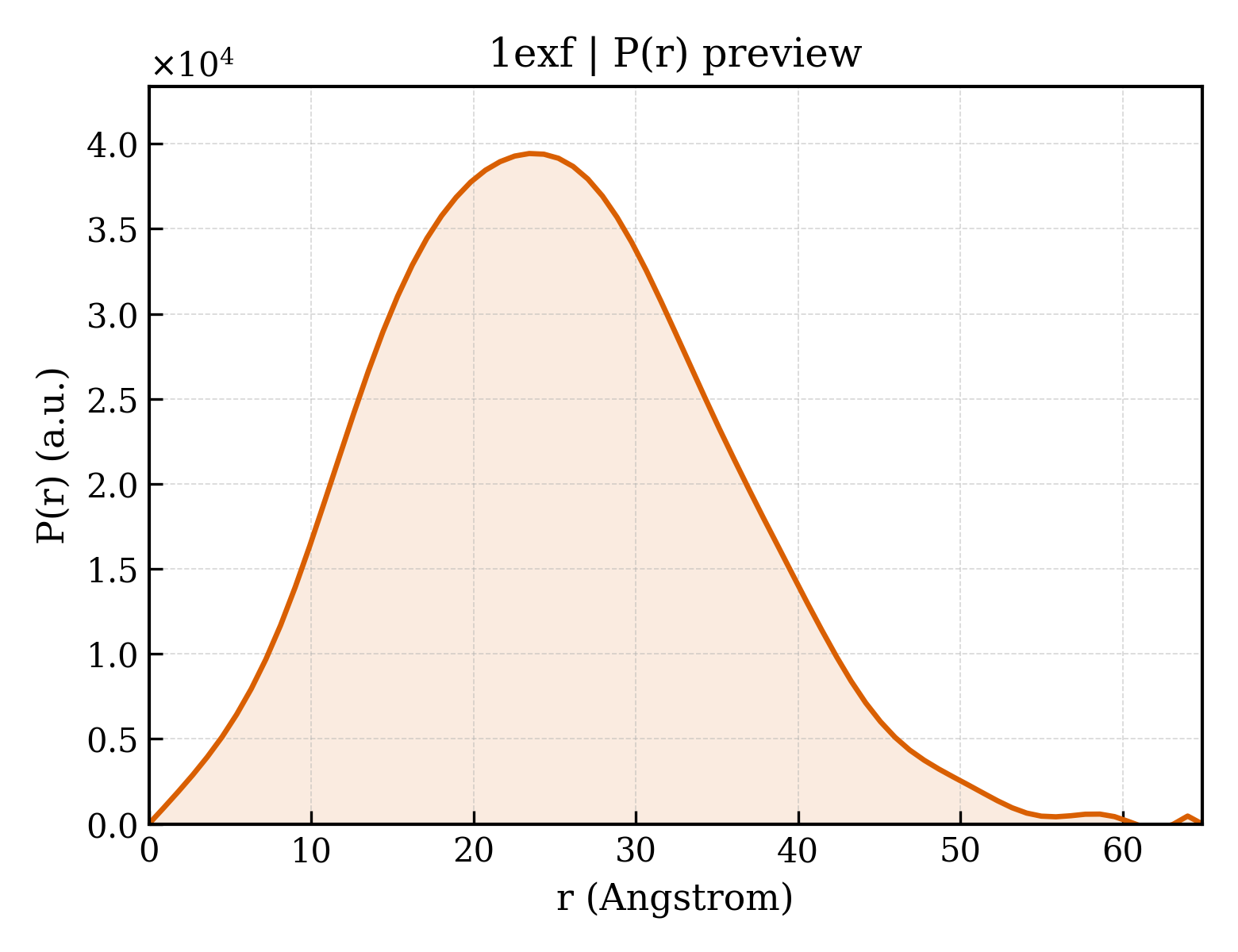

P(r) Distribution
1. Structure Basics
| entry_id | 1exf |
| deposition_date | 1996-10-22 |
| title | EXFOLIATIVE TOXIN A |
| keywords | COMPLEX (TOXIN-PEPTIDE), HYDROLASE, SERINE PROTEASE, SUPERANTIGEN, COMPLEX (TOXIN-PEPTIDE) complex; COMPLEX (TOXIN/PEPTIDE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.01 Å |
| rg_electron | 17.75 Å |
| i0 | 13259800.00 |
| molecular_weight | 26893.0 kDa |
| excluded_volume | 33546 ų |
| envelope_volume | 39021 ų |
| shell_volume | 18260 ų |
| envelope_diameter | 65.8 Å |
| shell_rg | 24.15 Å |
| envelope_rg | 18.23 Å |
| shape_rg | 17.72 Å |
| total_rg | 18.81 Å |
| total_atoms | 2332 |
| n_residues | 241 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 64.9 Å |
| rg_real | 18.93 Å |
| rg_real_error | 0.48 Å |
| i0_real | 1.3260e+07 |
| i0_real_error | 1.9050e+05 |
| rg_reciprocal | 18.94 Å |
| i0_reciprocal | 13260000.0000 |
| total_estimate | 0.7885 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.4 Å |
| skewness | 0.269 |
| kurtosis | -0.224 |
| angular_range | — – 0.4200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3604000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.751; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000 |
