1dua
CRYSTAL STRUCTURE OF EXFOLIATIVE TOXIN A

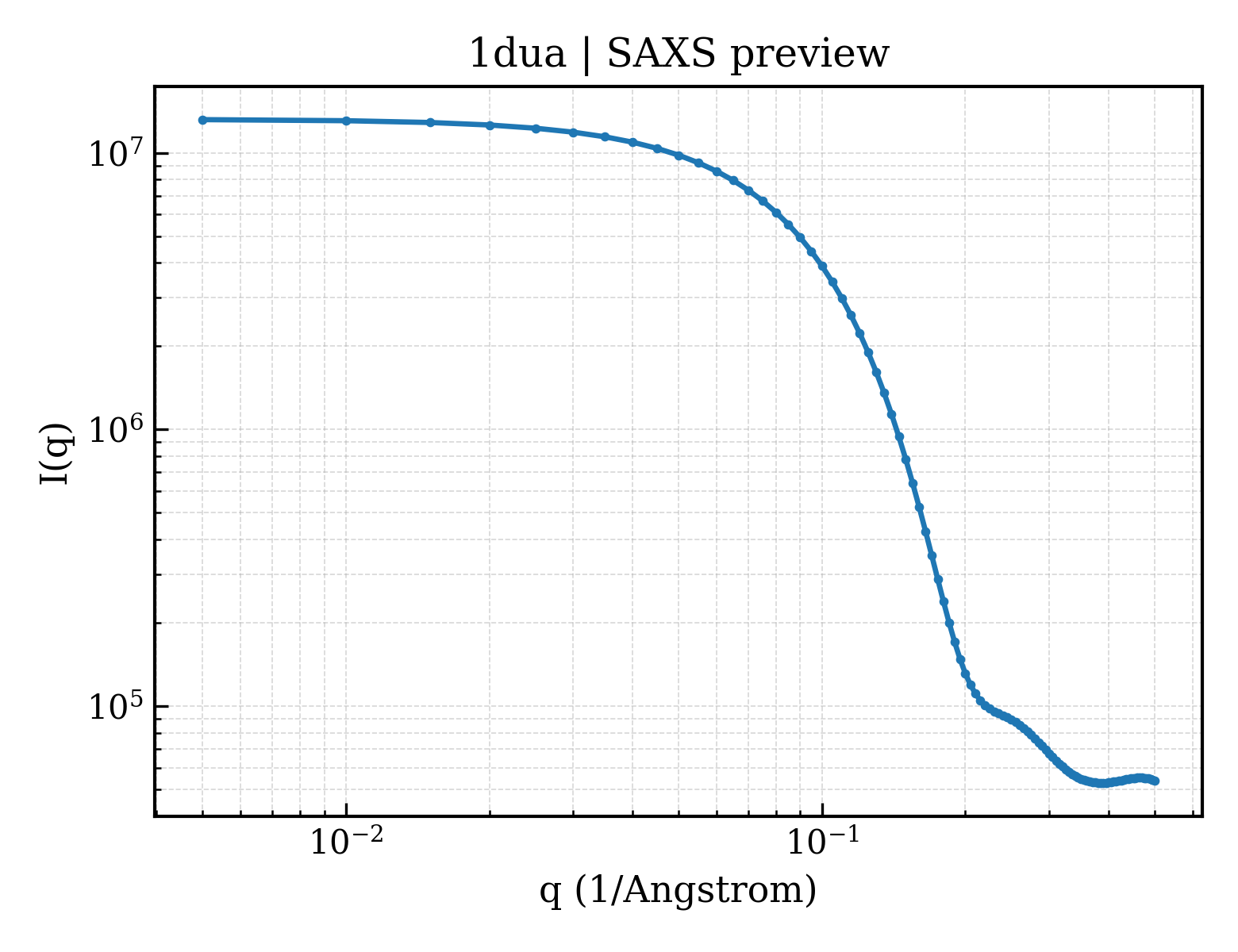

SAXS Profile

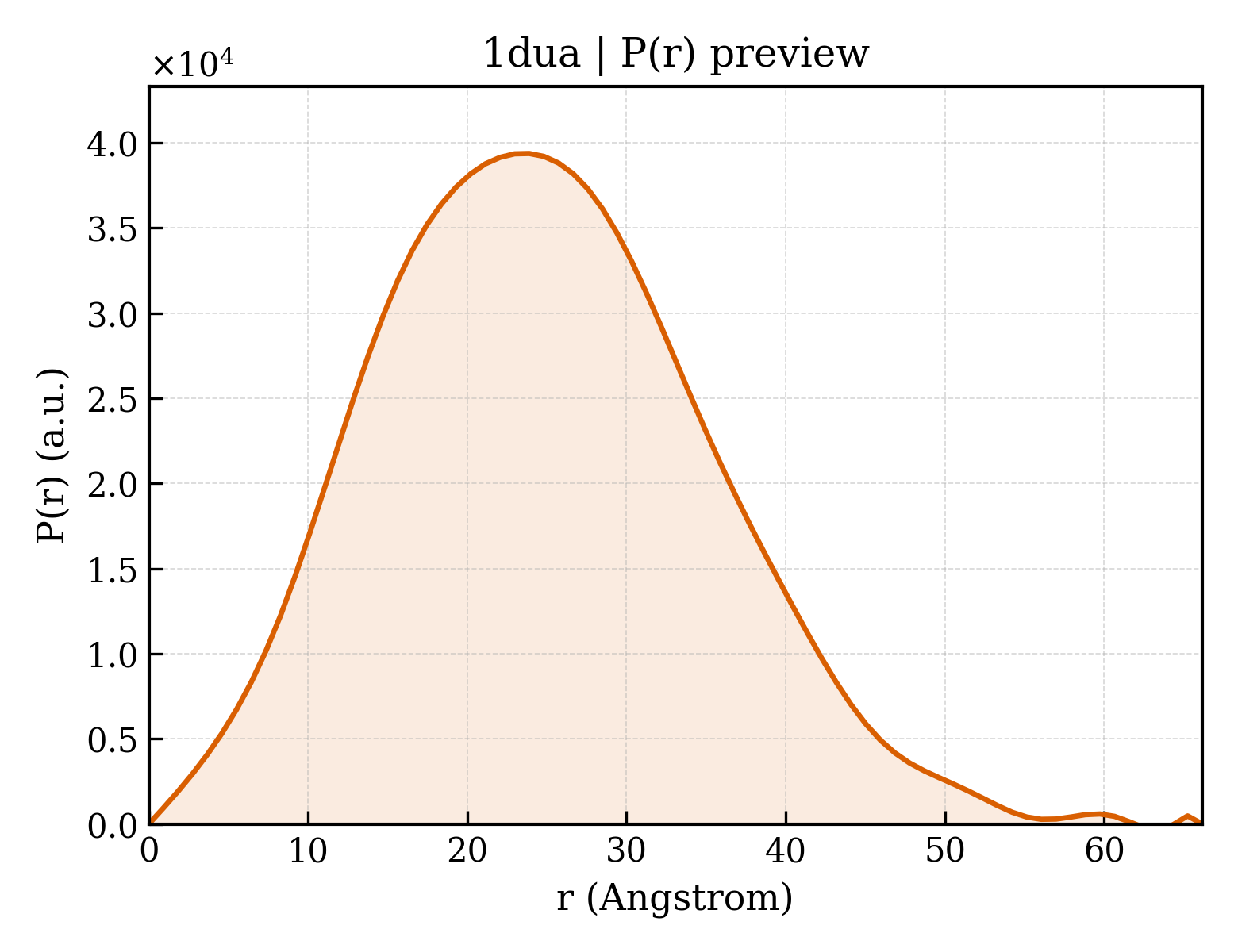

P(r) Distribution
1. Structure Basics
| entry_id | 1dua |
| deposition_date | 2000-01-17 |
| title | CRYSTAL STRUCTURE OF EXFOLIATIVE TOXIN A |
| keywords | superantigens, epidermis, protease, TOXIN, HYDROLASE; TOXIN, HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.93 Å |
| rg_electron | 17.72 Å |
| i0 | 13217700.00 |
| molecular_weight | 26946.0 kDa |
| excluded_volume | 33610 ų |
| envelope_volume | 38214 ų |
| shell_volume | 18013 ų |
| envelope_diameter | 68.2 Å |
| shell_rg | 24.00 Å |
| envelope_rg | 18.17 Å |
| shape_rg | 17.69 Å |
| total_rg | 18.72 Å |
| total_atoms | 1905 |
| n_residues | 242 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 66.2 Å |
| rg_real | 18.86 Å |
| rg_real_error | 0.50 Å |
| i0_real | 1.3220e+07 |
| i0_real_error | 1.9100e+05 |
| rg_reciprocal | 18.88 Å |
| i0_reciprocal | 13220000.0000 |
| total_estimate | 0.7766 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.9 Å |
| skewness | 0.293 |
| kurtosis | -0.166 |
| angular_range | — – 0.4200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3518000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.703; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000 |
