1ame
CRYSTAL STRUCTURE OF TYPE III ANTIFREEZE PROTEIN AT 4 C

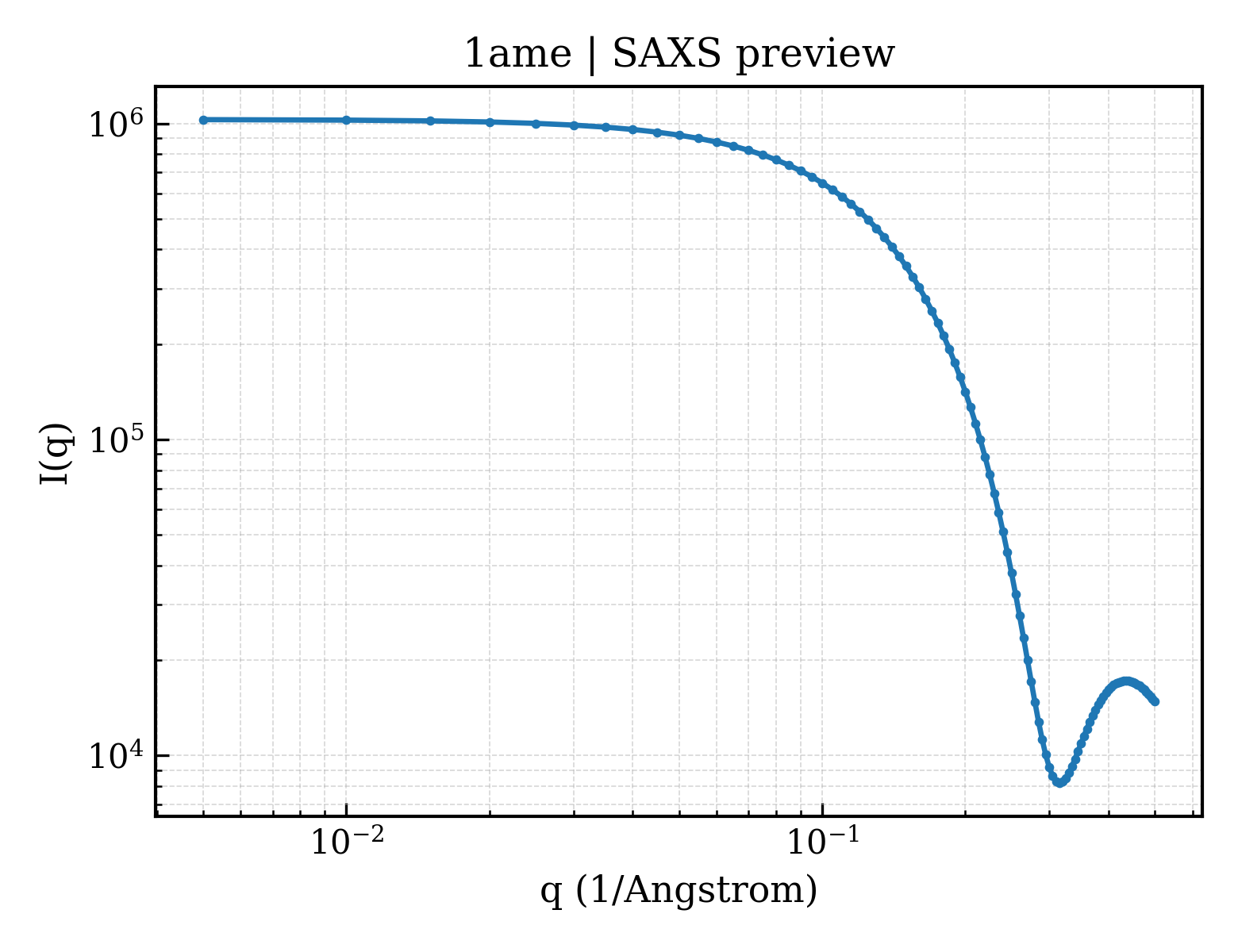

SAXS Profile

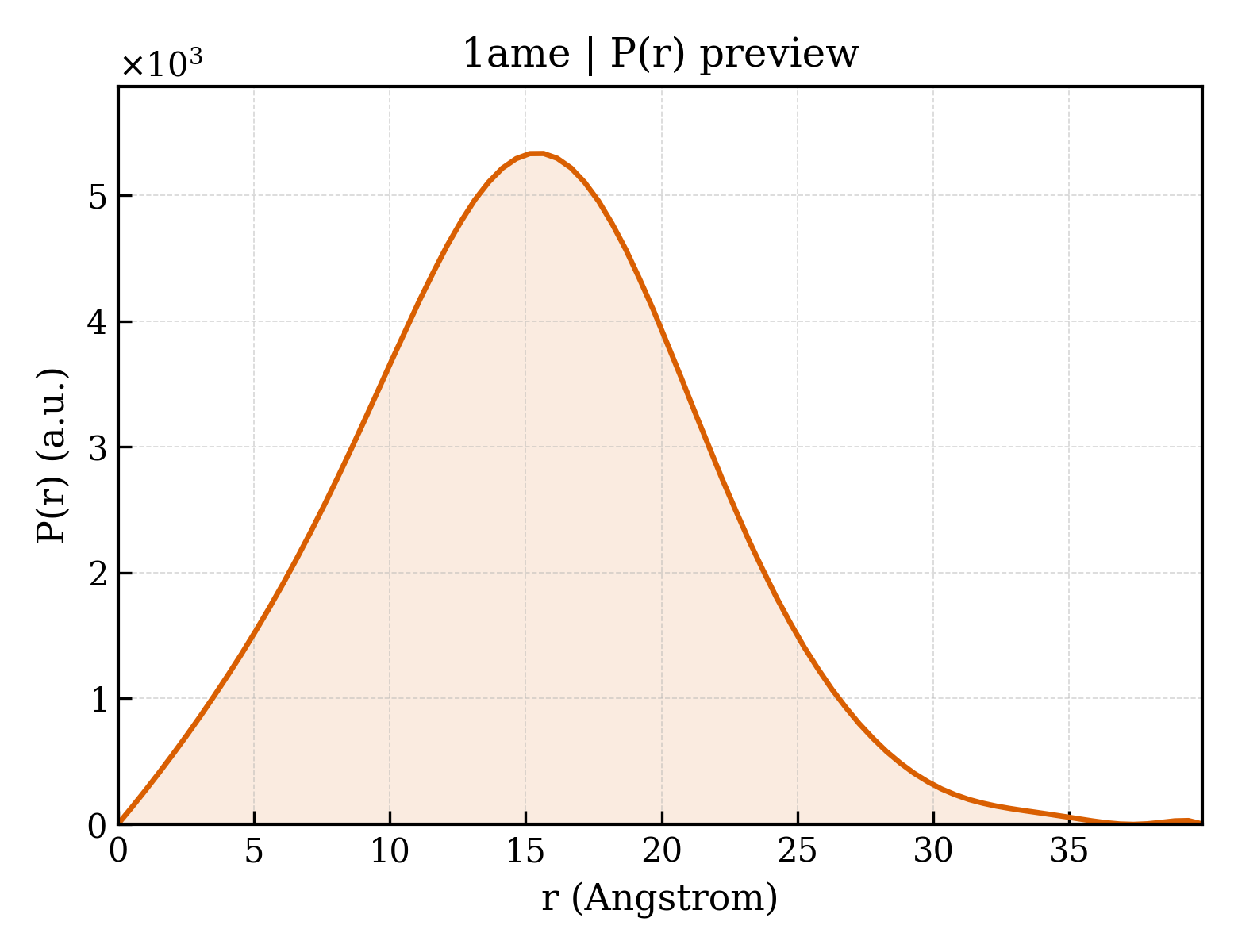

P(r) Distribution
1. Structure Basics
| entry_id | 1ame |
| deposition_date | 1997-06-13 |
| title | CRYSTAL STRUCTURE OF TYPE III ANTIFREEZE PROTEIN AT 4 C |
| keywords | ANTIFREEZE PROTEIN, CRYO-CRYSTALLOGRAPHY, COLD-ADAPTATION, CRYSTALLIZATION, FREEZING POINT; ANTIFREEZE PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.74 Å |
| rg_electron | 10.52 Å |
| i0 | 1029970.00 |
| molecular_weight | 6931.0 kDa |
| excluded_volume | 8801 ų |
| envelope_volume | 9115 ų |
| shell_volume | 7688 ų |
| envelope_diameter | 38.4 Å |
| shell_rg | 15.80 Å |
| envelope_rg | 10.81 Å |
| shape_rg | 10.53 Å |
| total_rg | 11.95 Å |
| total_atoms | 482 |
| n_residues | 66 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.9 Å |
| rg_real | 11.66 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.0300e+06 |
| i0_real_error | 1.0840e+04 |
| rg_reciprocal | 11.67 Å |
| i0_reciprocal | 1030000.0000 |
| total_estimate | 0.8496 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.7 Å |
| skewness | 0.155 |
| kurtosis | -0.148 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 243000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.696; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.952 |
