1aq7
TRYPSIN WITH INHIBITOR AERUGINOSIN 98-B
SAXS Profile

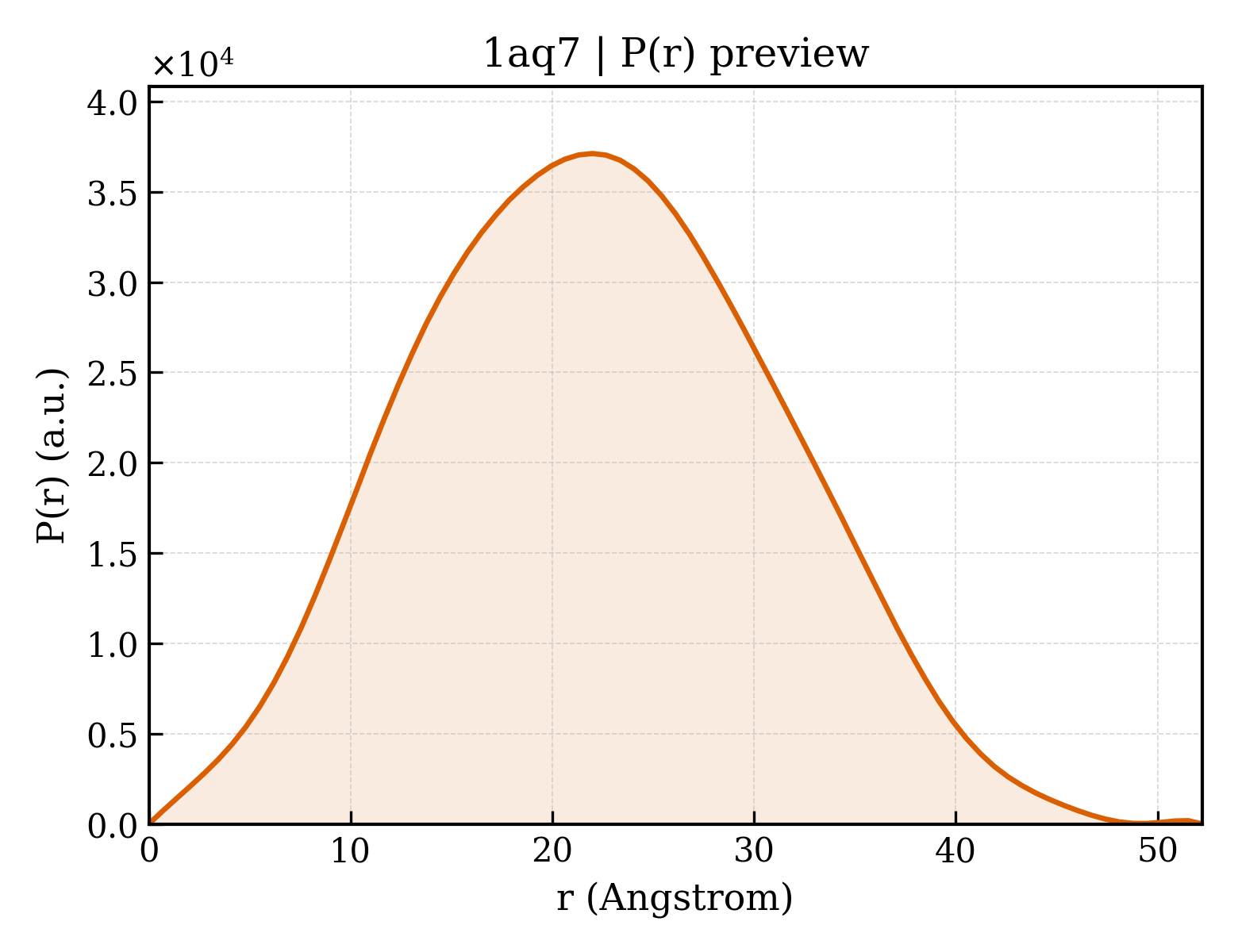

P(r) Distribution
1. Structure Basics
| entry_id | 1aq7 |
| deposition_date | 1997-08-07 |
| title | TRYPSIN WITH INHIBITOR AERUGINOSIN 98-B |
| keywords | HYDROLASE, SERINE PROTEASE, INHIBITOR, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.00 Å |
| rg_electron | 15.90 Å |
| i0 | 10951200.00 |
| molecular_weight | 23969.0 kDa |
| excluded_volume | 29685 ų |
| envelope_volume | 31682 ų |
| shell_volume | 16388 ų |
| envelope_diameter | 52.5 Å |
| shell_rg | 22.22 Å |
| envelope_rg | 16.17 Å |
| shape_rg | 15.89 Å |
| total_rg | 16.89 Å |
| total_atoms | 1674 |
| n_residues | 223 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.2 Å |
| rg_real | 16.88 Å |
| rg_real_error | 0.23 Å |
| i0_real | 1.0950e+07 |
| i0_real_error | 1.2080e+05 |
| rg_reciprocal | 16.89 Å |
| i0_reciprocal | 10950000.0000 |
| total_estimate | 0.8989 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.0 Å |
| skewness | 0.114 |
| kurtosis | -0.460 |
| angular_range | — – 0.4700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3098000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.967 |
