1c9t

COMPLEX OF BDELLASTASIN WITH BOVINE TRYPSIN

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPSIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	BDELLASTASIN × 1 water × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	BDELLASTASIN × 1 water × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	BDELLASTASIN × 1 water × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	BDELLASTASIN × 1 water × 2	Consistent with protein count
5	Protein heterocomplex	Heteromer	Protein 2	BDELLASTASIN × 1 water × 1	Consistent with protein count
6	Protein heterocomplex	Heteromer	Protein 2	BDELLASTASIN × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRY1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–223； UniProt 21–243 Author chain B； PDBConstruct 1–223； UniProt 21–243 Author chain C； PDBConstruct 1–223； UniProt 21–243 Author chain D； PDBConstruct 1–223； UniProt 21–243 Author chain E； PDBConstruct 1–223； UniProt 21–243 Author chain F； PDBConstruct 1–223； UniProt 21–243

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c9t
Deposition date deposition_date	1999-08-03
Structure title title	COMPLEX OF BDELLASTASIN WITH BOVINE TRYPSIN
Keywords keywords	COMPLEX (HYDROLASE-INHIBITOR), HYDROLASE, INHIBITOR, ANTISTASIN, PLASMIN, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1c9t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1c9t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

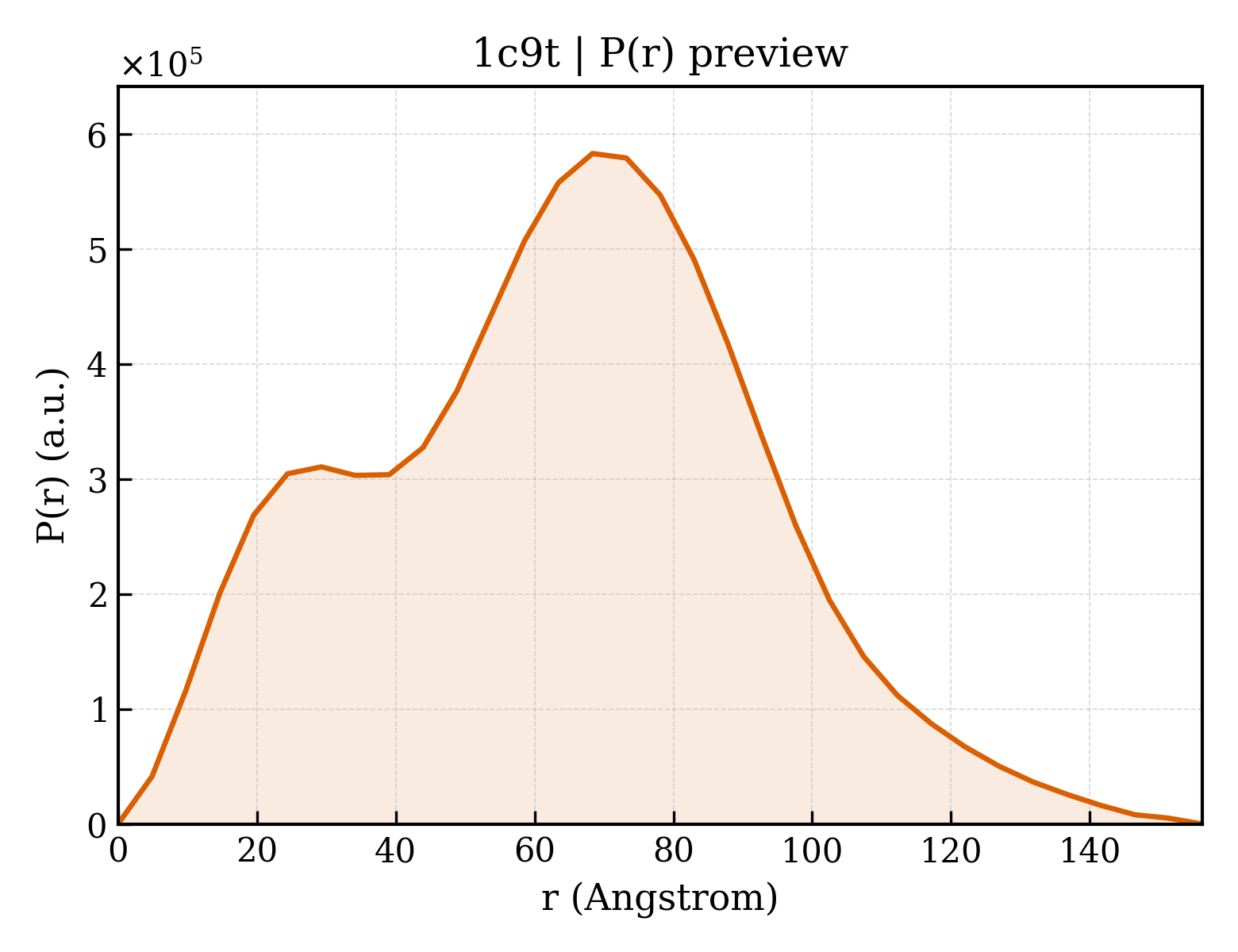

1c9t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.03 Å
Rg (electron density)	18.05 Å
Total Rg	19.02 Å
Atom count	2013
Residues	276
Excluded volume	35560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1c9t__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1c9t__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1c9t__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1c9t__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1c9t__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1c9t__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TRYPSIN
Molecular weight formula_weight	23324.3 kDa
EC 编号 ec_number	3.4.21.4
Source method src_method	nat
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	12224

IVGGYTCGANTVPYQVSLNSGYHFCGGSLINSQWVVSAAHCYKSGIQVRLGEDNINVVEGNEQFISASKSIVHPSYNSNTLNNDIMLIKLKSAASLNSRVASISLPTSCASAGTQCLISGWGNTKSSGTSYPDVLKCLKAPILSDSSCKSAYPGQITSNMFCAGYLEGGKDSCQGDSGGPVVCSGKLQGIVSWGSGCAQKNKPGVYTKVCNYVSWIKQTIASN

Entity 2 Entity 2 polymer

Description description	BDELLASTASIN
Molecular weight formula_weight	6351.2 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I,J,K,L

FDVNSHTTPCGPVTCSGAQMCEVDKCVCSDLHCKVKCEHGFKKDDNGCEYACICADAPQ

Source Source

Source organism organism	Hirudo medicinalis
Common name common_name	medicinal leech
NCBI taxonomy ID ncbi_taxonomy_id	6421
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	146

▼

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1c9ta_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1c9tb_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1c9tc_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1c9td_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1c9te_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1c9tf_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1c9tg_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.15 — Leech antihemostatic proteins
Family Family family	g.3.15.1 — Huristasin-like

Domain ID domain_id	d1c9th_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.15 — Leech antihemostatic proteins
Family Family family	g.3.15.1 — Huristasin-like

Domain ID domain_id	d1c9ti_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.15 — Leech antihemostatic proteins
Family Family family	g.3.15.1 — Huristasin-like

Domain ID domain_id	d1c9tj_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.15 — Leech antihemostatic proteins
Family Family family	g.3.15.1 — Huristasin-like

Domain ID domain_id	d1c9tk_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.15 — Leech antihemostatic proteins
Family Family family	g.3.15.1 — Huristasin-like

Domain ID domain_id	d1c9tl_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.15 — Leech antihemostatic proteins
Family Family family	g.3.15.1 — Huristasin-like

CATH v4.4 (18 domains)

Domain ID domain_id	1c9tA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tC02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tD02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tE01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tE02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tF01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tF02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1c9tG00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	22 — Antistasin; domain 1
Homologous superfamily homologous superfamily	10 — Antistasin; domain 1

Domain ID domain_id	1c9tH00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	22 — Antistasin; domain 1
Homologous superfamily homologous superfamily	10 — Antistasin; domain 1

Domain ID domain_id	1c9tI00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	22 — Antistasin; domain 1
Homologous superfamily homologous superfamily	10 — Antistasin; domain 1

Domain ID domain_id	1c9tJ00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	22 — Antistasin; domain 1
Homologous superfamily homologous superfamily	10 — Antistasin; domain 1

Domain ID domain_id	1c9tK00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	22 — Antistasin; domain 1
Homologous superfamily homologous superfamily	10 — Antistasin; domain 1

Domain ID domain_id	1c9tL00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	22 — Antistasin; domain 1
Homologous superfamily homologous superfamily	10 — Antistasin; domain 1

▶

Unit-cell length a length_a	95.220 Å
Unit-cell length b length_b	108.780 Å
Unit-cell length c length_c	95.710 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.70 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2080
R_work r_work	0.2080
R_free r_free	0.2870

COMPLEX OF BDELLASTASIN WITH BOVINE TRYPSIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPSIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1c9t__assembly_1__model_1

1c9t__assembly_1__model_1 | I(q)

1c9t__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

CATH v4.4 (18 domains)

7. Citations (3)

COMPLEX OF BDELLASTASIN WITH BOVINE TRYPSIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPSIN

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1c9t__assembly_1__model_1

1c9t__assembly_1__model_1 | I(q)

1c9t__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

CATH v4.4 (18 domains)

7. Citations (3)
