1as6

STRUCTURE OF NITRITE BOUND TO OXIDIZED ALCALIGENES FAECALIS NITRITE REDUCTASE AT CRYO TEMPERATURE

Method: X-RAY DIFFRACTION D_max: 84.1 Å Quality: EXCELLENT

SAXS Profile

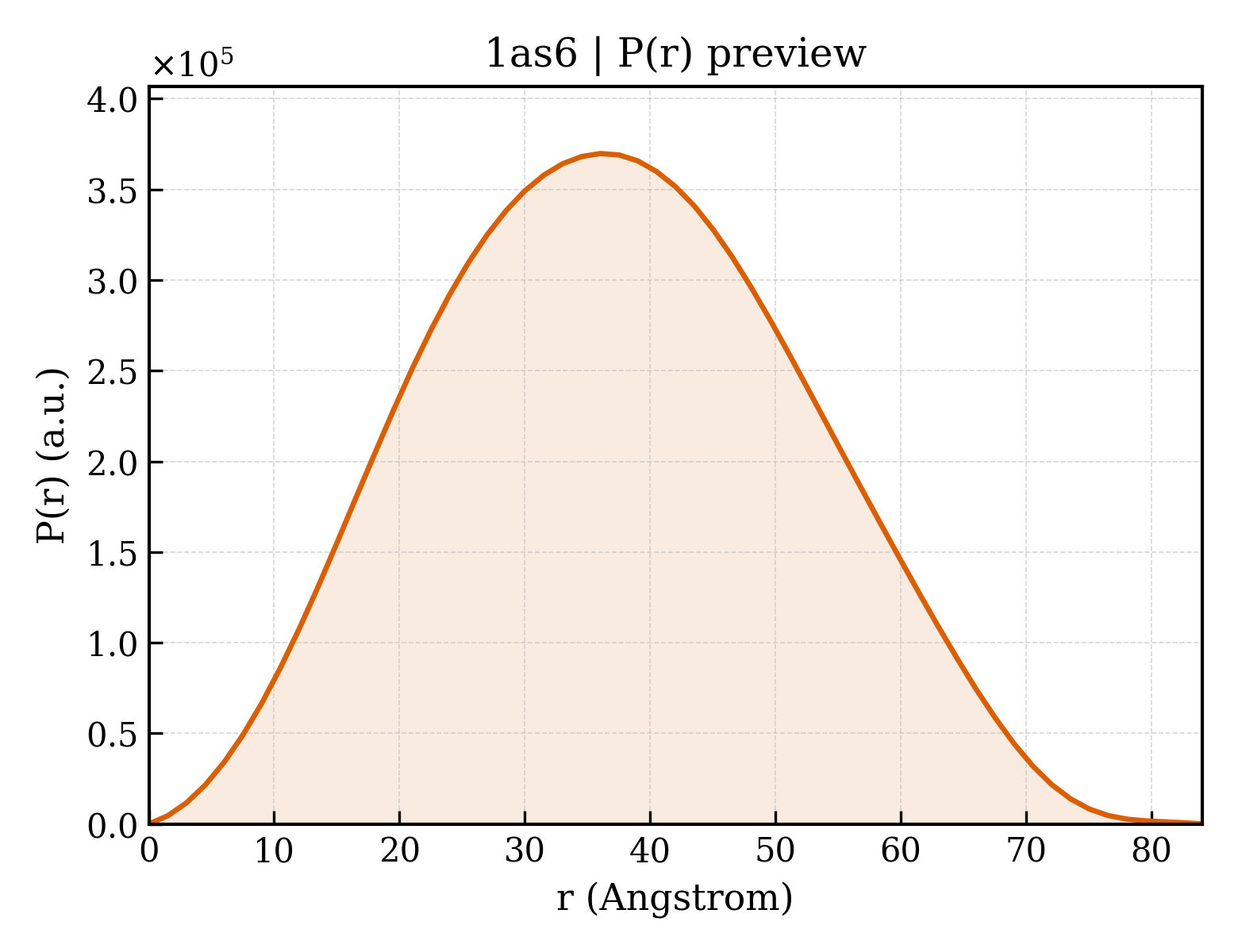

P(r) Distribution

▼

1. Structure Basics

entry_id	1as6
deposition_date	1997-08-13
title	STRUCTURE OF NITRITE BOUND TO OXIDIZED ALCALIGENES FAECALIS NITRITE REDUCTASE AT CRYO TEMPERATURE
keywords	OXIDOREDUCTASE, NITRITE, COPPER, DENITRIFICATION; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.53 Å
rg_electron	27.53 Å
i0	186461000.00
molecular_weight	109120.0 kDa
excluded_volume	136510 Å³
envelope_volume	156080 Å³
shell_volume	44483 Å³
envelope_diameter	87.9 Å
shell_rg	36.97 Å
envelope_rg	27.79 Å
shape_rg	27.50 Å
total_rg	28.48 Å
total_atoms	9231
n_residues	1006
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	84.1 Å
rg_real	28.36 Å
rg_real_error	0.26 Å
i0_real	1.8650e+08
i0_real_error	2.0250e+06
rg_reciprocal	28.43 Å
i0_reciprocal	186500000.0000
total_estimate	0.9090
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	36.0 Å
skewness	0.102
kurtosis	-0.568
angular_range	— – 0.2800 Å⁻¹
current_alpha	0.0001
highest_alpha	64090000.0000
n_real_points	57
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.946

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	NITRITE REDUCTASE
formula_weight	37063.9 kDa
ec_number	1.7.99.3
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	11613

QGAVRKATAAEIAALPRQKVELVDPPFVHAHSQVAEGGPKVVEFTMVIEEKKIVIDDAGTEVHAMAFNGTVPGPLMVVHQDDYLELTLINPETNTLMHNIDFHAATGALGGGGLTEINPGEKTILRFKATKPGVFVYHCAPPGMVPWHVVSGMNGAIMVLPREGLHDGKGKALTYDKIYYVGEQDFYVPRDENGKYKKYEAPGDAYEDTVKVMRTLTPTHVVFNGAVGALTGDKAMTAAVGEKVLIVHSQANRDTRPHLIGGHGDYVWATGKFNTPPDVDQETWFIPGGAAGAAFYTFQQPGIYAYVNHNLIEAFELGAAAHFKVTGEWNDDLMTSVLAPSGT

Source

organism	Alcaligenes faecalis
ncbi_taxonomy_id	511
host_organism	Escherichia coli

Entity 2 non-polymer

description	COPPER (II) ION
formula_weight	63.5 kDa
src_method	syn
entity_count	6

Entity 3 non-polymer

description	NITRITE ION
formula_weight	46.0 kDa
src_method	syn
entity_count	3

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	794

▶

6. Citations (3)

▶

length_a	61.650 Å
length_b	102.400 Å
length_c	146.100 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.800 Å
resolution_low	10.000 Å
r_factor	0.1810
r_work	0.1810
r_free	—

fit	/app/data/saxs_computation/as/1as6/1as6.fit
pddf	/app/data/pr_computation/as/1as6/1as6.pr.out
profile	/app/data/saxs_computation/as/1as6/1as6.dat
