1as7

STRUCTURE OF ALCALIGENES FAECALIS NITRITE REDUCTASE AT CRYO TEMPERATURE

Method: X-RAY DIFFRACTION D_max: 84.4 Å Quality: EXCELLENT

SAXS Profile

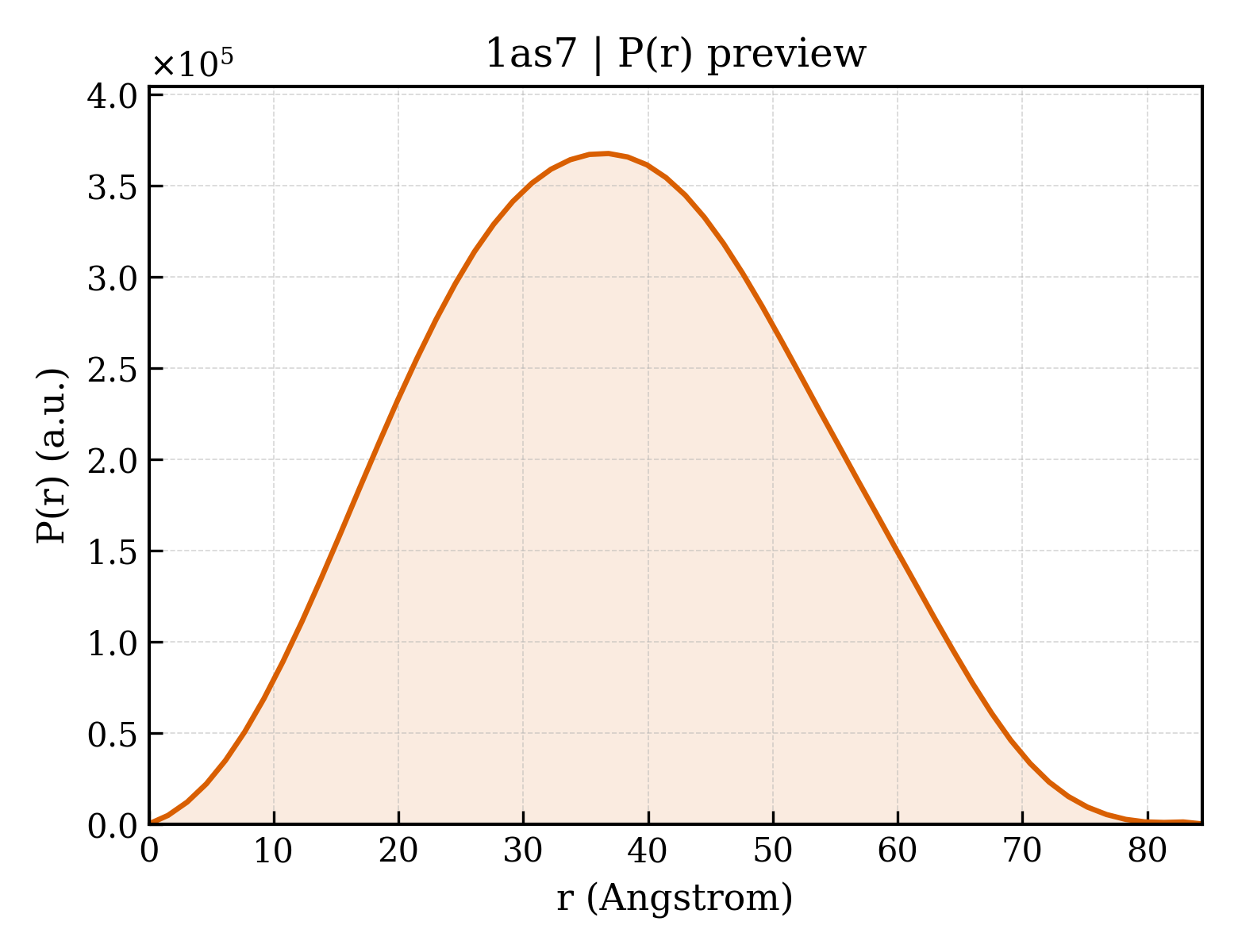

P(r) Distribution

▼

1. Structure Basics

entry_id	1as7
deposition_date	1997-08-13
title	STRUCTURE OF ALCALIGENES FAECALIS NITRITE REDUCTASE AT CRYO TEMPERATURE
keywords	OXIDOREDUCTASE, NITRITE, COPPER, DENITRIFICATION; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.65 Å
rg_electron	27.64 Å
i0	186368000.00
molecular_weight	109430.0 kDa
excluded_volume	136990 Å³
envelope_volume	156660 Å³
shell_volume	44565 Å³
envelope_diameter	87.9 Å
shell_rg	37.05 Å
envelope_rg	27.85 Å
shape_rg	27.60 Å
total_rg	28.57 Å
total_atoms	9261
n_residues	1011
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	84.4 Å
rg_real	28.48 Å
rg_real_error	0.40 Å
i0_real	1.8640e+08
i0_real_error	2.7300e+06
rg_reciprocal	28.56 Å
i0_reciprocal	186400000.0000
total_estimate	0.9089
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	36.8 Å
skewness	0.102
kurtosis	-0.570
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	61090000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.942

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	NITRITE REDUCTASE
formula_weight	37063.9 kDa
ec_number	1.7.99.3
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	10749

QGAVRKATAAEIAALPRQKVELVDPPFVHAHSQVAEGGPKVVEFTMVIEEKKIVIDDAGTEVHAMAFNGTVPGPLMVVHQDDYLELTLINPETNTLMHNIDFHAATGALGGGGLTEINPGEKTILRFKATKPGVFVYHCAPPGMVPWHVVSGMNGAIMVLPREGLHDGKGKALTYDKIYYVGEQDFYVPRDENGKYKKYEAPGDAYEDTVKVMRTLTPTHVVFNGAVGALTGDKAMTAAVGEKVLIVHSQANRDTRPHLIGGHGDYVWATGKFNTPPDVDQETWFIPGGAAGAAFYTFQQPGIYAYVNHNLIEAFELGAAAHFKVTGEWNDDLMTSVLAPSGT

Source

organism	Alcaligenes faecalis
ncbi_taxonomy_id	511
host_organism	Escherichia coli

Entity 2 non-polymer

description	COPPER (II) ION
formula_weight	63.5 kDa
src_method	syn
entity_count	6

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	498

▶

6. Citations (3)

▶

length_a	61.860 Å
length_b	102.800 Å
length_c	146.300 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.000 Å
resolution_low	10.000 Å
r_factor	0.1910
r_work	0.1910
r_free	—
