1aus
ACTIVATED UNLIGANDED SPINACH RUBISCO

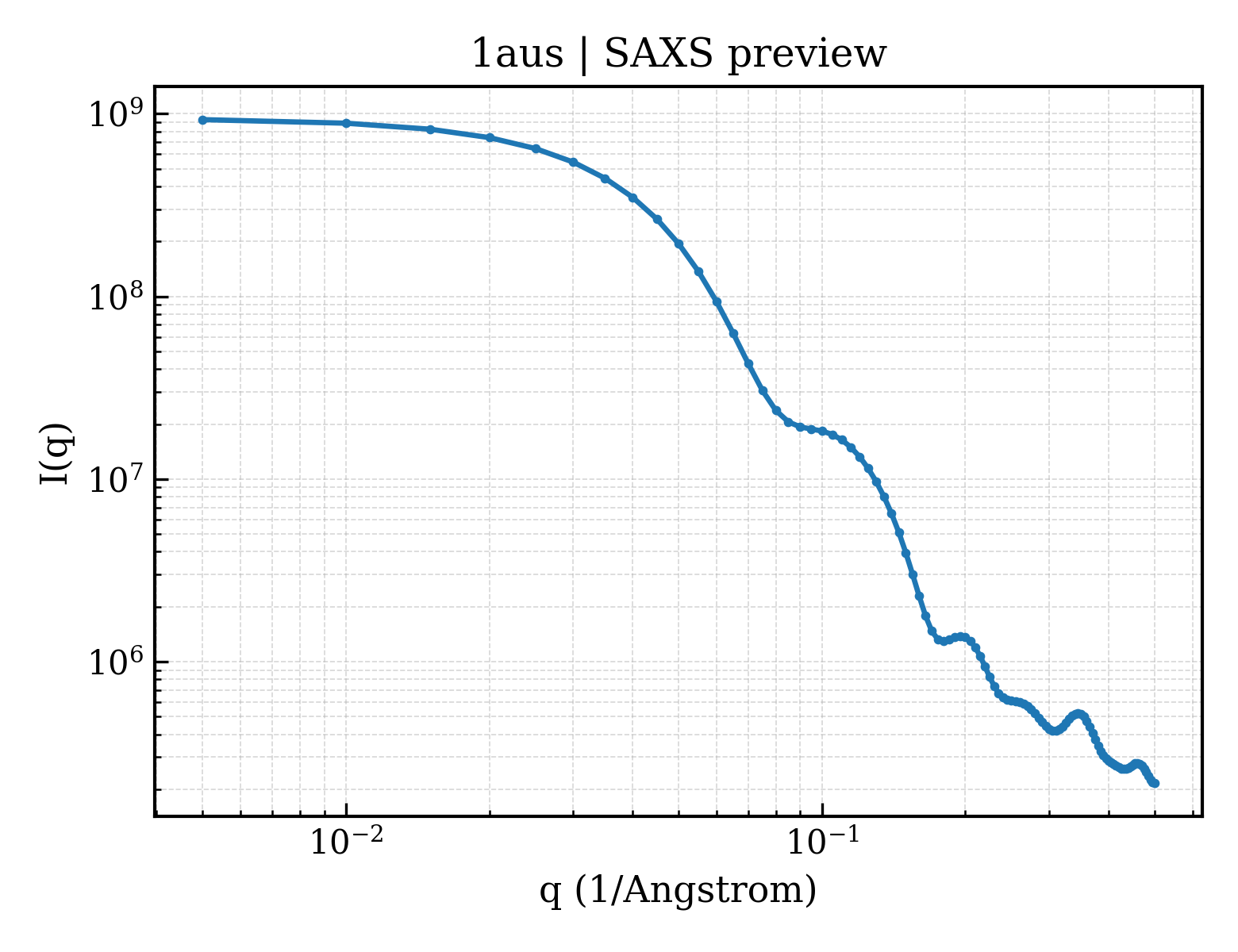

SAXS Profile

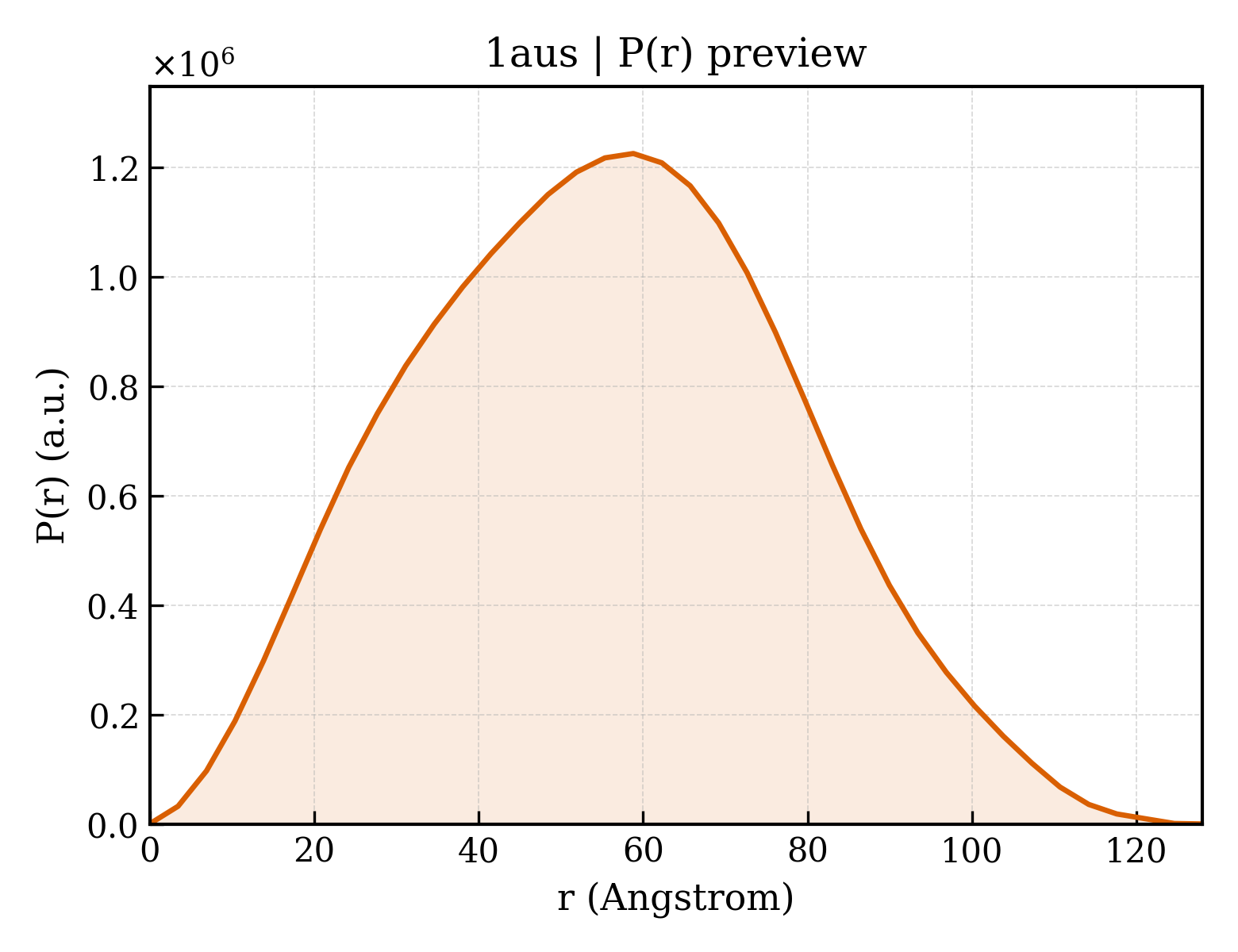

P(r) Distribution
1. Structure Basics
| entry_id | 1aus |
| deposition_date | 1995-06-21 |
| title | ACTIVATED UNLIGANDED SPINACH RUBISCO |
| keywords | LYASE (CARBON-CARBON); LYASE (CARBON-CARBON) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 42.54 Å |
| rg_electron | 42.09 Å |
| i0 | 942340000.00 |
| molecular_weight | 253920.0 kDa |
| excluded_volume | 317330 ų |
| envelope_volume | 408630 ų |
| shell_volume | 76607 ų |
| envelope_diameter | 134.8 Å |
| shell_rg | 50.43 Å |
| envelope_rg | 42.16 Å |
| shape_rg | 42.10 Å |
| total_rg | 42.44 Å |
| total_atoms | 17908 |
| n_residues | 2248 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 128.0 Å |
| rg_real | 42.34 Å |
| rg_real_error | 0.94 Å |
| i0_real | 9.4230e+08 |
| i0_real_error | 1.7500e+07 |
| rg_reciprocal | 42.54 Å |
| i0_reciprocal | 942600000.0000 |
| total_estimate | 0.8761 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 58.8 Å |
| skewness | 0.106 |
| kurtosis | -0.532 |
| angular_range | — – 0.1850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 220500000.0000 |
| n_real_points | 38 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.526 |
