1rcx
NON-ACTIVATED SPINACH RUBISCO IN COMPLEX WITH ITS SUBSTRATE RIBULOSE-1,5-BISPHOSPHATE

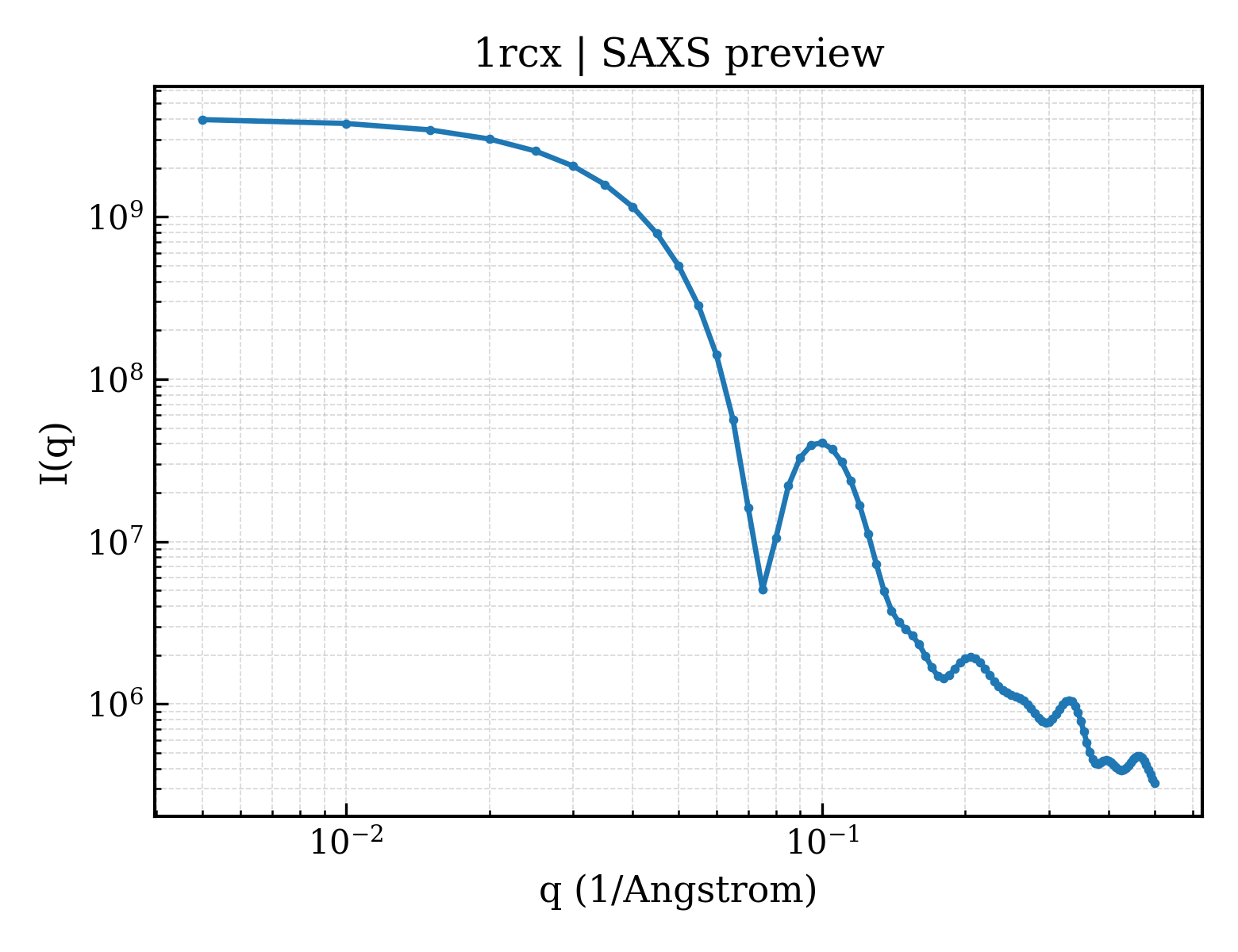

SAXS 散射曲线 SAXS Profile

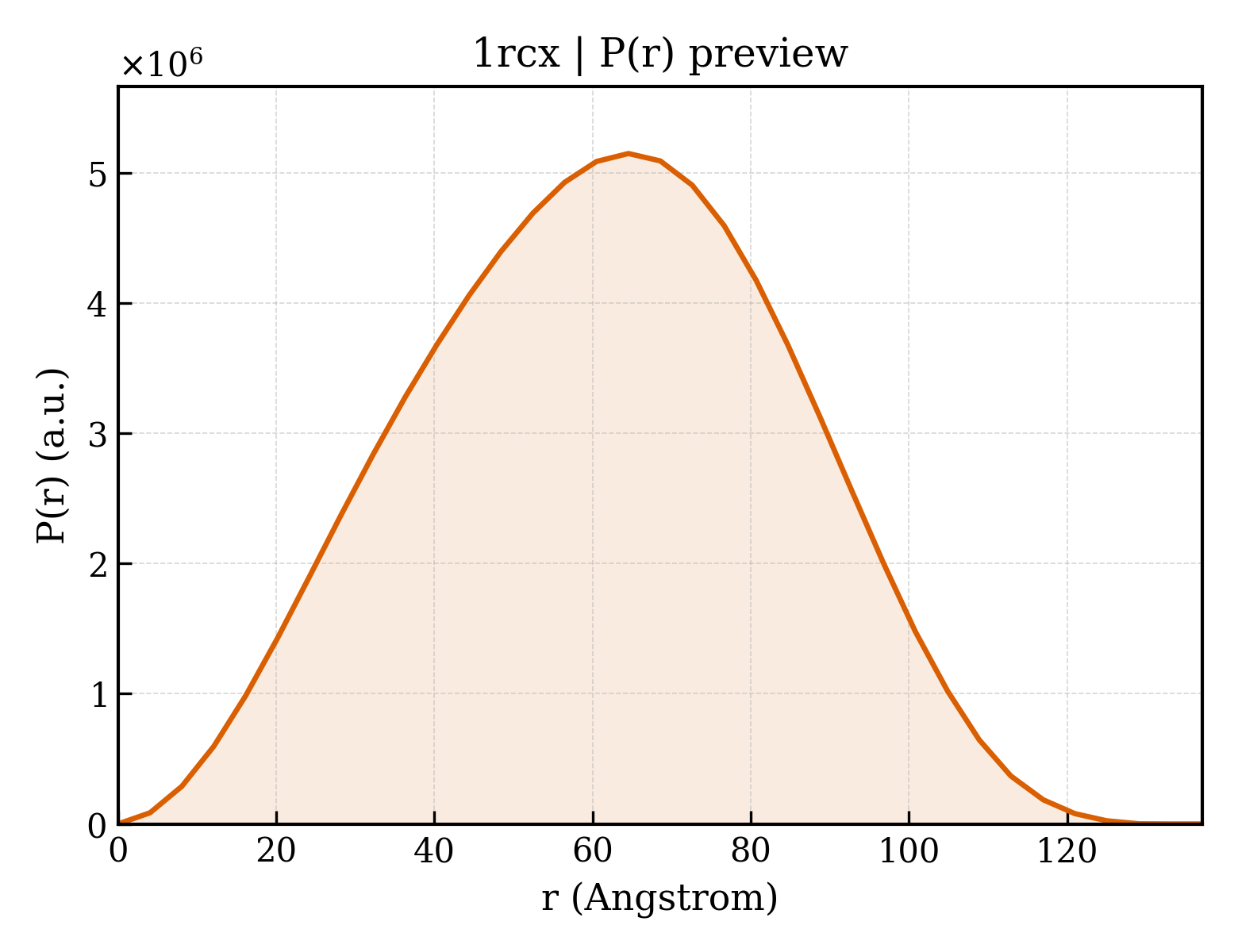

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1rcx |
| 沉积日期 deposition_date | 1996-12-06 |
| 结构标题 title | NON-ACTIVATED SPINACH RUBISCO IN COMPLEX WITH ITS SUBSTRATE RIBULOSE-1,5-BISPHOSPHATE |
| 关键词 keywords | LYASE (CARBON-CARBON); LYASE (CARBON-CARBON) |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 46.83 Å |
| 回转半径 Rg (电子) rg_electron | 46.15 Å |
| 零角强度 I(0) i0 | 4040280000.00 |
| 分子量 molecular_weight | 533520.0 kDa |
| 排除体积 excluded_volume | 666380 ų |
| 包络体积 envelope_volume | 784480 ų |
| 水化壳体积 shell_volume | 127670 ų |
| 包络直径 envelope_diameter | 134.8 Å |
| 壳层 Rg shell_rg | 59.50 Å |
| 包络 Rg envelope_rg | 45.84 Å |
| 形状 Rg shape_rg | 46.14 Å |
| 总 Rg total_rg | 46.51 Å |
| 总原子数 total_atoms | 37600 |
| 残基数 n_residues | 4720 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 137.1 Å |
| Rg (实空间) rg_real | 46.36 Å |
| Rg 误差 (实空间) rg_real_error | 0.56 Å |
| I(0) (实空间) i0_real | 4.0400e+09 |
| I(0) 误差 (实空间) i0_real_error | 6.7980e+07 |
| Rg (倒空间) rg_reciprocal | 46.83 Å |
| I(0) (倒空间) i0_reciprocal | 4043000000.0000 |
| 解质量估计 total_estimate | 0.8865 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 64.5 Å |
| 偏度 Skewness skewness | -0.028 |
| 峰度 Kurtosis kurtosis | -0.579 |
| 角度范围 angular_range | — – 0.1700 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 3012000000.0000 |
| 实空间数据点数 n_real_points | 35 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.784 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 48 domains
SCOP 2.08 (24 domains)
| 结构域编号 domain_id | d1rcxb1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.14 — RuBisCo, C-terminal domain |
| 家族 Family family | c.1.14.1 — RuBisCo, large subunit, C-terminal domain |
| 结构域编号 domain_id | d1rcxb2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.9 — RuBisCO, large subunit, small (N-terminal) domain |
| 家族 Family family | d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase |
| 结构域编号 domain_id | d1rcxc_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.73 — RuBisCO, small subunit |
| 超家族 Superfamily superfamily | d.73.1 — RuBisCO, small subunit |
| 家族 Family family | d.73.1.1 — RuBisCO, small subunit |
| 结构域编号 domain_id | d1rcxe1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.14 — RuBisCo, C-terminal domain |
| 家族 Family family | c.1.14.1 — RuBisCo, large subunit, C-terminal domain |
| 结构域编号 domain_id | d1rcxe2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.9 — RuBisCO, large subunit, small (N-terminal) domain |
| 家族 Family family | d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase |
| 结构域编号 domain_id | d1rcxf_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.73 — RuBisCO, small subunit |
| 超家族 Superfamily superfamily | d.73.1 — RuBisCO, small subunit |
| 家族 Family family | d.73.1.1 — RuBisCO, small subunit |
| 结构域编号 domain_id | d1rcxh1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.14 — RuBisCo, C-terminal domain |
| 家族 Family family | c.1.14.1 — RuBisCo, large subunit, C-terminal domain |
| 结构域编号 domain_id | d1rcxh2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.9 — RuBisCO, large subunit, small (N-terminal) domain |
| 家族 Family family | d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase |
| 结构域编号 domain_id | d1rcxi_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.73 — RuBisCO, small subunit |
| 超家族 Superfamily superfamily | d.73.1 — RuBisCO, small subunit |
| 家族 Family family | d.73.1.1 — RuBisCO, small subunit |
| 结构域编号 domain_id | d1rcxk1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.14 — RuBisCo, C-terminal domain |
| 家族 Family family | c.1.14.1 — RuBisCo, large subunit, C-terminal domain |
| 结构域编号 domain_id | d1rcxk2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.9 — RuBisCO, large subunit, small (N-terminal) domain |
| 家族 Family family | d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase |
| 结构域编号 domain_id | d1rcxl1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.14 — RuBisCo, C-terminal domain |
| 家族 Family family | c.1.14.1 — RuBisCo, large subunit, C-terminal domain |
| 结构域编号 domain_id | d1rcxl2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.9 — RuBisCO, large subunit, small (N-terminal) domain |
| 家族 Family family | d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase |
| 结构域编号 domain_id | d1rcxm_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.73 — RuBisCO, small subunit |
| 超家族 Superfamily superfamily | d.73.1 — RuBisCO, small subunit |
| 家族 Family family | d.73.1.1 — RuBisCO, small subunit |
| 结构域编号 domain_id | d1rcxo1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.14 — RuBisCo, C-terminal domain |
| 家族 Family family | c.1.14.1 — RuBisCo, large subunit, C-terminal domain |
| 结构域编号 domain_id | d1rcxo2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.9 — RuBisCO, large subunit, small (N-terminal) domain |
| 家族 Family family | d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase |
| 结构域编号 domain_id | d1rcxp_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.73 — RuBisCO, small subunit |
| 超家族 Superfamily superfamily | d.73.1 — RuBisCO, small subunit |
| 家族 Family family | d.73.1.1 — RuBisCO, small subunit |
| 结构域编号 domain_id | d1rcxr1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.14 — RuBisCo, C-terminal domain |
| 家族 Family family | c.1.14.1 — RuBisCo, large subunit, C-terminal domain |
| 结构域编号 domain_id | d1rcxr2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.9 — RuBisCO, large subunit, small (N-terminal) domain |
| 家族 Family family | d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase |
| 结构域编号 domain_id | d1rcxs_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.73 — RuBisCO, small subunit |
| 超家族 Superfamily superfamily | d.73.1 — RuBisCO, small subunit |
| 家族 Family family | d.73.1.1 — RuBisCO, small subunit |
| 结构域编号 domain_id | d1rcxt_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.73 — RuBisCO, small subunit |
| 超家族 Superfamily superfamily | d.73.1 — RuBisCO, small subunit |
| 家族 Family family | d.73.1.1 — RuBisCO, small subunit |
| 结构域编号 domain_id | d1rcxv1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.14 — RuBisCo, C-terminal domain |
| 家族 Family family | c.1.14.1 — RuBisCo, large subunit, C-terminal domain |
| 结构域编号 domain_id | d1rcxv2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.9 — RuBisCO, large subunit, small (N-terminal) domain |
| 家族 Family family | d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase |
| 结构域编号 domain_id | d1rcxw_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.73 — RuBisCO, small subunit |
| 超家族 Superfamily superfamily | d.73.1 — RuBisCO, small subunit |
| 家族 Family family | d.73.1.1 — RuBisCO, small subunit |
CATH v4.4 (24 domains)
| 结构域编号 domain_id | 1rcxB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 150 — RuBisCO large subunit, N-terminal domain |
| 结构域编号 domain_id | 1rcxB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain |
| 结构域编号 domain_id | 1rcxC00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribulose bisphosphate carboxylase, small subunit |
| 结构域编号 domain_id | 1rcxE01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 150 — RuBisCO large subunit, N-terminal domain |
| 结构域编号 domain_id | 1rcxE02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain |
| 结构域编号 domain_id | 1rcxF00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribulose bisphosphate carboxylase, small subunit |
| 结构域编号 domain_id | 1rcxH01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 150 — RuBisCO large subunit, N-terminal domain |
| 结构域编号 domain_id | 1rcxH02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain |
| 结构域编号 domain_id | 1rcxI00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribulose bisphosphate carboxylase, small subunit |
| 结构域编号 domain_id | 1rcxK01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 150 — RuBisCO large subunit, N-terminal domain |
| 结构域编号 domain_id | 1rcxK02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain |
| 结构域编号 domain_id | 1rcxL01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 150 — RuBisCO large subunit, N-terminal domain |
| 结构域编号 domain_id | 1rcxL02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain |
| 结构域编号 domain_id | 1rcxM00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribulose bisphosphate carboxylase, small subunit |
| 结构域编号 domain_id | 1rcxO01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 150 — RuBisCO large subunit, N-terminal domain |
| 结构域编号 domain_id | 1rcxO02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain |
| 结构域编号 domain_id | 1rcxP00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribulose bisphosphate carboxylase, small subunit |
| 结构域编号 domain_id | 1rcxR01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 150 — RuBisCO large subunit, N-terminal domain |
| 结构域编号 domain_id | 1rcxR02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain |
| 结构域编号 domain_id | 1rcxS00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribulose bisphosphate carboxylase, small subunit |
| 结构域编号 domain_id | 1rcxT00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribulose bisphosphate carboxylase, small subunit |
| 结构域编号 domain_id | 1rcxV01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 150 — RuBisCO large subunit, N-terminal domain |
| 结构域编号 domain_id | 1rcxV02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain |
| 结构域编号 domain_id | 1rcxW00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Ribulose bisphosphate carboxylase, small subunit |
