SAXSdb — 1ax2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LECTIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 2 其他Polymer 4 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 27–265	Not recorded	;beta-D-xylopyranose-(1-2)-[alpha-D-mannopyranose-(1-3)][alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-alpha-D-glucopyranose × 2 MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；pH 7.	Resolution 1.95 Å R-free 0.177

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AX2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AX0 ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH N-ACTYLGALACTOSAMINE Deposited 1997-10-24	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2 MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.90 Å R-free 0.200
1AX1 ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH LACTOSE Deposited 1997-10-24	Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.95 Å R-free 0.200
1AXY ERYTHRINA CORALLODENDRON LECTIN Deposited 1997-10-24	Different oligomeric state Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.95 Å R-free 0.200
1AXZ ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH D-GALACTOSE Deposited 1997-10-24	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	GLA alpha-D-galactopyranose × 2 GAL beta-D-galactopyranose × 2 MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.95 Å R-free 0.206
1FYU Crystal structure of erythrina corallodendron lectin in hexagonal crystal form Deposited 2000-10-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–281（255 aa） Chain B 27–281（255 aa）	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；PEG 8000, sodium chloride, Hepes buffer, sodium azides, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.202
1LTE STRUCTURE OF A LEGUME LECTIN WITH AN ORDERED N-LINKED CARBOHYDRATE IN COMPLEX WITH LACTOSE Deposited 1991-06-25	Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1SFY Crystal structure of recombinant Erythrina corallodandron Lectin Deposited 2004-02-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa） Fragment：residues 1-239	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；25% Ammonium Sulphate 100mM MES, 0.025% Sodium Azide, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.55 Å R-free 0.208
1SFY Crystal structure of recombinant Erythrina corallodandron Lectin Deposited 2004-02-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 27–265（239 aa） Fragment：residues 1-239	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；25% Ammonium Sulphate 100mM MES, 0.025% Sodium Azide, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.55 Å R-free 0.208
1SFY Crystal structure of recombinant Erythrina corallodandron Lectin Deposited 2004-02-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 27–265（239 aa） Fragment：residues 1-239 Chain D 27–265（239 aa） Fragment：residues 1-239	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；25% Ammonium Sulphate 100mM MES, 0.025% Sodium Azide, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.55 Å R-free 0.208
1SFY Crystal structure of recombinant Erythrina corallodandron Lectin Deposited 2004-02-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 27–265（239 aa） Fragment：residues 1-239 Chain F 27–265（239 aa） Fragment：residues 1-239	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；25% Ammonium Sulphate 100mM MES, 0.025% Sodium Azide, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.55 Å R-free 0.208
3N35 Erythrina corallodendron lectin mutant (Y106G) with N-Acetylgalactosamine Deposited 2010-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–268（242 aa） Fragment：mECorL	Mutation：Y106G	MN MANGANESE (II) ION × 1 CA CALCIUM ION × 1 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；20% PEG 3350, 0.25M diammonium hydrogen citrate , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.00 Å R-free 0.189
3N36 Erythrina corallodendron lectin mutant (Y106G) in complex with Galactose Deposited 2010-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–268（242 aa） Fragment：mECorL	Mutation：Y106G	MN MANGANESE (II) ION × 1 CA CALCIUM ION × 1 GLA alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；20% PEG 3350, 0.25M diammonium hydrogen citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.30 Å R-free 0.208
3N3H Erythrina corallodendron lectin mutant (Y106G) in complex with citrate Deposited 2010-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–268（242 aa） Fragment：mECorL	Mutation：Y106G	MN MANGANESE (II) ION × 1 CA CALCIUM ION × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；20% PEG 3350, 0.25M diammonium hydrogen citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.00 Å R-free 0.202

10 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LEC_ERYCO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–239； UniProt 27–265

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ax2
Deposition date deposition_date	1997-10-24
Structure title title	ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH N-ACETYLLACTOSAMINE
Keywords keywords	LECTIN, GLYCOPROTEIN; LECTIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.05 Å
Radius of gyration Rg (electron density) rg_electron	17.80 Å
Forward intensity I(0) i0	13515200.00
Molecular weight molecular_weight	27851.0 kDa
Excluded volume excluded_volume	34898 Å³
Envelope volume envelope_volume	39826 Å³
Hydration-shell volume shell_volume	18626 Å³
Envelope diameter envelope_diameter	65.2 Å
Shell Rg shell_rg	24.24 Å
Envelope Rg envelope_rg	18.26 Å
Shape Rg shape_rg	17.74 Å
Total Rg total_rg	18.95 Å
Total atoms total_atoms	1963
Residues n_residues	239
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

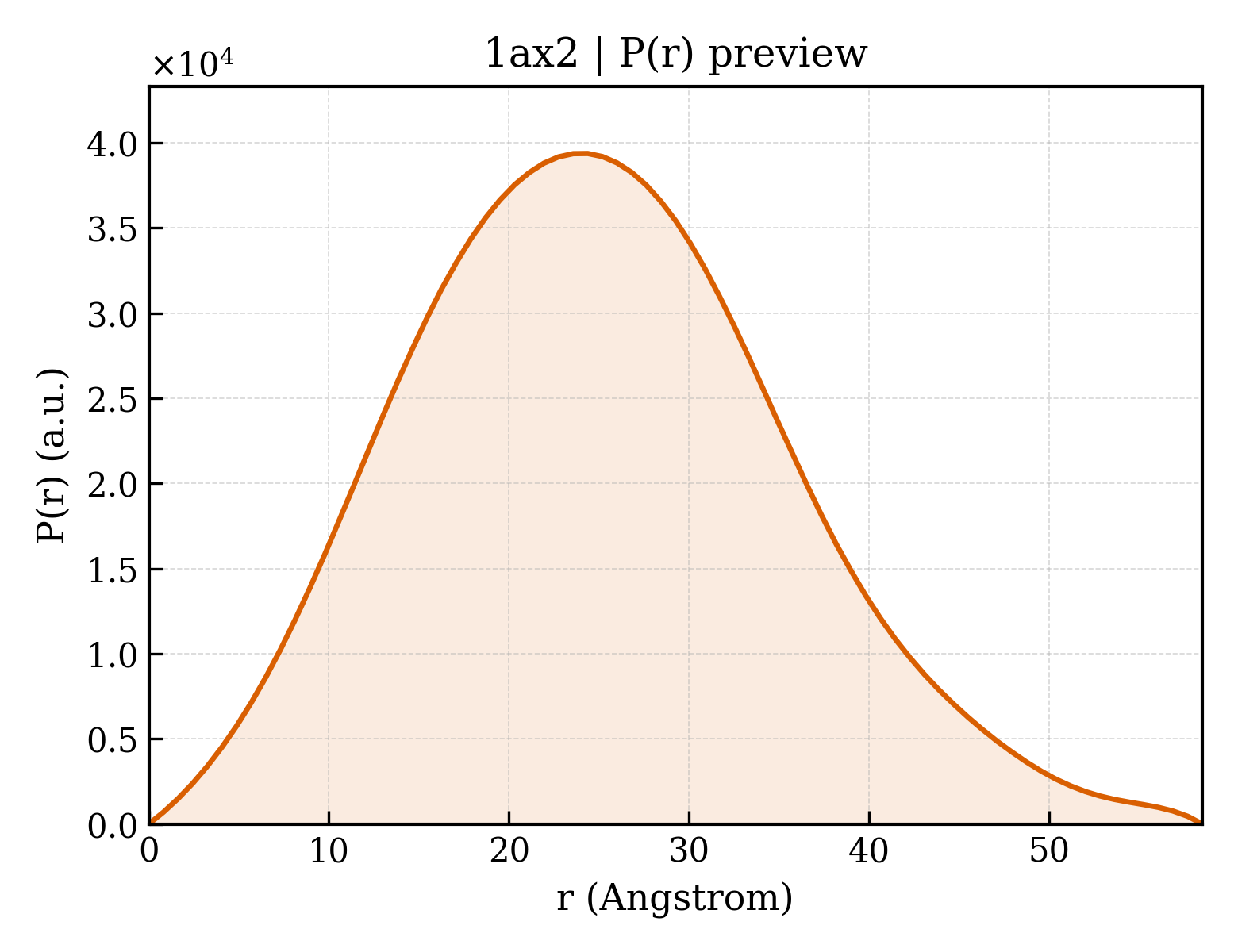

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.5 Å
Rg (real space) rg_real	19.08 Å
Rg uncertainty (real space) rg_real_error	0.11 Å
I(0) (real space) i0_real	1.3160e+07
I(0) uncertainty (real space) i0_real_error	1.3490e+05
Rg (reciprocal space) rg_reciprocal	18.98 Å
I(0) (reciprocal space) i0_reciprocal	13520000.0000
Solution quality estimate total_estimate	0.6874
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	24.4 Å
Skewness Skewness skewness	0.278
Kurtosis Kurtosis kurtosis	-0.215
Angular range angular_range	— – 0.4150 Å⁻¹
Current regularization parameter α current_alpha	8.9280
Highest regularization parameter α highest_alpha	2597000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.922; Stabil: 0.929; Sysdev: 0.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.409

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	LECTIN
Molecular weight formula_weight	26221.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2117

VETISFSFSEFEPGNDNLTLQGAALITQSGVLQLTKINQNGMPAWDSTGRTLYAKPVHIWDMTTGTVASFETRFSFSIEQPYTRPLPADGLVFFMGPTKSKPAQGYGYLGIFNNSKQDNSYQTLGVEFDTFSNPWDPPQVPHIGIDVNSIRSIKTQPFQLDNGQVANVVIKYDASSKILHAVLVYPSSGAIYTIAEIVDVKQVLPEWVDVGLSGATGAQRDAAETHDVYSWSFQASLPE

Entity 2 Entity 2 branched

Description description	;beta-D-xylopyranose-(1-2)-[alpha-D-mannopyranose-(1-3)][alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1189.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-alpha-D-glucopyranose
Molecular weight formula_weight	383.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	154

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ax2a_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

CATH v4.4 (1 domains)

Domain ID domain_id	1ax2A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	83.930 Å
Unit-cell length b length_b	73.170 Å
Unit-cell length c length_c	71.310 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	113.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1690
R_work r_work	0.1690
R_free r_free	0.1770

fit	/app/data/saxs_computation/ax/1ax2/1ax2.fit
pddf	/app/data/pr_computation/ax/1ax2/1ax2.pr.out
profile	/app/data/saxs_computation/ax/1ax2/1ax2.dat
