SAXSdb — 1fyu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LECTIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 27–281 Chain B； UniProt 27–281	Not recorded	beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose × 2 MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；PEG 8000, sodium chloride, Hepes buffer, sodium azides, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.202

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1FYU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AX0 ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH N-ACTYLGALACTOSAMINE Deposited 1997-10-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2 MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.90 Å R-free 0.200
1AX1 ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH LACTOSE Deposited 1997-10-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.95 Å R-free 0.200
1AX2 ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH N-ACETYLLACTOSAMINE Deposited 1997-10-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.95 Å R-free 0.177
1AXY ERYTHRINA CORALLODENDRON LECTIN Deposited 1997-10-24	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.95 Å R-free 0.200
1AXZ ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH D-GALACTOSE Deposited 1997-10-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	GLA alpha-D-galactopyranose × 2 GAL beta-D-galactopyranose × 2 MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.	Resolution 1.95 Å R-free 0.206
1LTE STRUCTURE OF A LEGUME LECTIN WITH AN ORDERED N-LINKED CARBOHYDRATE IN COMPLEX WITH LACTOSE Deposited 1991-06-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa）	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1SFY Crystal structure of recombinant Erythrina corallodandron Lectin Deposited 2004-02-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 27–265（239 aa） Fragment：residues 1-239	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；25% Ammonium Sulphate 100mM MES, 0.025% Sodium Azide, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.55 Å R-free 0.208
1SFY Crystal structure of recombinant Erythrina corallodandron Lectin Deposited 2004-02-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 27–265（239 aa） Fragment：residues 1-239	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；25% Ammonium Sulphate 100mM MES, 0.025% Sodium Azide, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.55 Å R-free 0.208
1SFY Crystal structure of recombinant Erythrina corallodandron Lectin Deposited 2004-02-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 27–265（239 aa） Fragment：residues 1-239 Chain D 27–265（239 aa） Fragment：residues 1-239	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；25% Ammonium Sulphate 100mM MES, 0.025% Sodium Azide, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.55 Å R-free 0.208
1SFY Crystal structure of recombinant Erythrina corallodandron Lectin Deposited 2004-02-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 27–265（239 aa） Fragment：residues 1-239 Chain F 27–265（239 aa） Fragment：residues 1-239	Not recorded	MN MANGANESE (II) ION × 2 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；25% Ammonium Sulphate 100mM MES, 0.025% Sodium Azide, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.55 Å R-free 0.208
3N35 Erythrina corallodendron lectin mutant (Y106G) with N-Acetylgalactosamine Deposited 2010-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–268（242 aa） Fragment：mECorL	Mutation：Y106G	MN MANGANESE (II) ION × 1 CA CALCIUM ION × 1 A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；20% PEG 3350, 0.25M diammonium hydrogen citrate , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.00 Å R-free 0.189
3N36 Erythrina corallodendron lectin mutant (Y106G) in complex with Galactose Deposited 2010-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–268（242 aa） Fragment：mECorL	Mutation：Y106G	MN MANGANESE (II) ION × 1 CA CALCIUM ION × 1 GLA alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；20% PEG 3350, 0.25M diammonium hydrogen citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.30 Å R-free 0.208
3N3H Erythrina corallodendron lectin mutant (Y106G) in complex with citrate Deposited 2010-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–268（242 aa） Fragment：mECorL	Mutation：Y106G	MN MANGANESE (II) ION × 1 CA CALCIUM ION × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；20% PEG 3350, 0.25M diammonium hydrogen citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.00 Å R-free 0.202

10 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LEC_ERYCO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–255； UniProt 27–281 Author chain B； PDBConstruct 1–255； UniProt 27–281

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fyu
Deposition date deposition_date	2000-10-03
Structure title title	Crystal structure of erythrina corallodendron lectin in hexagonal crystal form
Keywords keywords	LECTIN, PROTEIN-CARBOHYDRATE COMPLEX, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.41 Å
Radius of gyration Rg (electron density) rg_electron	24.12 Å
Forward intensity I(0) i0	45933600.00
Molecular weight molecular_weight	53229.0 kDa
Excluded volume excluded_volume	66740 Å³
Envelope volume envelope_volume	78498 Å³
Hydration-shell volume shell_volume	27109 Å³
Envelope diameter envelope_diameter	78.4 Å
Shell Rg shell_rg	31.27 Å
Envelope Rg envelope_rg	24.27 Å
Shape Rg shape_rg	24.10 Å
Total Rg total_rg	25.00 Å
Total atoms total_atoms	3758
Residues n_residues	478
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

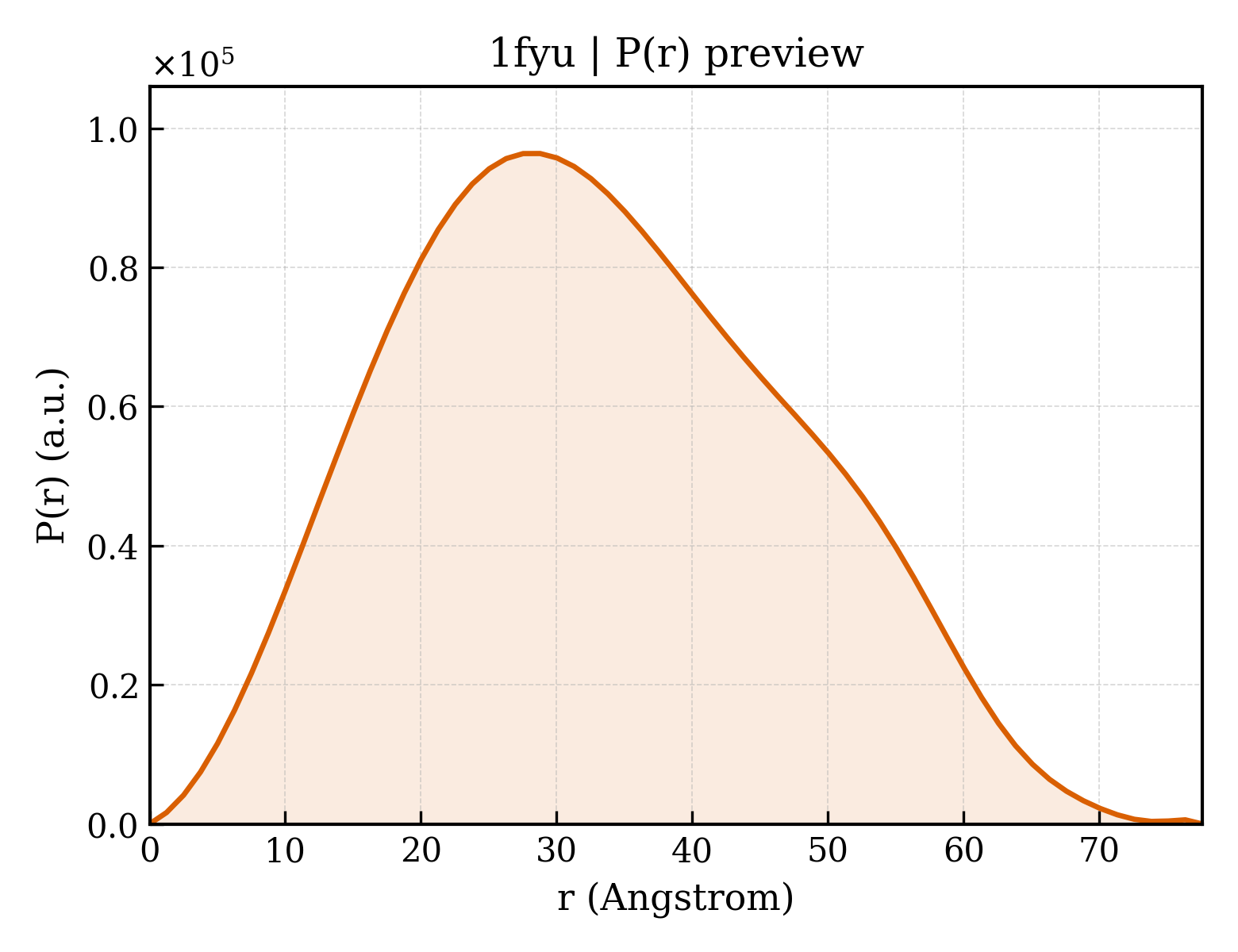

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	77.6 Å
Rg (real space) rg_real	25.35 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	4.5930e+07
I(0) uncertainty (real space) i0_real_error	6.5710e+05
Rg (reciprocal space) rg_reciprocal	25.37 Å
I(0) (reciprocal space) i0_reciprocal	45930000.0000
Solution quality estimate total_estimate	0.9122
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.8 Å
Skewness Skewness skewness	0.224
Kurtosis Kurtosis kurtosis	-0.615
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7510000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.968

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	LECTIN
Molecular weight formula_weight	27919.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3960

VETISFSFSEFEPGNDNLTLQGAALITQSGVLQLTKINQNGMPAWDSTGRTLYAKPVHIWDMTTGTVASFETRFSFSIEQPYTRPLPADGLVFFMGPTKSKPAQGYGYLGIFNNSKQDNSYQTLGVEFDTFSNPWDPPQVPHIGIDVNSIRSIKTQPFQLDNGQVANVVIKYDASSKILHAVLVYPSSGAIYTIAEIVDVKQVLPEWVDVGLSGATGAQRDAAETHDVYSWSFQASLPETNDAVIPTSNHNTFAI

Entity 2 Entity 2 branched

Description description	beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	202

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1fyua_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d1fyub_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

CATH v4.4 (2 domains)

Domain ID domain_id	1fyuA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1fyuB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	135.850 Å
Unit-cell length b length_b	135.850 Å
Unit-cell length c length_c	82.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	39.160 Å
R factor r_factor	0.1730
R_work r_work	0.1730
R_free r_free	0.2020

fit	/app/data/saxs_computation/fy/1fyu/1fyu.fit
pddf	/app/data/pr_computation/fy/1fyu/1fyu.pr.out
profile	/app/data/saxs_computation/fy/1fyu/1fyu.dat

Crystal structure of erythrina corallodendron lectin in hexagonal crystal form
