1axz

ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH D-GALACTOSE

Method: X-RAY DIFFRACTION D_max: 62.1 Å Quality: GOOD

SAXS Profile

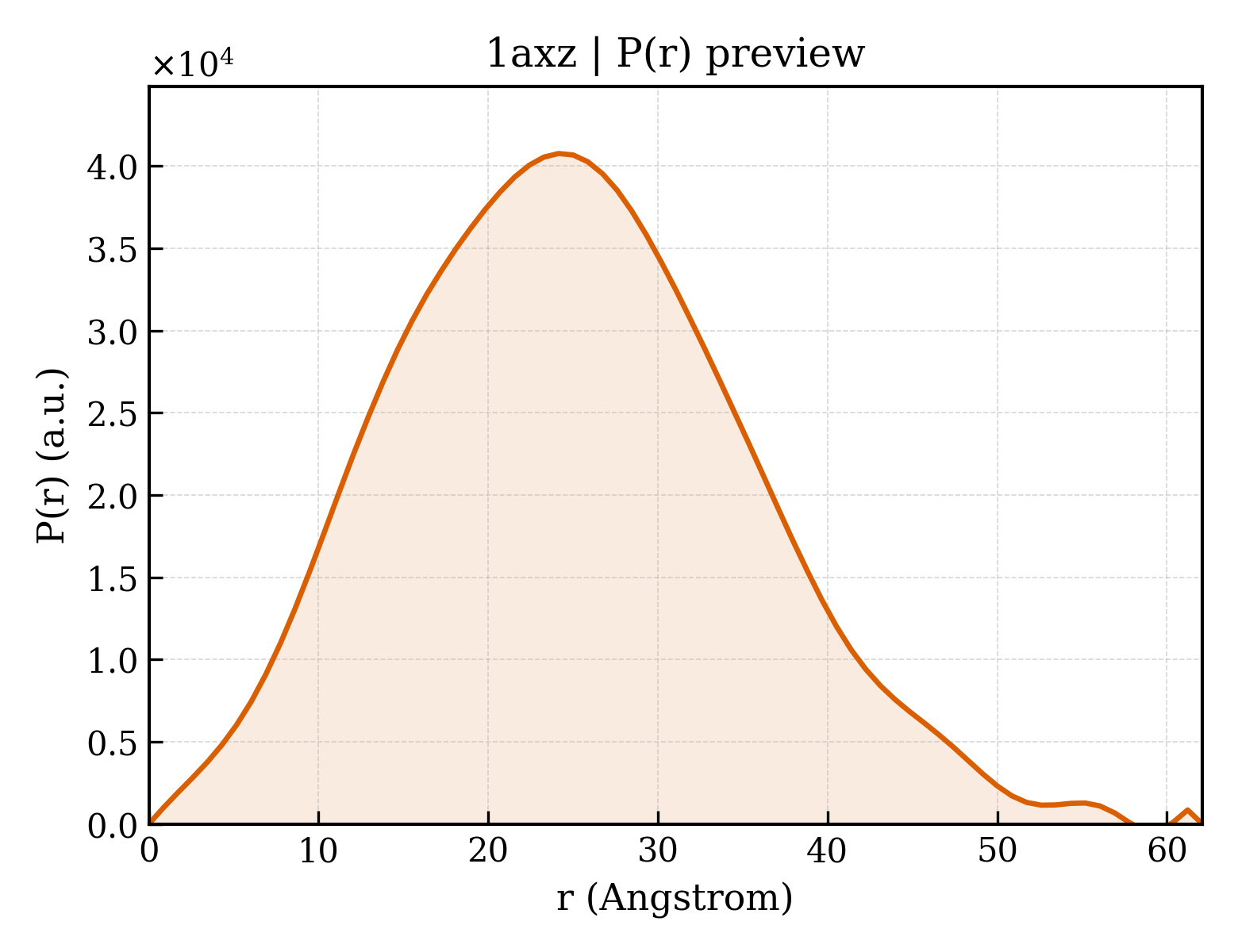

P(r) Distribution

▼

1. Structure Basics

entry_id	1axz
deposition_date	1997-10-24
title	ERYTHRINA CORALLODENDRON LECTIN IN COMPLEX WITH D-GALACTOSE
keywords	LECTIN, GLYCOPROTEIN; LECTIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	19.05 Å
rg_electron	17.76 Å
i0	13349900.00
molecular_weight	27647.0 kDa
excluded_volume	34646 Å³
envelope_volume	39615 Å³
shell_volume	18562 Å³
envelope_diameter	65.3 Å
shell_rg	24.30 Å
envelope_rg	18.25 Å
shape_rg	17.70 Å
total_rg	18.93 Å
total_atoms	1949
n_residues	239
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	62.1 Å
rg_real	18.97 Å
rg_real_error	0.34 Å
i0_real	1.3350e+07
i0_real_error	1.5910e+05
rg_reciprocal	18.98 Å
i0_reciprocal	13350000.0000
total_estimate	0.8017
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	24.1 Å
skewness	0.264
kurtosis	-0.200
angular_range	— – 0.4150 Å⁻¹
current_alpha	0.0000
highest_alpha	2827000.0000
n_real_points	73
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	LECTIN
formula_weight	26221.2 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2096

VETISFSFSEFEPGNDNLTLQGAALITQSGVLQLTKINQNGMPAWDSTGRTLYAKPVHIWDMTTGTVASFETRFSFSIEQPYTRPLPADGLVFFMGPTKSKPAQGYGYLGIFNNSKQDNSYQTLGVEFDTFSNPWDPPQVPHIGIDVNSIRSIKTQPFQLDNGQVANVVIKYDASSKILHAVLVYPSSGAIYTIAEIVDVKQVLPEWVDVGLSGATGAQRDAAETHDVYSWSFQASLPE

Entity 2 branched

description	;beta-D-xylopyranose-(1-2)-[alpha-D-mannopyranose-(1-3)][alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1189.1 kDa
src_method	man
entity_count	1

Entity 3 non-polymer

description	alpha-D-galactopyranose
formula_weight	180.2 kDa
src_method	man
entity_count	1

Entity 4 non-polymer

description	beta-D-galactopyranose
formula_weight	180.2 kDa
src_method	man
entity_count	1

Entity 5 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	1

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	135

▶

6. Citations (1)

▶

length_a	84.202 Å
length_b	72.990 Å
length_c	71.290 Å
angle_alpha	90.00 °
angle_beta	113.44 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	1.950 Å
resolution_low	6.000 Å
r_factor	0.1790
r_work	0.1790
r_free	0.2060
