1az4
ECORV ENDONUCLEASE, UNLIGANDED, FORM B, T93A MUTANT
SAXS Profile

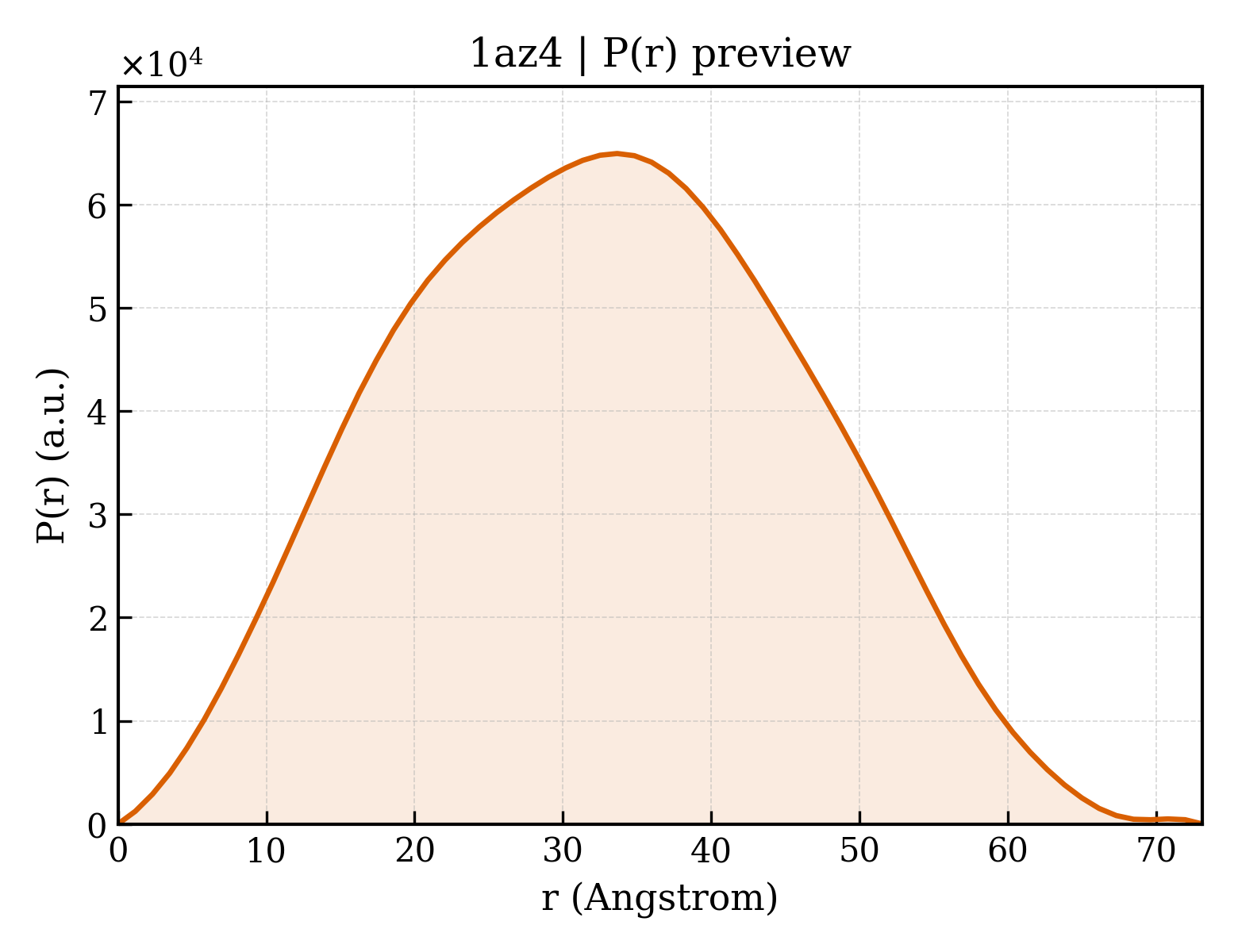

P(r) Distribution
1. Structure Basics
| entry_id | 1az4 |
| deposition_date | 1997-11-24 |
| title | ECORV ENDONUCLEASE, UNLIGANDED, FORM B, T93A MUTANT |
| keywords | ENDONUCLEASE; ENDONUCLEASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.97 Å |
| rg_electron | 23.78 Å |
| i0 | 30273300.00 |
| molecular_weight | 44622.0 kDa |
| excluded_volume | 56641 ų |
| envelope_volume | 71132 ų |
| shell_volume | 25088 ų |
| envelope_diameter | 74.4 Å |
| shell_rg | 30.53 Å |
| envelope_rg | 23.21 Å |
| shape_rg | 23.77 Å |
| total_rg | 24.66 Å |
| total_atoms | 3176 |
| n_residues | 402 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 73.1 Å |
| rg_real | 24.84 Å |
| rg_real_error | 0.47 Å |
| i0_real | 3.0270e+07 |
| i0_real_error | 4.2600e+05 |
| rg_reciprocal | 24.88 Å |
| i0_reciprocal | 30270000.0000 |
| total_estimate | 0.9193 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 33.7 Å |
| skewness | 0.074 |
| kurtosis | -0.628 |
| angular_range | — – 0.3200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5097000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.988; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.985 |
