RESTRICTION ENDONUCLEASE ECORV WITH CALCIUM

entry_id	1b94
deposition_date	1999-02-19
title	RESTRICTION ENDONUCLEASE ECORV WITH CALCIUM
keywords	ENDONUCLEASE, RESTRICTION, ECORV, HYDROLASE-DNA COMPLEX; HYDROLASE/DNA
method	X-RAY DIFFRACTION

rg_guinier	24.23 Å
rg_electron	23.60 Å
i0	71969000.00
molecular_weight	63825.0 kDa
excluded_volume	78644 ų
envelope_volume	91607 ų
shell_volume	31444 ų
envelope_diameter	80.3 Å
shell_rg	31.52 Å
envelope_rg	23.78 Å
shape_rg	23.62 Å
total_rg	24.37 Å
total_atoms	4494
n_residues	510
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	81.2 Å
rg_real	24.10 Å
rg_real_error	0.67 Å
i0_real	7.1970e+07
i0_real_error	1.1000e+06
rg_reciprocal	24.13 Å
i0_reciprocal	71970000.0000
total_estimate	0.7947
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	30.4 Å
skewness	0.234
kurtosis	-0.345
angular_range	— – 0.3300 Å−1
current_alpha	0.0000
highest_alpha	17790000.0000
n_real_points	65
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.779; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

Unit Cell

length_a	48.640 Å
length_b	49.370 Å
length_c	63.890 Å
angle_alpha	96.94 °
angle_beta	108.66 °
angle_gamma	107.53 °
z_pdb	2

Symmetry

space_group	P 1
int_tables_number	1
crystal_system	—

Refinement

resolution	1.900 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.2060
r_free	0.2700

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/b9/1b94/pr_distribution.json
• pr_output /app/data/pr_computation/b9/1b94/1b94.pr.out

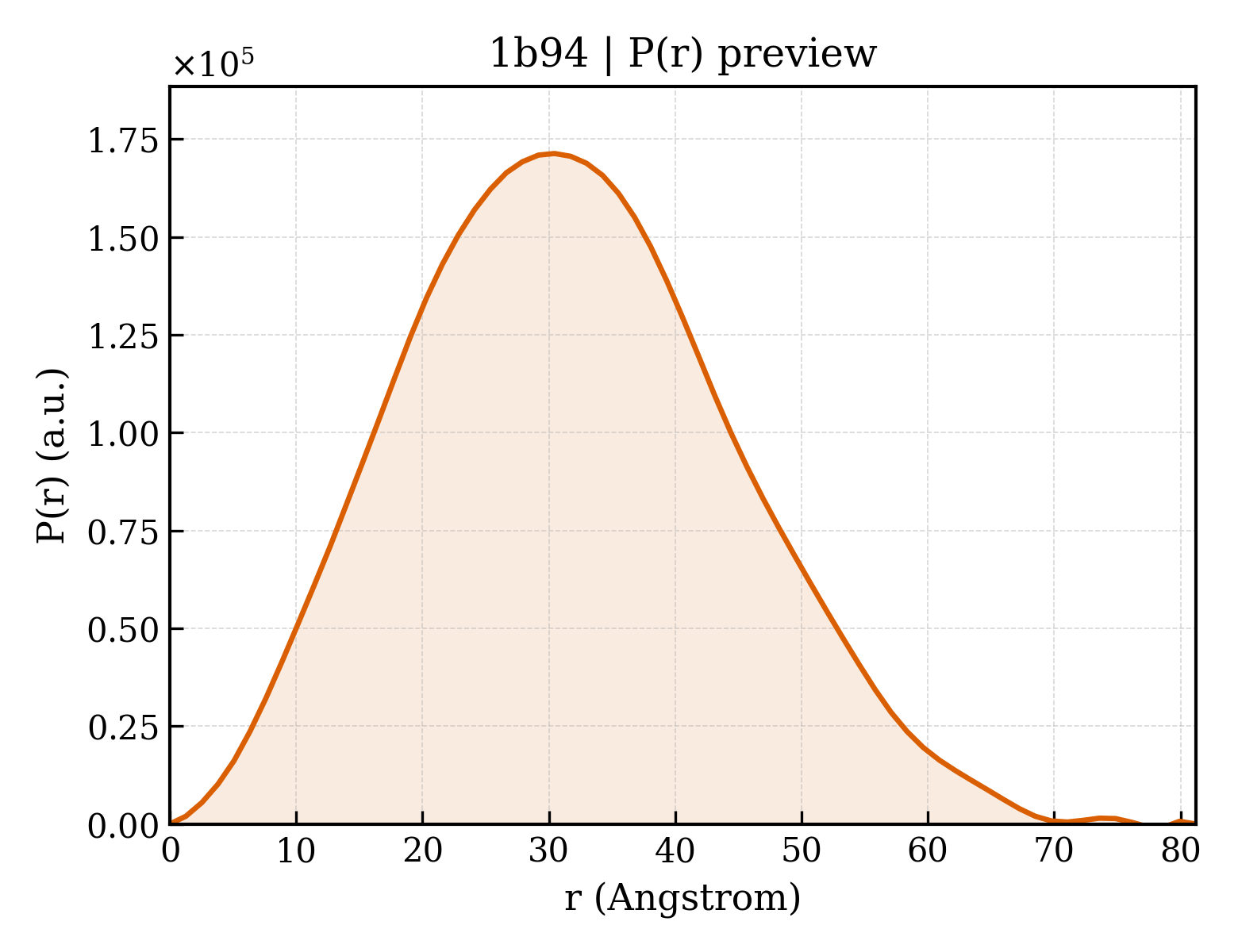

• pr_plot /app/data/visualization/pr_computation/b9/1b94/1b94_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/b9/1b94/1b94.dat
• saxs_fit /app/data/saxs_computation/b9/1b94/1b94.fit
• saxs_log /app/data/saxs_computation/b9/1b94/1b94.log

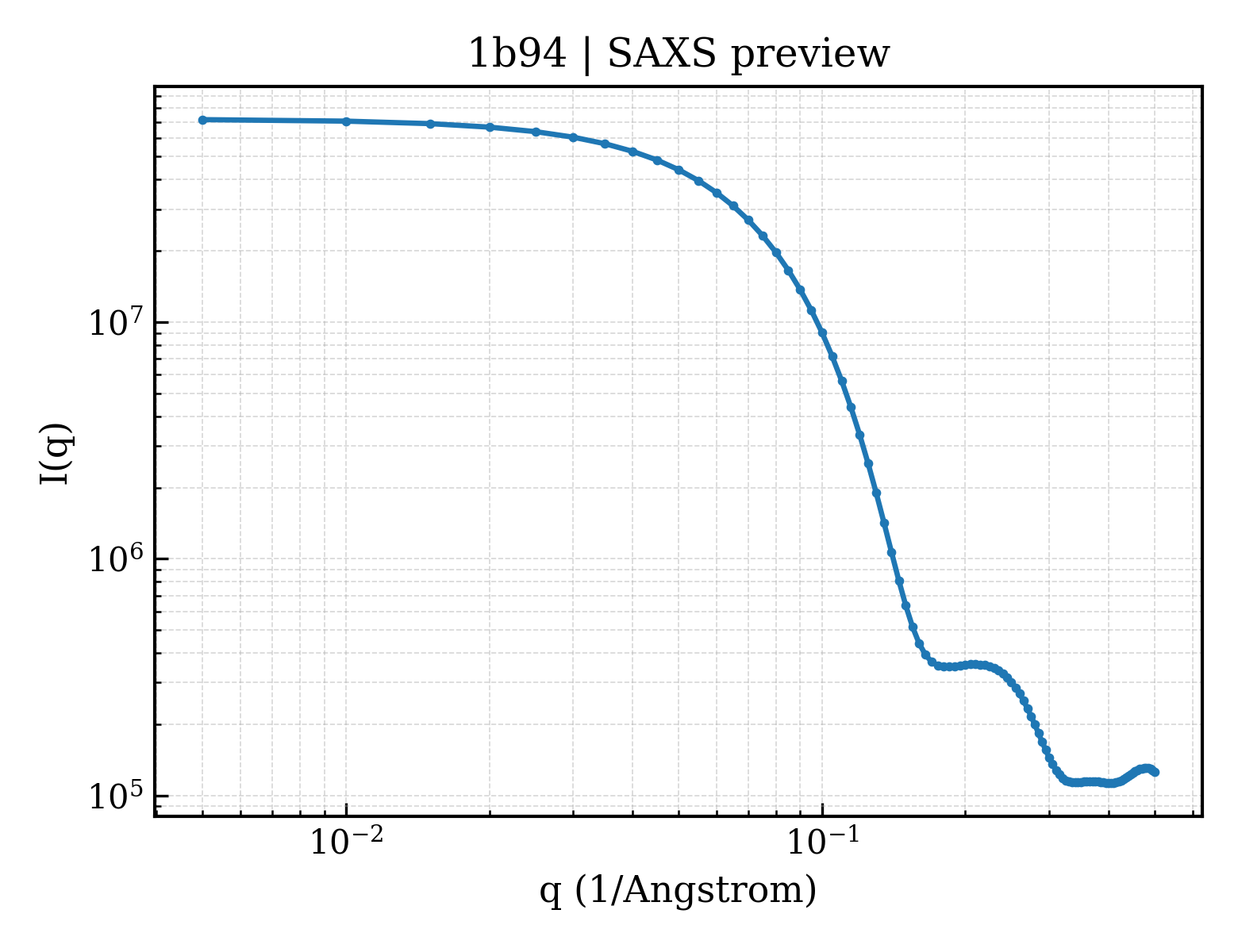

• saxs_plot /app/data/visualization/saxs_computation/b9/1b94/1b94_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/b9/1b94/1b94.fit
pddf	/app/data/pr_computation/b9/1b94/1b94.pr.out
profile	/app/data/saxs_computation/b9/1b94/1b94.dat
