ANALYSIS OF A MUTATIONAL HOT-SPOT IN THE ECORV RESTRICTION ENDONUCLEASE: A CATALYTIC ROLE FOR A MAIN CHAIN CARBONYL GROUP

entry_id	1b97
deposition_date	1999-02-19
title	ANALYSIS OF A MUTATIONAL HOT-SPOT IN THE ECORV RESTRICTION ENDONUCLEASE: A CATALYTIC ROLE FOR A MAIN CHAIN CARBONYL GROUP
keywords	ENDONUCLEASE, RESTRICTION, ECORV, HYDROLASE-DNA COMPLEX; HYDROLASE/DNA
method	X-RAY DIFFRACTION

rg_guinier	24.30 Å
rg_electron	23.65 Å
i0	71418800.00
molecular_weight	63715.0 kDa
excluded_volume	78582 ų
envelope_volume	92008 ų
shell_volume	31567 ų
envelope_diameter	80.8 Å
shell_rg	31.61 Å
envelope_rg	23.77 Å
shape_rg	23.65 Å
total_rg	24.44 Å
total_atoms	4490
n_residues	510
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	77.7 Å
rg_real	24.17 Å
rg_real_error	0.41 Å
i0_real	7.1420e+07
i0_real_error	9.4070e+05
rg_reciprocal	24.20 Å
i0_reciprocal	71420000.0000
total_estimate	0.8893
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	30.8 Å
skewness	0.228
kurtosis	-0.351
angular_range	— – 0.3250 Å−1
current_alpha	0.0000
highest_alpha	16540000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.969

Unit Cell

length_a	48.651 Å
length_b	49.224 Å
length_c	64.039 Å
angle_alpha	96.65 °
angle_beta	108.91 °
angle_gamma	107.53 °
z_pdb	2

Symmetry

space_group	P 1
int_tables_number	1
crystal_system	—

Refinement

resolution	1.900 Å
resolution_low	15.000 Å
r_factor	—
r_work	0.2190
r_free	0.2790

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/b9/1b97/pr_distribution.json
• pr_output /app/data/pr_computation/b9/1b97/1b97.pr.out

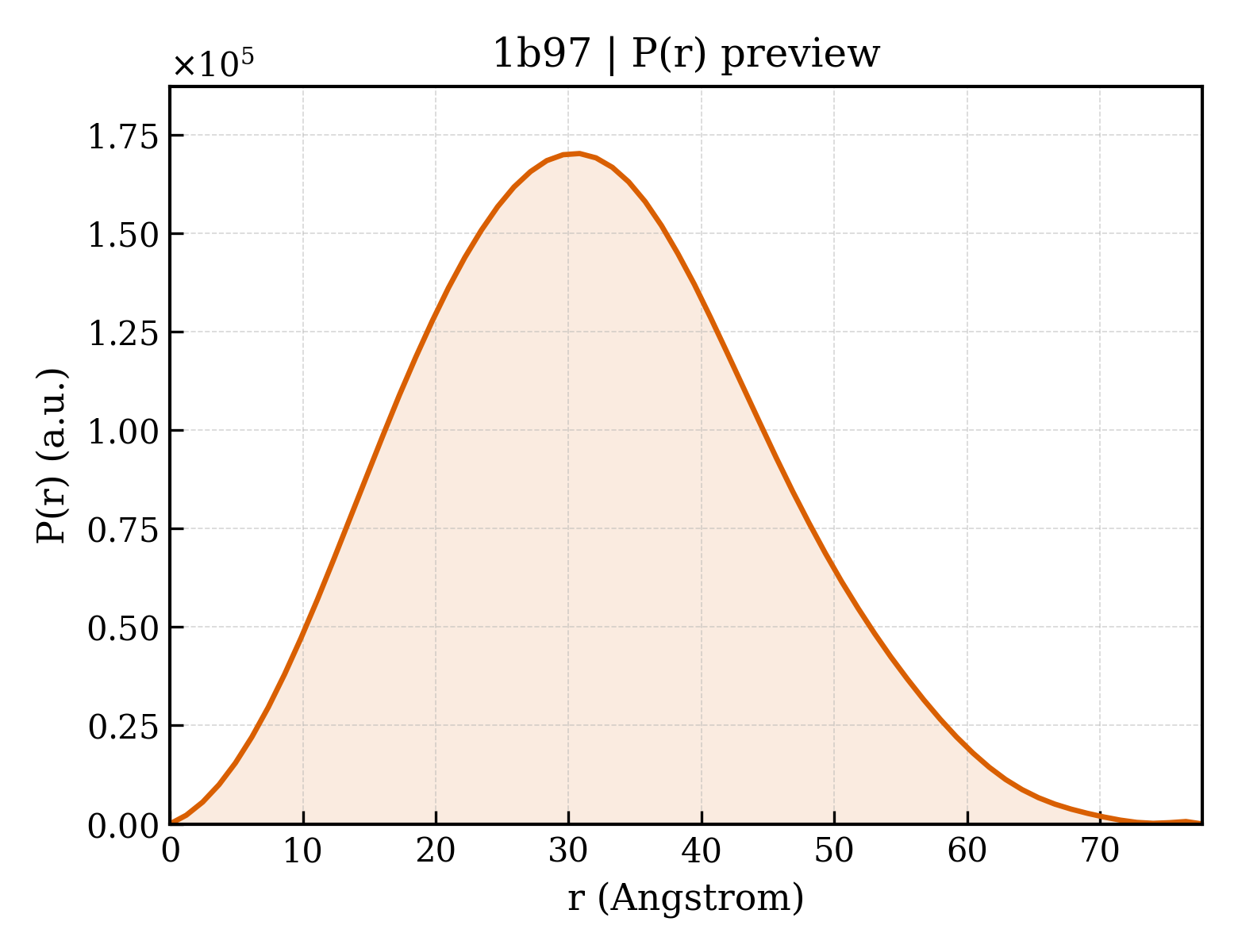

• pr_plot /app/data/visualization/pr_computation/b9/1b97/1b97_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/b9/1b97/1b97.dat
• saxs_fit /app/data/saxs_computation/b9/1b97/1b97.fit
• saxs_log /app/data/saxs_computation/b9/1b97/1b97.log

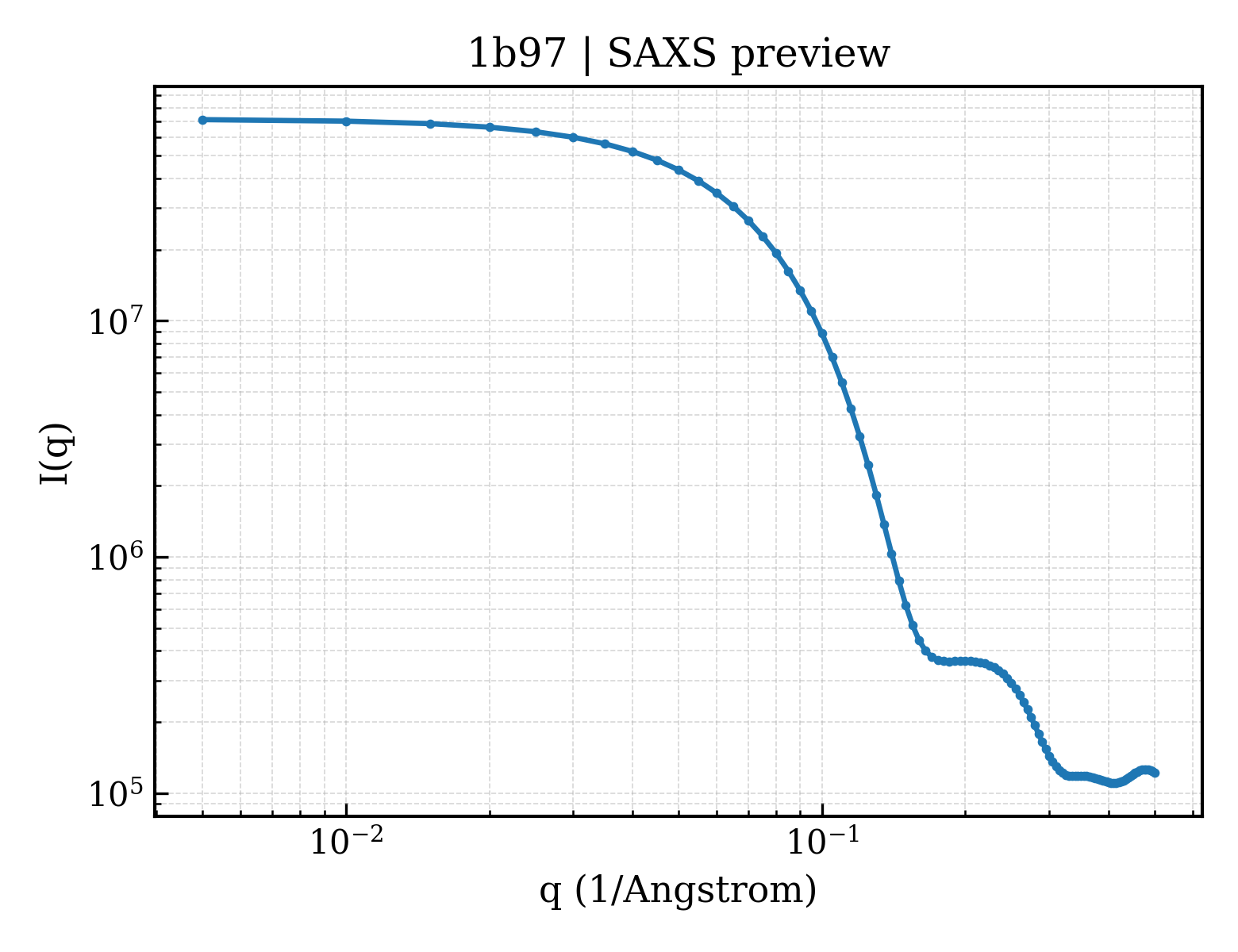

• saxs_plot /app/data/visualization/saxs_computation/b9/1b97/1b97_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/b9/1b97/1b97.fit
pddf	/app/data/pr_computation/b9/1b97/1b97.pr.out
profile	/app/data/saxs_computation/b9/1b97/1b97.dat
