GLUTAMATE DEHYDROGENASE

Method: X-RAY DIFFRACTION D_max: 135.1 Å Quality: GOOD

SAXS Profile

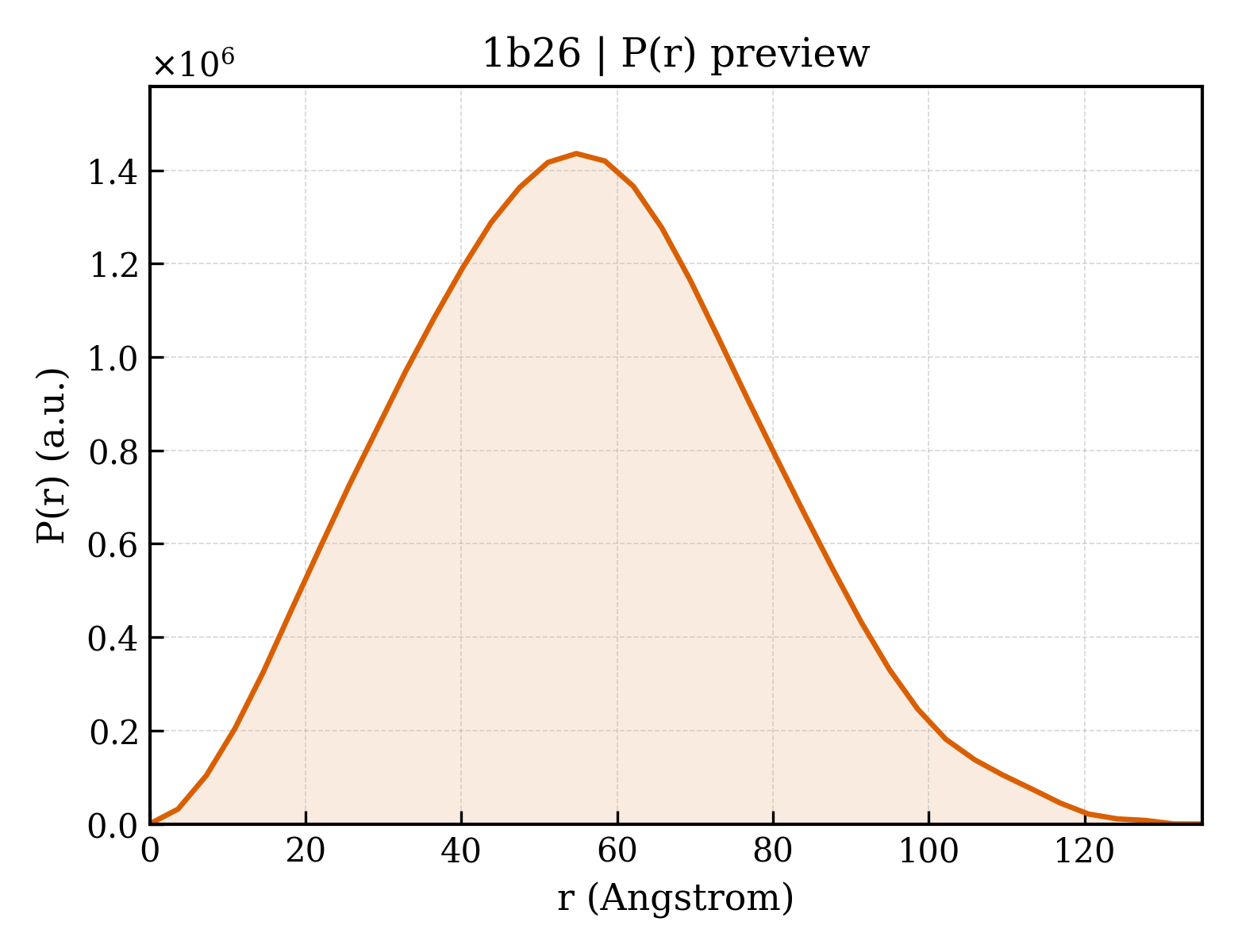

P(r) Distribution

▼

1. Structure Basics

entry_id	1b26
deposition_date	1998-12-04
title	GLUTAMATE DEHYDROGENASE
keywords	METABOLIC ROLE, GLUTAMATE, DEHYDROGENASE, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.51 Å
rg_electron	41.86 Å
i0	1046780000.00
molecular_weight	269530.0 kDa
excluded_volume	338880 Å³
envelope_volume	438320 Å³
shell_volume	84155 Å³
envelope_diameter	139.7 Å
shell_rg	48.86 Å
envelope_rg	41.77 Å
shape_rg	41.83 Å
total_rg	42.30 Å
total_atoms	18978
n_residues	2454
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	135.1 Å
rg_real	42.31 Å
rg_real_error	1.12 Å
i0_real	1.0470e+09
i0_real_error	1.9100e+07
rg_reciprocal	42.50 Å
i0_reciprocal	1047000000.0000
total_estimate	0.8785
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	54.8 Å
skewness	0.194
kurtosis	-0.351
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	152700000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.874; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.822

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

length_a	147.130 Å
length_b	147.130 Å
length_c	273.640 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	36

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

resolution	3.000 Å
resolution_low	8.000 Å
r_factor	—
r_work	0.2250
r_free	0.2950

description	GLUTAMATE DEHYDROGENASE
formula_weight	45859.5 kDa
ec_number	1.4.1.3
src_method	man
entity_count	6

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	18978

GLUTAMATE DEHYDROGENASE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (1)

Entity 1 polymer

Polymer

Source

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Thermotoga maritima
ncbi_taxonomy_id	2336
host_organism	Escherichia coli BL21(DE3)

fit	/app/data/saxs_computation/b2/1b26/1b26.fit
pddf	/app/data/pr_computation/b2/1b26/1b26.pr.out
profile	/app/data/saxs_computation/b2/1b26/1b26.dat
