CLATHRIN HEAVY CHAIN PROXIMAL LEG SEGMENT (BOVINE)

Method: X-RAY DIFFRACTION D_max: 129.2 Å Quality: REASONABLE

SAXS Profile

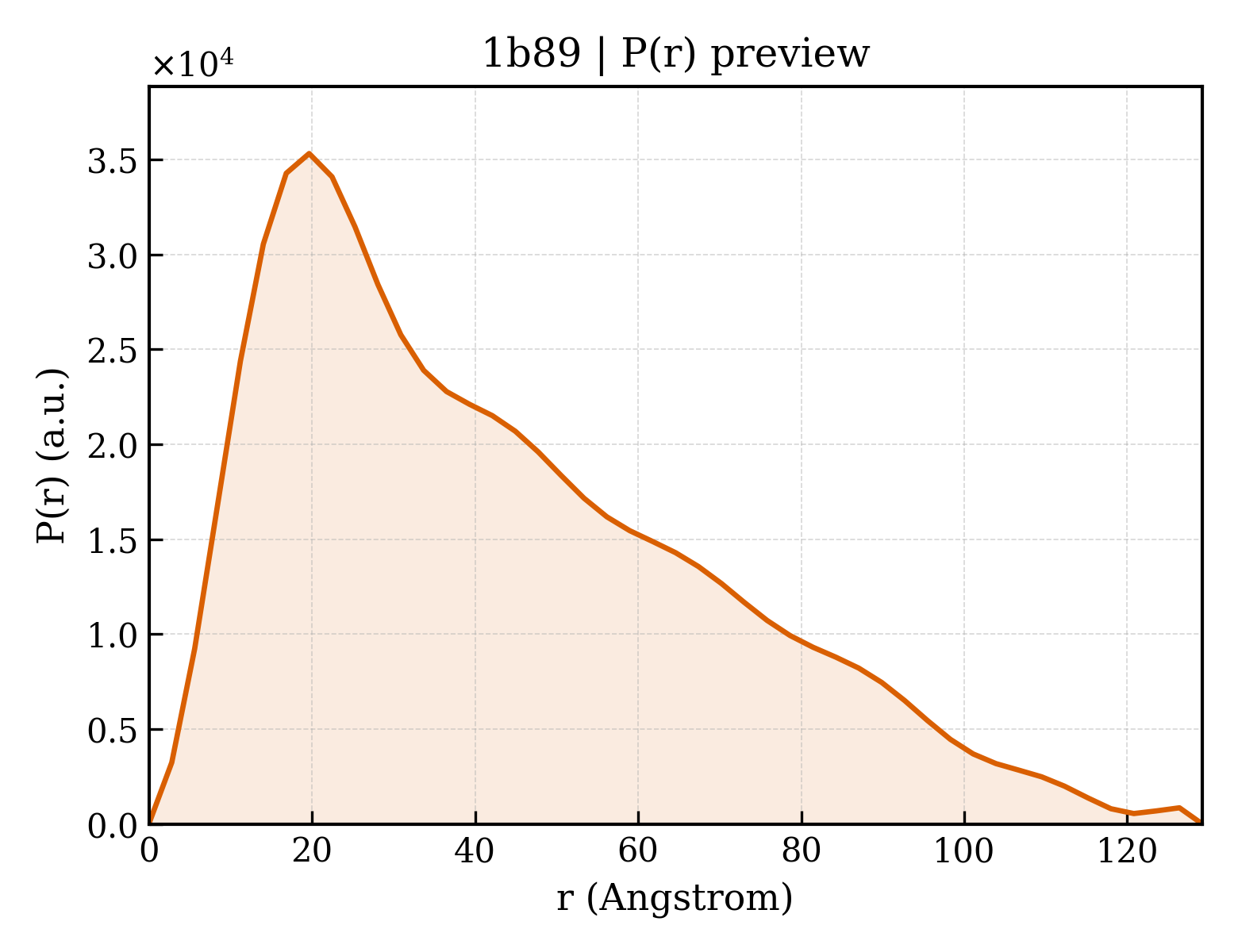

P(r) Distribution

▼

1. Structure Basics

entry_id	1b89
deposition_date	1999-05-27
title	CLATHRIN HEAVY CHAIN PROXIMAL LEG SEGMENT (BOVINE)
keywords	CLATHRIN, TRISKELION, COATED VESICLES, ENDOCYTOSIS, SELF-ASSEMBLY, ALPHA-ALPHA SUPERHELIX; CLATHRIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	34.54 Å
rg_electron	35.22 Å
i0	22150900.00
molecular_weight	37022.0 kDa
excluded_volume	46258 Å³
envelope_volume	59596 Å³
shell_volume	17854 Å³
envelope_diameter	134.4 Å
shell_rg	32.22 Å
envelope_rg	36.62 Å
shape_rg	35.32 Å
total_rg	34.65 Å
total_atoms	2588
n_residues	313
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	129.2 Å
rg_real	35.44 Å
rg_real_error	1.84 Å
i0_real	2.2150e+07
i0_real_error	4.0840e+05
rg_reciprocal	34.88 Å
i0_reciprocal	22140000.0000
total_estimate	0.6278
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	19.7 Å
skewness	0.726
kurtosis	-0.239
angular_range	— – 0.2300 Å⁻¹
current_alpha	0.0000
highest_alpha	1263000.0000
n_real_points	47
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.084; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.021; Smooth: 0.884

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

length_a	145.200 Å
length_b	145.200 Å
length_c	166.300 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	I 41 2 2
int_tables_number	98
crystal_system	—

resolution	2.600 Å
resolution_low	30.000 Å
r_factor	0.2540
r_work	0.2540
r_free	0.2790

description	PROTEIN (CLATHRIN HEAVY CHAIN)
formula_weight	52683.6 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	2588

CLATHRIN HEAVY CHAIN PROXIMAL LEG SEGMENT (BOVINE)

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (1)

Entity 1 polymer

Polymer

Source

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Bos taurus
common_name	cattle
ncbi_taxonomy_id	9913
host_organism	Escherichia coli BL21(DE3)
