1xi5

Clathrin D6 coat with auxilin J-domain

Method: ELECTRON MICROSCOPY D_max: 374.3 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Clathrin heavy chain

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 216 PDB declaration: 216-MERIC（216） Consistent with protein copy count	Chain A； UniProt 1–1630 Chain B； UniProt 1–1630 Chain C； UniProt 1–1630 Chain D； UniProt 1–1630 Chain E； UniProt 1–1630 Chain F； UniProt 1–1630 Chain G； UniProt 1–1630 Chain H； UniProt 1–1630 Chain I； UniProt 1–1630	Fragment：residues 1-1630	Auxilin J-domain × 108 （Q27974）	ELECTRON MICROSCOPY cryo-EM buffer：20MM HEPES；pH 7；20MM HEPES cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFIED	Resolution 12.00 Å
2	Protein heterocomplex Heteromer Protein × 18 PDB declaration: octadecameric（18） Consistent with protein copy count	Chain A； UniProt 1–1630 Chain B； UniProt 1–1630 Chain C； UniProt 1–1630 Chain D； UniProt 1–1630 Chain E； UniProt 1–1630 Chain F； UniProt 1–1630 Chain G； UniProt 1–1630 Chain H； UniProt 1–1630 Chain I； UniProt 1–1630	Fragment：residues 1-1630	Auxilin J-domain × 9 （Q27974）	ELECTRON MICROSCOPY cryo-EM buffer：20MM HEPES；pH 7；20MM HEPES cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFIED	Resolution 12.00 Å
3	Protein heterocomplex Heteromer Protein × 18 PDB declaration: octadecameric（18） Consistent with protein copy count	Chain A； UniProt 1–1630 Chain B； UniProt 1–1630 Chain C； UniProt 1–1630 Chain D； UniProt 1–1630 Chain E； UniProt 1–1630 Chain F； UniProt 1–1630 Chain G； UniProt 1–1630 Chain H； UniProt 1–1630 Chain I； UniProt 1–1630	Fragment：residues 1-1630	Auxilin J-domain × 9 （Q27974）	ELECTRON MICROSCOPY cryo-EM buffer：20MM HEPES；pH 7；20MM HEPES cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFIED	Resolution 12.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1XI5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B89 CLATHRIN HEAVY CHAIN PROXIMAL LEG SEGMENT (BOVINE) Deposited 1999-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1074–1522（449 aa） Fragment：PROXIMAL LEG	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；250 MM SODIUM FORMATE, 100 MM TRIS-HCL, PH 8, pH 8.0	Resolution 2.60 Å R-free 0.279
1UTC Clathrin terminal domain complexed with TLPWDLWTT Deposited 2003-12-08	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–363（363 aa） Fragment：TERMINAL DOMAIN, RESIDUES 1-363	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；VAPOUR DIFFUSION OVER A RESERVOIR CONTAINING 20% PEG8000, 200 MM MGCL2, 4 MM DTT,100 MM CAPS PH 9, DRIED UP DROP	Resolution 2.30 Å R-free 0.253
1UTC Clathrin terminal domain complexed with TLPWDLWTT Deposited 2003-12-08	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–363（363 aa） Fragment：TERMINAL DOMAIN, RESIDUES 1-363	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；VAPOUR DIFFUSION OVER A RESERVOIR CONTAINING 20% PEG8000, 200 MM MGCL2, 4 MM DTT,100 MM CAPS PH 9, DRIED UP DROP	Resolution 2.30 Å R-free 0.253
1XI4 Clathrin D6 Coat Deposited 2004-09-21	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 216 PDB declaration: 216-MERIC	Chain A 1–1630（1630 aa） Fragment：residues 1-1630 Chain B 1–1630（1630 aa） Fragment：residues 1-1630 Chain C 1–1630（1630 aa） Fragment：residues 1-1630 Chain D 1–1630（1630 aa） Fragment：residues 1-1630 Chain E 1–1630（1630 aa） Fragment：residues 1-1630 Chain F 1–1630（1630 aa） Fragment：residues 1-1630 Chain G 1–1630（1630 aa） Fragment：residues 1-1630 Chain H 1–1630（1630 aa） Fragment：residues 1-1630 Chain I 1–1630（1630 aa） Fragment：residues 1-1630	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25mM MES；pH 6.5；25mM MES cryo-EM vitrification conditions Cryogen ETHANE；VITRIFIED	Resolution 7.90 Å
1XI4 Clathrin D6 Coat Deposited 2004-09-21	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 1–1630（1630 aa） Fragment：residues 1-1630 Chain B 1–1630（1630 aa） Fragment：residues 1-1630 Chain C 1–1630（1630 aa） Fragment：residues 1-1630 Chain D 1–1630（1630 aa） Fragment：residues 1-1630 Chain E 1–1630（1630 aa） Fragment：residues 1-1630 Chain F 1–1630（1630 aa） Fragment：residues 1-1630 Chain G 1–1630（1630 aa） Fragment：residues 1-1630 Chain H 1–1630（1630 aa） Fragment：residues 1-1630 Chain I 1–1630（1630 aa） Fragment：residues 1-1630	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25mM MES；pH 6.5；25mM MES cryo-EM vitrification conditions Cryogen ETHANE；VITRIFIED	Resolution 7.90 Å
1XI4 Clathrin D6 Coat Deposited 2004-09-21	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 1–1630（1630 aa） Fragment：residues 1-1630 Chain B 1–1630（1630 aa） Fragment：residues 1-1630 Chain C 1–1630（1630 aa） Fragment：residues 1-1630 Chain D 1–1630（1630 aa） Fragment：residues 1-1630 Chain E 1–1630（1630 aa） Fragment：residues 1-1630 Chain F 1–1630（1630 aa） Fragment：residues 1-1630 Chain G 1–1630（1630 aa） Fragment：residues 1-1630 Chain H 1–1630（1630 aa） Fragment：residues 1-1630 Chain I 1–1630（1630 aa） Fragment：residues 1-1630	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25mM MES；pH 6.5；25mM MES cryo-EM vitrification conditions Cryogen ETHANE；VITRIFIED	Resolution 7.90 Å
3GC3 Crystal Structure of Arrestin2S and Clathrin Deposited 2009-02-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–363（363 aa） Fragment：WD domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；100 mM bis_tris propane 4 -4.5 M ammonium acetate 4.5% ethylene glycol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.251
3GD1 Structure of an Arrestin/Clathrin complex reveals a novel clathrin binding domain that modulates receptor trafficking Deposited 2009-02-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 1–363（363 aa） Fragment：WD domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；293 K；100mM Bicine, 7% O-(2-aminopropyl)-O'-(2-methoxyethyl)polypropylene glycol 500, 6% polyethylene glycol 8000, 4% acetone, 1% ethylene glycol and 10 mM strontium chloride, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.254
3IYV Clathrin D6 coat as full-length Triskelions Deposited 2010-06-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 216 PDB declaration: 216-meric	Chain A 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain B 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain C 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain D 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain E 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain F 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain G 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain H 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain I 1–1630（1630 aa） Fragment：UNP residues 1-1630	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25MM MES；pH 6.5；25MM MES cryo-EM vitrification conditions Cryogen ETHANE；VITRIFIED	Resolution 7.90 Å
3IYV Clathrin D6 coat as full-length Triskelions Deposited 2010-06-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain B 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain C 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain D 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain E 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain F 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain G 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain H 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain I 1–1630（1630 aa） Fragment：UNP residues 1-1630	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25MM MES；pH 6.5；25MM MES cryo-EM vitrification conditions Cryogen ETHANE；VITRIFIED	Resolution 7.90 Å
3IYV Clathrin D6 coat as full-length Triskelions Deposited 2010-06-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain B 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain C 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain D 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain E 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain F 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain G 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain H 1–1630（1630 aa） Fragment：UNP residues 1-1630 Chain I 1–1630（1630 aa） Fragment：UNP residues 1-1630	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25MM MES；pH 6.5；25MM MES cryo-EM vitrification conditions Cryogen ETHANE；VITRIFIED	Resolution 7.90 Å
3LVG Crystal structure of a clathrin heavy chain and clathrin light chain complex Deposited 2010-02-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1074–1675（602 aa） Chain B 1074–1675（602 aa） Chain C 1074–1675（602 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；200mM citrate, 16-22% glycerol, 2% trifluoroethanol, vapor diffusion, hanging drop, temperature 298K	Resolution 7.94 Å R-free 0.425
3LVH Crystal structure of a clathrin heavy chain and clathrin light chain complex Deposited 2010-02-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1074–1675（602 aa） Fragment：Hub Chain B 1074–1675（602 aa） Fragment：Hub Chain C 1074–1675（602 aa） Fragment：Hub	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；200mM citrate, 16-22% glycerol, 2% trifluoroethanol, vapor diffusion, hanging drop, temperature 298K	Resolution 9.00 Å R-free 0.487
3QIL Crystal structure analysis of the clathrin trimerization domain Deposited 2011-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain B 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain C 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN	Mutation：C1528A, T1585L Mutation：C1528A, T1585L Mutation：C1528A, T1585L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；NaCl, Imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.92 Å R-free 0.386
3QIL Crystal structure analysis of the clathrin trimerization domain Deposited 2011-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain E 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain F 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN	Mutation：C1528A, T1585L Mutation：C1528A, T1585L Mutation：C1528A, T1585L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；NaCl, Imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.92 Å R-free 0.386
3QIL Crystal structure analysis of the clathrin trimerization domain Deposited 2011-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain G 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain H 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain I 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN	Mutation：C1528A, T1585L Mutation：C1528A, T1585L Mutation：C1528A, T1585L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；NaCl, Imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.92 Å R-free 0.386
3QIL Crystal structure analysis of the clathrin trimerization domain Deposited 2011-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain J 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain K 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain L 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN	Mutation：C1528A, T1585L Mutation：C1528A, T1585L Mutation：C1528A, T1585L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；NaCl, Imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.92 Å R-free 0.386
3QIL Crystal structure analysis of the clathrin trimerization domain Deposited 2011-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain M 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain N 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain O 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN	Mutation：C1528A, T1585L Mutation：C1528A, T1585L Mutation：C1528A, T1585L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；NaCl, Imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.92 Å R-free 0.386
3QIL Crystal structure analysis of the clathrin trimerization domain Deposited 2011-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain P 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain Q 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain R 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN	Mutation：C1528A, T1585L Mutation：C1528A, T1585L Mutation：C1528A, T1585L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；NaCl, Imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.92 Å R-free 0.386
3QIL Crystal structure analysis of the clathrin trimerization domain Deposited 2011-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 7 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain S 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain T 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain U 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN	Mutation：C1528A, T1585L Mutation：C1528A, T1585L Mutation：C1528A, T1585L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；NaCl, Imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.92 Å R-free 0.386
3QIL Crystal structure analysis of the clathrin trimerization domain Deposited 2011-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 8 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain V 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain W 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN Chain X 1521–1624（104 aa） Fragment：CLATHRIN TRIMERIZATION DOMAIN	Mutation：C1528A, T1585L Mutation：C1528A, T1585L Mutation：C1528A, T1585L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；NaCl, Imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.92 Å R-free 0.386
5M5R Clathrin heavy chain N-terminal domain bound to beta2 adaptin clathrin box motif Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–363（363 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；293 K；1 uL protein plus peptide mix (14 mg/mL NTD and 3.4 mM peptide) plus 2 uL reservoir equilibrated against a 200 uL reservoir of 0.94 M sodium malonate pH 6.7	Resolution 1.76 Å R-free 0.205
5M5S Clathrin heavy chain N-terminal domain bound to amphiphysin clathrin-box motif Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–363（363 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；1 uL protein:peptide mix (14 mg/mL NTD and 3.4 mM peptide) plus 2 uL reservoir equilibrated against a 200 uL reservoir of 0.85 M sodium malonate pH 7.5	Resolution 1.88 Å R-free 0.234
5M5S Clathrin heavy chain N-terminal domain bound to amphiphysin clathrin-box motif Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–363（363 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；1 uL protein:peptide mix (14 mg/mL NTD and 3.4 mM peptide) plus 2 uL reservoir equilibrated against a 200 uL reservoir of 0.85 M sodium malonate pH 7.5	Resolution 1.88 Å R-free 0.234
5M5T Clathrin heavy chain N-terminal domain bound to a non-natural clathrin-box motif peptide (Amph4T1) Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–363（363 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；1 uL protein:peptide mix (14 mg/mL NTD and 3.4 mM peptide) plus 1 uL reservoir equilibrated against a 200 uL reservoir of 1.1 M sodium malonate pH 8.0	Resolution 1.70 Å R-free 0.185
5M5T Clathrin heavy chain N-terminal domain bound to a non-natural clathrin-box motif peptide (Amph4T1) Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–363（363 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；1 uL protein:peptide mix (14 mg/mL NTD and 3.4 mM peptide) plus 1 uL reservoir equilibrated against a 200 uL reservoir of 1.1 M sodium malonate pH 8.0	Resolution 1.70 Å R-free 0.185
5M5U Clathrin heavy chain N-terminal domain bound to a clathrin-box motif from hepatitis D virus large antigen (clade 1) Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–363（363 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；400 nL protein:peptide mix (14 mg/mL NTD and 3.4 mM) plus 200 nL reservoir equilibrated against a 80 uL reservoir of 1.21 M sodium malonate pH 7.0	Resolution 2.15 Å R-free 0.207
5M5U Clathrin heavy chain N-terminal domain bound to a clathrin-box motif from hepatitis D virus large antigen (clade 1) Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–363（363 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；400 nL protein:peptide mix (14 mg/mL NTD and 3.4 mM) plus 200 nL reservoir equilibrated against a 80 uL reservoir of 1.21 M sodium malonate pH 7.0	Resolution 2.15 Å R-free 0.207
5M5V Clathrin heavy chain N-terminal domain bound to a clathrin-box motif from hepatitis D virus large antigen (clade 2) Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–363（363 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；200 nL protein:peptide (20 mg/mL NTD and 3.6 mM peptide) plus 400 nL reservoir equilibrated against a 80 uL reservoir of 1.75 M sodium malonate pH 7.0	Resolution 1.96 Å R-free 0.193
5M5V Clathrin heavy chain N-terminal domain bound to a clathrin-box motif from hepatitis D virus large antigen (clade 2) Deposited 2016-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–363（363 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；200 nL protein:peptide (20 mg/mL NTD and 3.6 mM peptide) plus 400 nL reservoir equilibrated against a 80 uL reservoir of 1.75 M sodium malonate pH 7.0	Resolution 1.96 Å R-free 0.193
5M61 Clathrin heavy chain N-terminal domain bound to an extended amphiphysin clathrin-box motif Deposited 2016-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–363（363 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.1；293 K；1 uL protein:peptide mix (14 mg/mL protein, 3.4 mM peptide) plus 2 uL of 1.04 M sodium malonate pH 7.1, 0.2 M sodium perchlorate equilibrated against a 200 uL reservoir of 1.15 M sodium malonate pH 7.1	Resolution 1.84 Å R-free 0.182
5M61 Clathrin heavy chain N-terminal domain bound to an extended amphiphysin clathrin-box motif Deposited 2016-10-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–363（363 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.1；293 K；1 uL protein:peptide mix (14 mg/mL protein, 3.4 mM peptide) plus 2 uL of 1.04 M sodium malonate pH 7.1, 0.2 M sodium perchlorate equilibrated against a 200 uL reservoir of 1.15 M sodium malonate pH 7.1	Resolution 1.84 Å R-free 0.182
6WCJ Asymmetric vertex of the clathrin minicoat cage Deposited 2020-03-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain A 1–1675（1675 aa） Chain C 1–1675（1675 aa） Chain D 1–1675（1675 aa） Chain G 1–1675（1675 aa） Chain H 1–1675（1675 aa） Chain I 1–1675（1675 aa） Chain K 1–1675（1675 aa） Chain L 1–1675（1675 aa） Chain M 1–1675（1675 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.30 Å
9F8T Clathrin terminal domain complexed with C-terminus of AAK1L Deposited 2024-05-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–363（363 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293.15 K；20% PEG 3,350; 100 mM Bis-Tris propane, pH 6.0; 200 mM sodium citrate; 10 mM DTT	Resolution 1.71 Å R-free 0.209

17 other PDB entries and 34 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CLH_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1630； UniProt 1–1630 Author chain B； PDBConstruct 1–1630； UniProt 1–1630 Author chain C； PDBConstruct 1–1630； UniProt 1–1630 Author chain D； PDBConstruct 1–1630； UniProt 1–1630 Author chain E； PDBConstruct 1–1630； UniProt 1–1630 Author chain F； PDBConstruct 1–1630； UniProt 1–1630 Author chain G； PDBConstruct 1–1630； UniProt 1–1630 Author chain H； PDBConstruct 1–1630； UniProt 1–1630 Author chain I； PDBConstruct 1–1630； UniProt 1–1630

Auxilin J-domain

OrganismNot specified

UniProt Q27974

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 216 PDB declaration: 216-MERIC（216） Consistent with protein copy count	Chain J； UniProt 797–910 Chain K； UniProt 797–910 Chain L； UniProt 797–910 Chain M； UniProt 797–910 Chain N； UniProt 797–910 Chain O； UniProt 797–910 Chain P； UniProt 797–910 Chain Q； UniProt 797–910 Chain R； UniProt 797–910	Fragment：residues 797-910	Clathrin heavy chain × 108 （P49951）	ELECTRON MICROSCOPY cryo-EM buffer：20MM HEPES；pH 7；20MM HEPES cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFIED	Resolution 12.00 Å
2	Protein heterocomplex Heteromer Protein × 18 PDB declaration: octadecameric（18） Consistent with protein copy count	Chain J； UniProt 797–910 Chain K； UniProt 797–910 Chain L； UniProt 797–910 Chain M； UniProt 797–910 Chain N； UniProt 797–910 Chain O； UniProt 797–910 Chain P； UniProt 797–910 Chain Q； UniProt 797–910 Chain R； UniProt 797–910	Fragment：residues 797-910	Clathrin heavy chain × 9 （P49951）	ELECTRON MICROSCOPY cryo-EM buffer：20MM HEPES；pH 7；20MM HEPES cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFIED	Resolution 12.00 Å
3	Protein heterocomplex Heteromer Protein × 18 PDB declaration: octadecameric（18） Consistent with protein copy count	Chain J； UniProt 797–910 Chain K； UniProt 797–910 Chain L； UniProt 797–910 Chain M； UniProt 797–910 Chain N； UniProt 797–910 Chain O； UniProt 797–910 Chain P； UniProt 797–910 Chain Q； UniProt 797–910 Chain R； UniProt 797–910	Fragment：residues 797-910	Clathrin heavy chain × 9 （P49951）	ELECTRON MICROSCOPY cryo-EM buffer：20MM HEPES；pH 7；20MM HEPES cryo-EM vitrification conditions：Cryogen ETHANE；VITRIFIED	Resolution 12.00 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1XI5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1N4C NMR Structure of the J-Domain and Clathrin Substrate Binding Domain of Bovine Auxilin Deposited 2002-10-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 737–910（174 aa） Fragment：Residues (737-845), J-Domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；300 K；Ionic strength (raw mmCIF value) 60mM NaCl；Pressure ambient NMR sample composition 1.5mM Auxilin (20kD C-terminal construct) U-15N \| 90% H20, 10% D2O NMR sample composition 1.5mM Auxilin (20kD C-terminal construct) U-15N,13C \| 90% H2O/10% D2O	Resolution not provided
1NZ6 Crystal Structure of Auxilin J-Domain Deposited 2003-02-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 810–910（101 aa） Fragment：J-Domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 8；277 K；PEG 8000, Tris-Cl, TCEP, Glycerol, pH 8.0, microbatch under oil, temperature 277K	Resolution 2.50 Å R-free 0.268
1NZ6 Crystal Structure of Auxilin J-Domain Deposited 2003-02-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 810–910（101 aa） Fragment：J-Domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 8；277 K；PEG 8000, Tris-Cl, TCEP, Glycerol, pH 8.0, microbatch under oil, temperature 277K	Resolution 2.50 Å R-free 0.268
2QWN Crystal structure of disulfide-bond-crosslinked complex of bovine hsc70 (1-386aa)R171C and bovine Auxilin (810-910aa)D876C in the ADP*Pi state Deposited 2007-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 812–905（94 aa）	Mutation：D876C	PO4 PHOSPHATE ION × 1 NA SODIUM ION × 2 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 8；289 K；PEG3350, Ammonium Acetate, pH 8.0, microbatch under oil, temperature 289K	Resolution 2.40 Å R-free 0.279
2QWO Crystal structure of disulfide-bond-crosslinked complex of bovine hsc70 (1-394aa)R171C and bovine Auxilin (810-910aa)D876C in the ADP*Pi form #1 Deposited 2007-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 813–904（92 aa）	Mutation：D876C	PO4 PHOSPHATE ION × 1 NA SODIUM ION × 2 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ACY ACETIC ACID × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 8.5；289 K；PEG3350, Ammonium Acetate, pH 8.5, microbatch under oil, temperature 289K	Resolution 1.70 Å R-free 0.222
2QWP Crystal structure of disulfide-bond-crosslinked complex of bovine hsc70 (1-394aa)R171C and bovine Auxilin (810-910aa)D876C in the ADP*Pi form #2 Deposited 2007-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 813–904（92 aa）	Mutation：D876C	PO4 PHOSPHATE ION × 1 NA SODIUM ION × 2 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ACY ACETIC ACID × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 8.5；289 K；PEG3350, Ammonium Acetate, pH 8.5, microbatch under oil, temperature 289K	Resolution 1.75 Å R-free 0.243
2QWQ Crystal structure of disulfide-bond-crosslinked complex of bovine hsc70 (1-394aa)R171C and bovine Auxilin (810-910aa)D876C in the AMPPNP hydrolyzed form Deposited 2007-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 813–904（92 aa）	Mutation：D876C	PO4 PHOSPHATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ACY ACETIC ACID × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 8.5；289 K；PEG3350, Ammonium Acetate, pH 8.5, microbatch under oil, temperature 289K	Resolution 2.21 Å R-free 0.295
2QWR Crystal structure of disulfide-bond-crosslinked complex of bovine hsc70 (1-394aa)R171C and bovine Auxilin (810-910aa)D876C in the AMPPNP intact form Deposited 2007-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 813–904（92 aa）	Mutation：D876C	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ACY ACETIC ACID × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions microbatch under oil；pH 8.5；289 K；PEG3350, Ammonium Acetate, pH 8.5, microbatch under oil, temperature 289K	Resolution 2.21 Å R-free 0.294
3N0A Crystal structure of auxilin (40-400) Deposited 2010-05-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 40–400（361 aa） Fragment：UNP residues 40-400	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；15.5% PEG 4000, 0.1 M HEPES, pH 7.5, 0.01 M CaCl2, 0.8 M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.200

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AUXI_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain J； PDBConstruct 1–114； UniProt 797–910 Author chain K； PDBConstruct 1–114； UniProt 797–910 Author chain L； PDBConstruct 1–114； UniProt 797–910 Author chain M； PDBConstruct 1–114； UniProt 797–910 Author chain N； PDBConstruct 1–114； UniProt 797–910 Author chain O； PDBConstruct 1–114； UniProt 797–910 Author chain P； PDBConstruct 1–114； UniProt 797–910 Author chain Q； PDBConstruct 1–114； UniProt 797–910 Author chain R； PDBConstruct 1–114； UniProt 797–910

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

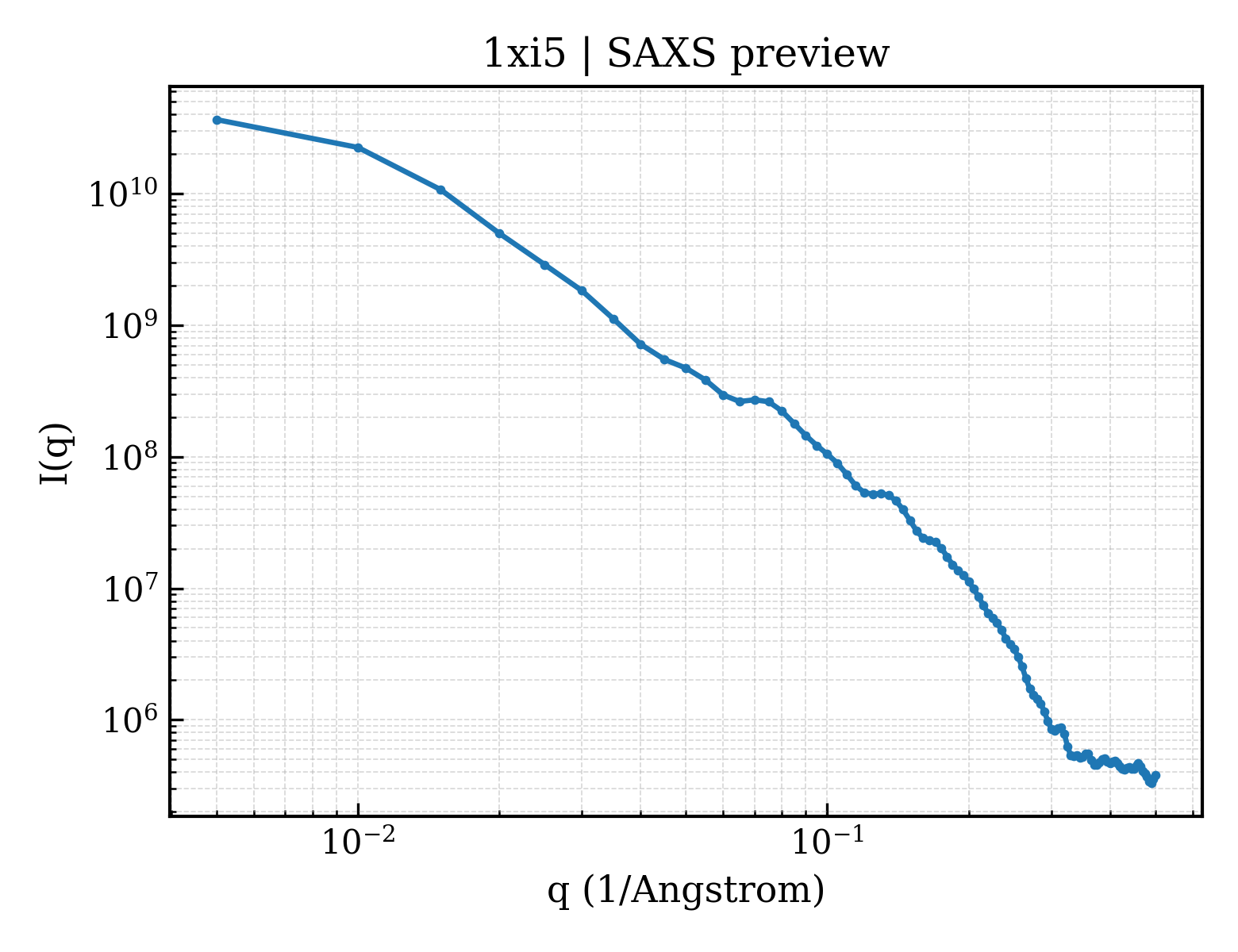

SAXS scattering curve SAXS Profile

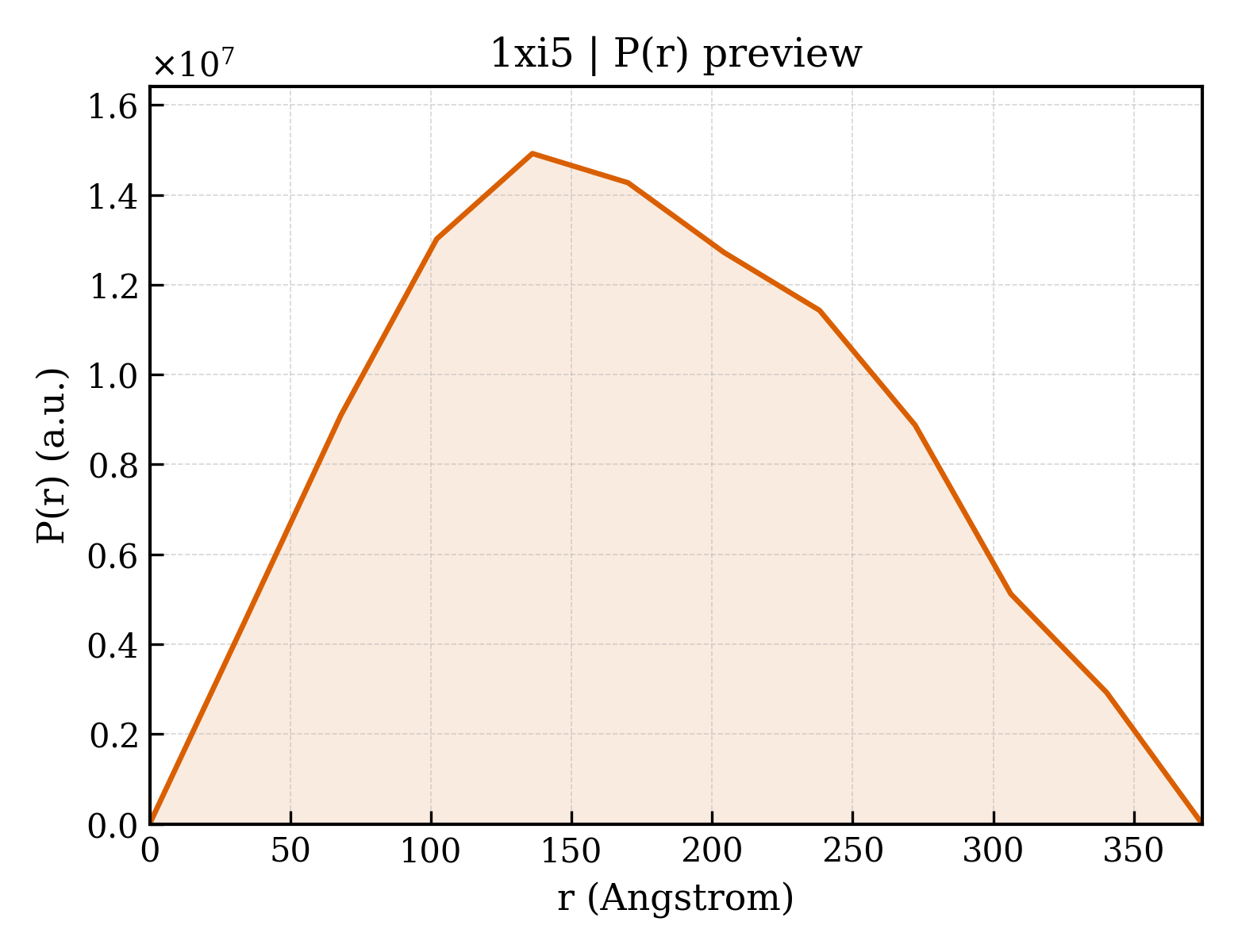

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xi5
Deposition date deposition_date	2004-09-21
Structure title title	Clathrin D6 coat with auxilin J-domain
Keywords keywords	clathrin, alpha-zig-zag, beta-propeller, ENDOCYTOSIS-EXOCYTOSIS COMPLEX; ENDOCYTOSIS/EXOCYTOSIS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	— Å
Radius of gyration Rg (electron density) rg_electron	141.50 Å
Forward intensity I(0) i0	43247900000.00
Molecular weight molecular_weight	1802700.0 kDa
Excluded volume excluded_volume	2213300 Å³
Envelope volume envelope_volume	4439900 Å³
Hydration-shell volume shell_volume	281680 Å³
Envelope diameter envelope_diameter	489.4 Å
Shell Rg shell_rg	108.10 Å
Envelope Rg envelope_rg	130.90 Å
Shape Rg shape_rg	141.40 Å
Total Rg total_rg	141.30 Å
Total atoms total_atoms	—
Residues n_residues	—
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	374.3 Å
Rg (real space) rg_real	134.90 Å
Rg uncertainty (real space) rg_real_error	1.67 Å
I(0) (real space) i0_real	4.1440e+10
I(0) uncertainty (real space) i0_real_error	8.7980e+08
Rg (reciprocal space) rg_reciprocal	127.60 Å
I(0) (reciprocal space) i0_reciprocal	40750000000.0000
Solution quality estimate total_estimate	0.9130
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	136.1 Å
Skewness Skewness skewness	0.176
Kurtosis Kurtosis kurtosis	-0.780
Angular range angular_range	— – 0.0550 Å⁻¹
Current regularization parameter α current_alpha	0.8376
Highest regularization parameter α highest_alpha	2198000000.0000
Real-space data points n_real_points	12
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.005; Oscil: 0.992; Stabil: 0.978; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Clathrin heavy chain
Molecular weight formula_weight	187145.1 kDa
Source method src_method	nat
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I
Atom count atom_count	15696

MAQILPIRFQEHLQLQNLGINPANIGFSTLTMESDKFICIREKVGEQAQVVIIDMNDPSNPIRRPISADSAIMNPASKVIALKAGKTLQIFNIEMKSKMKAHTMTDDVTFWKWISLNTVALVTDNAVYHWSMEGESQPVKMFDRHSSLAGCQIINYRTDAKQKWLLLTGISAQQNRVVGAMQLYSVDRKVSQPIEGHAASFAQFKMEGNAEESTLFCFAVRGQAGGKLHIIEVGTPPTGNQPFPKKAVDVFFPPEAQNDFPVAMQISEKHDVVFLITKYGYIHLYDLETGTCIYMNRISGETIFVTAPHEATAGIIGVNRKGQVLSVCVEEENIIPYITNVLQNPDLALRMAVRNNLAGAEELFARKFNALFAQGNYSEAAKVAANAPKGILRTPDTIRRFQSVPAQPGQTSPLLQYFGILLDQGQLNKYESLELCRPVLQQGRKQLLEKWLKEDKLECSEELGDLVKSVDPTLALSVYLRANVPNKVIQCFAETGQVQKIVLYAKKVGYTPDWIFLLRNVMRISPDQGQQFAQMLVQDEEPLADITQIVDVFMEYNLIQQCTAFLLDALKNNRPSEGPLQTRLLEMNLMHAPQVADAILGNQMFTHYDRAHIAQLCEKAGLLQRALEHFTDLYDIKRAVVHTHLLNPEWLVNYFGSLSVEDSLECLRAMLSANIRQNLQICVQVASKYHEQLSTQSLIELFESFKSFEGLFYFLGSIVNFSQDPDVHFKYIQAACKTGQIKEVERICRESNCYDPERVKNFLKEAKLTDQLPLIIVCDRFDFVHDLVLYLYRNNLQKYIEIYVQKVNPSRLPVVIGGLLDVDCSEDVIKNLILVVRGQFSTDELVAEVEKRNRLKLLLPWLEARIHEGCEEPATHNALAKIYIDSNNNPERFLRENPYYDSRVVGKYCEKRDPHLACVAYERGQCDLELINVCNENSLFKSLSRYLVRRKDPELWGSVLLESNPYRRPLIDQVVQTALSETQDPEEVSVTVKAFMTADLPNELIELLEKIVLDNSVFSEHRNLQNLLILTAIKADRTRVMEYINRLDNYDAPDIANIAISNELFEEAFAIFRKFDVNTSAVQVLIEHIGNLDRAYEFAERCNEPAVWSQLAKAQLQKGMVKEAIDSYIKADDPSSYMEVVQAANTSGNWEELVKYLQMARKKARESYVETELIFALAKTNRLAELEEFINGPNNAHIQQVGDRCYDEKMYDAAKLLYNNVSNFGRLASTLVHLGEYQAAVDGARKANSTRTWKEVCFACVDGKEFRLAQMCGLHIVVHADELEELINYYQDRGYFEELITMLEAALGLERAHMGMFTELAILYSKFKPQKMREHLELFWSRVNIPKVLRAAEQAHLWAELVFLYDKYEEYDNAIITMMNHPTDAWKEGQFKDIITKVANVELYYRAIQFYLEFKPLLLNDLLMVLSPRLDHTRAVNYFSKVKQLPLVKPYLRSVQNHNNKSVNESLNNLFITEEDYQALRTSIDAYDNFDNISLAQRLEKHELIEFRRIAAYLFKGNNRWKQSVELCKKDSLYKDAMQYASESKDTELAEELLQWFLQEEKRECFGACLFTCYDLLRPDVVLETAWRHNIMDFAMPYFIQVMKEYLTKVDKLDASESLRKEEEQATETQ

Entity 2 Entity 2 polymer

Description description	Auxilin J-domain
Molecular weight formula_weight	13383.6 kDa
Source method src_method	nat
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,K,L,M,N,O,P,Q,R

PRTIAEMRKEEMAKEMDPEKLKILEWIEGKERNIRALLSTMHTVLWAGETKWKPVGMADLVTPEQVKKVYRKAVLVVHPDKATGQPYEQYAKMIFMELNDAWSEFENQGQKPLY

▼

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (18 domains)

Domain ID domain_id	d1xi5a_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5b_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5c_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5d_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5e_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5f_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5g_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5h_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5i_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5j_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5k_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5l_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5m_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5n_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5o_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5p_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5q_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

Domain ID domain_id	d1xi5r_
Class class	i — Low resolution protein structures
Fold Fold fold	i.23 — clathrin assemblies
Superfamily Superfamily superfamily	i.23.1 — clathrin assemblies
Family Family family	i.23.1.1 — clathrin assemblies

▶

8. Citations (2)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	12.00 Å
Resolution测定方法 resolution_method	FOURIER SPACE RECONSTRUCTION
颗粒数 num_particles	900

fit	/app/data/saxs_computation/xi/1xi5/1xi5.fit
pddf	/app/data/pr_computation/xi/1xi5/1xi5.pr.out
profile	/app/data/saxs_computation/xi/1xi5/1xi5.dat

Clathrin D6 coat with auxilin J-domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Clathrin heavy chain

State in the Current Structure

Other States of the Same Protein in the Database

Auxilin J-domain

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (18 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
