SAXSdb — 5m5t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Clathrin heavy chain 1

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Amphiphysin × 3 （O08838） GLYCEROL × 1 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Amphiphysin × 3 （O08838） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLH1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–365； UniProt 1–363 Author chain B； PDBConstruct 3–365； UniProt 1–363

Amphiphysin

OrganismNot specified

UniProt O08838

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Clathrin heavy chain 1 × 1 （P49951） GLYCEROL × 1 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Clathrin heavy chain 1 × 1 （P49951） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AMPH_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–10； UniProt 349–358 Author chain F； PDBConstruct 1–10； UniProt 349–358 Author chain G； PDBConstruct 1–10； UniProt 349–358 Author chain H； PDBConstruct 1–10； UniProt 349–358 Author chain I； PDBConstruct 1–10； UniProt 349–358 Author chain J； PDBConstruct 1–10； UniProt 349–358

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5m5t
Deposition date deposition_date	2016-10-22
Structure title title	Clathrin heavy chain N-terminal domain bound to a non-natural clathrin-box motif peptide (Amph4T1)
Keywords keywords	endocytosis; ENDOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5m5t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5m5t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

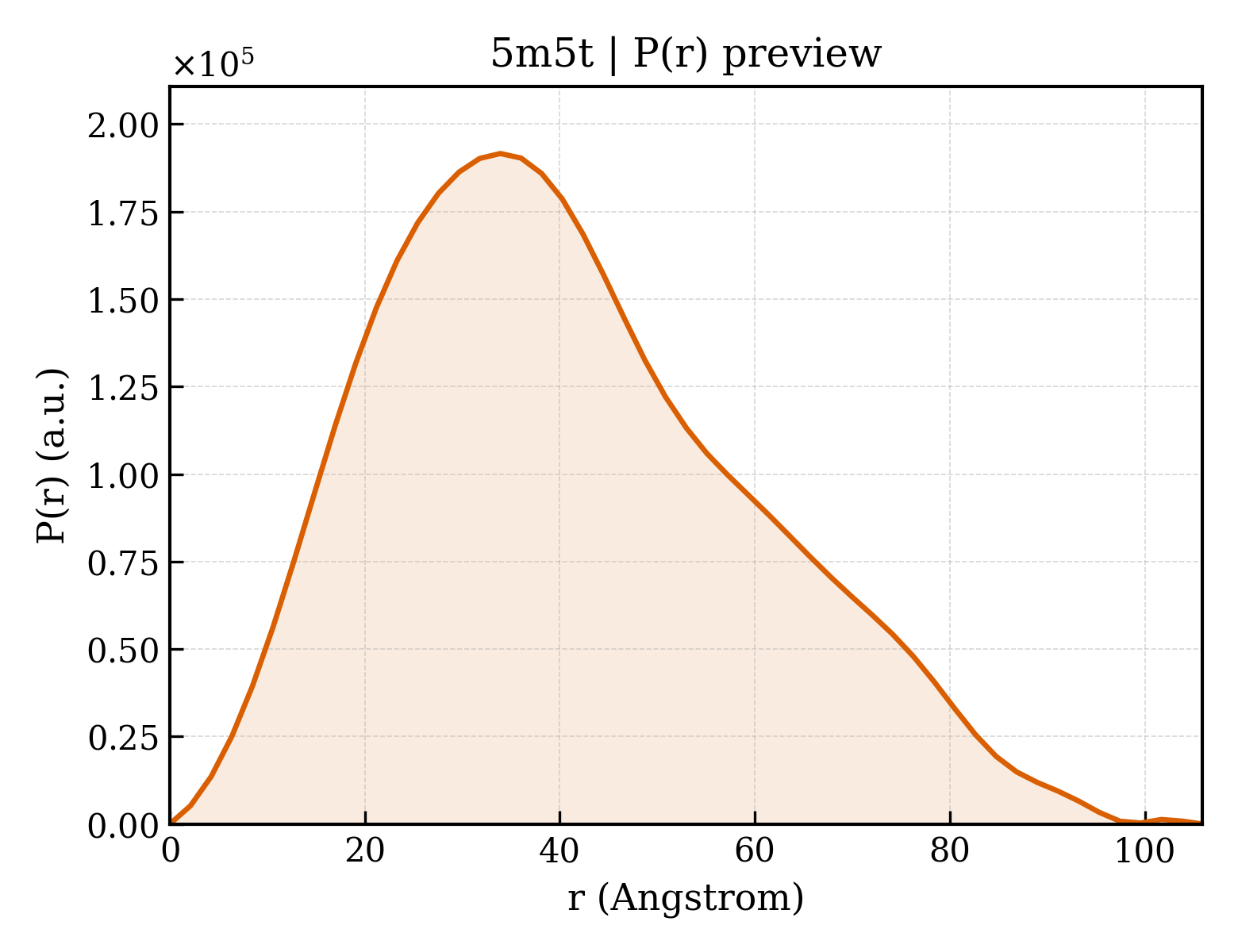

5m5t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.34 Å
Rg (electron density)	21.08 Å
Total Rg	22.01 Å
Atom count	2983
Residues	381
Excluded volume	53430 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5m5t__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5m5t__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Clathrin heavy chain 1
Molecular weight formula_weight	40540.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7161

GSMAQILPIRFQEHLQLQNLGINPANIGFSTLTMESDKFICIREKVGEQAQVVIIDMNDPSNPIRRPISADSAIMNPASKVIALKAGKTLQIFNIEMKSKMKAHTMTDDVTFWKWISLNTVALVTDNAVYHWSMEGESQPVKMFDRHSSLAGCQIINYRTDAKQKWLLLTGISAQQNRVVGAMQLYSVDRKVSQPIEGHAASFAQFKMEGNAEESTLFCFAVRGQAGGKLHIIEVGTPPTGNQPFPKKAVDVFFPPEAQNDFPVAMQISEKHDVVFLITKYGYIHLYDLETGTCIYMNRISGETIFVTAPHEATAGIIGVNRKGQVLSVCVEEENIIPYITNVLQNPDLALRMAVRNNLAGAEEL

Source Source

Source organism organism	Bos taurus
Common name common_name	Bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Amphiphysin
Molecular weight formula_weight	1207.3 kDa
Source method src_method	syn
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H,I,J

ETLLDLDFLE

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1019

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5m5tA00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	110 — Clathrin heavy-chain terminal domain

Domain ID domain_id	5m5tB00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	110 — Clathrin heavy-chain terminal domain

▶

Unit-cell length a length_a	137.810 Å
Unit-cell length b length_b	130.970 Å
Unit-cell length c length_c	79.120 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	116.17 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	33.590 Å
R factor r_factor	0.1593
R_work r_work	0.1580
R_free r_free	0.1851
