1bch
MANNOSE-BINDING PROTEIN-A MUTANT (QPDWGH) COMPLEXED WITH N-ACETYL-D-GALACTOSAMINE

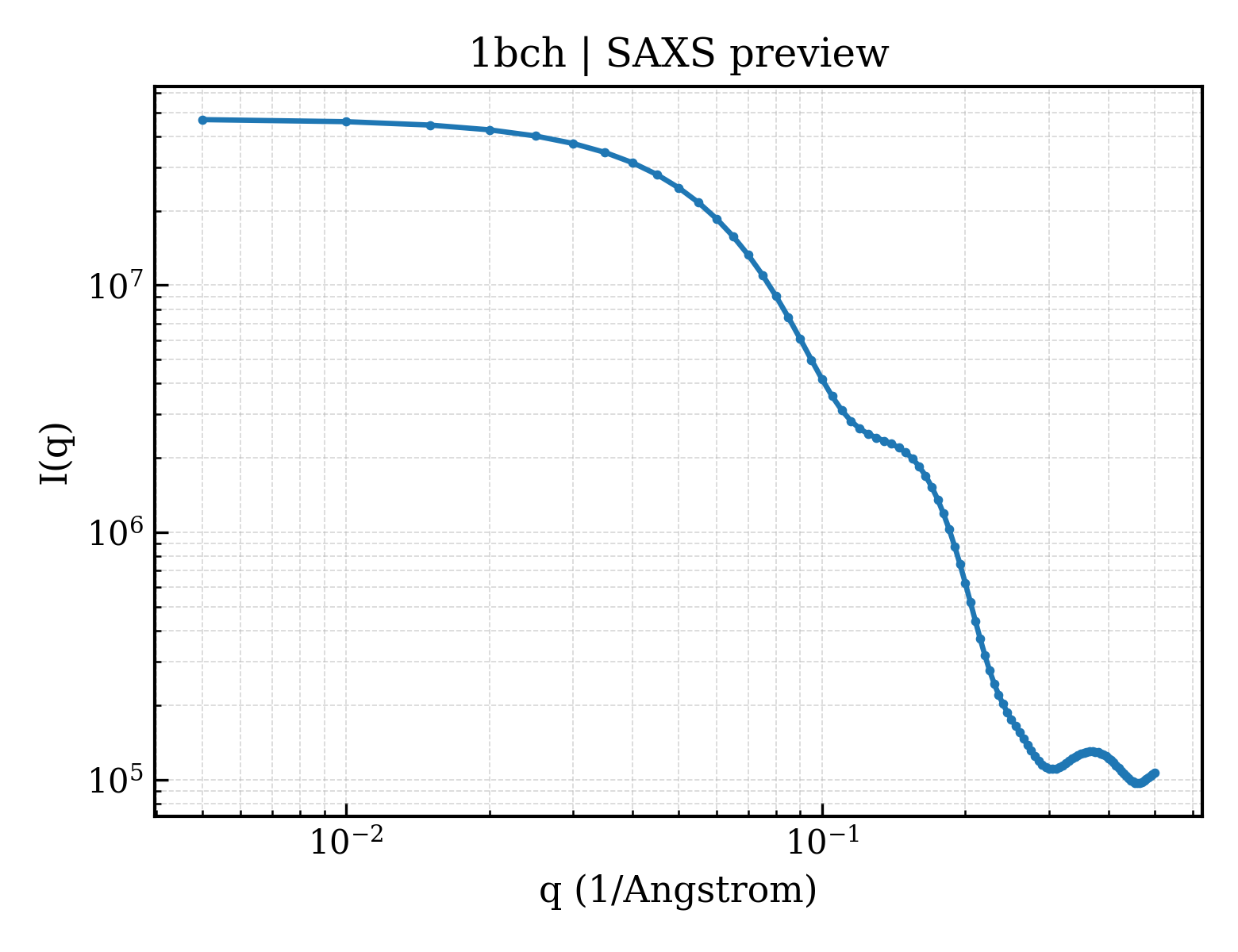

SAXS Profile

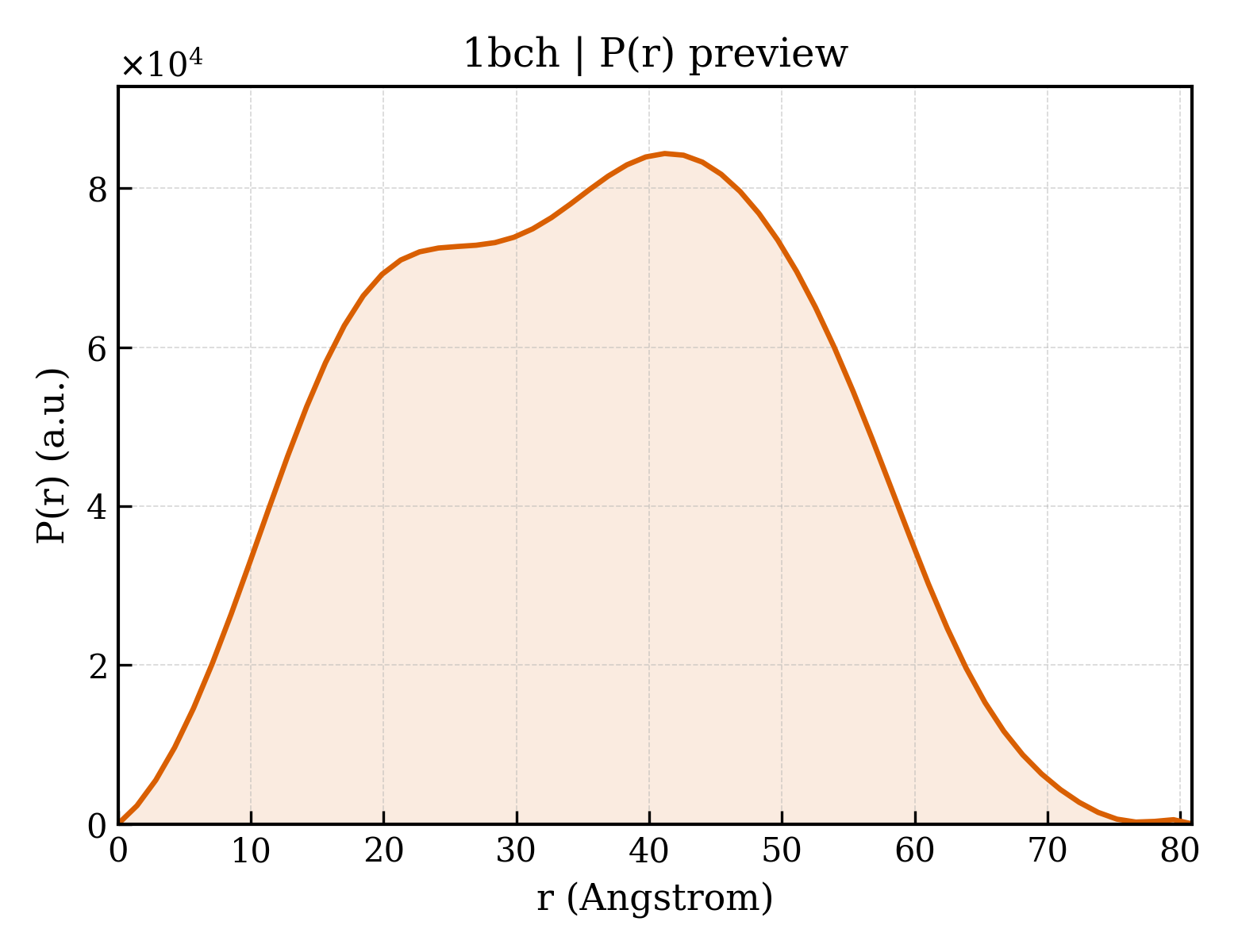

P(r) Distribution
1. Structure Basics
| entry_id | 1bch |
| deposition_date | 1998-04-30 |
| title | MANNOSE-BINDING PROTEIN-A MUTANT (QPDWGH) COMPLEXED WITH N-ACETYL-D-GALACTOSAMINE |
| keywords | LECTIN, C-TYPE LECTIN, CALCIUM-BINDING PROTEIN; LECTIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.62 Å |
| rg_electron | 26.67 Å |
| i0 | 47054400.00 |
| molecular_weight | 52266.0 kDa |
| excluded_volume | 64962 ų |
| envelope_volume | 79126 ų |
| shell_volume | 25960 ų |
| envelope_diameter | 83.6 Å |
| shell_rg | 32.47 Å |
| envelope_rg | 26.66 Å |
| shape_rg | 26.65 Å |
| total_rg | 27.35 Å |
| total_atoms | 3646 |
| n_residues | 462 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 80.9 Å |
| rg_real | 27.47 Å |
| rg_real_error | 0.49 Å |
| i0_real | 4.7050e+07 |
| i0_real_error | 6.9190e+05 |
| rg_reciprocal | 27.52 Å |
| i0_reciprocal | 47060000.0000 |
| total_estimate | 0.9123 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 41.2 Å |
| skewness | 0.017 |
| kurtosis | -0.804 |
| angular_range | — – 0.2850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8271000.0000 |
| n_real_points | 58 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.972; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.944 |
