SAXSdb — 1ytt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MANNOSE-BINDING PROTEIN A

Rattus norvegicus

UniProt P19999

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 124–238 Chain B； UniProt 124–238	Fragment：SUBTILISIN FRAGMENT RESIDUES 107 - 221	YB YTTERBIUM (III) ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 1.80 Å R-free 0.206

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1YTT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AFA STRUCTURAL BASIS OF GALACTOSE RECOGNITION IN C-TYPE ANIMAL LECTINS Deposited 1995-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226) Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226) Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226)	Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196) Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196) Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196)	MBG methyl beta-D-galactopyranoside × 3 CA CALCIUM ION × 9 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.00 Å R-free 0.268
1AFB STRUCTURAL BASIS OF GALACTOSE RECOGNITION IN C-TYPE ANIMAL LECTINS Deposited 1995-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226) Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226) Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226)	Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196) Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196) Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196)	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 3 CA CALCIUM ION × 9 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 1.90 Å R-free 0.261
1AFD STRUCTURAL BASIS OF GALACTOSE RECOGNITION IN C-TYPE ANIMAL LECTINS Deposited 1995-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226) Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226) Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT (RESIDUES 73 - 226)	Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196) Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196) Mutation：E185Q, N187D, H189W, G190Y, S191G, INS(H192, G193, L194, G195, G196)	CA CALCIUM ION × 8 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.00 Å R-free 0.282
1BCH MANNOSE-BINDING PROTEIN-A MUTANT (QPDWGH) COMPLEXED WITH N-ACETYL-D-GALACTOSAMINE Deposited 1998-04-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT RESIDUES 73 - 226 Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT RESIDUES 73 - 226 Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT RESIDUES 73 - 226	Mutation：E185Q, N187D, H189W, G190Y, S191G, INS (H192, G193, L194, G195, G196), T202H Mutation：E185Q, N187D, H189W, G190Y, S191G, INS (H192, G193, L194, G195, G196), T202H Mutation：E185Q, N187D, H189W, G190Y, S191G, INS (H192, G193, L194, G195, G196), T202H	A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 1 CA CALCIUM ION × 9 CL CHLORIDE ION × 3 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；12% PEG8000, 100MM TRIS/PH8.0, 20MM CALCIUM CHLORIDE, 10MM SODIUM CHLORIDE	Resolution 2.00 Å R-free 0.252
1BCJ MANNOSE-BINDING PROTEIN-A MUTANT (QPDWGHV) COMPLEXED WITH N-ACETYL-D-GALACTOSAMINE Deposited 1998-04-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT RESIDUES 73 - 226 Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT RESIDUES 73 - 226 Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT RESIDUES 73 - 226	Mutation：S154V, E185Q, N187D, H189W, G190Y, S191G, INS (H192, G193, L194, G195, G196), T202H Mutation：S154V, E185Q, N187D, H189W, G190Y, S191G, INS (H192, G193, L194, G195, G196), T202H Mutation：S154V, E185Q, N187D, H189W, G190Y, S191G, INS (H192, G193, L194, G195, G196), T202H	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 3 CA CALCIUM ION × 9 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；12% PEG8000, 100MM TRIS/PH8.0, 20MM CALCIUM CHLORIDE, 10MM SODIUM CHLORIDE	Resolution 2.10 Å R-free 0.261
1BUU ONE HO3+ FORM OF RAT MANNOSE-BINDING PROTEIN A Deposited 1998-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 71–238（168 aa） Fragment：LECTIN, TRIMERIZATION, AND PORTION OF COLLAGENOUS DOMAIN DOMAINS	Not recorded	HO HOLMIUM ATOM × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；HANGING-DROP VAPOR DIFFUSION AGAINST RESERVOIR CONTAINING 11-15% (W/V) PEG 3350, 0.325 MM HOCL3, 100 MM TRIS-CL PH 8.0, 10 MM NACL, 0.02% NAN3., vapor diffusion - hanging drop	Resolution 1.90 Å R-free 0.214
1BUU ONE HO3+ FORM OF RAT MANNOSE-BINDING PROTEIN A Deposited 1998-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 71–238（168 aa） Fragment：LECTIN, TRIMERIZATION, AND PORTION OF COLLAGENOUS DOMAIN DOMAINS	Not recorded	HO HOLMIUM ATOM × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；HANGING-DROP VAPOR DIFFUSION AGAINST RESERVOIR CONTAINING 11-15% (W/V) PEG 3350, 0.325 MM HOCL3, 100 MM TRIS-CL PH 8.0, 10 MM NACL, 0.02% NAN3., vapor diffusion - hanging drop	Resolution 1.90 Å R-free 0.214
1FIF N-ACETYLGALACTOSAMINE-SELECTIVE MUTANT OF MANNOSE-BINDING PROTEIN-A (QPDWG-HDRPY) Deposited 2000-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：RESIDUES 73-226 Chain B 90–238（149 aa） Fragment：RESIDUES 73-226 Chain C 90–238（149 aa） Fragment：RESIDUES 73-226	Mutation：E185Q, N187D, H189W, INS(Y190, G191, H192, G193, L194), S196G, T202H, I212D, A216R, S217P, H218Y Mutation：E185Q, N187D, H189W, INS(Y190, G191, H192, G193, L194), S196G, T202H, I212D, A216R, S217P, H218Y Mutation：E185Q, N187D, H189W, INS(Y190, G191, H192, G193, L194), S196G, T202H, I212D, A216R, S217P, H218Y	CA CALCIUM ION × 9 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；13.5% golyethylene glycol 8,000, 100 mM Tris-HCl, 10 mM NaCl, 20 mM CaCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.229
1FIH N-ACETYLGALACTOSAMINE BINDING MUTANT OF MANNOSE-BINDING PROTEIN A (QPDWG-HDRPY), COMPLEX WITH N-ACETYLGALACTOSAMINE Deposited 2000-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：RESIDUES 73-226 Chain B 90–238（149 aa） Fragment：RESIDUES 73-226 Chain C 90–238（149 aa） Fragment：RESIDUES 73-226	Mutation：E185Q, N187D, H189W, INS(Y190, G191, H192, G193, L194), S196G, T202H, I212D, A216R, S217P, H218Y Mutation：E185Q, N187D, H189W, INS(Y190, G191, H192, G193, L194), S196G, T202H, I212D, A216R, S217P, H218Y Mutation：E185Q, N187D, H189W, INS(Y190, G191, H192, G193, L194), S196G, T202H, I212D, A216R, S217P, H218Y	NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 4 CA CALCIUM ION × 9 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；13.5% Polyethylene glycol 8000 100 mM Tris-HCL 10 mM NaCl 20 mM CaCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.269
1KMB SELECTIN-LIKE MUTANT OF MANNOSE-BINDING PROTEIN A Deposited 1996-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT	Mutation：A211K, S212K, H213K Mutation：A211K, S212K, H213K Mutation：A211K, S212K, H213K	CA CALCIUM ION × 9 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.8；8-10% PEG 8000, 2% PEG 1000, 1 MM TRIS-CL, PH 7.8, 200 MM NACL, 20 MM CACL2, 2 MM NAN3. PRIOR TO DATA COLLECTION, THE CRYSTAL WAS ADAPTED TO THE MOTHER LIQUOR PLUS 20% MPD.	Resolution 2.10 Å R-free 0.265
1KWT Rat mannose binding protein A (native, MPD) Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Not recorded	CA CALCIUM ION × 10 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；8-13% PEG 8000 or 3500, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 12mg/ml in 10 mM NaCl, 10mM CaCl2. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 1.95 Å R-free 0.234
1KWU Rat mannose binding protein A complexed with a-Me-Man Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Not recorded	MMA methyl alpha-D-mannopyranoside × 3 CA CALCIUM ION × 10 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；8-13% PEG 8000 or 3500, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 12mg/ml in 10 mM NaCl, 10mM CaCl2. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 1.95 Å R-free 0.241
1KWV Rat mannose binding protein A complexed with a-Me-GlcNAc Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 9 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；8-13% PEG 8000 or 3500, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 12mg/ml in 10 mM NaCl, 10mM CaCl2. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.00 Å R-free 0.249
1KWW Rat mannose protein A complexed with a-Me-Fuc. Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Not recorded	MFU methyl alpha-L-fucopyranoside × 3 CA CALCIUM ION × 10 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；8-13% PEG 8000 or 3500, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 12mg/ml in 10 mM NaCl, 10mM CaCl2. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 1.90 Å R-free 0.224
1KWX Rat mannose protein A complexed with b-Me-Fuc. Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Not recorded	MFB methyl beta-L-fucopyranoside × 3 CA CALCIUM ION × 10 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；8-13% PEG 8000 or 3500, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 12mg/ml in 10 mM NaCl, 10mM CaCl2, 200mM b-Me-Fuc. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.00 Å R-free 0.229
1KWY Rat mannose protein A complexed with man-a13-man. Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Not recorded	CA CALCIUM ION × 10 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；8-13% PEG 8000 or 3500, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 12mg/ml in 10 mM NaCl, 10mM CaCl2, 200mM man-a13-man. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.00 Å R-free 0.231
1KWZ Rat mannose protein A (H189V) complexed with Man-a13-Man Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Mutation：H189V Mutation：H189V Mutation：H189V	CA CALCIUM ION × 9 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；8-13% PEG 8000 or 3500, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 12mg/ml in 10 mM NaCl, 10mM CaCl2, 200mM man-a13-man. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 1.90 Å R-free 0.252
1KX0 Rat mannose protein A (H189V I207V) complexed with man-a13-man Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Mutation：H189V, I207V Mutation：H189V, I207V Mutation：H189V, I207V	CA CALCIUM ION × 9 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；8-13% PEG 8000 or 3500, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 12mg/ml in 10 mM NaCl, 10mM CaCl2, 200mM man-a13-man. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.00 Å R-free 0.232
1KX1 Rat mannose protein A complexed with Man6-GlcNAc2-Asn Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain B 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain C 90–238（149 aa） Fragment：residues 90-238 of P19999	Not recorded	CA CALCIUM ION × 9 MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；10% PEG 8000, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 5mg/ml in 10mM Tris-Cl pH=8.0, 10 mM NaCl, 20mM CaCl2, 1.1mM Man6GlcNAc2Asn. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.80 Å R-free 0.287
1KX1 Rat mannose protein A complexed with Man6-GlcNAc2-Asn Deposited 2002-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain E 90–238（149 aa） Fragment：residues 90-238 of P19999 Chain F 90–238（149 aa） Fragment：residues 90-238 of P19999	Not recorded	CA CALCIUM ION × 9 MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；10% PEG 8000, 100mM Tris-Cl pH=8.0, 10mM NaCl, 20mM Cacl2, 2mM NaN3. Protein solution: 5mg/ml in 10mM Tris-Cl pH=8.0, 10 mM NaCl, 20mM CaCl2, 1.1mM Man6GlcNAc2Asn. VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.80 Å R-free 0.287
1MSB STRUCTURE OF THE CALCIUM-DEPENDENT LECTIN DOMAIN FROM A RAT MANNOSE-BINDING PROTEIN DETERMINED BY MAD PHASING Deposited 1991-09-23	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 124–238（115 aa） Chain B 124–238（115 aa）	Not recorded	HO HOLMIUM ATOM × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1RTM TRIMERIC STRUCTURE OF A C-TYPE MANNOSE-BINDING PROTEIN Deposited 1994-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Chain 2 90–238（149 aa） Chain 3 90–238（149 aa）	Not recorded	CA CALCIUM ION × 9 CL CHLORIDE ION × 3 GOL GLYCEROL × 15	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å R-free 0.270
2KMB COMPLEX OF 3'-NEUAC-LEWIS-X WITH A SELECTIN-LIKE MUTANT OF MANNOSE-BINDING PROTEIN A Deposited 1996-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT	Mutation：A211K, S212K, H213K Mutation：A211K, S212K, H213K Mutation：A211K, S212K, H213K	CA CALCIUM ION × 10 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.8；8-10% PEG 8000, 2% PEG 1000, 1 MM TRIS-CL, PH 7.8, 200 MM NACL, 20 MM CACL2, 2 MM NAN3. PRIOR TO DATA COLLECTION, THE CRYSTAL WAS ADAPTED TO THE MOTHER LIQUOR PLUS 20% MPD PLUS 80 MM 3'-NEUAC-LEWIS-X.	Resolution 2.00 Å R-free 0.247
2MSB STRUCTURE OF A C-TYPE MANNOSE-BINDING PROTEIN COMPLEXED WITH AN OLIGOSACCHARIDE Deposited 1992-07-28	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 124–238（115 aa） Chain B 124–238（115 aa）	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å
3KMB COMPLEX OF 3'-SULFO-LEWIS-X WITH A SELECTIN-LIKE MUTANT OF MANNOSE-BINDING PROTEIN A Deposited 1996-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT	Mutation：A211K, S212K, H213K Mutation：A211K, S212K, H213K Mutation：A211K, S212K, H213K	CA CALCIUM ION × 10 CL CHLORIDE ION × 3 FUC alpha-L-fucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.8；PROTEIN WAS CRYSTALLIZED FROM 8-10% PEG 8000, 2% PEG 1000, 100 MM TRIS-CL, PH 7.8, 200 MM NACL, 20 MM CACL2, 2 MM NAN3. PRIOR TO DATA COLLECTED, THE CRYSTAL WAS SOAKED IN THE MOTHER LIQUOR MINUS PEG 8000, PLUS 35% PEG 400, PLUS 80 MM 3'-SULFO- LEWIS-X.	Resolution 1.95 Å R-free 0.254
4KMB COMPLEX OF 4'-SULFO-LEWIS-X WITH A SELECTIN-LIKE MUTANT OF MANNOSE-BINDING PROTEIN A Deposited 1996-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain 1 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT Chain 2 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT Chain 3 90–238（149 aa） Fragment：CLOSTRIPAIN FRAGMENT	Mutation：A211K, S212K, H213K Mutation：A211K, S212K, H213K Mutation：A211K, S212K, H213K	CA CALCIUM ION × 11 CL CHLORIDE ION × 3 ZN ZINC ION × 1 FUC alpha-L-fucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.8；PROTEIN WAS CRYSTALLIZED FROM 8-10% PEG 8000, 2% PEG 1000, 100 MM TRIS-CL, PH 7.8, 200 MM NACL, 20 MM CACL2, 2 MM NAN3. PRIOR TO DATA COLLECTION, THE CRYSTAL WAS ADAPTED TO THE MOTHER LIQUOR MINUS PEG 8000, PLUS 35% PEG 400, PLUS 80 MM 4'-SULFO- LEWIS-X.	Resolution 2.00 Å R-free 0.272

24 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MBL1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–115； UniProt 124–238 Author chain B； PDBConstruct 1–115； UniProt 124–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ytt
Deposition date deposition_date	1995-11-09
Structure title title	YB SUBSTITUTED SUBTILISIN FRAGMENT OF MANNOSE BINDING PROTEIN-A (SUB-MBP-A), MAD STRUCTURE AT 110K
Keywords keywords	CARBOHYDRATE, RECOGNITION DOMAIN, CALCIUM DEPENDENT, MANNOSE-BINDING PROTEIN; MANNOSE-BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.41 Å
Radius of gyration Rg (electron density) rg_electron	20.28 Å
Forward intensity I(0) i0	13759700.00
Molecular weight molecular_weight	25758.0 kDa
Excluded volume excluded_volume	31090 Å³
Envelope volume envelope_volume	36630 Å³
Hydration-shell volume shell_volume	16401 Å³
Envelope diameter envelope_diameter	71.2 Å
Shell Rg shell_rg	24.91 Å
Envelope Rg envelope_rg	20.40 Å
Shape Rg shape_rg	20.14 Å
Total Rg total_rg	21.27 Å
Total atoms total_atoms	1763
Residues n_residues	227
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

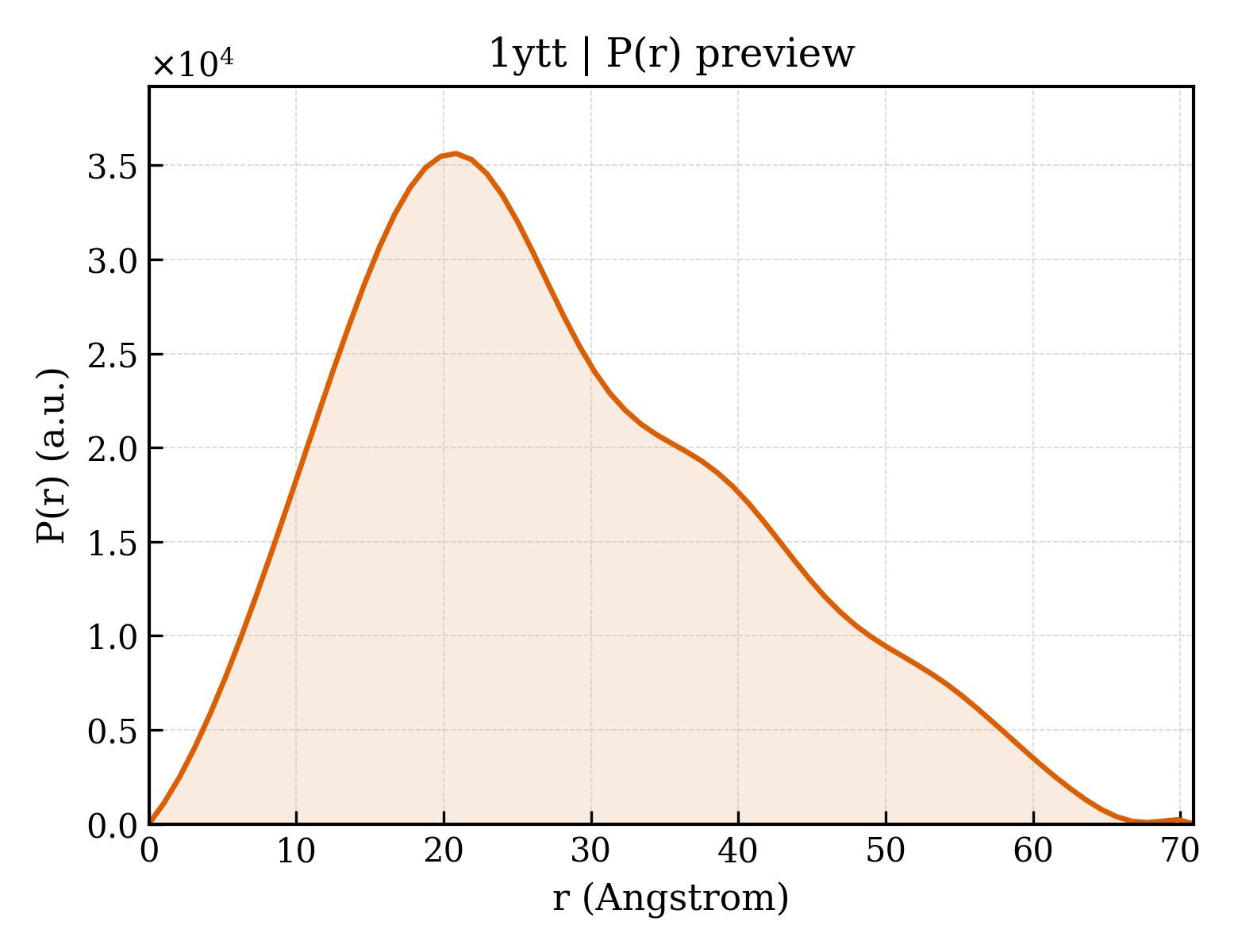

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.9 Å
Rg (real space) rg_real	21.60 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	1.3760e+07
I(0) uncertainty (real space) i0_real_error	1.8210e+05
Rg (reciprocal space) rg_reciprocal	21.57 Å
I(0) (reciprocal space) i0_reciprocal	13760000.0000
Solution quality estimate total_estimate	0.8477
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.9 Å
Skewness Skewness skewness	0.504
Kurtosis Kurtosis kurtosis	-0.407
Angular range angular_range	— – 0.3700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1345000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.760; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.798; Smooth: 0.937

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MANNOSE-BINDING PROTEIN A
Molecular weight formula_weight	12688.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1927

SGKKFFVTNHERMPFSKVKALCSELRGTVAIPRNAEENKAIQEVAKTSAFLGITDEVTEGQFMYVTGGRLTYSNWKKDEPNDHGSGEDCVTIVDNGLWNDISCQASHTAVCEFPA

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	YTTERBIUM (III) ION
Molecular weight formula_weight	173.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	158

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ytta_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1yttb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

CATH v4.4 (2 domains)

Domain ID domain_id	1yttA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	1yttB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

▶

8. Citations (3)

▶

Unit-cell length a length_a	65.508 Å
Unit-cell length b length_b	72.216 Å
Unit-cell length c length_c	45.035 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1850
R_work r_work	0.1850
R_free r_free	0.2060

fit	/app/data/saxs_computation/yt/1ytt/1ytt.fit
pddf	/app/data/pr_computation/yt/1ytt/1ytt.pr.out
profile	/app/data/saxs_computation/yt/1ytt/1ytt.dat

YB SUBSTITUTED SUBTILISIN FRAGMENT OF MANNOSE BINDING PROTEIN-A (SUB-MBP-A), MAD STRUCTURE AT 110K
