1buu
ONE HO3+ FORM OF RAT MANNOSE-BINDING PROTEIN A

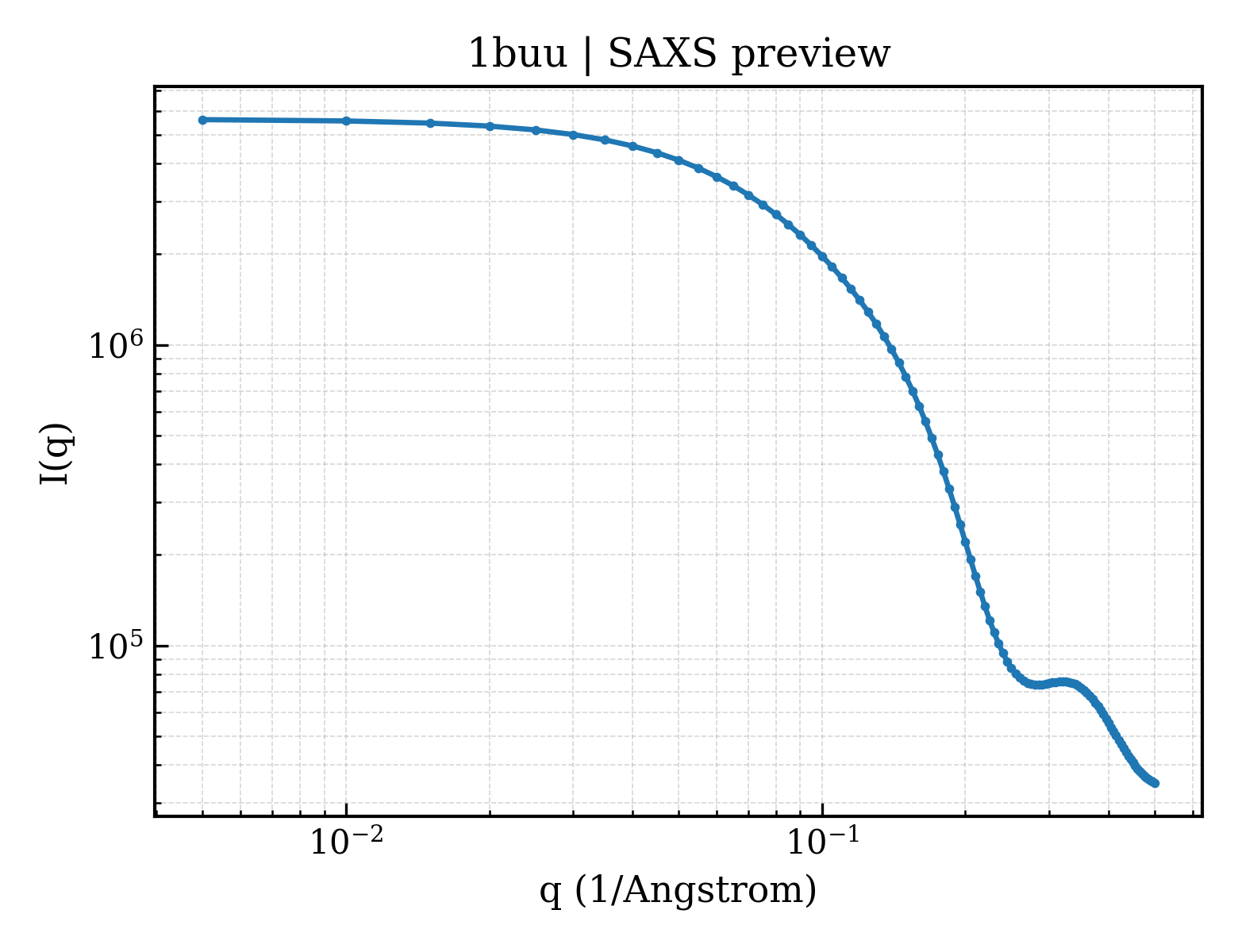

SAXS Profile

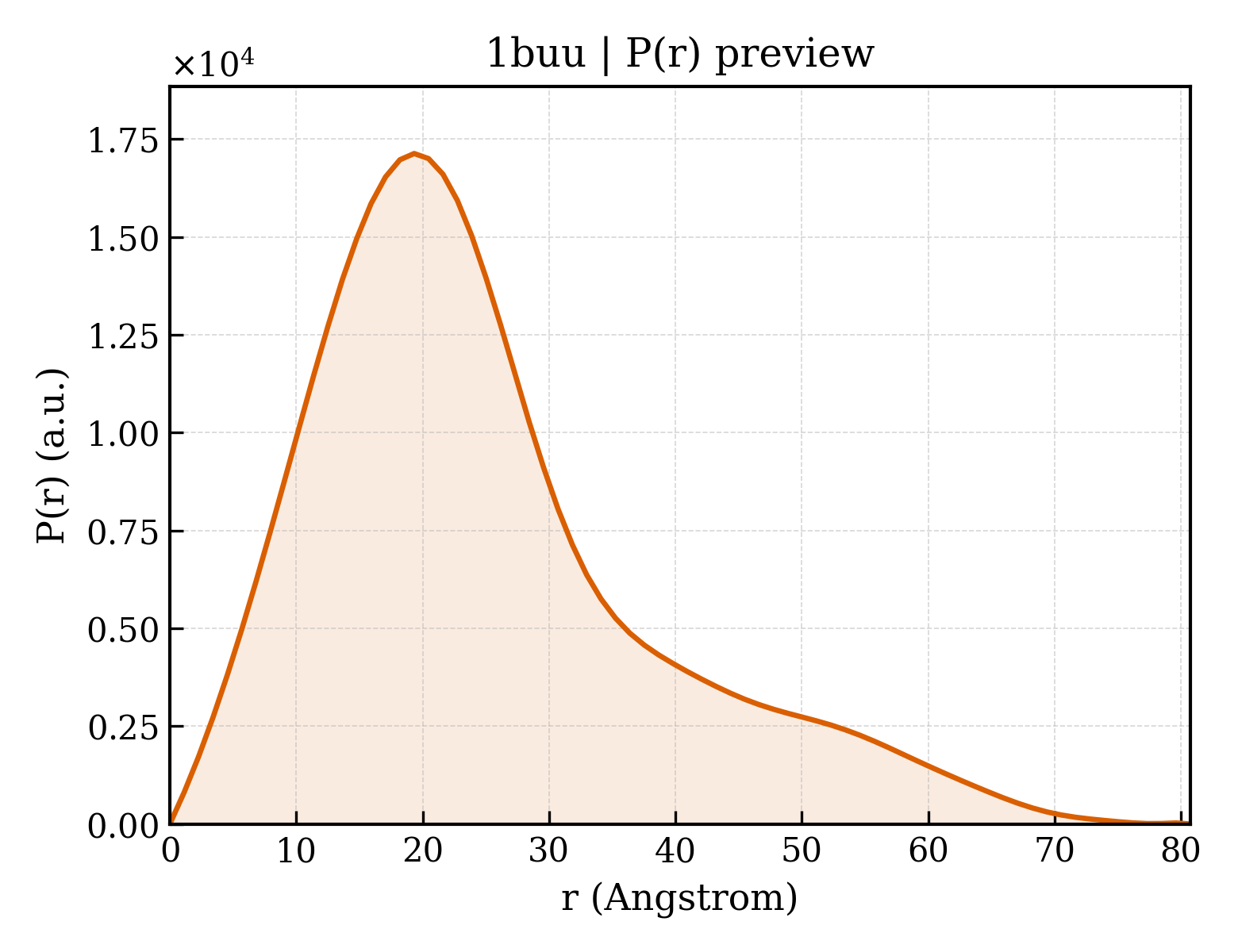

P(r) Distribution
1. Structure Basics
| entry_id | 1buu |
| deposition_date | 1998-09-06 |
| title | ONE HO3+ FORM OF RAT MANNOSE-BINDING PROTEIN A |
| keywords | LECTIN, HOST DEFENSE, METALLOPROTEIN, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.39 Å |
| rg_electron | 19.81 Å |
| i0 | 5623890.00 |
| molecular_weight | 16620.0 kDa |
| excluded_volume | 20503 ų |
| envelope_volume | 25505 ų |
| shell_volume | 12769 ų |
| envelope_diameter | 80.8 Å |
| shell_rg | 22.85 Å |
| envelope_rg | 21.31 Å |
| shape_rg | 19.74 Å |
| total_rg | 20.50 Å |
| total_atoms | 1154 |
| n_residues | 149 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 80.8 Å |
| rg_real | 19.97 Å |
| rg_real_error | 1.04 Å |
| i0_real | 5.6240e+06 |
| i0_real_error | 8.6860e+04 |
| rg_reciprocal | 19.88 Å |
| i0_reciprocal | 5624000.0000 |
| total_estimate | 0.6534 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 19.3 Å |
| skewness | 0.973 |
| kurtosis | 0.638 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 580500.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.143; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.070; Smooth: 0.991 |
