SAXSdb — 1rtm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MANNOSE-BINDING PROTEIN-A

Rattus norvegicus

UniProt P19999

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	CALCIUM ION × 9 CHLORIDE ION × 3 GLYCEROL × 15 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MBL1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 1； PDBConstruct 1–149； UniProt 90–238 Author chain 2； PDBConstruct 1–149； UniProt 90–238 Author chain 3； PDBConstruct 1–149； UniProt 90–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rtm
Deposition date deposition_date	1994-11-21
Structure title title	TRIMERIC STRUCTURE OF A C-TYPE MANNOSE-BINDING PROTEIN
Keywords keywords	LECTIN; LECTIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rtm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rtm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

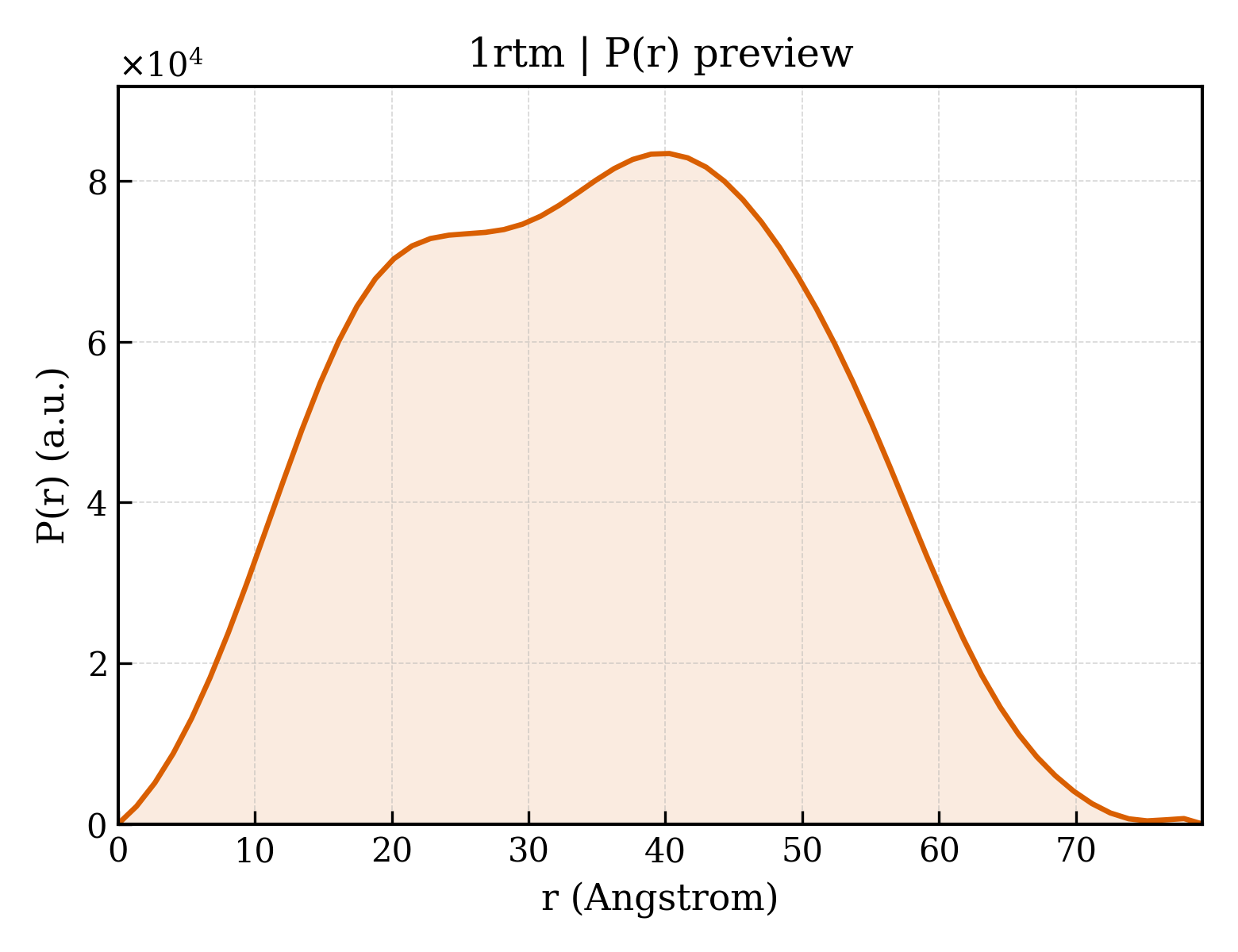

1rtm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.06 Å
Rg (electron density)	26.04 Å
Total Rg	26.85 Å
Atom count	3561
Residues	447
Excluded volume	63644 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rtm__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	MANNOSE-BINDING PROTEIN-A
Molecular weight formula_weight	16478.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1,2,3
Atom count atom_count	4061

AIEVKLANMEAEINTLKSKLELTNKLHAFSMGKKSGKKFFVTNHERMPFSKVKALCSELRGTVAIPRNAEENKAIQEVAKTSAFLGITDEVTEGQFMYVTGGRLTYSNWKKDEPNDHGSGEDCVTIVDNGLWNDISCQASHTAVCEFPA

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	475

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1rtm11
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1rtm12
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.1 — Triple coiled coil domain of C-type lectins
Family Family family	h.1.1.1 — Triple coiled coil domain of C-type lectins

Domain ID domain_id	d1rtm21
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1rtm22
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.1 — Triple coiled coil domain of C-type lectins
Family Family family	h.1.1.1 — Triple coiled coil domain of C-type lectins

Domain ID domain_id	d1rtm31
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1rtm32
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.1 — Triple coiled coil domain of C-type lectins
Family Family family	h.1.1.1 — Triple coiled coil domain of C-type lectins

CATH v4.4 (3 domains)

Domain ID domain_id	1rtm100
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	1rtm200
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	1rtm300
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

▶

Unit-cell length a length_a	80.000 Å
Unit-cell length b length_b	85.100 Å
Unit-cell length c length_c	98.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.30 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2200
R_work r_work	0.2200
R_free r_free	0.2700
