1bff

THE 154 AMINO ACID FORM OF HUMAN BASIC FIBROBLAST GROWTH FACTOR

Method: X-RAY DIFFRACTION D_max: 44.8 Å Quality: GOOD

SAXS Profile

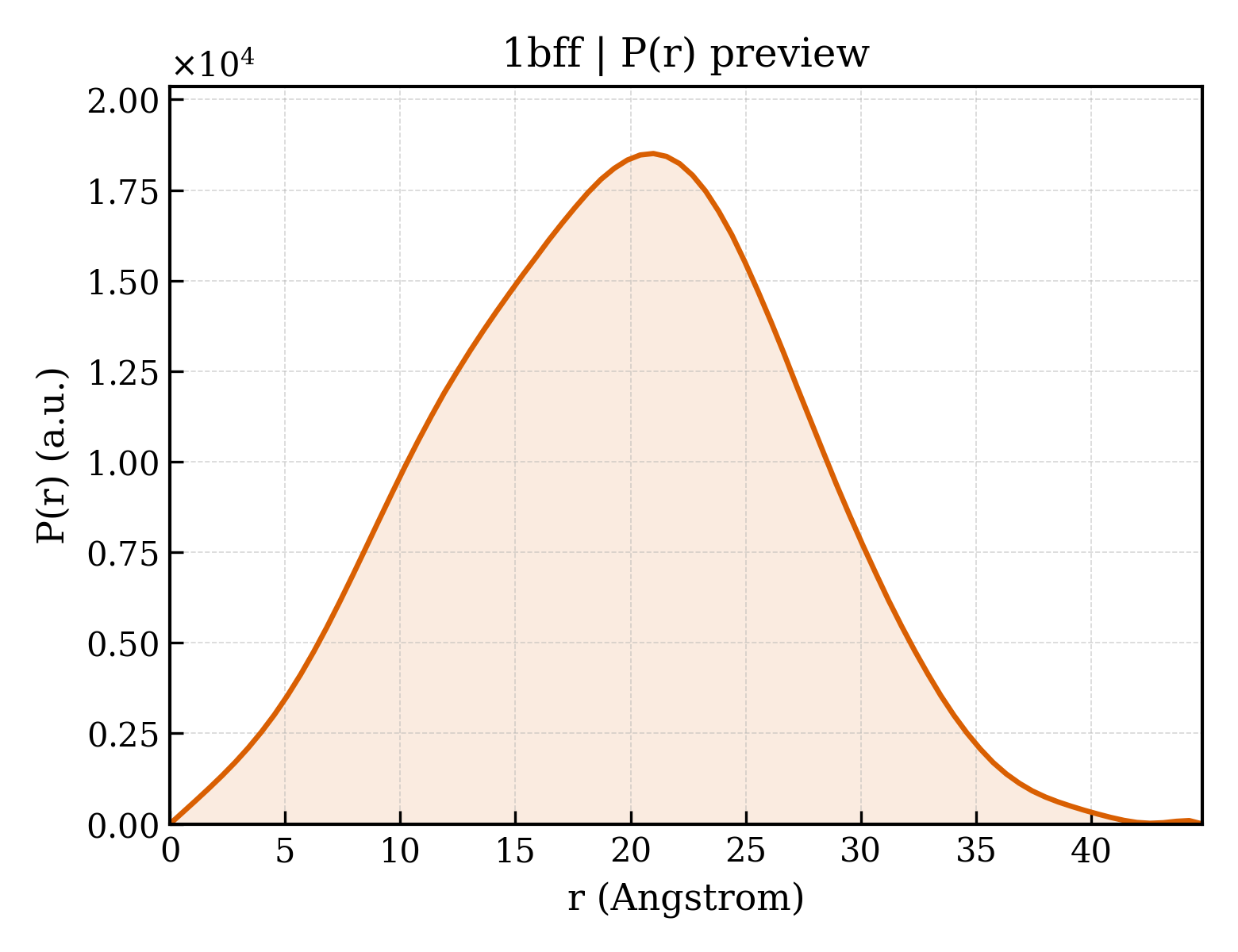

P(r) Distribution

▼

1. Structure Basics

entry_id	1bff
deposition_date	1996-12-06
title	THE 154 AMINO ACID FORM OF HUMAN BASIC FIBROBLAST GROWTH FACTOR
keywords	GROWTH FACTOR; GROWTH FACTOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	14.94 Å
rg_electron	13.47 Å
i0	4545160.00
molecular_weight	14958.0 kDa
excluded_volume	18667 Å³
envelope_volume	20382 Å³
shell_volume	12590 Å³
envelope_diameter	43.6 Å
shell_rg	19.60 Å
envelope_rg	13.79 Å
shape_rg	13.41 Å
total_rg	14.88 Å
total_atoms	1048
n_residues	129
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	44.8 Å
rg_real	14.79 Å
rg_real_error	0.19 Å
i0_real	4.5450e+06
i0_real_error	5.0020e+04
rg_reciprocal	14.80 Å
i0_reciprocal	4545000.0000
total_estimate	0.8931
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	21.0 Å
skewness	0.004
kurtosis	-0.429
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	1267000.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.891; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.955

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	BASIC FIBROBLAST GROWTH FACTOR
formula_weight	14800.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1115

KDPKRLYCKNGGFFLRIHPDGRVDGVREKSDPHIKLQLQAEERGVVSIKGVCANRYLAMKEDGRLLASKCVTDECFFFERLESNNYNTYRSRKYTSWYVALKRTGQYKLGSKTGPGQKAILFLPMSAKS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	BETA-MERCAPTOETHANOL
formula_weight	78.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	67

▶

6. Citations (1)

▶

length_a	30.800 Å
length_b	33.300 Å
length_c	36.500 Å
angle_alpha	64.10 °
angle_beta	73.00 °
angle_gamma	76.10 °
z_pdb	1

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.000 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.1900
r_free	—

fit	/app/data/saxs_computation/bf/1bff/1bff.fit
pddf	/app/data/pr_computation/bf/1bff/1bff.pr.out
profile	/app/data/saxs_computation/bf/1bff/1bff.dat
