CRYSTAL STRUCTURE OF A DIMERIC FGF2-FGFR1 COMPLEX

entry_id	1cvs
deposition_date	1999-08-24
title	CRYSTAL STRUCTURE OF A DIMERIC FGF2-FGFR1 COMPLEX
keywords	FGF, FGFR, IMMUNOGLOBULIN-LIKE, SIGNAL TRANSDUCTION, DIMERIZATION, GROWTH FACTOR-GROWTH FACTOR RECEPTOR COMPLEX; GROWTH FACTOR/GROWTH FACTOR RECEPTOR
method	X-RAY DIFFRACTION

rg_guinier	30.61 Å
rg_electron	30.17 Å
i0	86857000.00
molecular_weight	73455.0 kDa
excluded_volume	91756 ų
envelope_volume	114480 ų
shell_volume	32063 ų
envelope_diameter	106.7 Å
shell_rg	36.67 Å
envelope_rg	30.11 Å
shape_rg	30.16 Å
total_rg	30.75 Å
total_atoms	5173
n_residues	665
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	98.8 Å
rg_real	30.55 Å
rg_real_error	0.78 Å
i0_real	8.6860e+07
i0_real_error	1.2760e+06
rg_reciprocal	30.58 Å
i0_reciprocal	86860000.0000
total_estimate	0.6898
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	39.9 Å
skewness	0.206
kurtosis	-0.512
angular_range	— – 0.2600 Å−1
current_alpha	0.0000
highest_alpha	10500000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 0.077; Positv: 1.000; Valcen: 0.990; Smooth: 0.934

Unit Cell

length_a	98.450 Å
length_b	98.450 Å
length_c	197.030 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

Symmetry

space_group	P 41 21 2
int_tables_number	92
crystal_system	—

Refinement

resolution	2.800 Å
resolution_low	25.000 Å
r_factor	0.2400
r_work	0.2400
r_free	0.2810

Diffraction

temperature

110.0 K

Files (7)

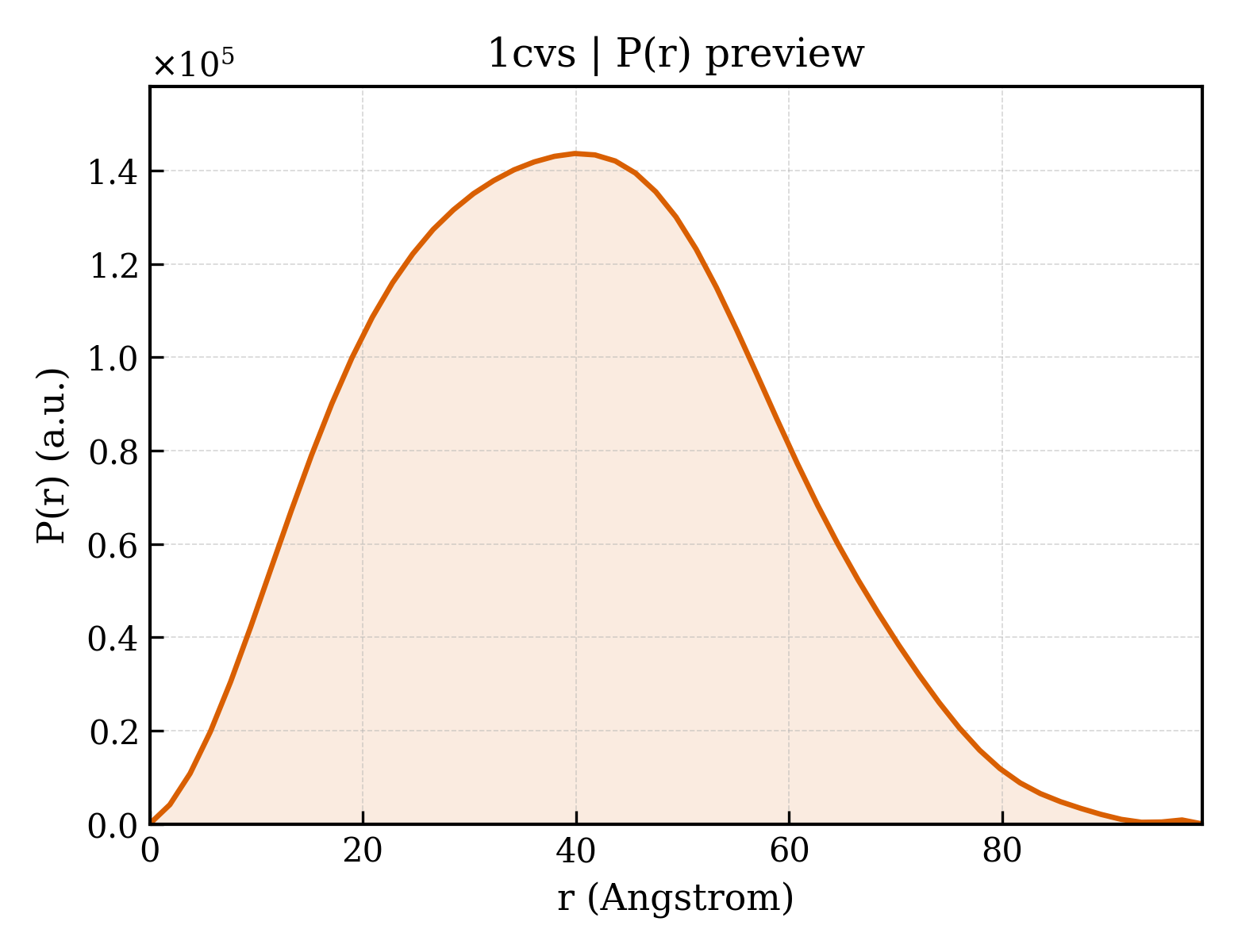

• pr_distribution /app/data/pr_computation/cv/1cvs/pr_distribution.json
• pr_output /app/data/pr_computation/cv/1cvs/1cvs.pr.out
• pr_plot /app/data/visualization/pr_computation/cv/1cvs/1cvs_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/cv/1cvs/1cvs.dat
• saxs_fit /app/data/saxs_computation/cv/1cvs/1cvs.fit
• saxs_log /app/data/saxs_computation/cv/1cvs/1cvs.log
• saxs_plot /app/data/visualization/saxs_computation/cv/1cvs/1cvs_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/cv/1cvs/1cvs.fit
pddf	/app/data/pr_computation/cv/1cvs/1cvs.pr.out
profile	/app/data/saxs_computation/cv/1cvs/1cvs.dat
