1bfg
CRYSTAL STRUCTURE OF BASIC FIBROBLAST GROWTH FACTOR AT 1.6 ANGSTROMS RESOLUTION
SAXS Profile

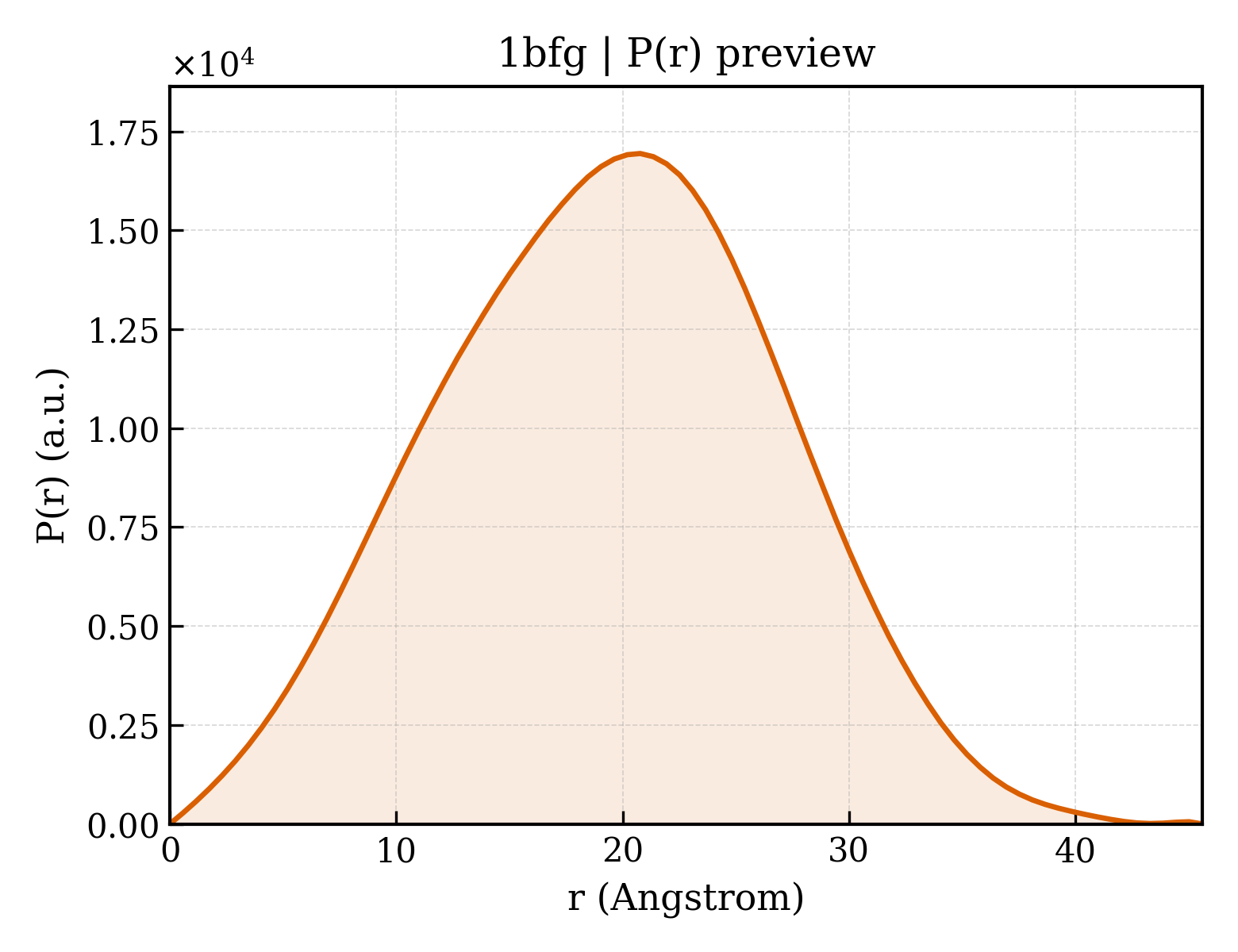

P(r) Distribution
1. Structure Basics
| entry_id | 1bfg |
| deposition_date | 1993-04-15 |
| title | CRYSTAL STRUCTURE OF BASIC FIBROBLAST GROWTH FACTOR AT 1.6 ANGSTROMS RESOLUTION |
| keywords | GROWTH FACTOR; GROWTH FACTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.85 Å |
| rg_electron | 13.33 Å |
| i0 | 4154550.00 |
| molecular_weight | 14391.0 kDa |
| excluded_volume | 18043 ų |
| envelope_volume | 19882 ų |
| shell_volume | 12420 ų |
| envelope_diameter | 43.4 Å |
| shell_rg | 19.48 Å |
| envelope_rg | 13.63 Å |
| shape_rg | 13.29 Å |
| total_rg | 14.74 Å |
| total_atoms | 1014 |
| n_residues | 126 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.6 Å |
| rg_real | 14.71 Å |
| rg_real_error | 0.17 Å |
| i0_real | 4.1550e+06 |
| i0_real_error | 4.1730e+04 |
| rg_reciprocal | 14.72 Å |
| i0_reciprocal | 4155000.0000 |
| total_estimate | 0.8886 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.8 Å |
| skewness | 0.014 |
| kurtosis | -0.411 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1327000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.862; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.981 |
