1bgs
RECOGNITION BETWEEN A BACTERIAL RIBONUCLEASE, BARNASE, AND ITS NATURAL INHIBITOR, BARSTAR

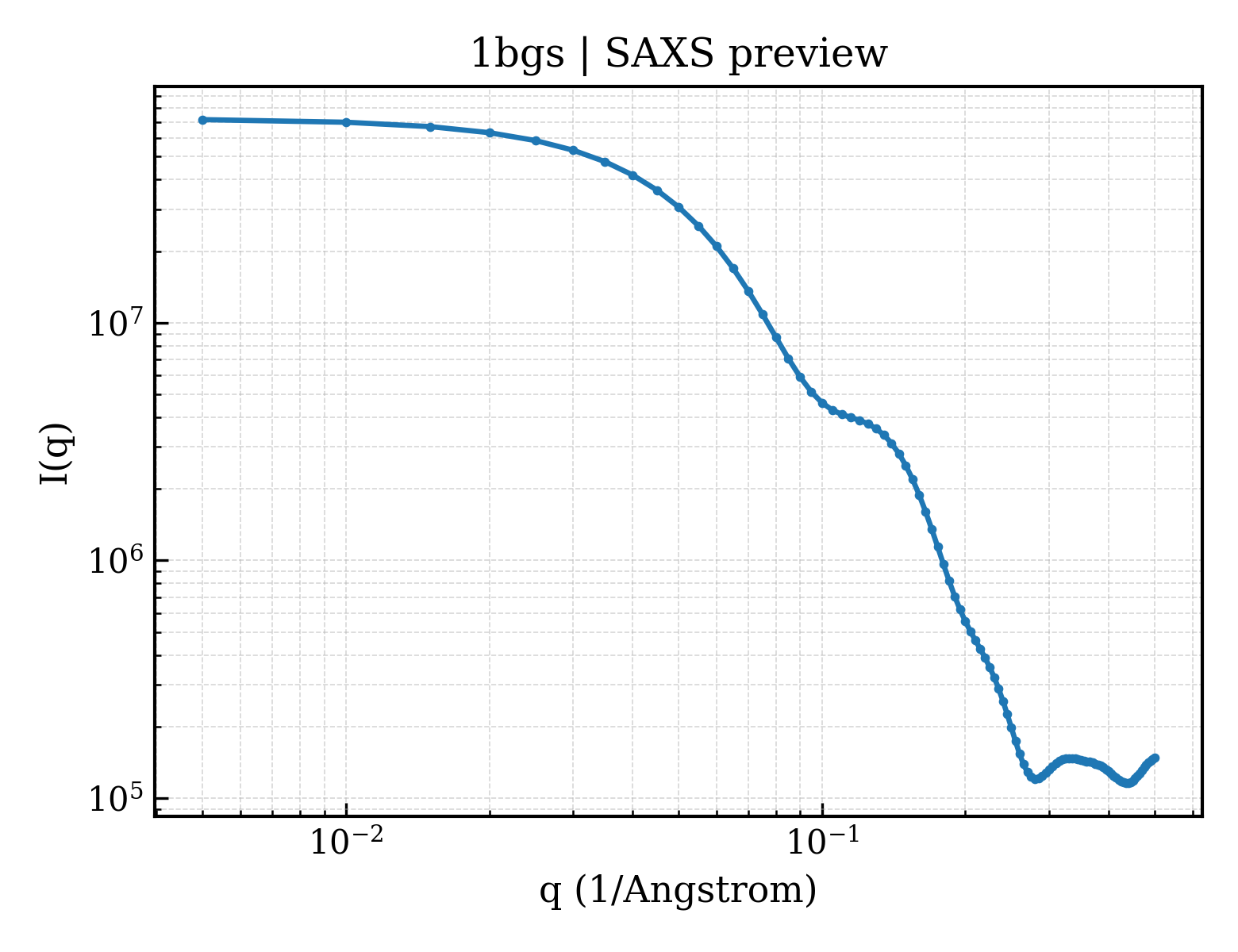

SAXS Profile

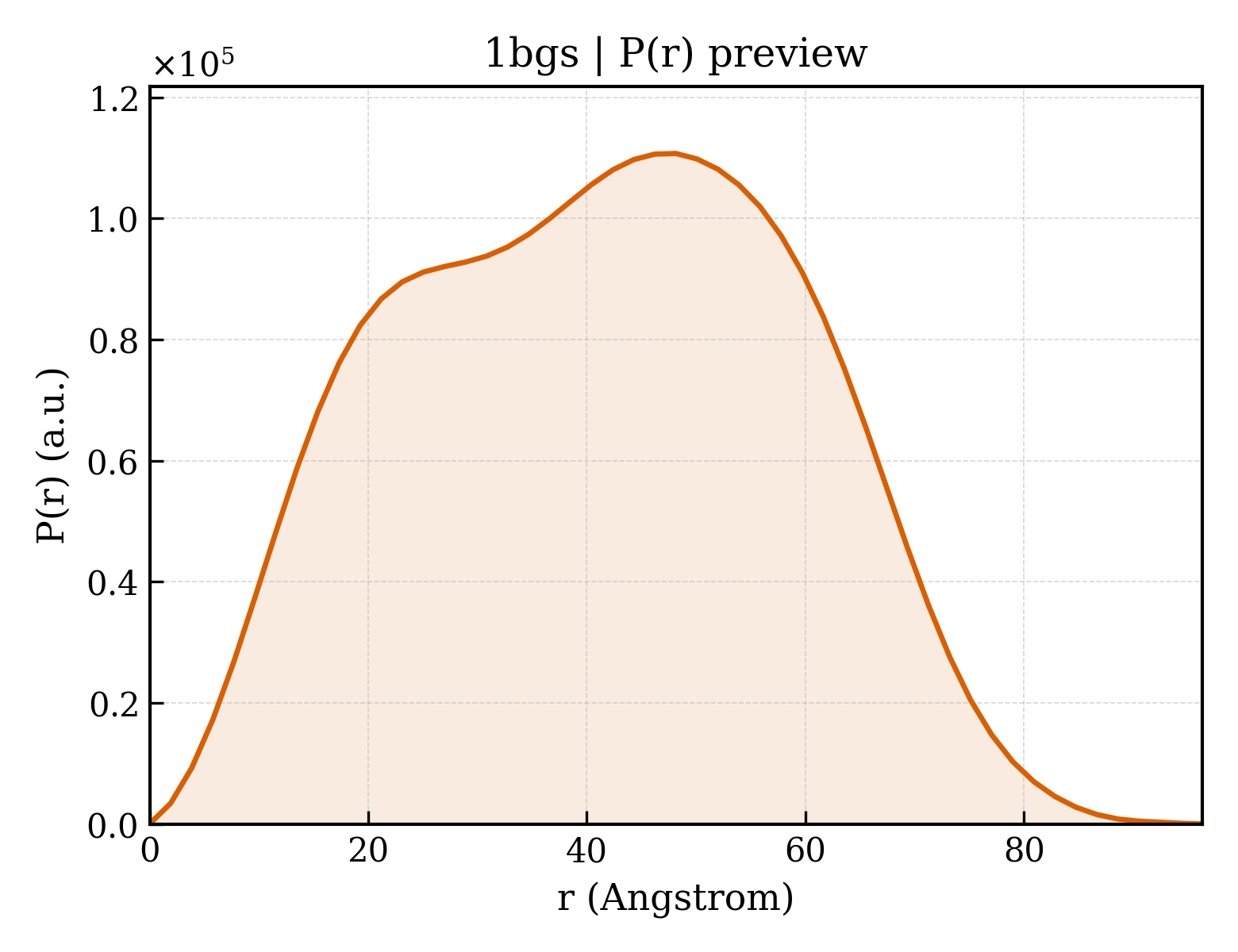

P(r) Distribution
1. Structure Basics
| entry_id | 1bgs |
| deposition_date | 1993-11-02 |
| title | RECOGNITION BETWEEN A BACTERIAL RIBONUCLEASE, BARNASE, AND ITS NATURAL INHIBITOR, BARSTAR |
| keywords | ENDONUCLEASE; ENDONUCLEASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 31.85 Å |
| rg_electron | 31.00 Å |
| i0 | 72110800.00 |
| molecular_weight | 67579.0 kDa |
| excluded_volume | 84769 ų |
| envelope_volume | 113550 ų |
| shell_volume | 30792 ų |
| envelope_diameter | 96.7 Å |
| shell_rg | 38.18 Å |
| envelope_rg | 29.77 Å |
| shape_rg | 30.98 Å |
| total_rg | 31.73 Å |
| total_atoms | 4788 |
| n_residues | 597 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 96.3 Å |
| rg_real | 31.70 Å |
| rg_real_error | 0.66 Å |
| i0_real | 7.2110e+07 |
| i0_real_error | 1.1580e+06 |
| rg_reciprocal | 31.77 Å |
| i0_reciprocal | 72110000.0000 |
| total_estimate | 0.9055 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 48.2 Å |
| skewness | 0.008 |
| kurtosis | -0.814 |
| angular_range | — – 0.2500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9471000.0000 |
| n_real_points | 51 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.946; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.937 |
