SAXSdb — 1bi0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIPHTHERIA TOXIN REPRESSOR

Corynebacterium diphtheriae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–226	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.30 Å R-free 0.296

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BI0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BI1 STRUCTURE OF APO-AND HOLO-DIPHTHERIA TOXIN REPRESSOR Deposited 1998-06-21	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–226（226 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.20 Å R-free 0.311
1BI2 STRUCTURE OF APO-AND HOLO-DIPHTHERIA TOXIN REPRESSOR Deposited 1998-06-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa） Chain B 1–226（226 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.30 Å R-free 0.352
1BI3 STRUCTURE OF APO-AND HOLO-DIPHTHERIA TOXIN REPRESSOR Deposited 1998-06-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa） Chain B 1–226（226 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.40 Å R-free 0.333
1BYM SOLUTION STRUCTURES OF THE C-TERMINAL DOMAIN OF DIPHTHERIA TOXIN REPRESSOR Deposited 1998-10-17	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 130–226（97 aa） Fragment：RESIDUES 130-226	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K	Resolution not provided
1C0W CRYSTAL STRUCTURE OF THE COBALT-ACTIVATED DIPHTHERIA TOXIN REPRESSOR-DNA COMPLEX REVEALS A METAL BINDING SH-LIKE DOMAIN Deposited 1999-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 2–226（225 aa） Chain B 2–226（225 aa） Chain C 2–226（225 aa） Chain D 2–226（225 aa）	Not recorded	CO COBALT (II) ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 3.20 Å R-free 0.279
1DDN DIPHTHERIA TOX REPRESSOR (C102D MUTANT)/TOX DNA OPERATOR COMPLEX Deposited 1998-06-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 1–226（226 aa） Chain B 1–226（226 aa） Chain C 1–226（226 aa） Chain D 1–226（226 aa）	Mutation：C102D Mutation：C102D Mutation：C102D Mutation：C102D	NI NICKEL (II) ION × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.280
1DPR STRUCTURES OF THE APO-AND METAL ION ACTIVATED FORMS OF THE DIPHTHERIA TOX REPRESSOR FROM CORYNEBACTERIUM DIPHTHERIAE Deposited 1995-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa） Chain B 1–226（226 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.417
1F5T DIPHTHERIA TOX REPRESSOR (C102D MUTANT) COMPLEXED WITH NICKEL AND DTXR CONSENSUS BINDING SEQUENCE Deposited 2000-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 1–121（121 aa） Chain B 1–121（121 aa） Chain C 1–121（121 aa） Chain D 1–121（121 aa）	Mutation：C102D Mutation：C102D Mutation：C102D Mutation：C102D	NI NICKEL (II) ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；100 mM sodium cacodylate pH7.3, 10 mM MgCl2, 2 mM spermine, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.273
1FWZ GLU20ALA DTXR Deposited 2000-09-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：E20A Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；1.6-2.0 ammonium sulfate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.285
1G3S CYS102SER DTXR Deposited 2000-10-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：C102S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；298 K；Ammonium sulfate, EDTA, glycerol, pH 8.5, VAPOR DIFFUSION, temperature 298K	Resolution 2.40 Å R-free 0.271
1G3T CYS102SER DTXR Deposited 2000-10-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa） Chain B 1–226（226 aa）	Mutation：C102S Mutation：C102S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；Ammonium sulfate, glycerol, EDTA, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.35 Å R-free 0.318
1G3W CD-CYS102SER DTXR Deposited 2000-10-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：C102	CD CADMIUM ION × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；Ammonium sulfate, glycerol, CdCl2, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.259
1G3Y ARG80ALA DTXR Deposited 2000-10-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：R80A	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；Ammonium sulfate, Zn2+, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.328
1P92 Crystal Structure of (H79A)DtxR Deposited 2003-05-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–226（226 aa）	Mutation：H79A	BME BETA-MERCAPTOETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400, ammonium sulfate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.280
1P92 Crystal Structure of (H79A)DtxR Deposited 2003-05-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：H79A	BME BETA-MERCAPTOETHANOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400, ammonium sulfate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.280
1QVP C terminal SH3-like domain from Diphtheria toxin Repressor residues 144-226. Deposited 2003-08-28	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 144–226（83 aa） Fragment：Residues 144-226	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Pressure ambient NMR sample composition 1-2 mM DtxR144-226 U-15N; 10mM Potassium Phosphate buffer pH6.5 \| 90% H2O/10% D2O NMR sample composition 1-2 mM DtxR144-226 U-15N and U-13C; 10mM Potassium Phosphate buffer pH6.5 \| 90% H2O, 10% D2O; 100% D2O	Resolution not provided
1QW1 Solution Structure of the C-Terminal Domain of DtxR residues 110-226 Deposited 2003-08-29	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 110–226（117 aa） Fragment：RESIDUES 110-226	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303 K；Pressure ambient NMR sample composition 1-2 mM DtxR110-226 U-15N, 50 mM Potassium Phosphate, pH 6.5 \| 90% H2O/10% D2O NMR sample composition 1-2 mM DtxR110-226 U-15N U-13C, 50 mM Potassium Phosphate, pH 6.5 \| 100% D2O NMR sample composition 1-2 mM DtxR110-226 U-15N U-13C, 50 mM Potassium Phosphate, pH 6.5 \| 90% H2O/10% D2O	Resolution not provided
1XCV Crystal Structure Of (H79AC102D)Dtxr complexed with Nickel(II) Deposited 2004-09-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–139（139 aa）	Mutation：H79A, C102D	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；ammonium sulfate, PEG 400, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.300
2DTR STRUCTURE OF DIPHTHERIA TOXIN REPRESSOR Deposited 1996-07-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Not recorded	SO4 SULFATE ION × 2 CO COBALT (II) ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å
2QQ9 Crystal Structure of DtxR(D6A C102D) Complexed with Nickel(II) Deposited 2007-07-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：D6A, C102D	NI NICKEL (II) ION × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.2 M Sodium Phosphate, 20% PEG 3350, 5 mM Nickel Chloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.71 Å R-free 0.291
2QQA Crystal Structure of DtxR(E9A C102D) Complexed with Nickel(II) Deposited 2007-07-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：E9A, C102D	NI NICKEL (II) ION × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.2 M Sodium Phosphate, 20% PEG 3350, 5 mM Nickel Chloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.256
2QQB Crystal Structure of DtxR(M10A C102D) Complexed with Nickel(II) Deposited 2007-07-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：M10A, C102D	NI NICKEL (II) ION × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.2 M Sodium Phosphate, 20% PEG 3350, 5 mM Nickel Chloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.92 Å R-free 0.311
2TDX DIPHTHERIA TOX REPRESSOR (C102D MUTANT) COMPLEXED WITH NICKEL Deposited 1998-06-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：C102D	NI NICKEL (II) ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.321
3GLX Crystal Structure Analysis of the DtxR(E175K) complexed with Ni(II) Deposited 2009-03-12	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–226（226 aa）	Mutation：E175K	NI NICKEL (II) ION × 2 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.95 M Sodium/Potasium Phosphate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.85 Å R-free 0.271

23 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DTXR_CORDI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–226； UniProt 1–226

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bi0
Deposition date deposition_date	1998-06-21
Structure title title	STRUCTURE OF APO-AND HOLO-DIPHTHERIA TOXIN REPRESSOR
Keywords keywords	REPRESSOR, TRANSCRIPTION REGULATION, DNA-BINDING, IRON; REPRESSOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.96 Å
Radius of gyration Rg (electron density) rg_electron	21.47 Å
Forward intensity I(0) i0	10696000.00
Molecular weight molecular_weight	23699.0 kDa
Excluded volume excluded_volume	29343 Å³
Envelope volume envelope_volume	36291 Å³
Hydration-shell volume shell_volume	15063 Å³
Envelope diameter envelope_diameter	71.3 Å
Shell Rg shell_rg	26.52 Å
Envelope Rg envelope_rg	21.38 Å
Shape Rg shape_rg	21.50 Å
Total Rg total_rg	22.07 Å
Total atoms total_atoms	1657
Residues n_residues	213
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

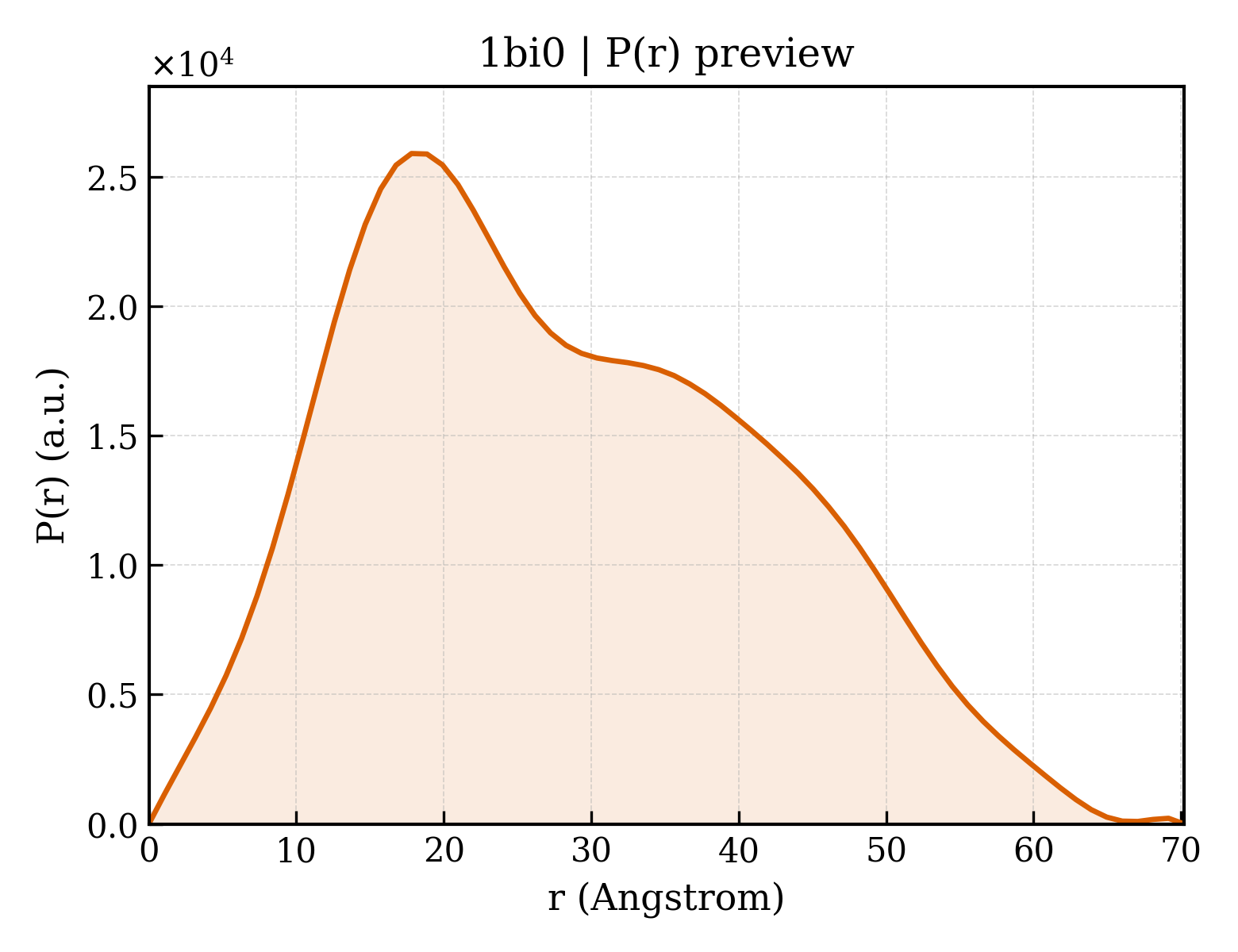

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.2 Å
Rg (real space) rg_real	22.09 Å
Rg uncertainty (real space) rg_real_error	0.45 Å
I(0) (real space) i0_real	1.0700e+07
I(0) uncertainty (real space) i0_real_error	1.3770e+05
Rg (reciprocal space) rg_reciprocal	22.07 Å
I(0) (reciprocal space) i0_reciprocal	10700000.0000
Solution quality estimate total_estimate	0.8467
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.8 Å
Skewness Skewness skewness	0.349
Kurtosis Kurtosis kurtosis	-0.695
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4277000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.773; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.749; Smooth: 0.933

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DIPHTHERIA TOXIN REPRESSOR
Molecular weight formula_weight	25381.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1816

MKDLVDTTEMYLRTIYELEEEGVTPLRARIAERLEQSGPTVSQTVARMERDGLVVVASDRSLQMTPTGRTLATAVMRKHRLAERLLTDIIGLDINKVHDEACRWEHVMSDEVERRLVKVLKDVSRSPFGNPIPGLDELGVGNSDAAAPGTRVIDAATSMPRKVRIVQINEIFQVETDQFTQLLDADIRVGSEVEIVDRDGHITLSHNGKDVELLDDLAHTIRIEEL

来源 Source

来源生物 organism	Corynebacterium diphtheriae
NCBI Class编号 ncbi_taxonomy_id	1717
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	159

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1bi0a1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d1bi0a2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

Domain ID domain_id	d1bi0a3
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.1 — C-terminal domain of transcriptional repressors
Family Family family	b.34.1.2 — FeoA-like

CATH v4.4 (3 domains)

Domain ID domain_id	1bi0A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1bi0A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

Domain ID domain_id	1bi0A03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	90 — Ferrous iron transport protein A (FeoA)

▶

8. Citations (3)

▶

Unit-cell length a length_a	63.500 Å
Unit-cell length b length_b	63.500 Å
Unit-cell length c length_c	107.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1910
R_work r_work	0.1910
R_free r_free	0.2960

fit	/app/data/saxs_computation/bi/1bi0/1bi0.fit
pddf	/app/data/pr_computation/bi/1bi0/1bi0.pr.out
profile	/app/data/saxs_computation/bi/1bi0/1bi0.dat
