1bi3
STRUCTURE OF APO-AND HOLO-DIPHTHERIA TOXIN REPRESSOR

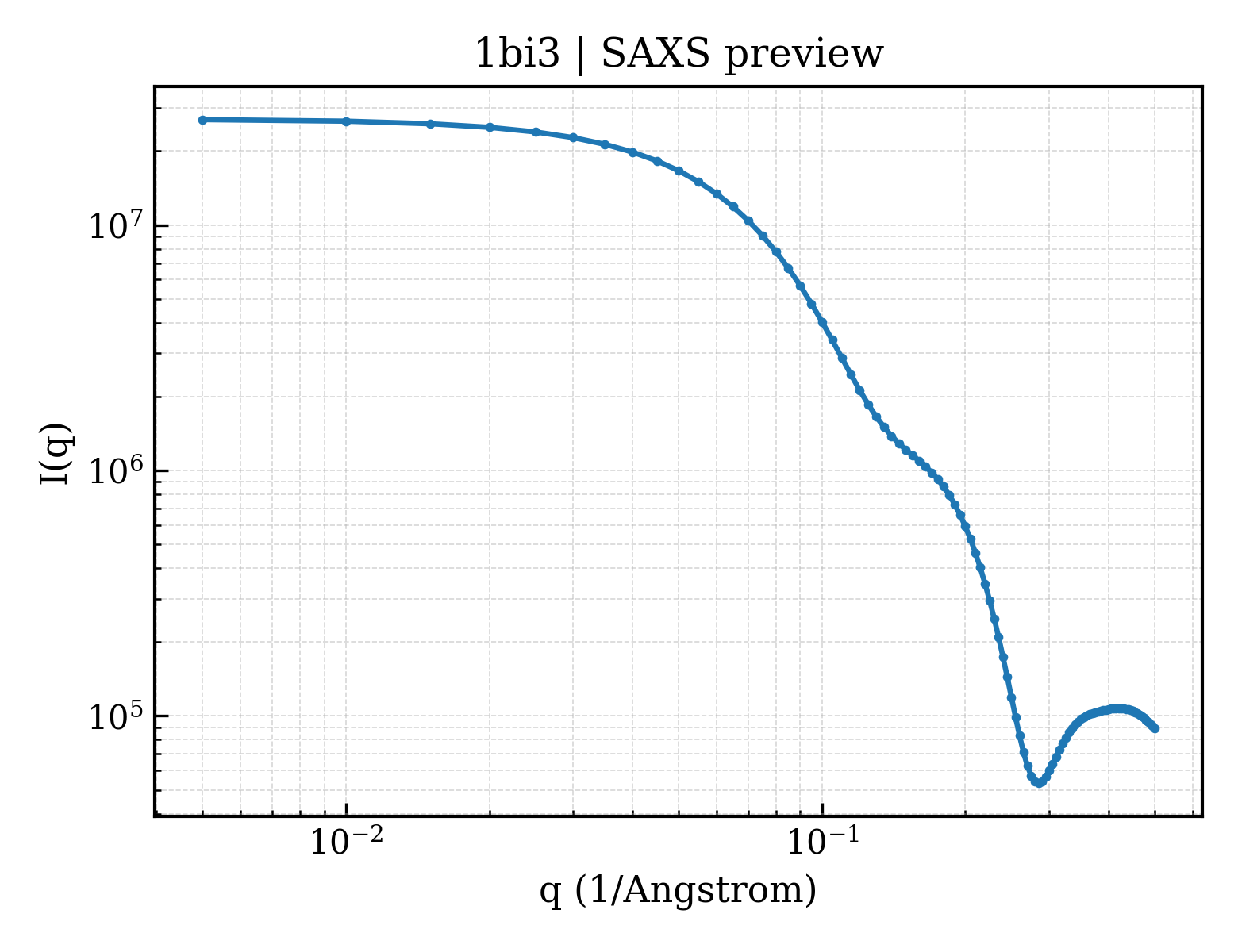

SAXS Profile

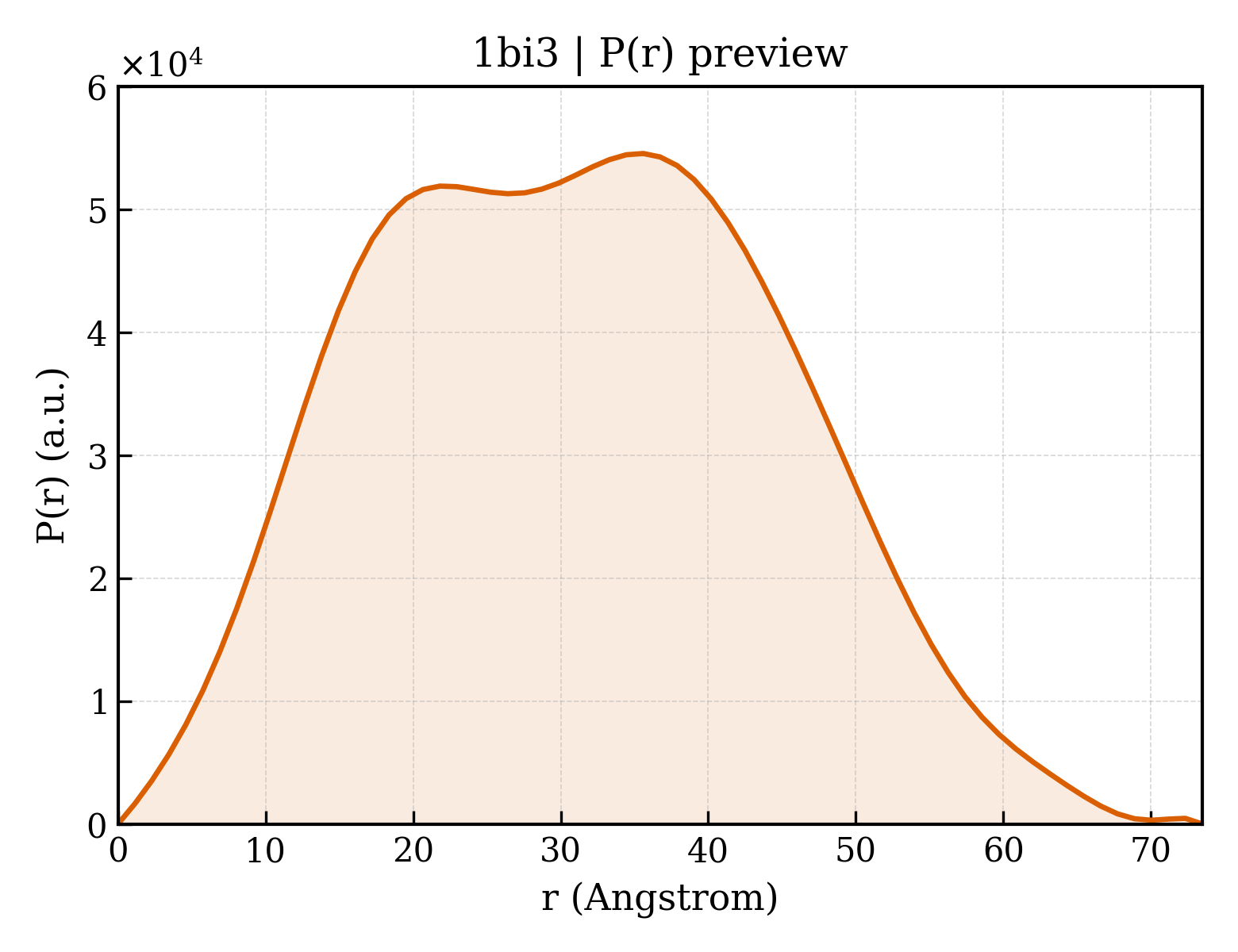

P(r) Distribution
1. Structure Basics
| entry_id | 1bi3 |
| deposition_date | 1998-06-21 |
| title | STRUCTURE OF APO-AND HOLO-DIPHTHERIA TOXIN REPRESSOR |
| keywords | REPRESSOR, TRANSCRIPTION REGULATION, DNA-BINDING, IRON; REPRESSOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.07 Å |
| rg_electron | 23.34 Å |
| i0 | 26993800.00 |
| molecular_weight | 38199.0 kDa |
| excluded_volume | 47125 ų |
| envelope_volume | 58318 ų |
| shell_volume | 21560 ų |
| envelope_diameter | 76.2 Å |
| shell_rg | 29.58 Å |
| envelope_rg | 23.33 Å |
| shape_rg | 23.40 Å |
| total_rg | 23.92 Å |
| total_atoms | 2667 |
| n_residues | 347 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 73.5 Å |
| rg_real | 24.00 Å |
| rg_real_error | 0.40 Å |
| i0_real | 2.6990e+07 |
| i0_real_error | 2.9580e+05 |
| rg_reciprocal | 24.02 Å |
| i0_reciprocal | 26990000.0000 |
| total_estimate | 0.9103 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 3 |
| r_peak_primary | 35.6 Å |
| skewness | 0.146 |
| kurtosis | -0.647 |
| angular_range | — – 0.3300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10790000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.954; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.978 |
