DIPHTHERIA TOX REPRESSOR (C102D MUTANT)/TOX DNA OPERATOR COMPLEX

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIPHTHERIA TOX REPRESSOR

Corynebacterium diphtheriae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 4 DNA 2	33 BASE DNA CONTAINING TOXIN OPERATOR × 1 33 BASE DNA CONTAINING TOXIN OPERATOR × 1 NICKEL (II) ION × 8 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DTXR_CORDI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–226； UniProt 1–226 Author chain B； PDBConstruct 1–226； UniProt 1–226 Author chain C； PDBConstruct 1–226； UniProt 1–226 Author chain D； PDBConstruct 1–226； UniProt 1–226

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ddn
Deposition date deposition_date	1998-06-23
Structure title title	DIPHTHERIA TOX REPRESSOR (C102D MUTANT)/TOX DNA OPERATOR COMPLEX
Keywords keywords	;COMPLEX (REGULATORY PROTEIN-DNA), DIPHTHERIA TOX REPRESSOR, TRANSCRIPTION REGULATION, DNA-BINDING REGULATORY PROTEIN, IRON-REGULATED REPRESSOR, DNA- PROTEIN, DNA-REPRESSOR COMPLEX, GENE REGULATION-DNA COMPLEX ;; GENE REGULATION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ddn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

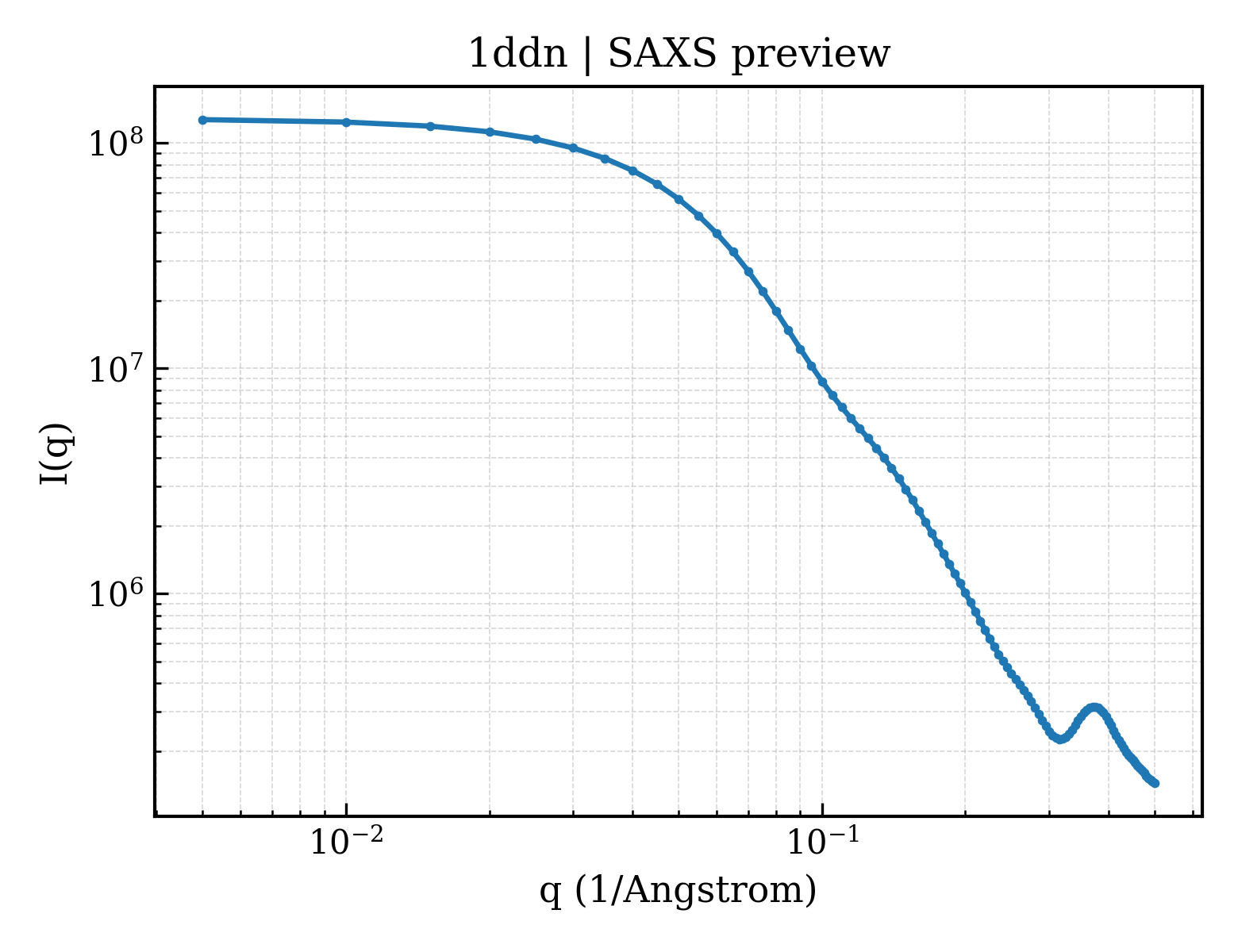

1ddn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

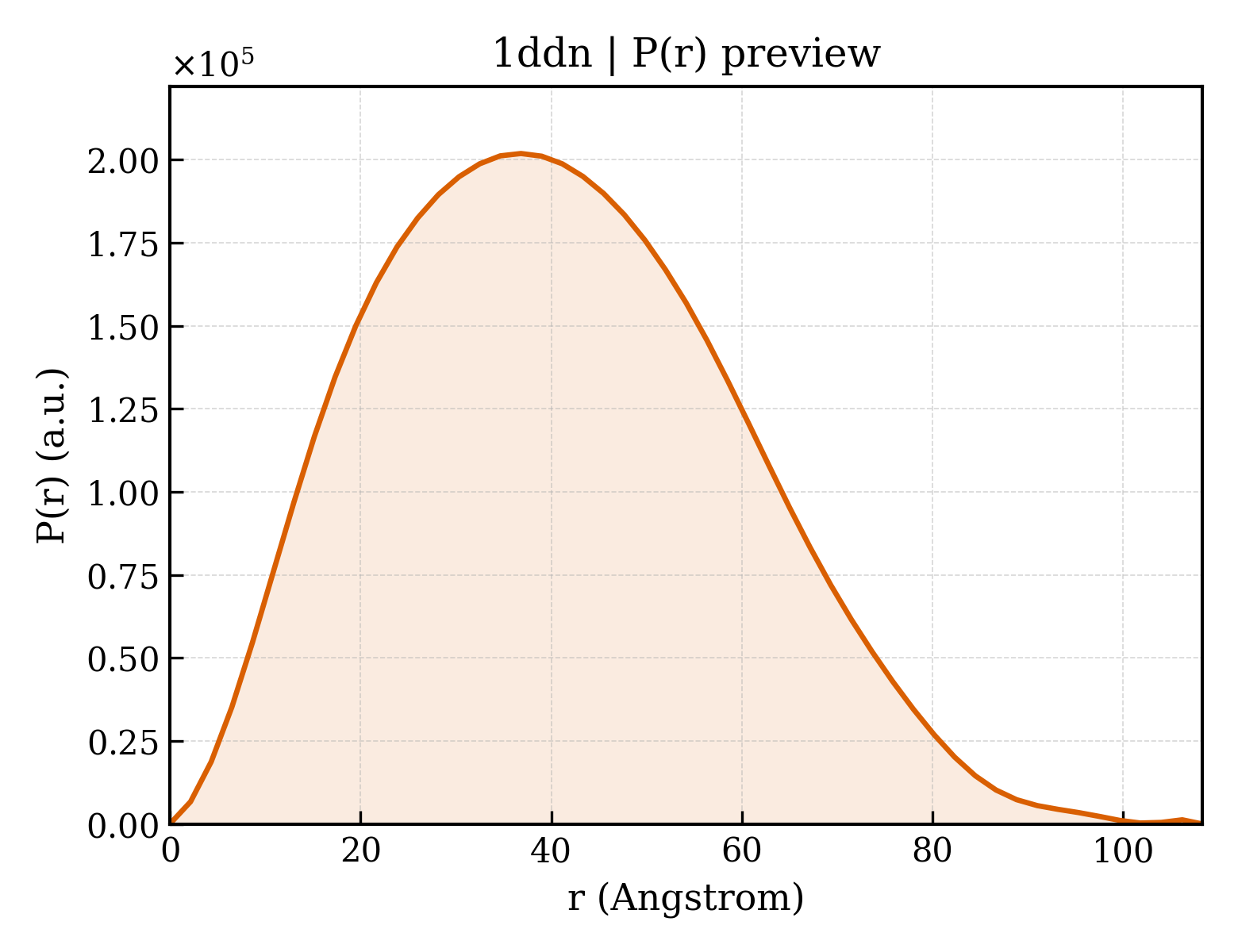

1ddn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.50 Å
Rg (electron density)	31.21 Å
Total Rg	31.68 Å
Atom count	5131
Residues	538
Excluded volume	87080 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ddn__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	33 BASE DNA CONTAINING TOXIN OPERATOR
Molecular weight formula_weight	10131.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E
Atom count atom_count	5135

ATATAATTAGGATAGCTTTACCTAATTATTTTA

Entity 2 Entity 2 polymer

Description description	33 BASE DNA CONTAINING TOXIN OPERATOR
Molecular weight formula_weight	10158.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F

TTAAAATAATTAGGTAAAGCTATCCTAATTATA

Entity 3 Entity 3 polymer

Description description	DIPHTHERIA TOX REPRESSOR
Molecular weight formula_weight	25361.7 kDa
Mutation mutation	C102D
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D

MKDLVDTTEMYLRTIYELEEEGVTPLRARIAERLEQSGPTVSQTVARMERDGLVVVASDRSLQMTPTGRTLATAVMRKHRLAERLLTDIIGLDINKVHDEADRWEHVMSDEVERRLVKVLKDVSRSPFGNPIPGLDELGVGNSDAAAPGTRVIDAATSMPRKVRIVQINEIFQVETDQFTQLLDADIRVGSEVEIVDRDGHITLSHNGKDVELLDDLAHTIRIEEL

Source Source

Source organism organism	Corynebacterium diphtheriae
NCBI taxonomy ID ncbi_taxonomy_id	1717
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1ddna1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d1ddna2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

Domain ID domain_id	d1ddnb1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d1ddnb2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

Domain ID domain_id	d1ddnc1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d1ddnc2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

Domain ID domain_id	d1ddnd1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d1ddnd2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

CATH v4.4 (8 domains)

Domain ID domain_id	1ddnA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1ddnA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

Domain ID domain_id	1ddnB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1ddnB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

Domain ID domain_id	1ddnC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1ddnC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

Domain ID domain_id	1ddnD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1ddnD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

▶

Unit-cell length a length_a	117.050 Å
Unit-cell length b length_b	117.050 Å
Unit-cell length c length_c	145.340 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.2400
R_free r_free	0.2800
